Product Description
Festo CPE14-M1BH-5/3E-1/8 Air Solenoid Valve, 1:3...8 Bar-Valve Function: 5/3, exhausted
-Width: 14 mm
-Standard Nominal Flow Rate: 700 l/min
-Pneumatic Working Port: G1/8
-Operating Voltage: 24V DC
-Operating Pressure: 0.3MPa...0.8MPa , 3-8 Bar
-Structural Design: Piston Gate Valve
-Degree of Protection: IP65 with plug socket as per IEC 60529
-Nominal Width: 6 mm
-Pilot-Controlled
-Switching Time Off: 42 ms
-On Switching Time: 20 ms
-Coil Characteristics: 24V DC: 1.28W
-Ambient Temperature: -5°C...50°C

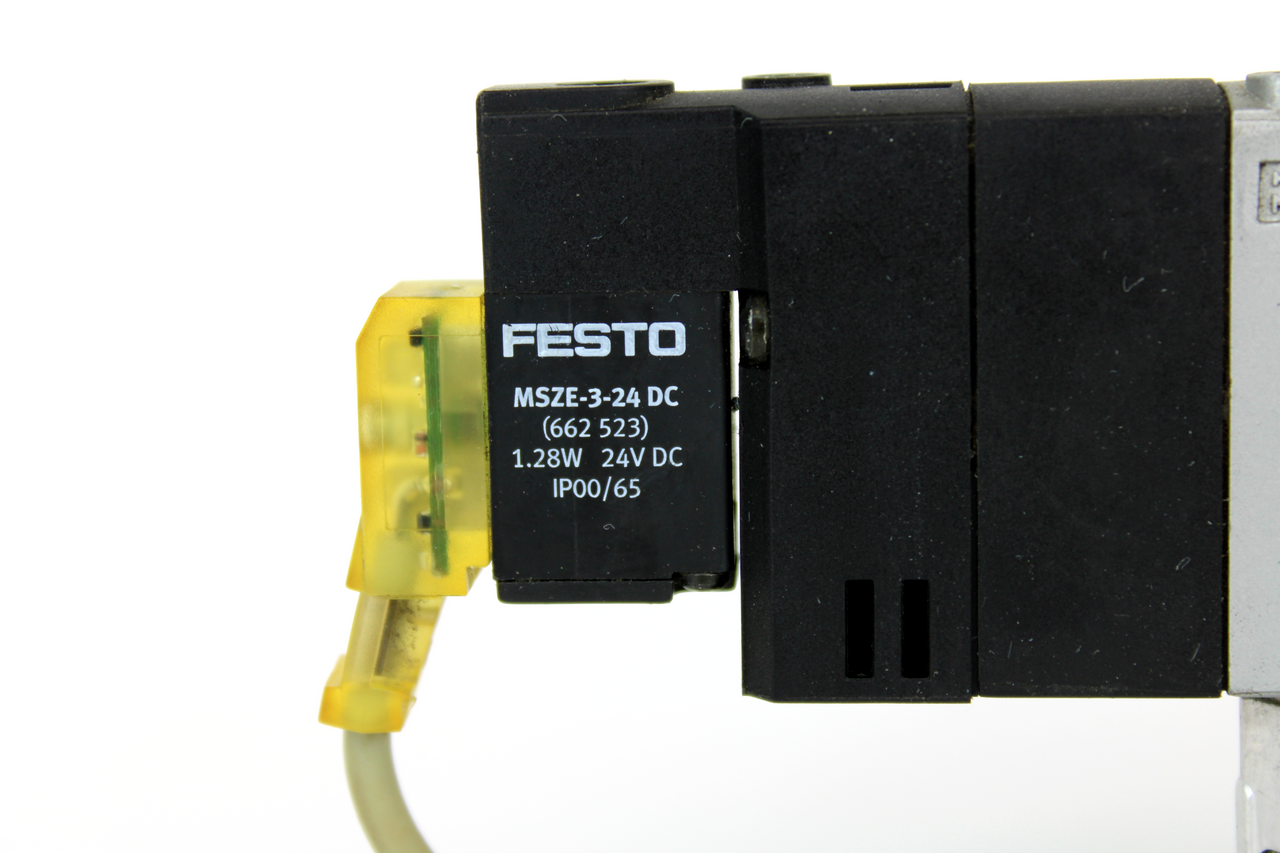

-With (2) Festo MSZE-3-24 DC Pneumatic Coil, 24V DC, IP00/65
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Air Solenoid Valve
MPN CPE14-M1BH-5/3E-1/8
Model CPE14-M1BH-5/3E-1/8
Part Number CPE14-M1BH-5/3E-1/8
Manufacturer Festo
Shelf A-15 Tub 1
