Product Description

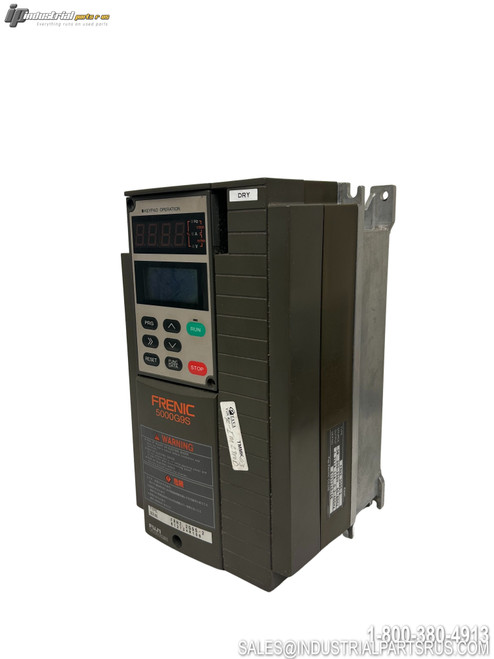

The Fuji Electric FRN2.2G9S-2 is a high-performance variable frequency drive from the FRENIC 5000 G11S series designed for general industrial applications. This inverter provides precise motor control with advanced features including 150% overload capability, RS-485 communication, and adjustable frequency control up to 400Hz.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model/Part Number | FRN2.2G9S-2 |
| Series | FRENIC 5000 G11S |
| Rated Power | 2.2kW |
| Input Voltage | 380-480VAC |
| Output Voltage | 380-460VAC |
| Input Current | 9.2A |
| Output Current | 5.5A |
| Phase | 3 Phase |
| Frequency Range | 50/60Hz input, 1-400Hz output |
| Communication | RS-485 |
| Weight | 4.2kg |
| Overload Capability | 150% for 1 minute, 200% for 0.5 seconds |
| Application | General industrial machines |
| Protective Structure | Standard type |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Fuji Electric
Enclosure Type Standard type
Part Number FRN2.2G9S-2
Shelf K-30
Input Voltage 380-480VAC
Model FRN2.2G9S-2
MPN FRN2.2G9S-2
Type VFD
