Product Description

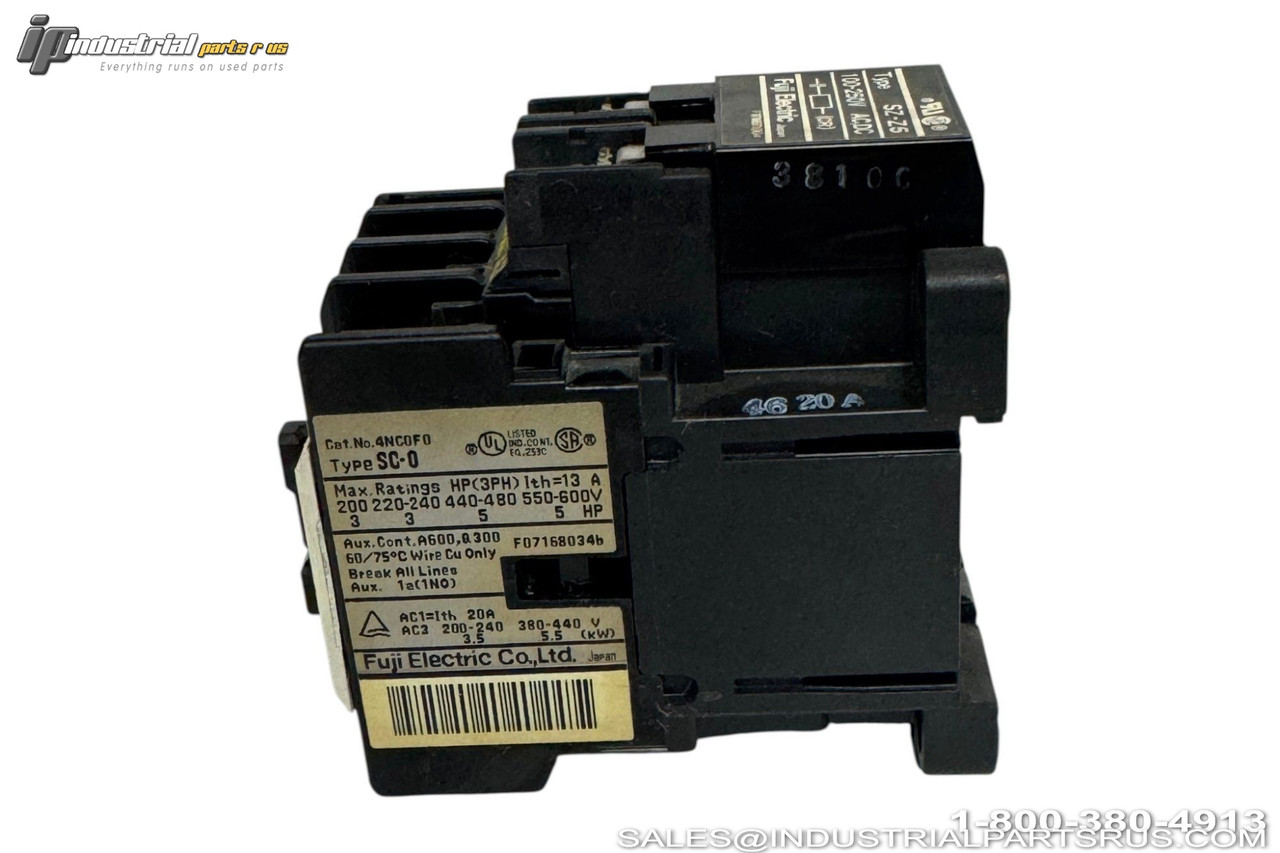

The Fuji Electric SC-0 is a magnetic contactor designed for motor control and power switching applications. This Type SC-0 contactor features a 13A continuous current rating with versatile voltage capabilities for various industrial motor control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji |
| Model/Part Number | SC-0 |
| Product Type | Magnetic Contactor |
| Current Rating | 13A |
| Phase | 3 Phase |
| Voltage Range | 200-600V AC |
| AC1 Rating | 20A |
| AC3 Rating (200-240V) | 3.5kW |
| AC3 Rating (380-440V) | 5.5kW |
| Motor HP (200V) | 3HP |
| Motor HP (220-240V) | 3HP |
| Motor HP (440-480V) | 5HP |
| Motor HP (550-600V) | 5HP |
| Frame Size | Small Frame |
| Auxiliary Contacts | Available (Snap-on) |
| Optional Accessories | Auxiliary contact blocks, coil surge suppressors |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Standard Panel Mount
Current Rating 13A
Material Thermoplastic Housing
Full Load Amps 13A
Manufacturer Fuji
Part Number SC-0
Series SC
Shelf C-19
Model SC-0
Coil Voltage 220V AC
Horsepower 5 HP
MPN SC-0
Type Contactor
