Product Description

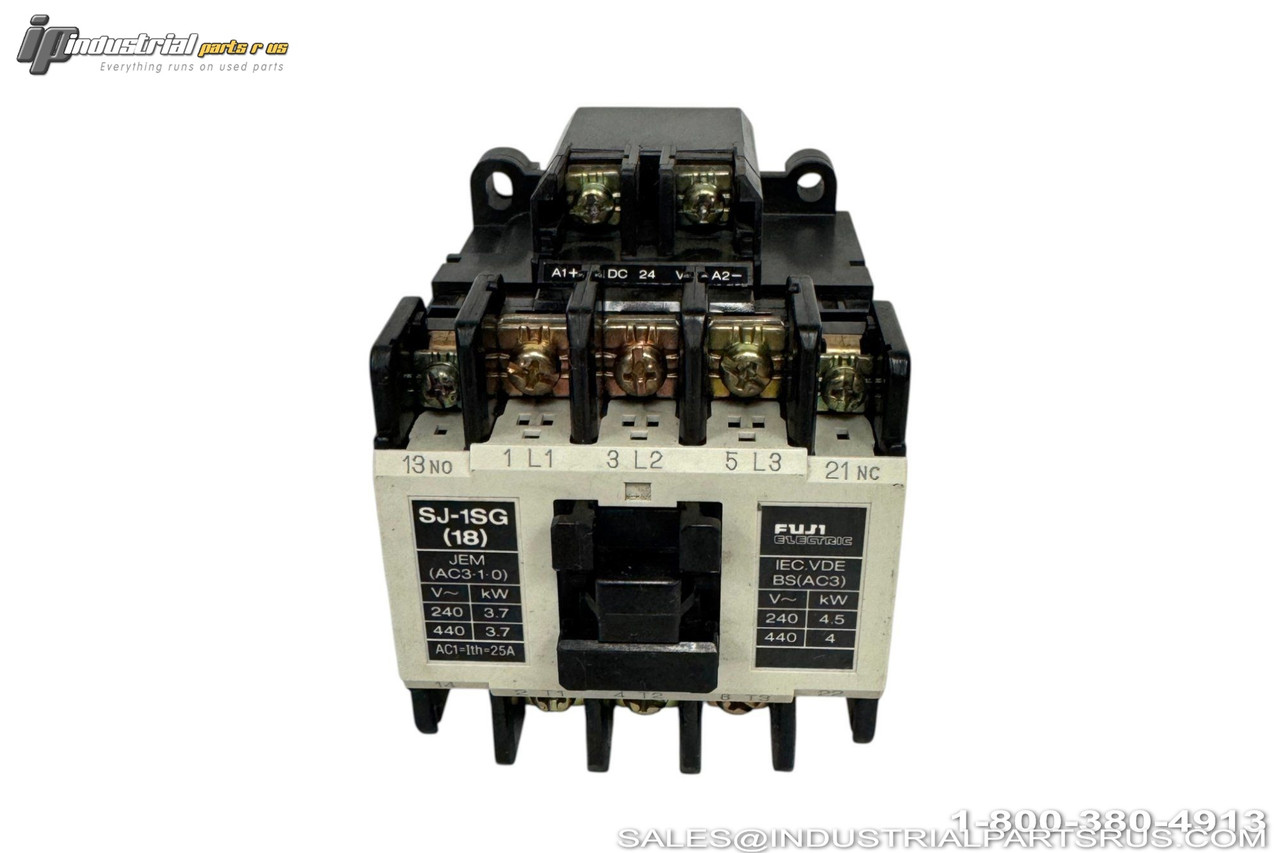

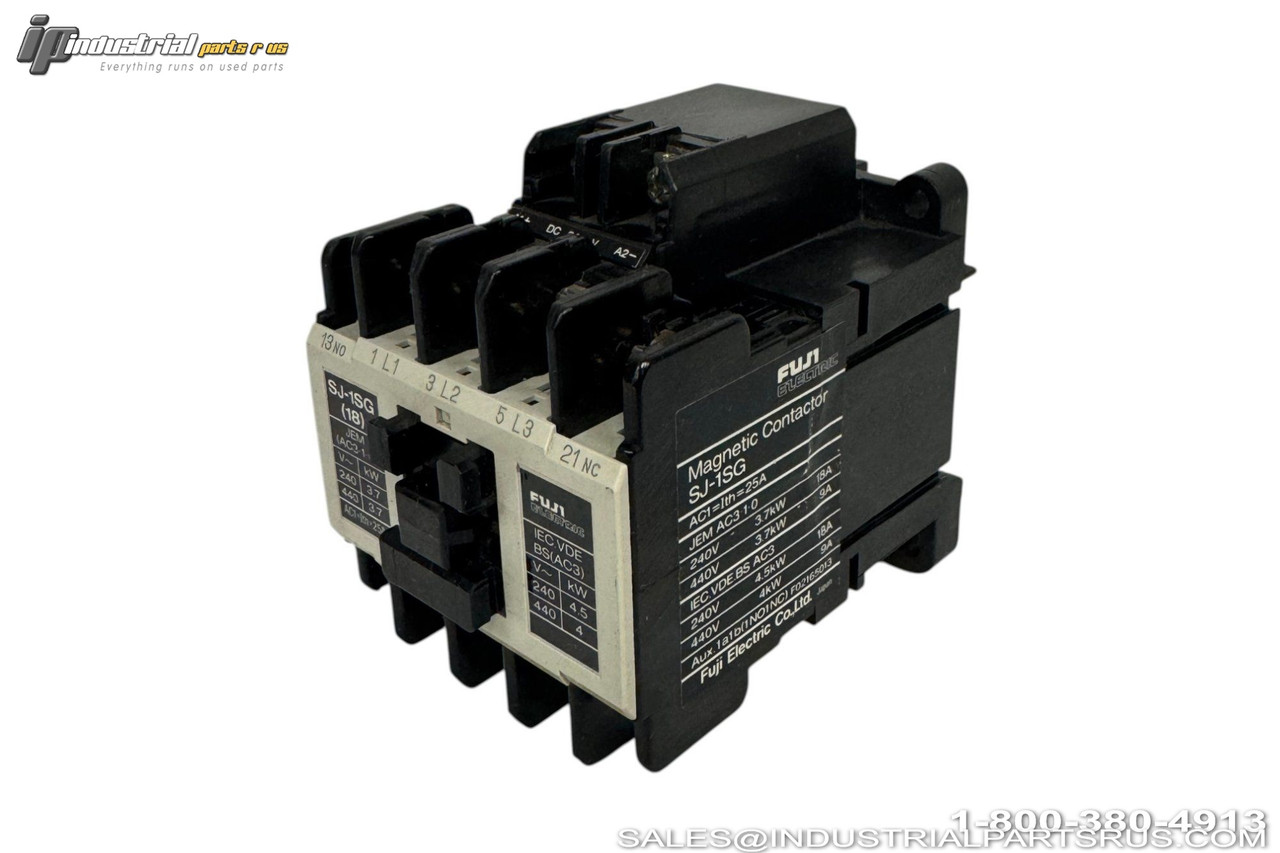

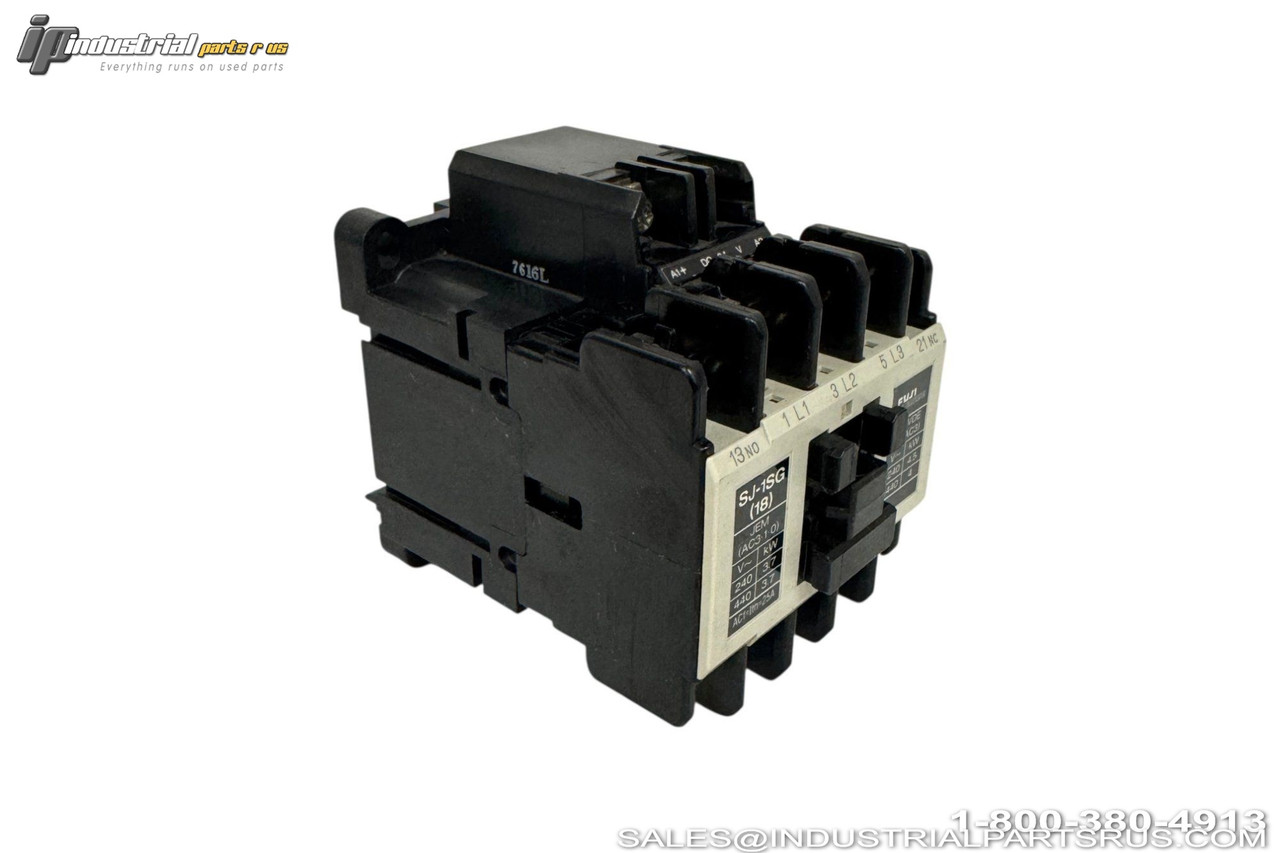

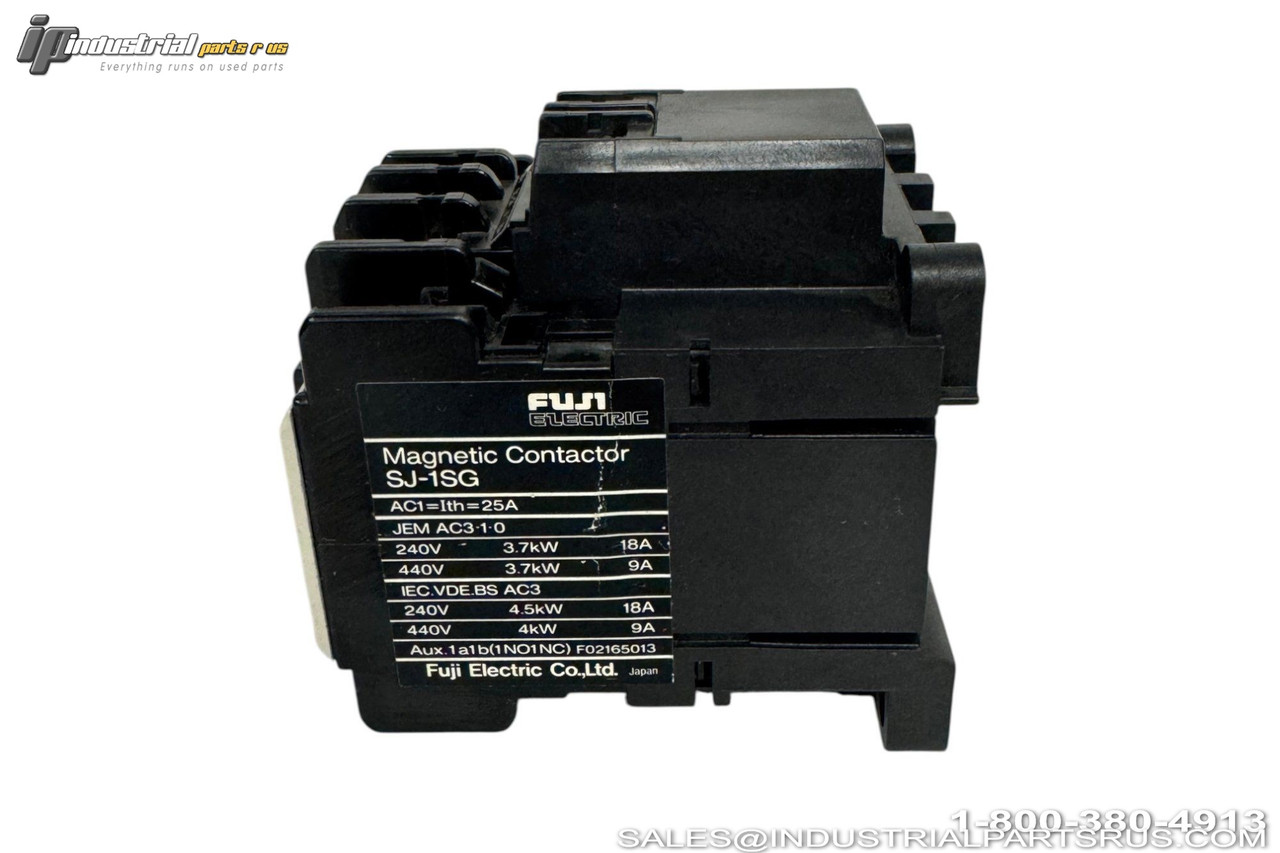

The Fuji Electric SJ-1SG is a high-sensitivity DC operated magnetic contactor designed for semiconductor output compatibility. This discontinued model features low power consumption and can directly interface with PLC transistor outputs without requiring interface relays.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model/Part Number | SJ-1SG |
| Product Type | DC Operated Magnetic Contactor |
| Coil Voltage | 24VDC |
| Continuous Current | 25A |
| Motor Capacity 220-240V | 4.5kW / 18A |
| Motor Capacity 380-440V | 4kW / 9A |
| Auxiliary Contacts | 2NO, 1NO+1NC |
| Rated Isolation Voltage | 500V AC |
| Power Consumption | 2.4W |
| Mounting | DIN Rail / Screw Mount |
| Standards Compliance | EN60947-4-1, IEC60947-4-1 |
| Frame Size | 1SG |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail/Screw Mount
Current Rating 25A
Material Silver Alloy
Manufacturer Fuji Electric
Enclosure Type Open Type
Part Number SJ-1SG
Series SJ
Shelf K-3
Model SJ-1SG
Coil Voltage 24VDC
Horsepower 6 HP
MPN SJ-1SG
Type Contactor
