Product Description

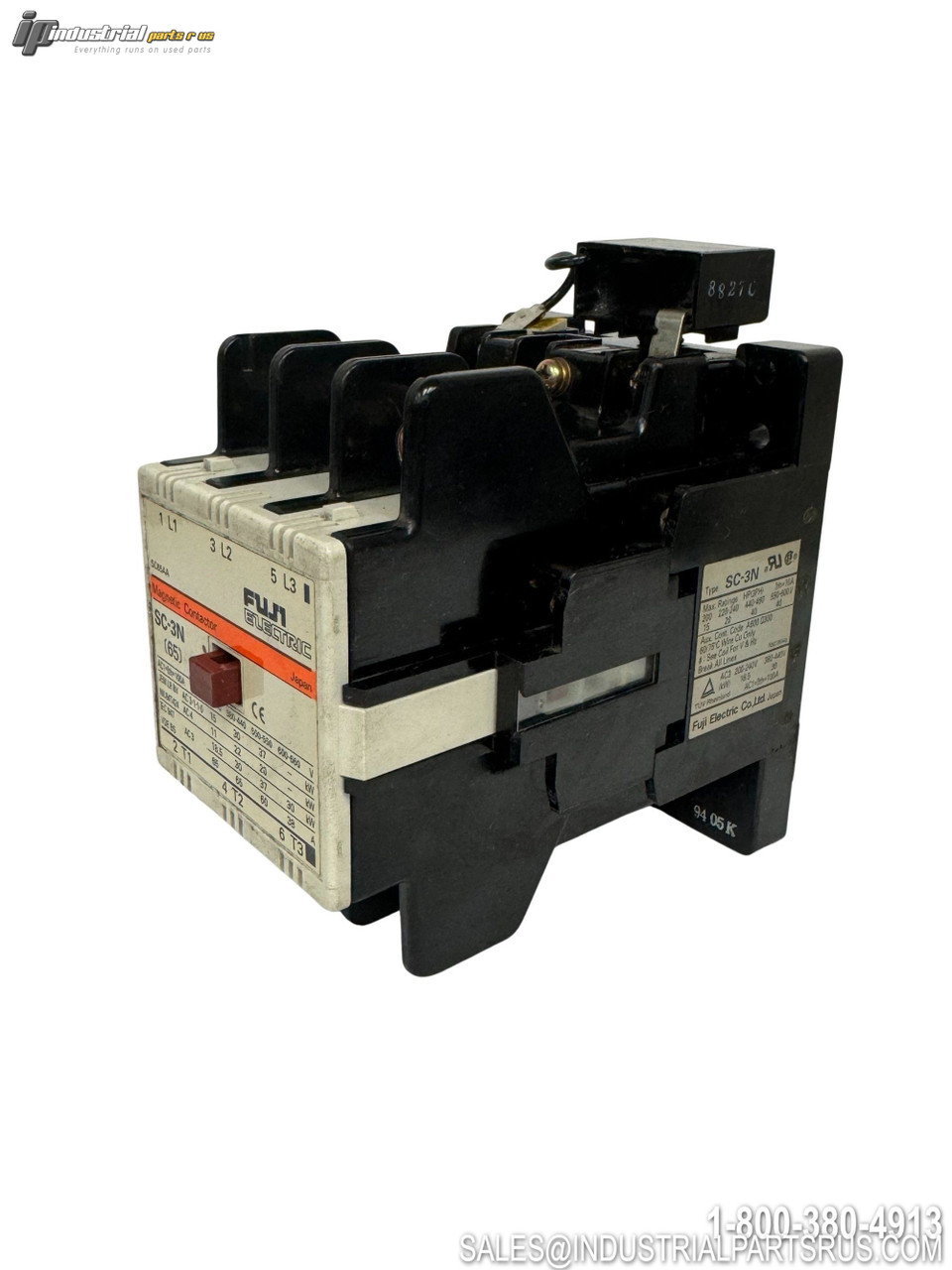

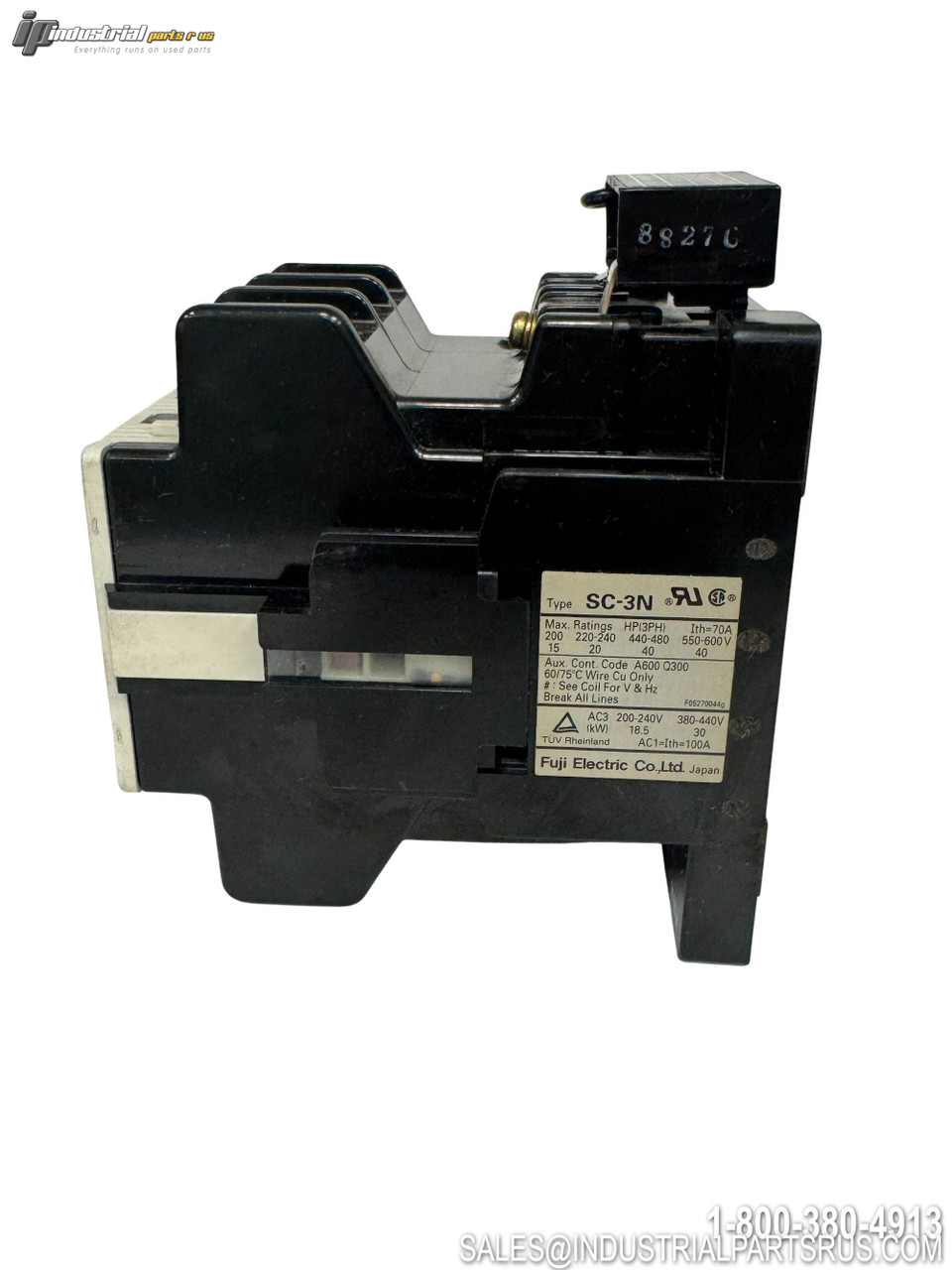

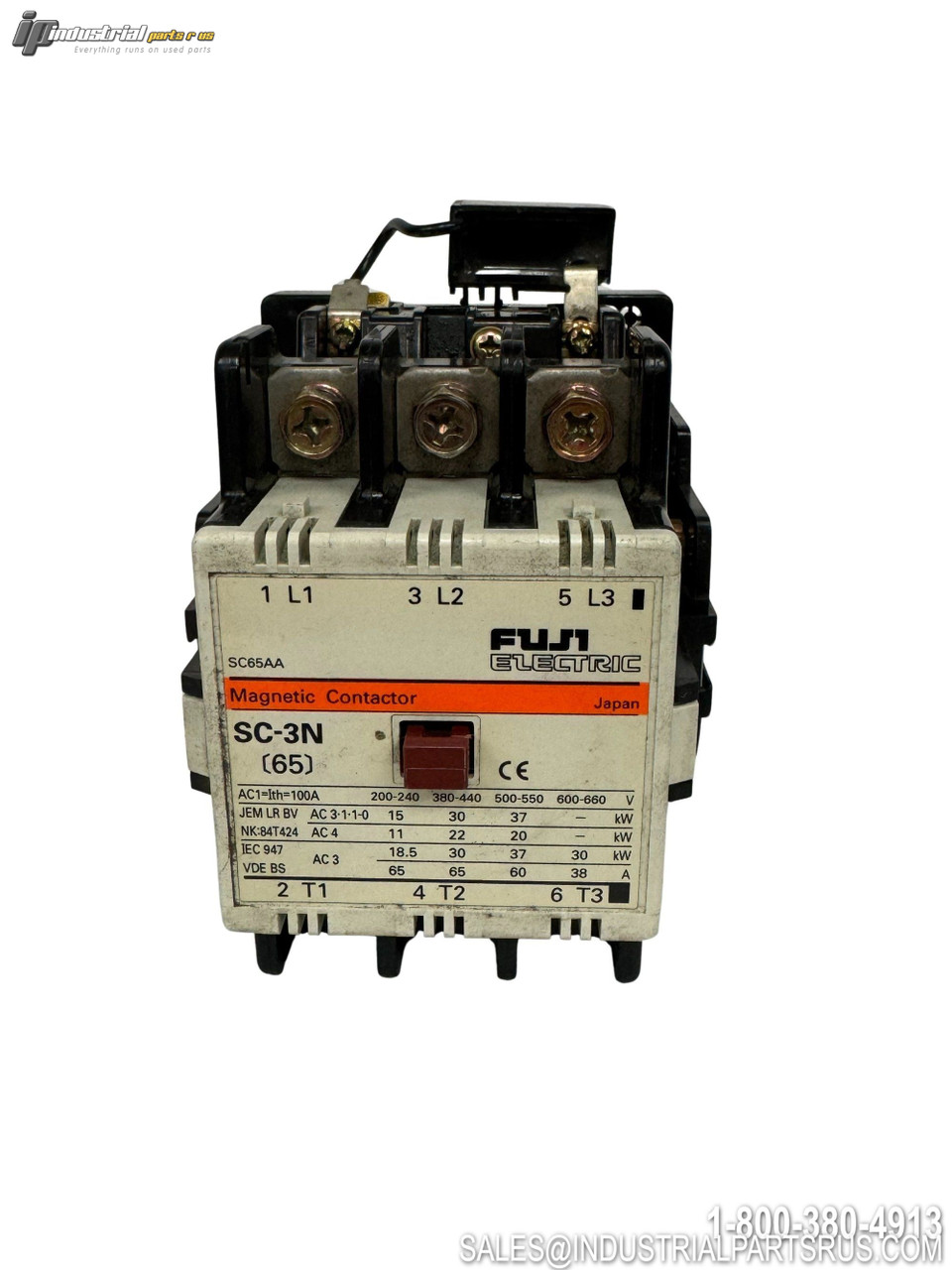

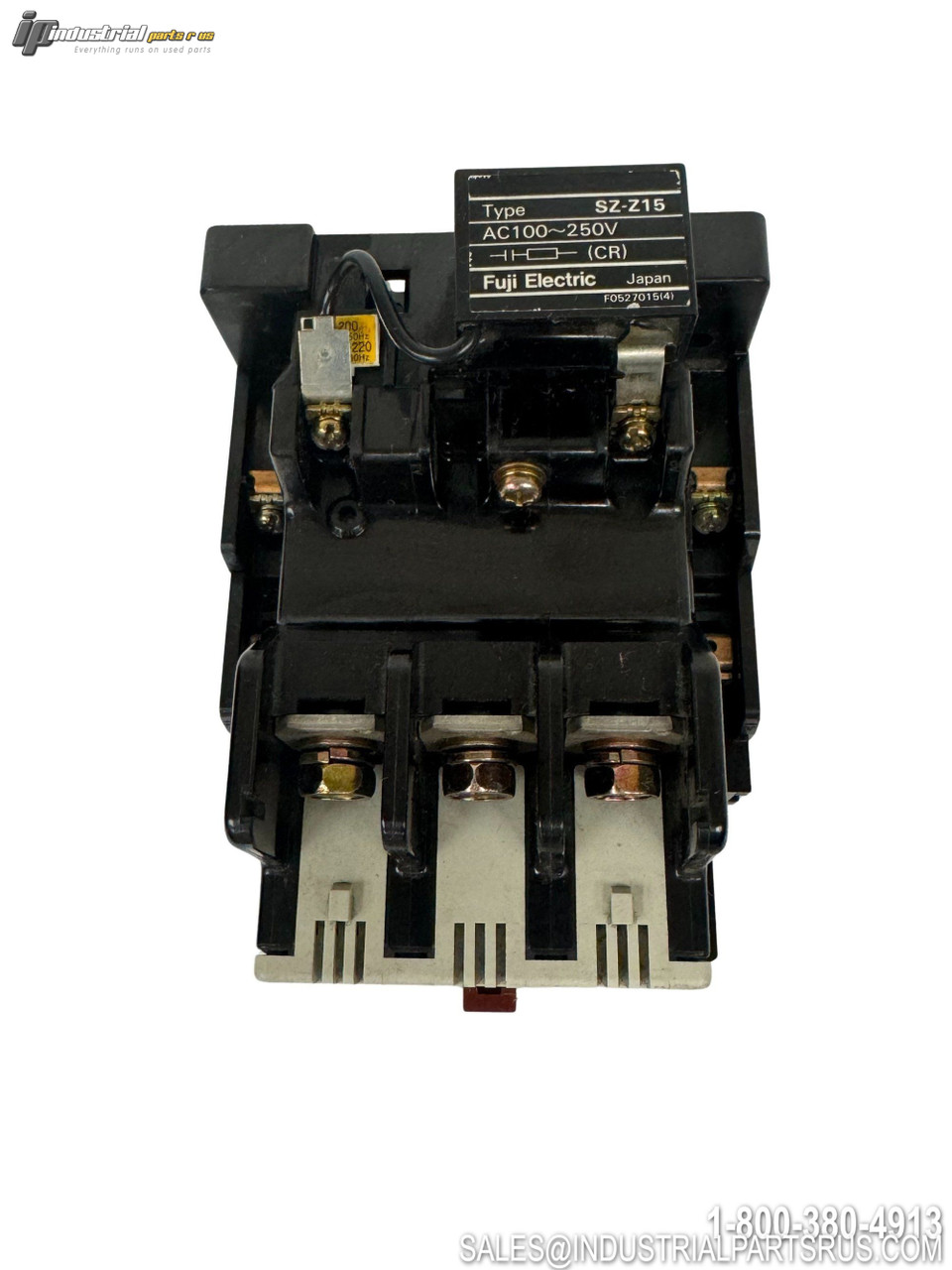

The FUJI SC-N3 is a 3-pole magnetic contactor designed for industrial motor control applications. This contactor features a 100A thermal current rating, 65A operational current at 440VAC, and auxiliary contact configurations. It is part of FUJI's SC series of high-performance contactors with compact design and reliable operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | FUJI |
| Model/Part Number | SC-3N |
| Product Type | Magnetic Contactor |
| Frame Size | N3 |
| Number of Poles | 3 |
| Thermal Current (Ith) | 100A |
| Operational Current AC-3 200-240V | 65A |
| Operational Current AC-3 380-440V | 65A |
| Operational Current AC-3 500-550V | 60A |
| Operational Current AC-3 600-660V | 38A |
| Motor Capacity 200-240V | 18.5kW |
| Motor Capacity 380-440V | 30kW |
| Motor Capacity 500-550V | 37kW |
| Motor Capacity 600-660V | 30kW |
| Auxiliary Contacts | 2NO+2NC standard |
| Contact Configuration | 3PDT-NO |
| Current Type | AC |
| IEC Standard | IEC 60947-4-1 |
| Series | SC |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 100A
Material Silver Contacts, Thermoplastic Housing
Full Load Amps 100A
Manufacturer Fuji
Part Number SC-3N
Series SC
Shelf C-11
Model SC-3N
Coil Voltage 380-440VAC
Horsepower 25 HP
MPN SC-3N
Type Contactor
