Product Description

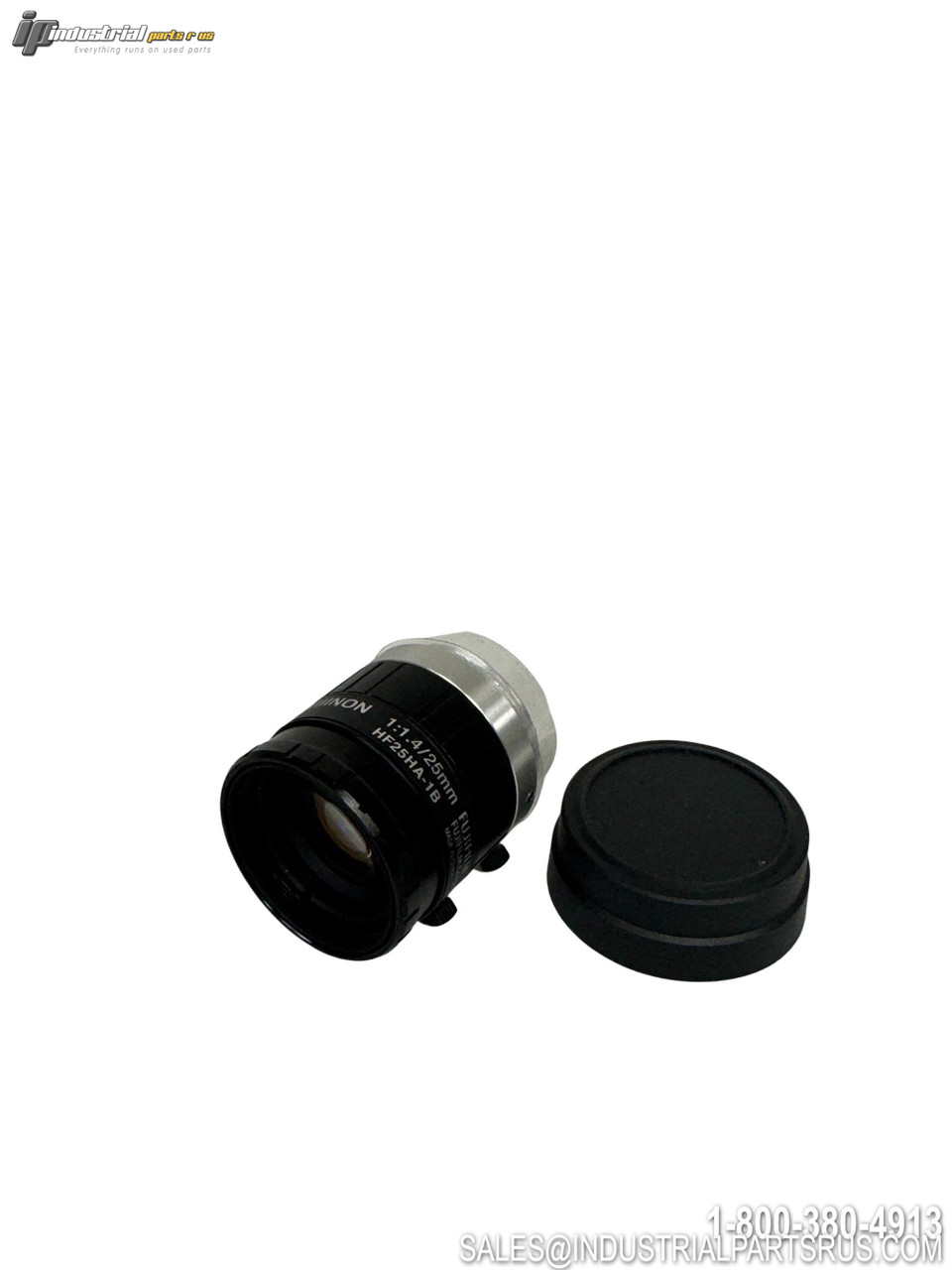

The Fujinon HF25HA-1B is a high-resolution fixed focal length machine vision lens designed for factory automation and industrial imaging applications. This 25mm lens supports up to 1.5 megapixel cameras and features low distortion design for accurate image input. The lens includes focus and iris lock tabs to support environments with vibration, making it ideal for industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fujinon |
| Model/Part Number | HF25HA-1B |
| Lens Type | Fixed Focal Length |
| Focal Length | 25mm |
| Iris Range | F1.4 ~ F22 |
| Sensor Size | 2/3" |
| Megapixel Rating | 1.5 Megapixel |
| Mount Type | C-Mount |
| Focus Type | Manual |
| Iris Type | Manual |
| Back Focal Distance | 14.58mm (in air) |
| Exit Pupil Position | -32.4mm (from image plane) |
| Filter Thread | M25.5 x 0.5 |
| Weight | 45g |
| Minimum Object Distance | 0.15m |
| Angle of View (2/3") | 19°58' x 15°02' |
| Angle of View (1/2") | 14°35' x 10°58' |
| Angle of View (1/3") | 10°58' x 8°14' |
| Application | Machine Vision / Factory Automation |
| Status | Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Fujinon
Part Number HF25HA-1B
Shelf K-46
Model HF25HA-1B
MPN HF25HA-1B
Type Vision Sensor
