Product Description

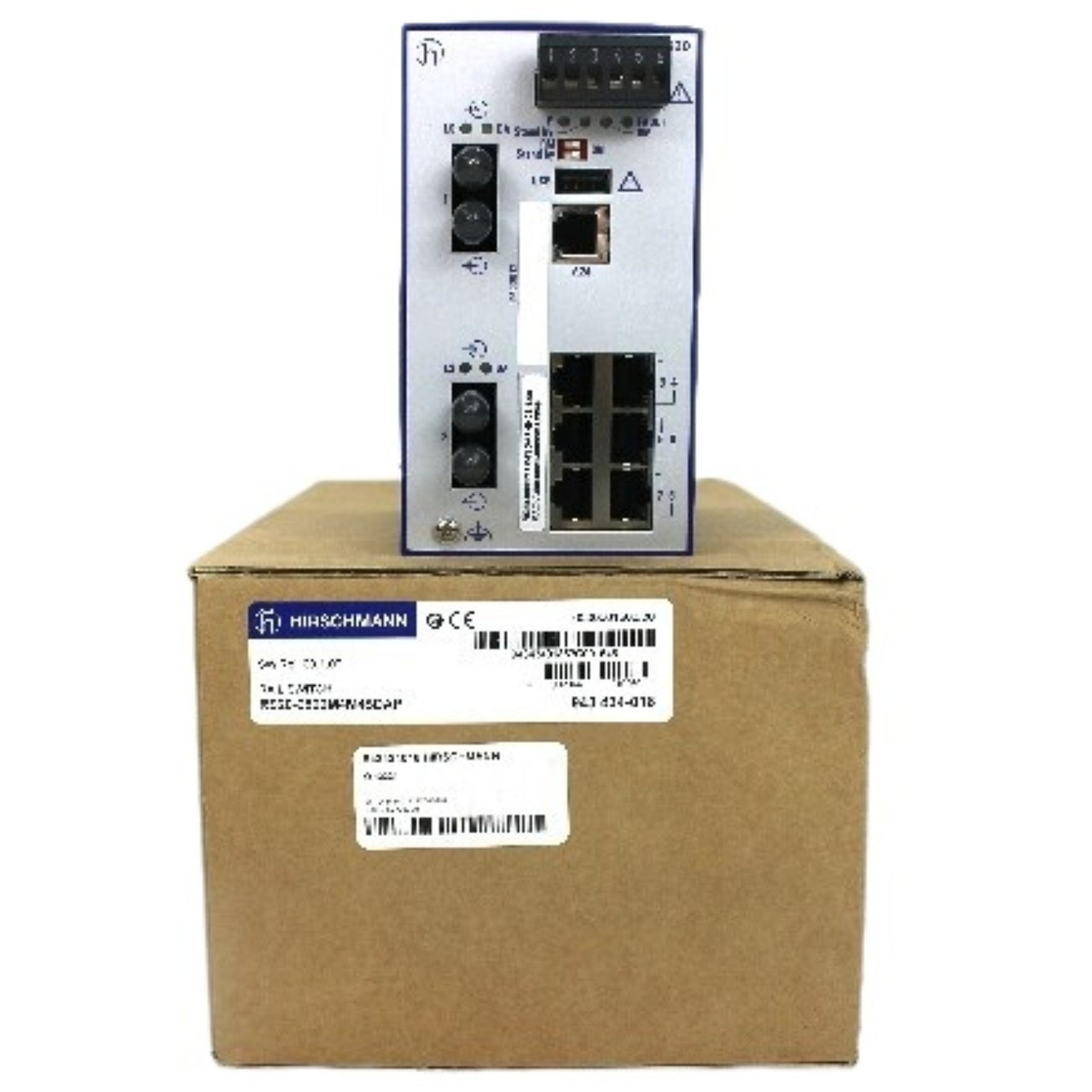

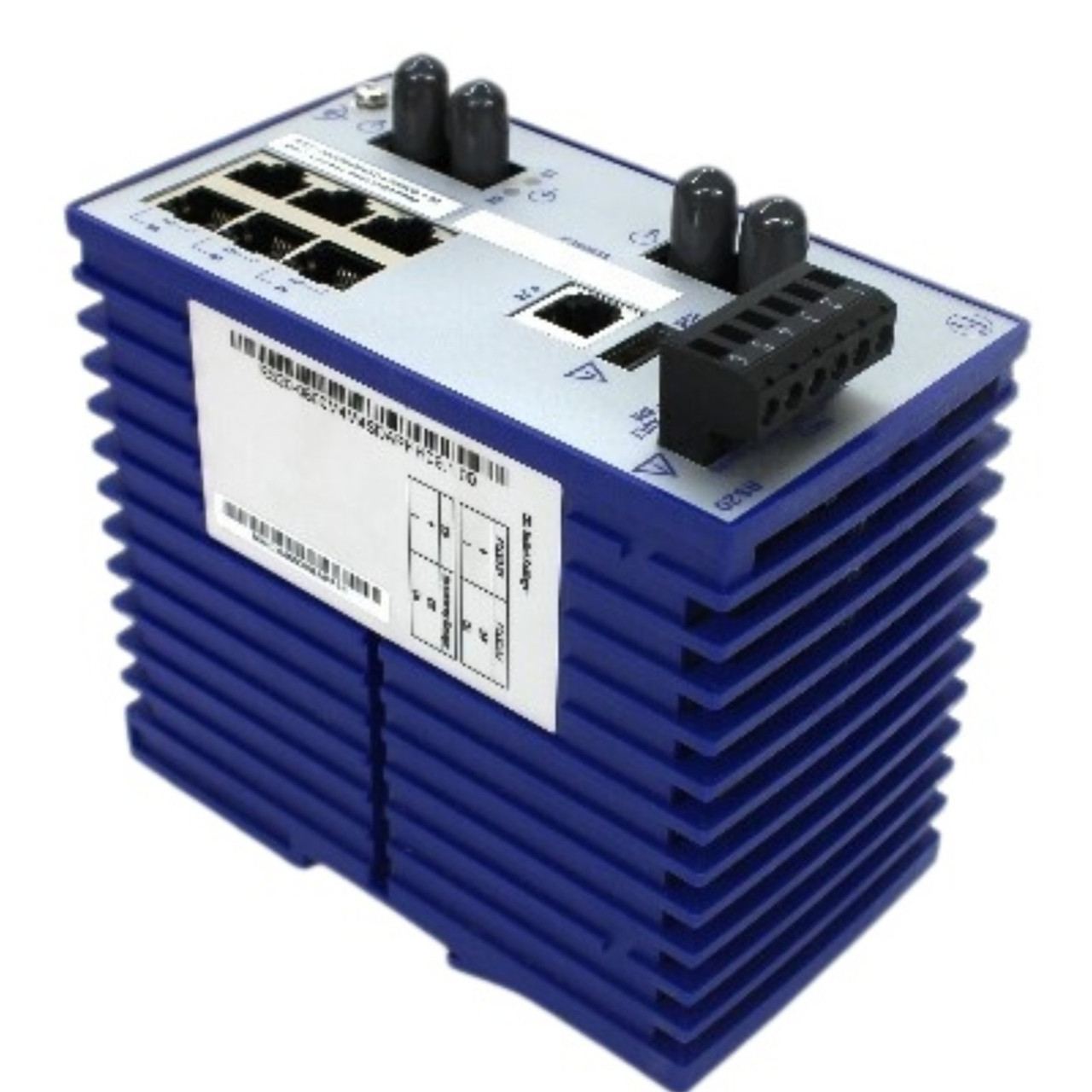

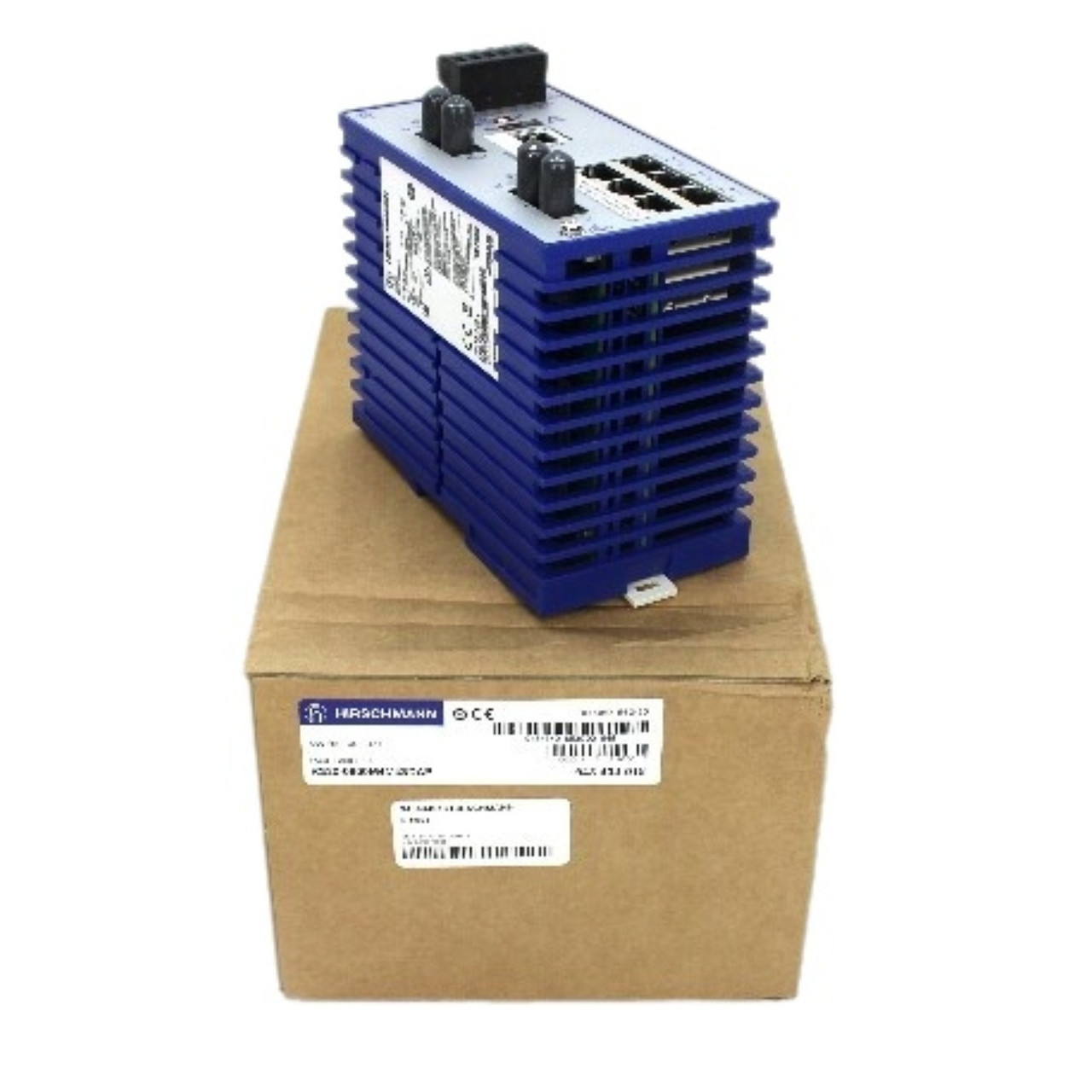

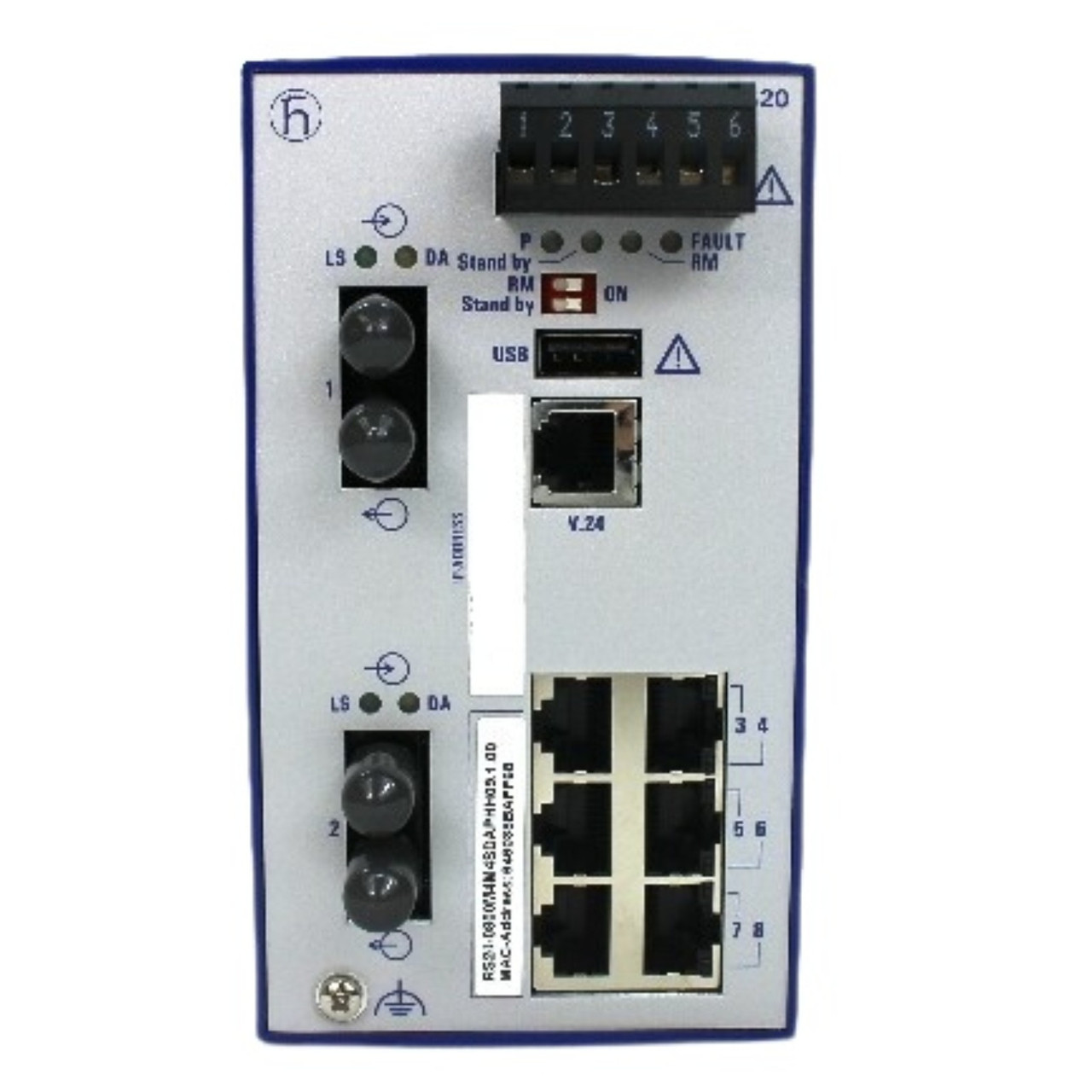

The Hirschmann RS20-0800M4M4SDAP is a compact managed industrial Ethernet switch designed for DIN rail mounting in harsh industrial environments. This 8-port switch provides 6 RJ45 10/100 Mbps host ports and 2 ST multimode fiber uplink ports, supporting comprehensive layer 2 management features including VLAN, port mirroring, and redundancy protocols.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hirschmann |
| Model/Part Number | RS20-0800M4M4SDAP |
| Order Number | 943 434-018 |
| Product Line | RS20 |
| Total Ports | 8 |
| RJ45 Ports | 6 x 10/100 Mbps |
| Fiber Uplink Ports | 2 x 100 Mbps ST |
| Interface | RJ45, ST Fiber |
| Connector Type | RJ45, ST |
| Ethernet Technology | Fast Ethernet |
| Maximum Data Transfer Rate | 100 Mbps |
| Fiber Type | Multimode |
| Network Connectivity | Wired |
| Network Type | Industrial Ethernet |
| Input Voltage DC | 9.6-60 VDC |
| Input Voltage AC | 18-30 VAC 50/60 Hz |
| Input Current DC | 0.8-0.2 A |
| Input Current AC | 0.5-0.3 A |
| Power Consumption | 7.7 Watts maximum |
| Dimensions | 74 x 131 x 111 mm |
| IP Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | DIN Rail |
| Management Type | Managed |
| Layer Support | Layer 2 |
| Switching Method | Store-and-Forward |
| Fanless Design | Yes |
| Country of Origin | Germany |
We warranty all items for 30 days from date of purchase.
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 721814235289
Country/Region of Manufacture Germany
Manufacturer Hirschmann
Part Number RS20-0800M4M4SDAP
Shelf D-1
Model RS20-0800M4M4SDAP
MPN RS20-0800M4M4SDAP
Type Rail Switch
