Product Description

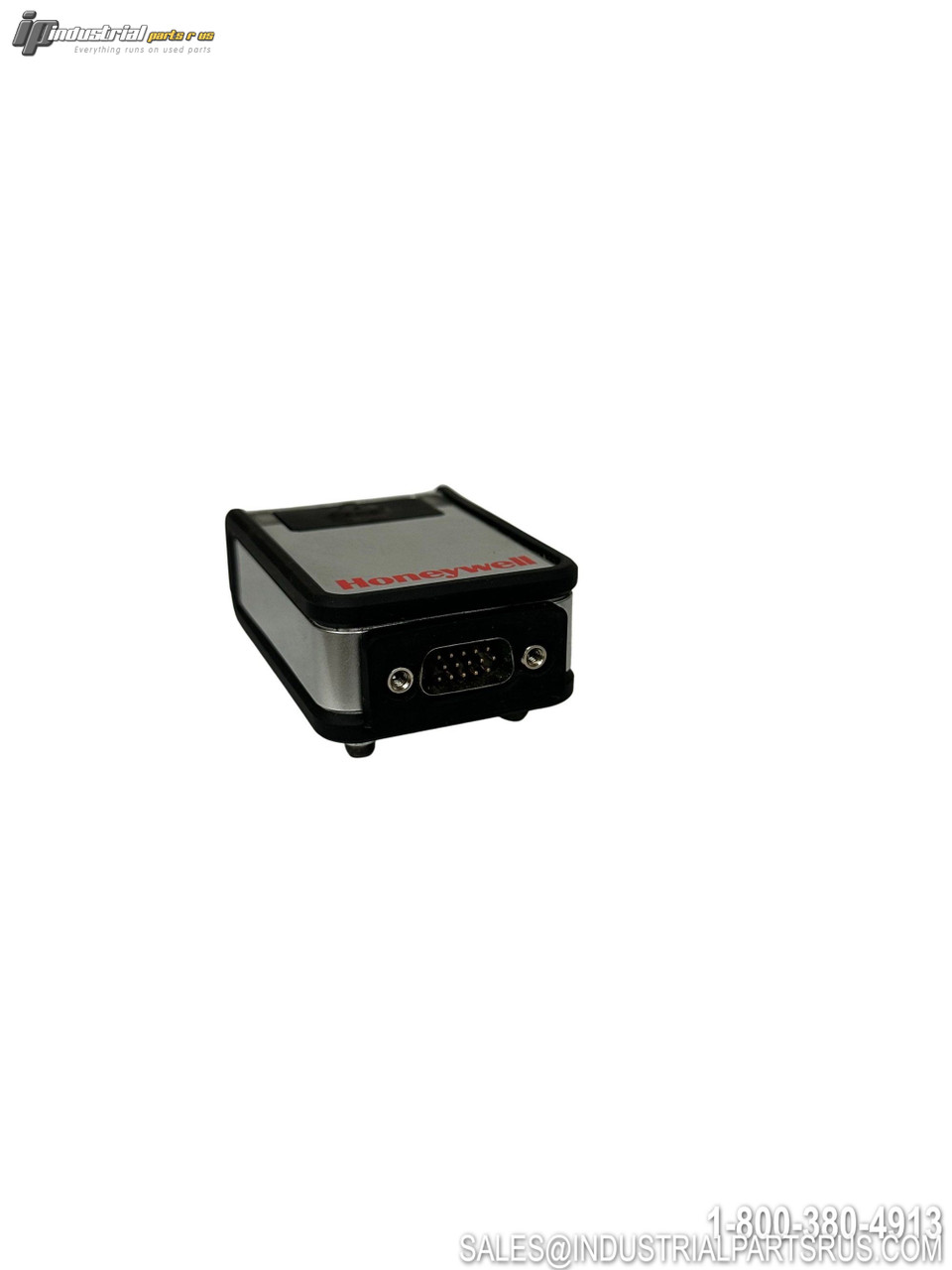

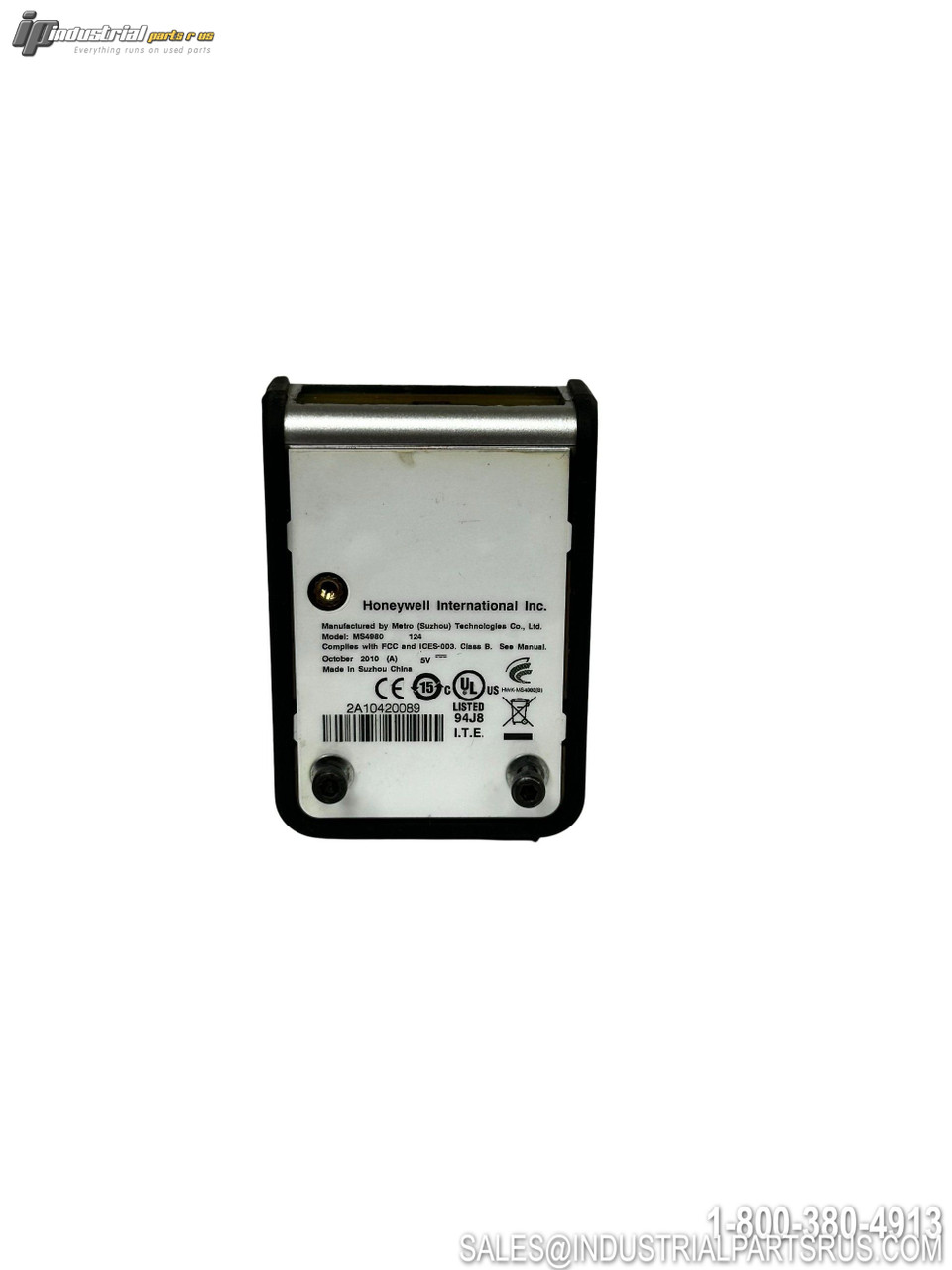

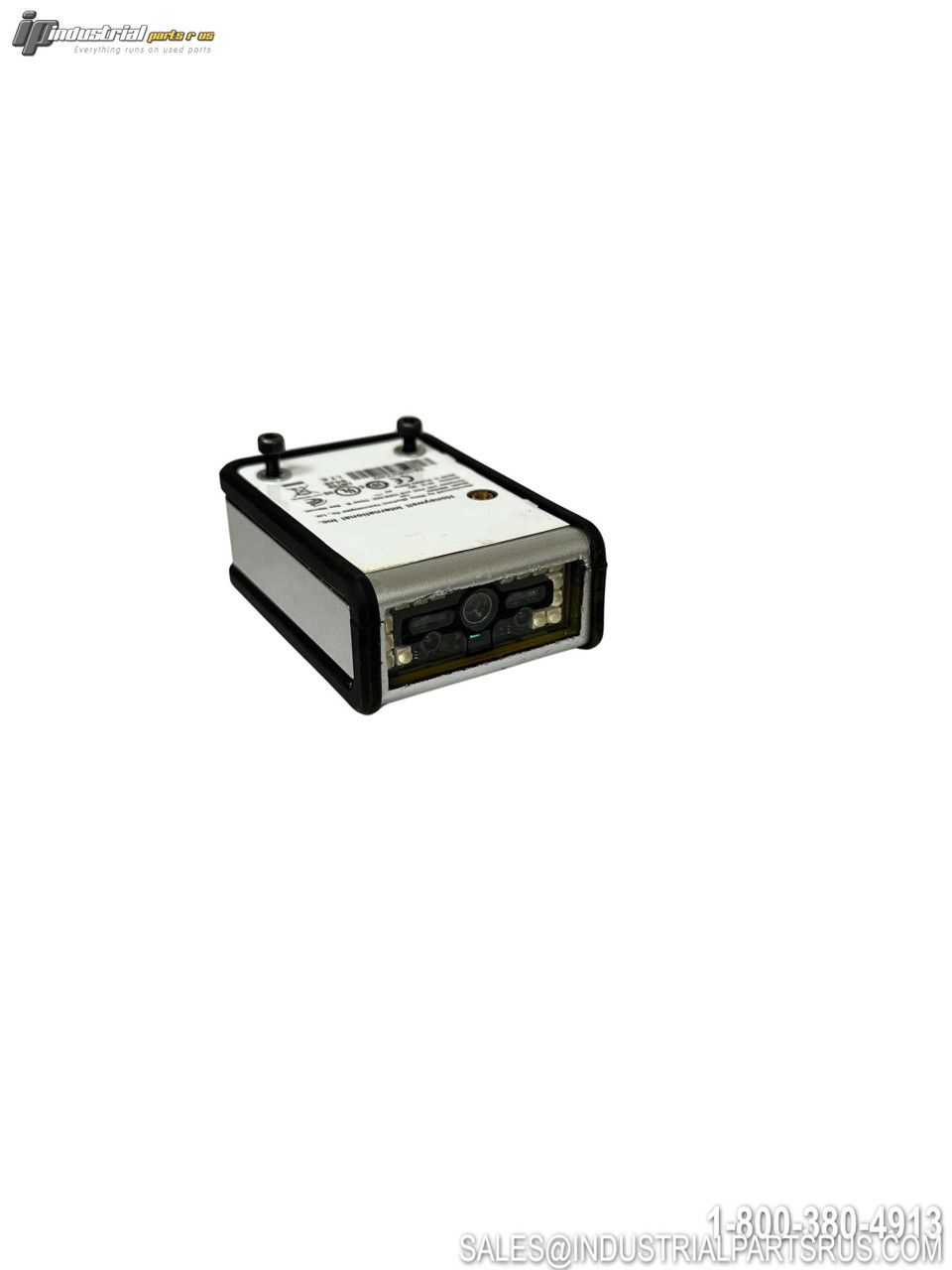

The Honeywell MS4980 VuQuest is a compact area-imaging barcode scanner designed for aggressive scanning of all 1D, PDF417, and 2D barcodes in a lightweight, durable, and portable form factor. Honeywell's MS4980 compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D bar codes in a lightweight, durable and portable form factor. A 1.2 mega-pixel CMOS sensor allows the scanner to capture high resolution images of signatures, identification cards and personal checks.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Honeywell |
| Model/Part Number | MS4980 |
| Product Series | VuQuest |
| Scanner Type | Area-Imaging Scanner |
| Sensor Type | CMOS |
| Sensor Resolution | 1.2 Megapixel (1280 pixels) |
| Barcode Support | 1D, 2D, PDF417 |
| Dimensions (LxWxH) | 74 x 50 x 26 mm (2.9" x 1.9" x 1.0") |
| Weight | 70 g (2.5 oz) |
| Input Voltage | 5 VDC ± 0.25 V |
| Operating Power | 1.7 W |
| Standby Power | 1.2 W |
| Scan Range | 11 inches |
| Connection Type | 15-POS D-Sub connector |
| Interfaces | USB, RS232, Keyboard Wedge |
| IP Rating | IP54 |
| Features | CodeGate Technology, IR Object Detection, Image Capture |
| Drop Rating | 1.5m (5 ft) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686345
Sensor Type CMOS
Manufacturer Honeywell
Part Number MS4980
Series VuQuest
Shelf E-12 TUB 1
Model MS4980
MPN MS4980
Type Barcode Scanner
