Product Description

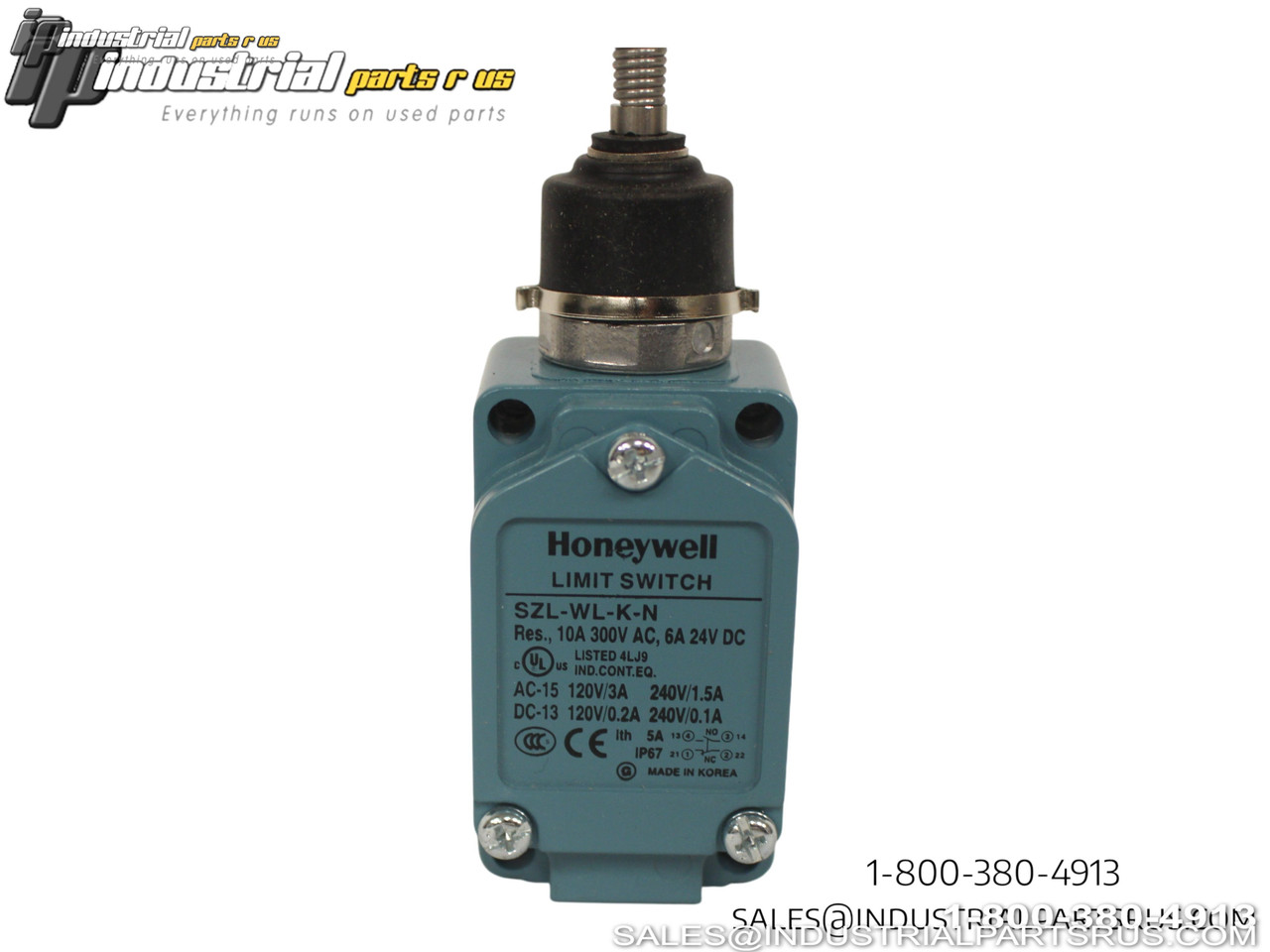

The SZL-WL-K-N is a single-pole double-throw (SPDT) general purpose Limit Switch with wobble-coil spring actuator and 1/2-inch NPT conduit. The MICRO SWITCH™ switch is cost effective switch that may be used in a wide range of applications from general purpose conveyors to heavy-duty machinery. Rugged and reliable, the SZL-WL series switch is specially designed for world-wide use. MICRO SWITCH SZL-WL Series general purpose limit switches are cost effective switches that may be used in a wide range of applications from general purpose conveyors to heavy-duty machinery. Rugged and reliable, the SZL-WL Series switches are specially designed for world-wide use and supported by Honeywell's vast experience in serving industries around the globe.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Honeywell |
| Model/Part Number | SZL-WL-K-N |
| Series | SZL-WL |
| Contact Configuration | SPDT (DB/DM) |
| Actuator Type | Wobble Coil Spring |
| Current Rating AC | 10A |
| Current Rating DC | 6A |
| Voltage Rating AC | 125VAC |
| Voltage Rating DC | 30VDC |
| Operating Force Max | 150gf |
| Pretravel | 20.0mm (0.787") |
| Switch Function | On-Mom (Momentary) |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Conduit Size | 1/2" NPT |
| Ingress Protection | IP67 |
| Operating Temperature | -10°C to 80°C |
We warranty all items for 30 days from date of purchase.
