Product Description

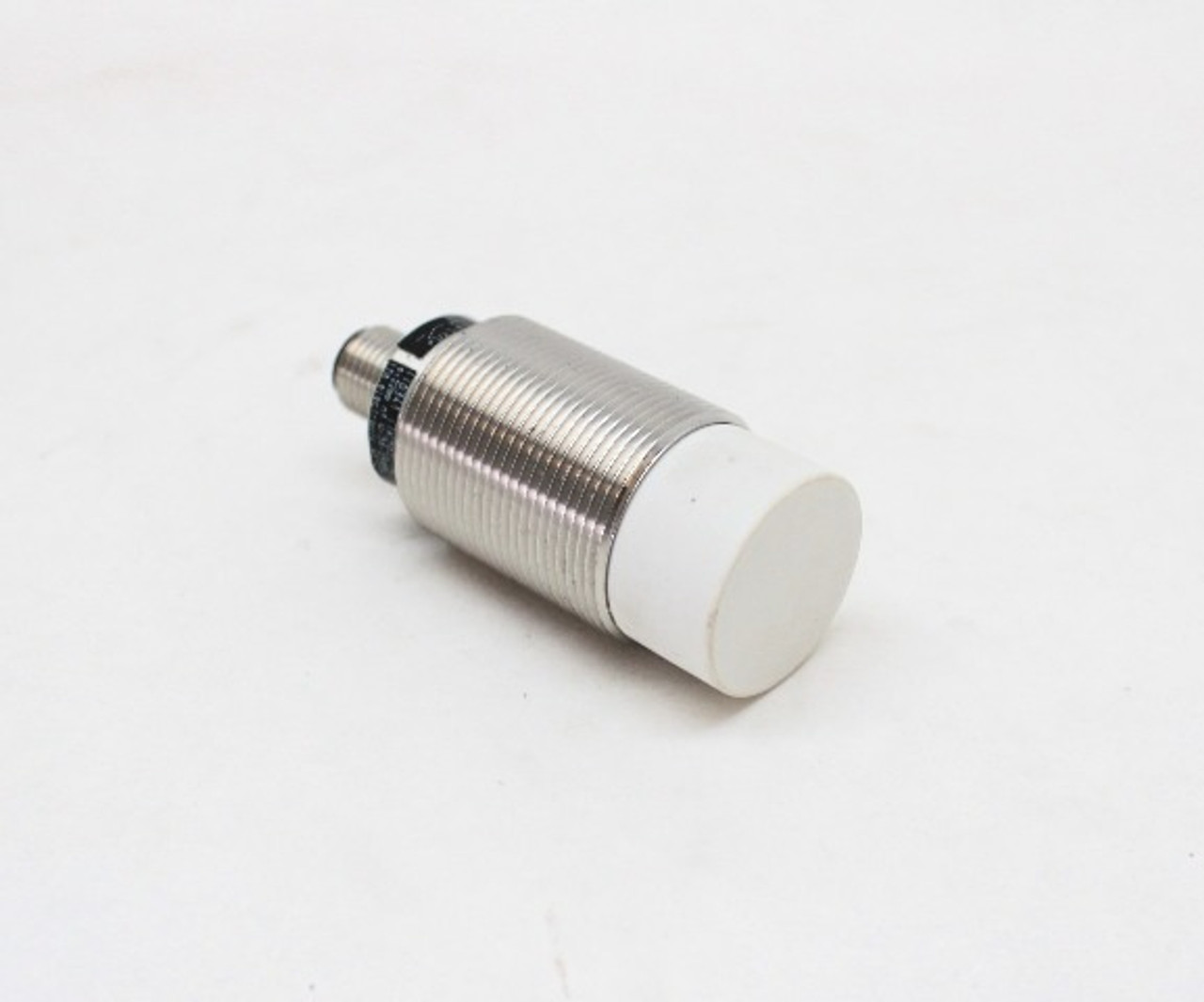

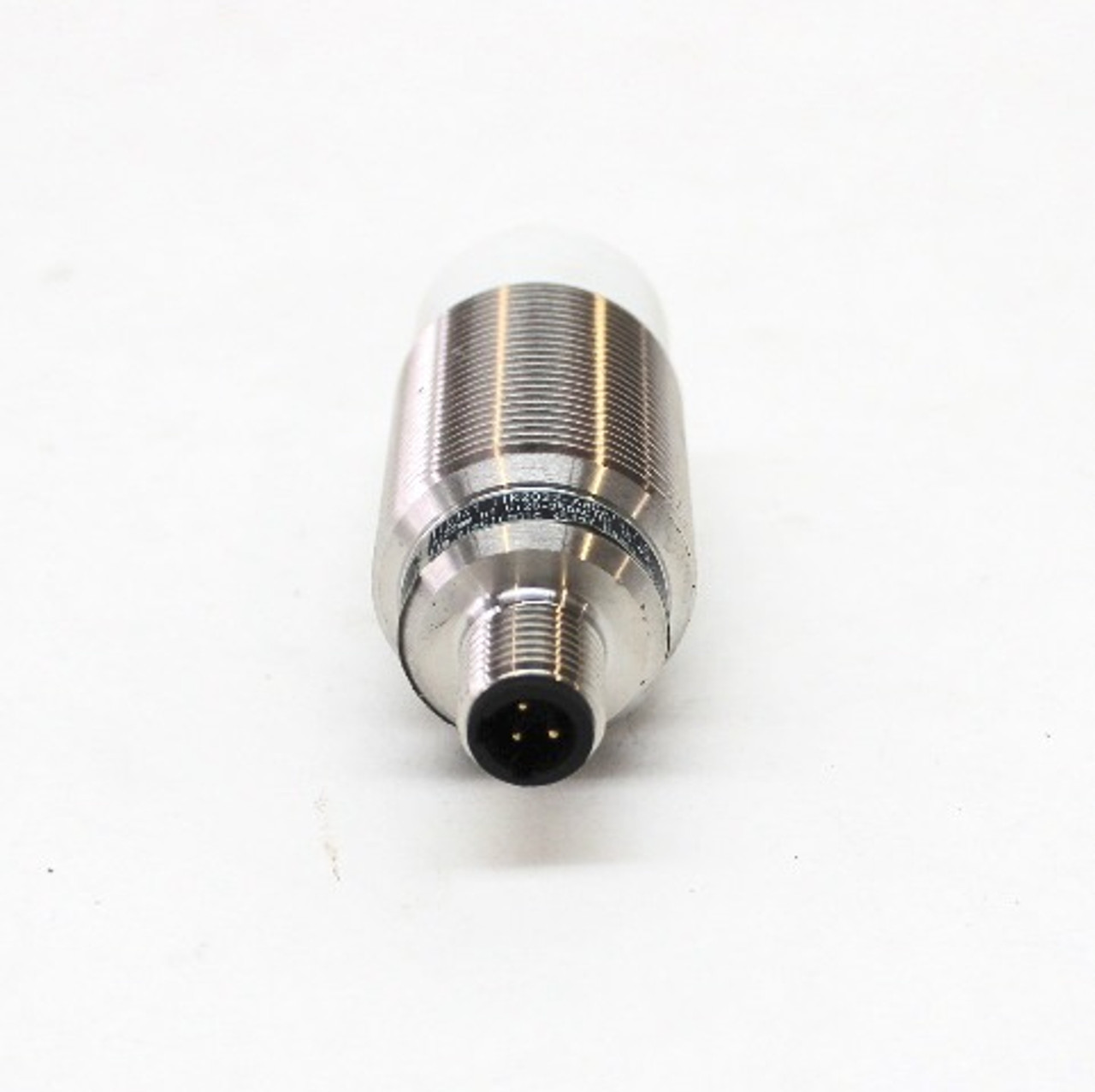

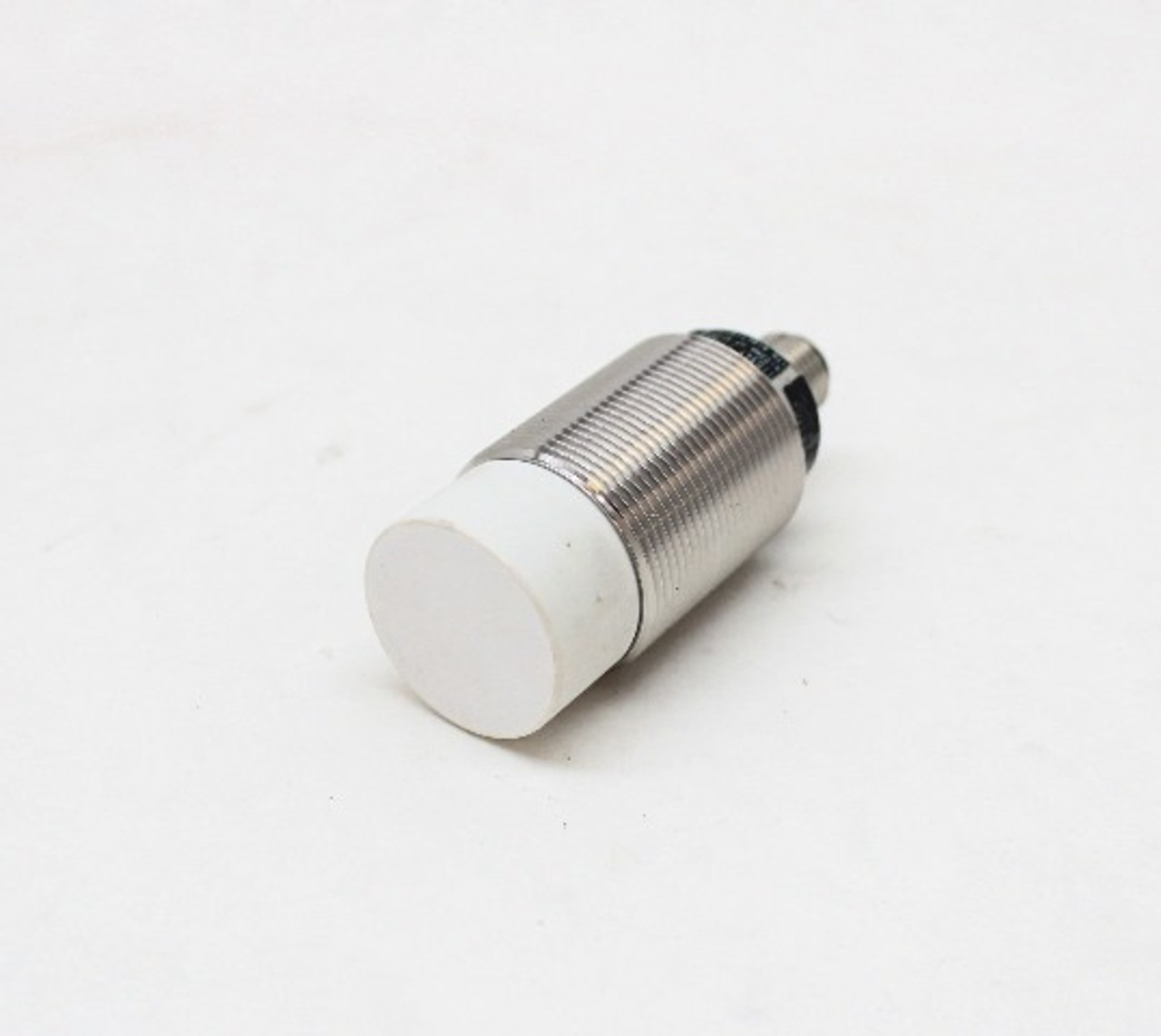

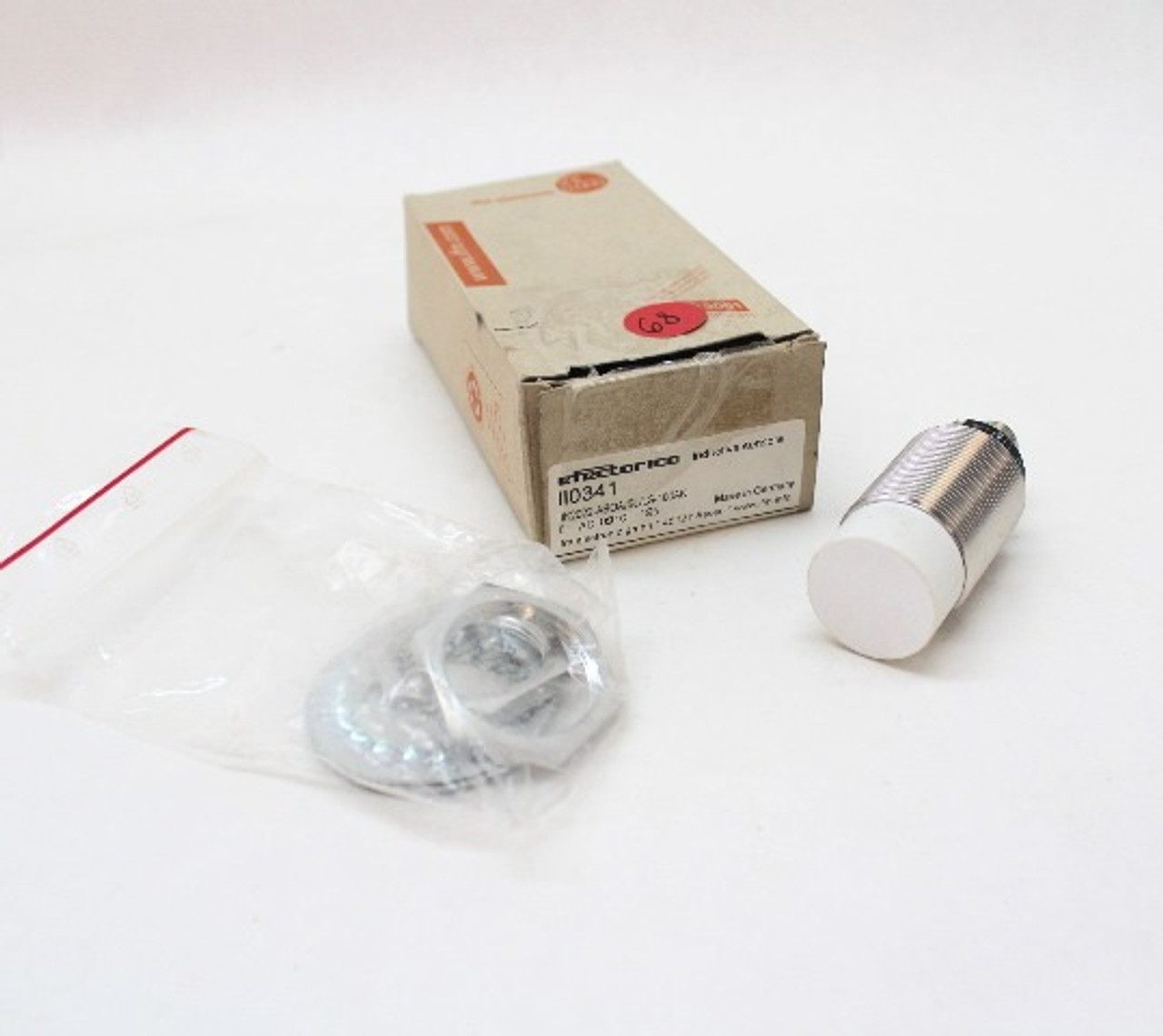

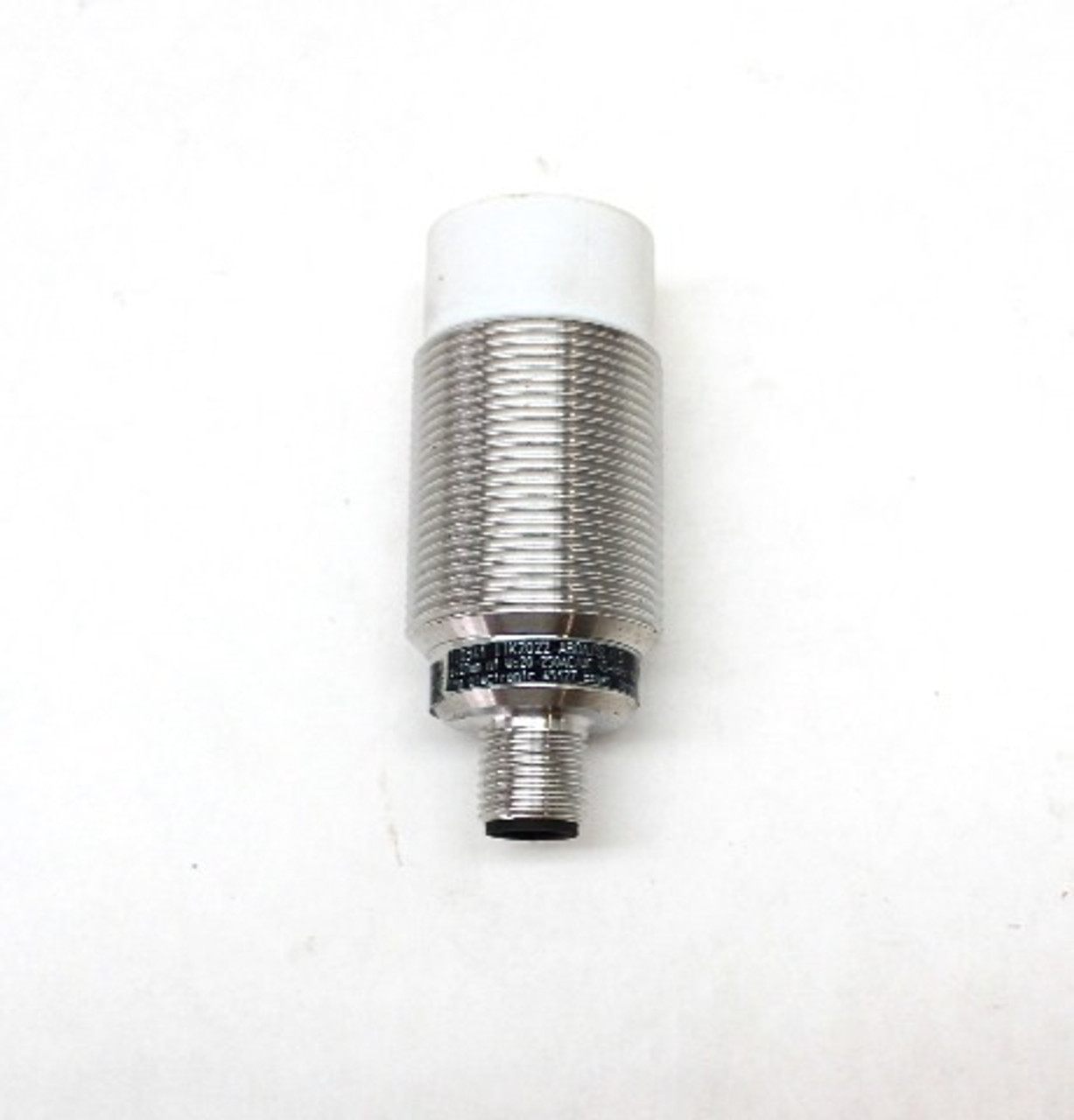

IFM 110341 Inductive Proximity Sensor IIK2022-ABOA/SL/LS-100AK| Electrical data | |||||
|---|---|---|---|---|---|
| Operating voltage [V] | 20...250 AC/DC | ||||
| Protection class | I | ||||
| Reverse polarity protection | no | ||||
| Outputs | |||||
| Output function | normally open | ||||
| Max. voltage drop switching output DC [V] | 6 | ||||
| Max. voltage drop switching output AC [V] | 6.5 | ||||
| Minimum load current [mA] | 5 | ||||
| Max. leakage current [mA] | 1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC) | ||||
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) | ||||
| Permanent current rating of switching output DC [mA] | 100 | ||||
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) | ||||
| Switching frequency AC [Hz] | 25 | ||||
| Switching frequency DC [Hz] | 70 | ||||
| Short-circuit proof | no | ||||
| Overload protection | no | ||||
| Monitoring range | |||||
| Sensing range [mm] | 22 | ||||
| Real sensing range Sr [mm] | 22 ± 10 % | ||||
| Operating distance [mm] | 0...17.6 | ||||
| Accuracy / deviations | |||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.48 / copper: 0.4 | ||||
| Hysteresis [% of Sr] | 3...20 | ||||
| Switch-point drift [% of Sr] | -10...10 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -25...70 | ||||
| Protection | IP 67 | ||||
| Tests / approvals | |||||
| EMC |
|
||||
| MTTF [years] | 606 | ||||
| Mechanical data | |||||
| Weight [g] | 217.5 | ||||
| Housing | Threaded type | ||||
| Mounting | non-flush mountable | ||||
| Dimensions [mm] | M30 x 1.5 | ||||
| Thread designation | M30 x 1.5 | ||||
| Material | brass white bronze coated; sensing face: PBT; connector housing: PA | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Electrical connection | |||||
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting | ||||
| Accessories | |||||
| Accessories (supplied) |
|
||||
| Remarks | |||||
| Remarks |
|
||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection - plug | |||||
| Connector: 1 x 1/2" | |||||
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Inductive Sensor
MPN II0341
Model IIK2022-ABOA/SL/LS-100AK
Shelf Q-7
Country/Region of Manufacture Germany
Sensor Type Solid State
Output Type Normally Open
GTIN 646412787834
