Product Description

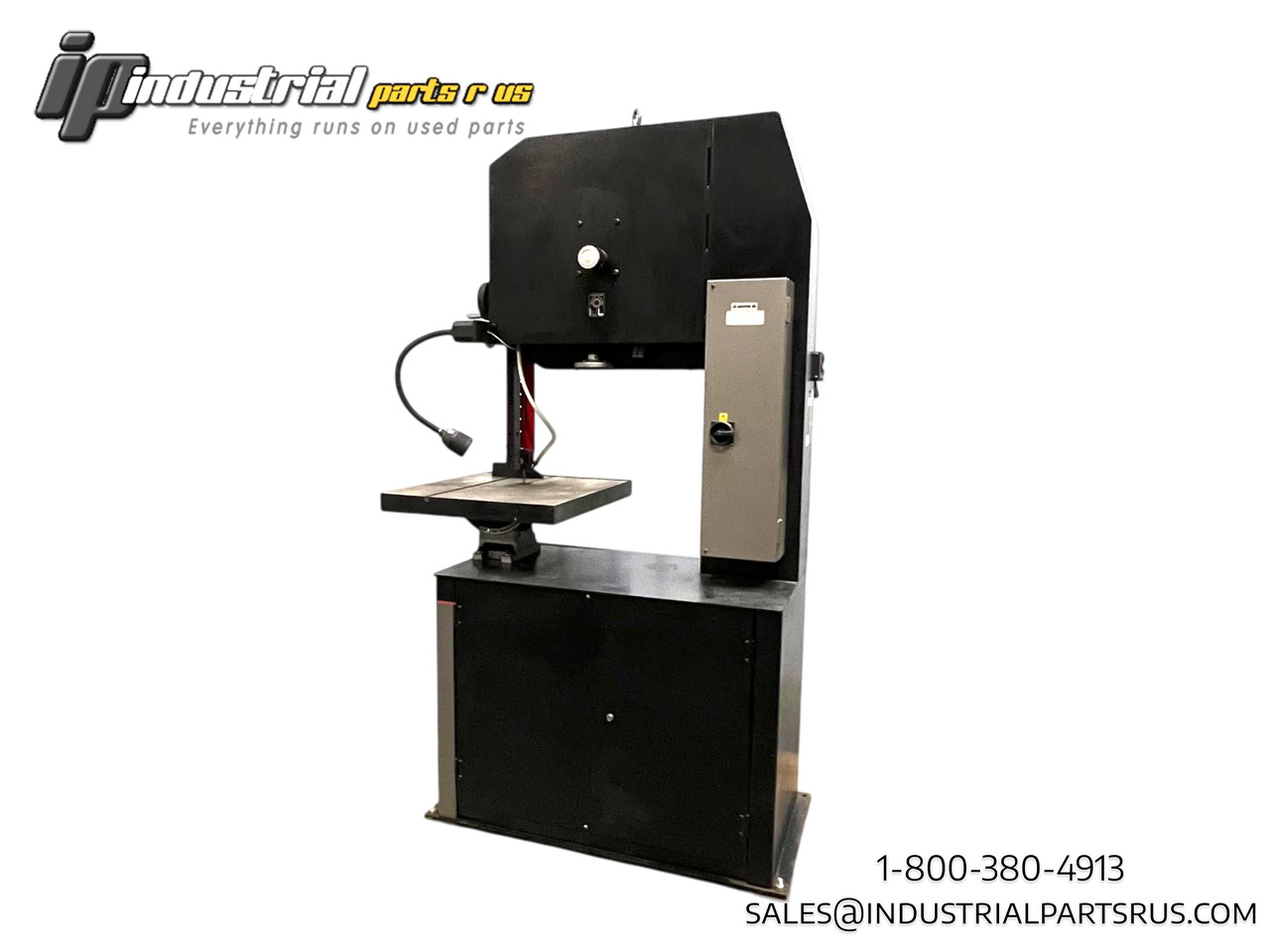

JET EVBS-26 Electric Variable Speed Vertical Bandsaw
General
-
Model: EVBS-26
-
Type: Vertical Bandsaw
-
Stock No.: 891115
-
Throat Capacity: 26 in (ability to reach into larger workpieces)
-
Maximum Cutting Height: ~14 in (vertical cutting capacity)
Blade
-
Blade Length: 185-1/2 in
-
Blade Width Range: 1/8 – 1 in
-
Blade Speeds: Variable from 50 to 5,000 SFPM (surface feet per minute) — allows tuning speed to material type
-
Blade Guides: Tungsten carbide with precision bearings for stability and accuracy
Motor / Power
-
Motor: 3 HP (three-phase)
-
Voltage: 230/460 V, 3-Phase
-
Amperage Draw: ~18 A @ 230 V / ~8–9 A @ 460 V
Table & Cutting Angles
-

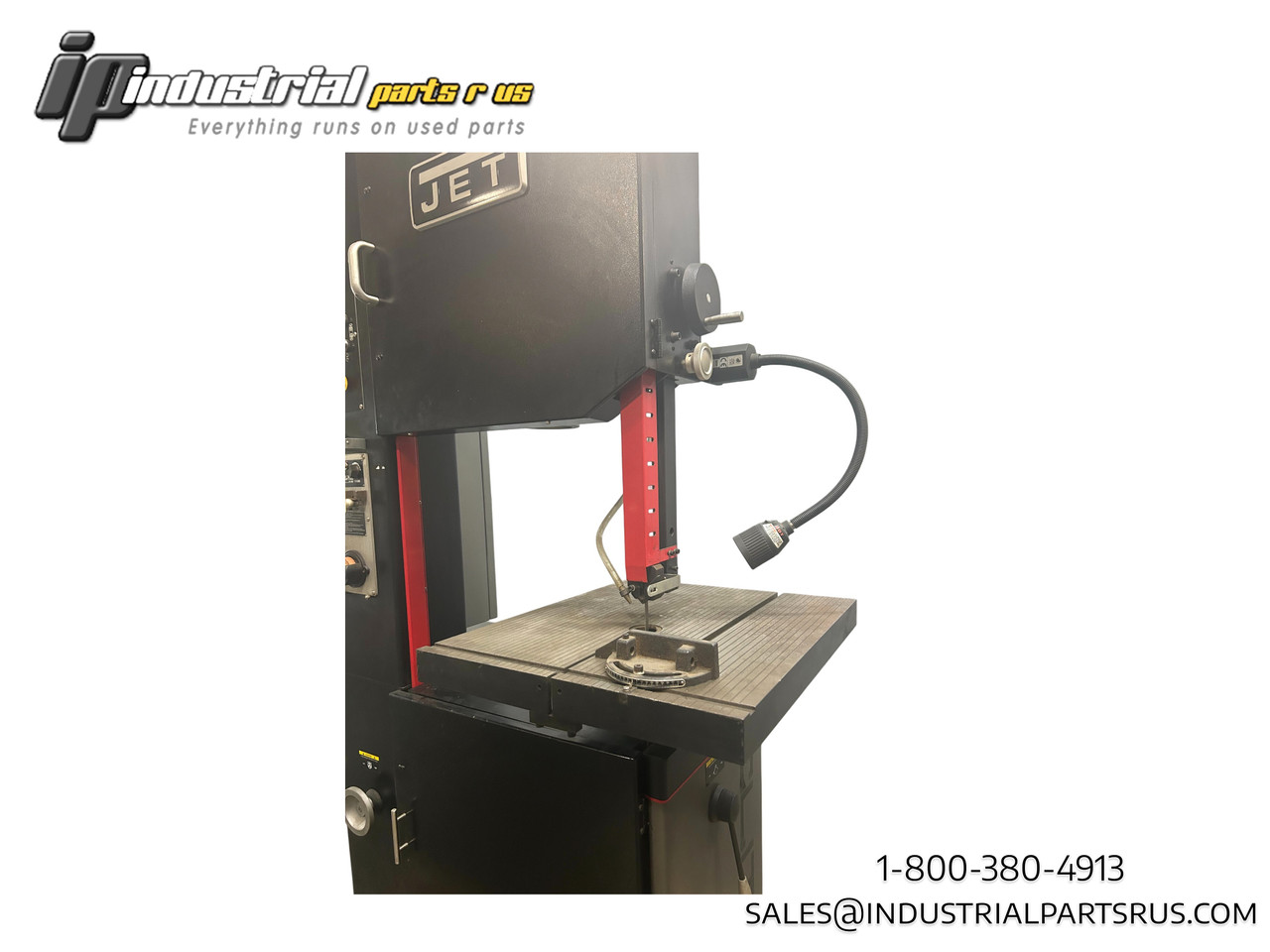

Table Size: ~27-1/2″ × 23-1/2″
-
Table Height: ~39-3/8″
-
Table Tilt:
-
10° left and 45° right for angled/contour cuts
-
Frame & Build
-
Heavy-duty, fully enclosed steel frame for rigidity and stability
-

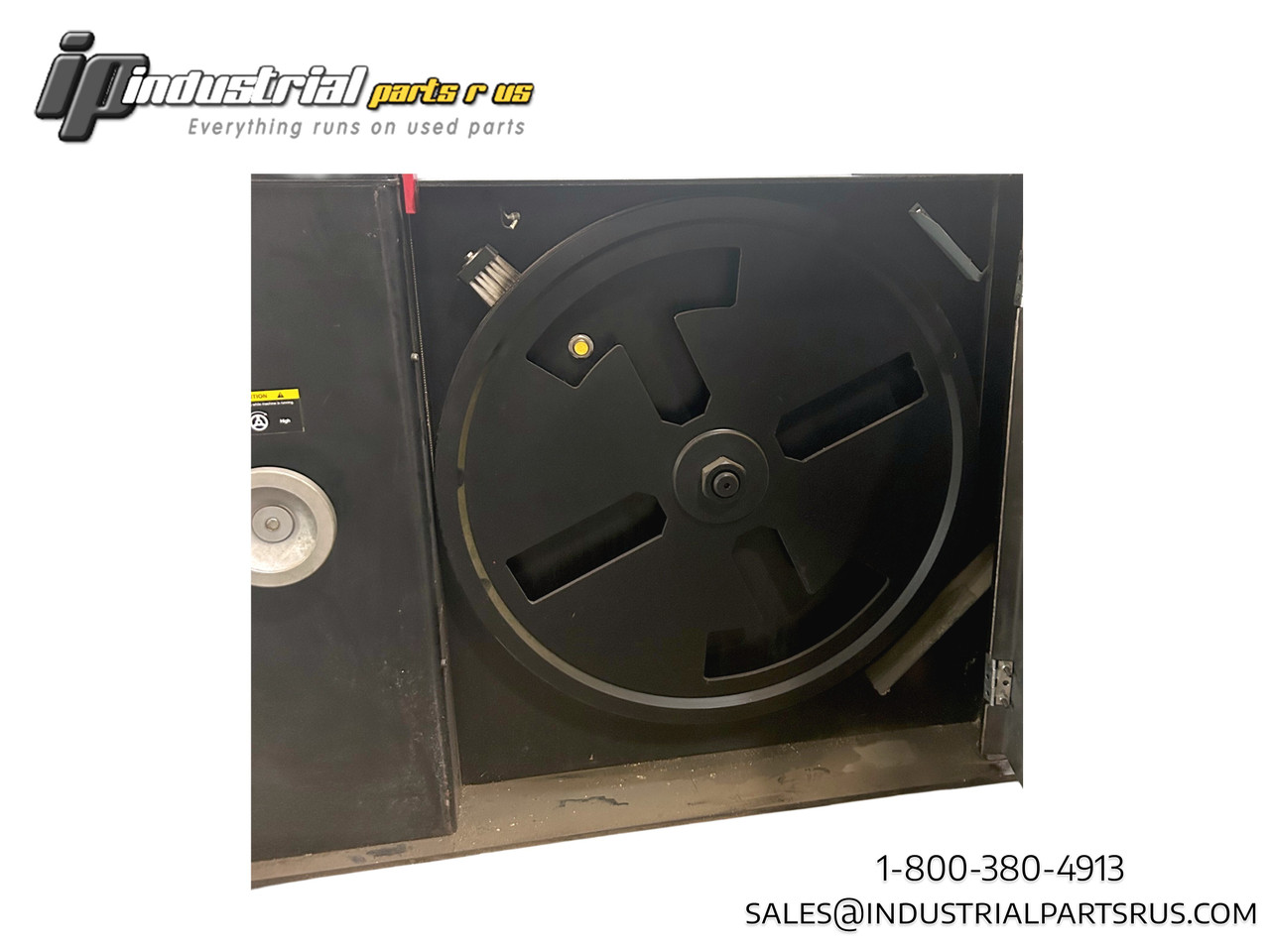

Precision balanced cast-iron blade wheels with bonded rubber track
Additional Features
-
Variable speed drivetrain for fine-tuning cutting speed
-
Built-in chip blower keeps the cutting area clear
-
Adjustable blade guard for operator safety
-
Handwheel with blade tension gauge to avoid over-tensioning
-
4.2 KVA bi-metal blade welder with safety glass cover (for blade joint/welding)
-
Often certified to CSA/CUS electrical safety standards
-
Standard equipment may include a bi-metal blade, protractor/miter gauge, work lamp, rip fence, and chip pan
- 30 DAY WARRANTY INCLUDED
