Product Description

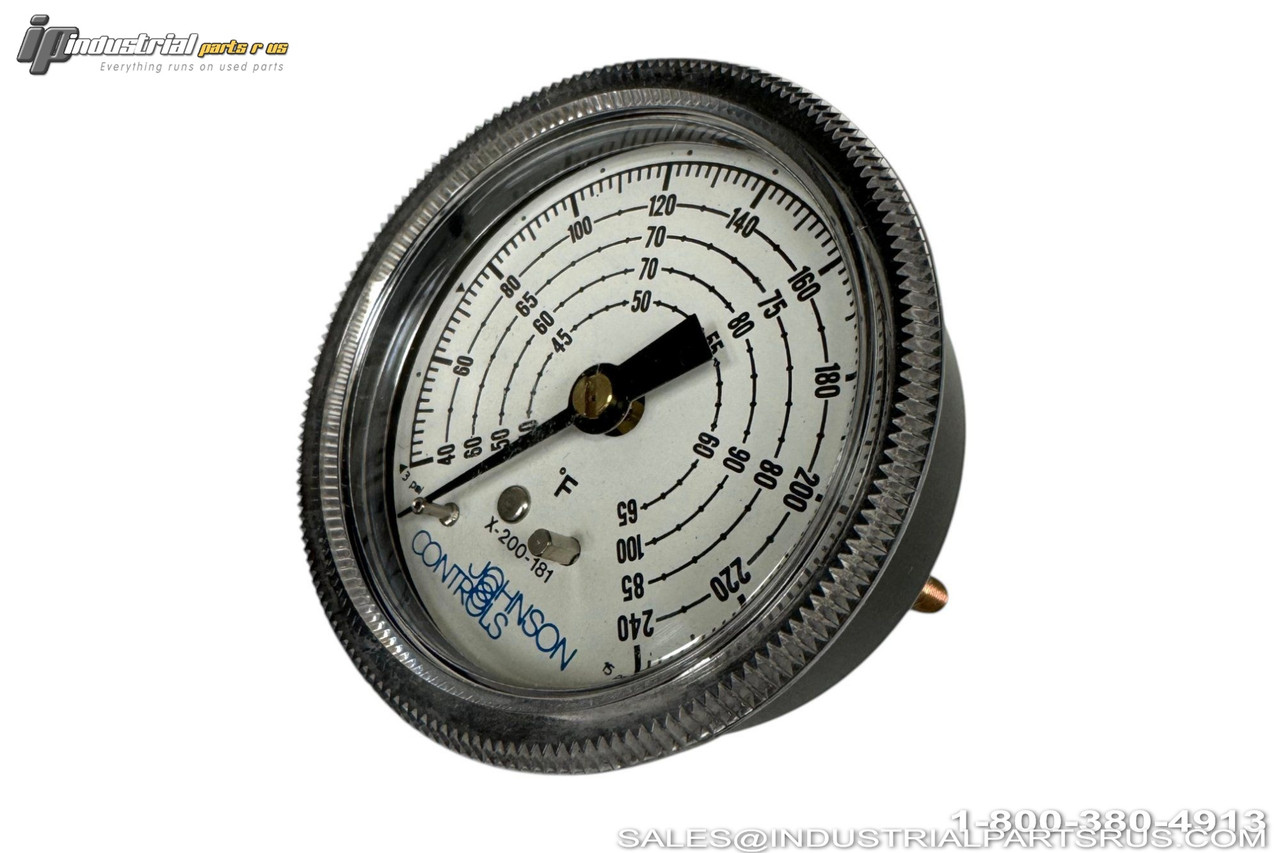

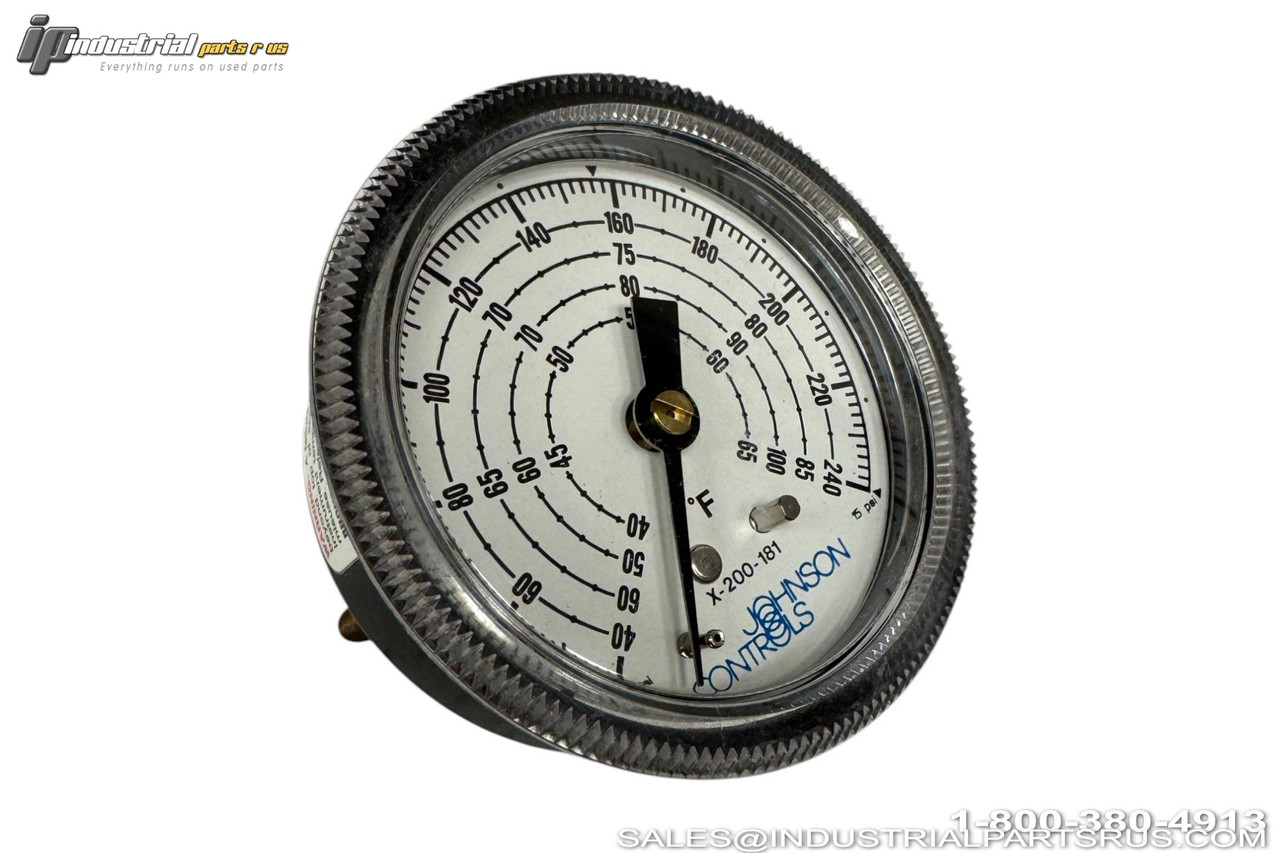

The Johnson Controls JC5386 is a multi-scale transmission gauge designed for adjusting pneumatic transmission systems. This 2-1/2 inch gauge features multiple temperature ranges including 60 to 85°F, 40 to 240°F, 40 to 65°F, and 50 to 100°F, making it essential for HVAC system calibration and testing.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Johnson controls |
| Model/Part Number | JC5386 |
| Type | Pressure Gauge |
| Gauge Type | Multi-Range Transmission Gauge |
| Diameter | 2-1/2 inch |
| Temperature Range 1 | 60 to 85°F |
| Temperature Range 2 | 40 to 240°F |
| Temperature Range 3 | 50 to 65°F |
| Temperature Range 4 | 50 to 100°F |
| Air Connection | 1/8" NPT |
| Mounting Type | U-clamp for flush mounting |
| Application | Pneumatic transmission system adjustment |
| Compatible Kit | JC 5383A System Simulator and Calibration Kit |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style U-clamp for flush mounting
Material Brass case with steel movement
Manufacturer Johnson Controls
Part Number JC5386
Shelf K-51 TUB 1
Model JC5386
MPN JC5386
Type Pressure Gauge
