Product Description

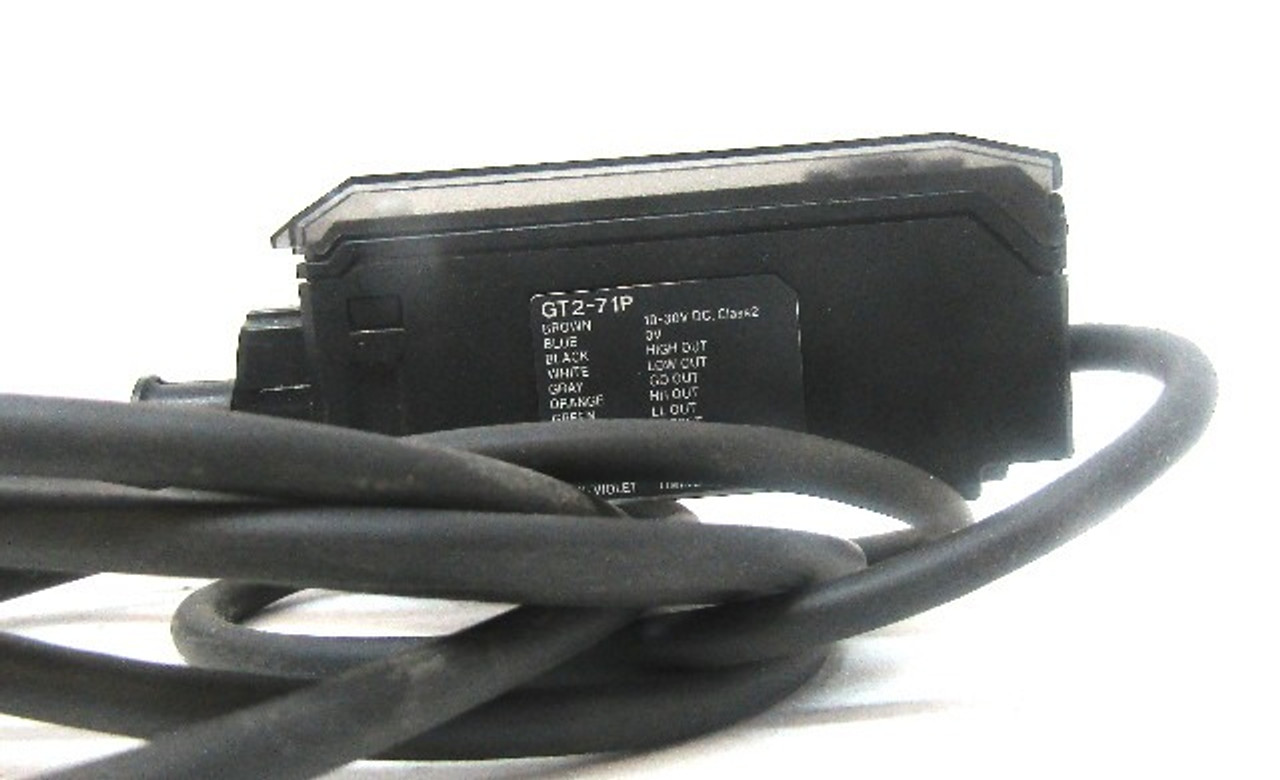

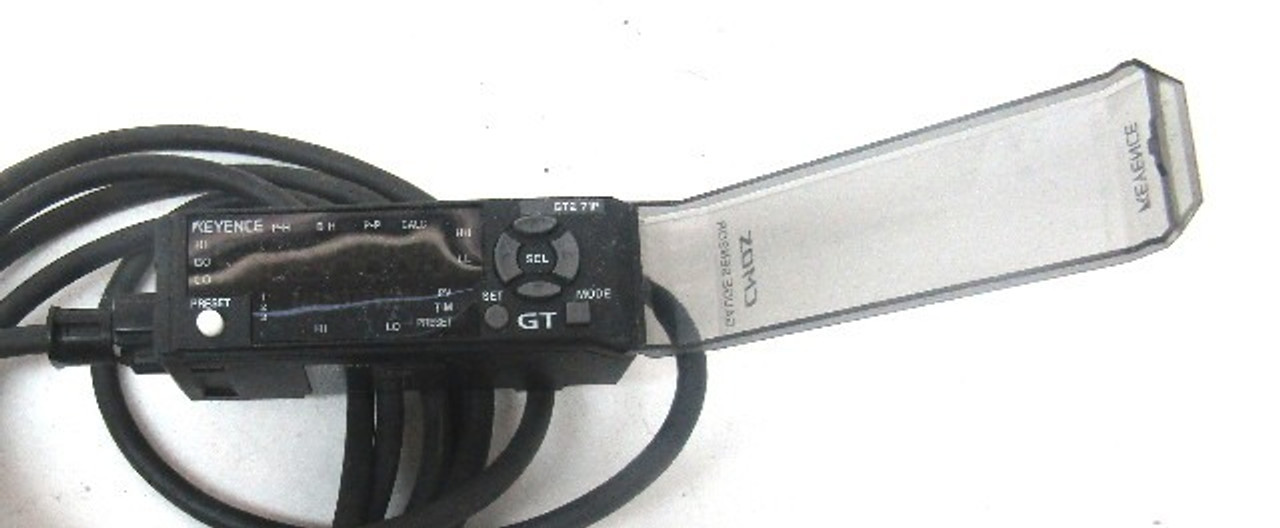

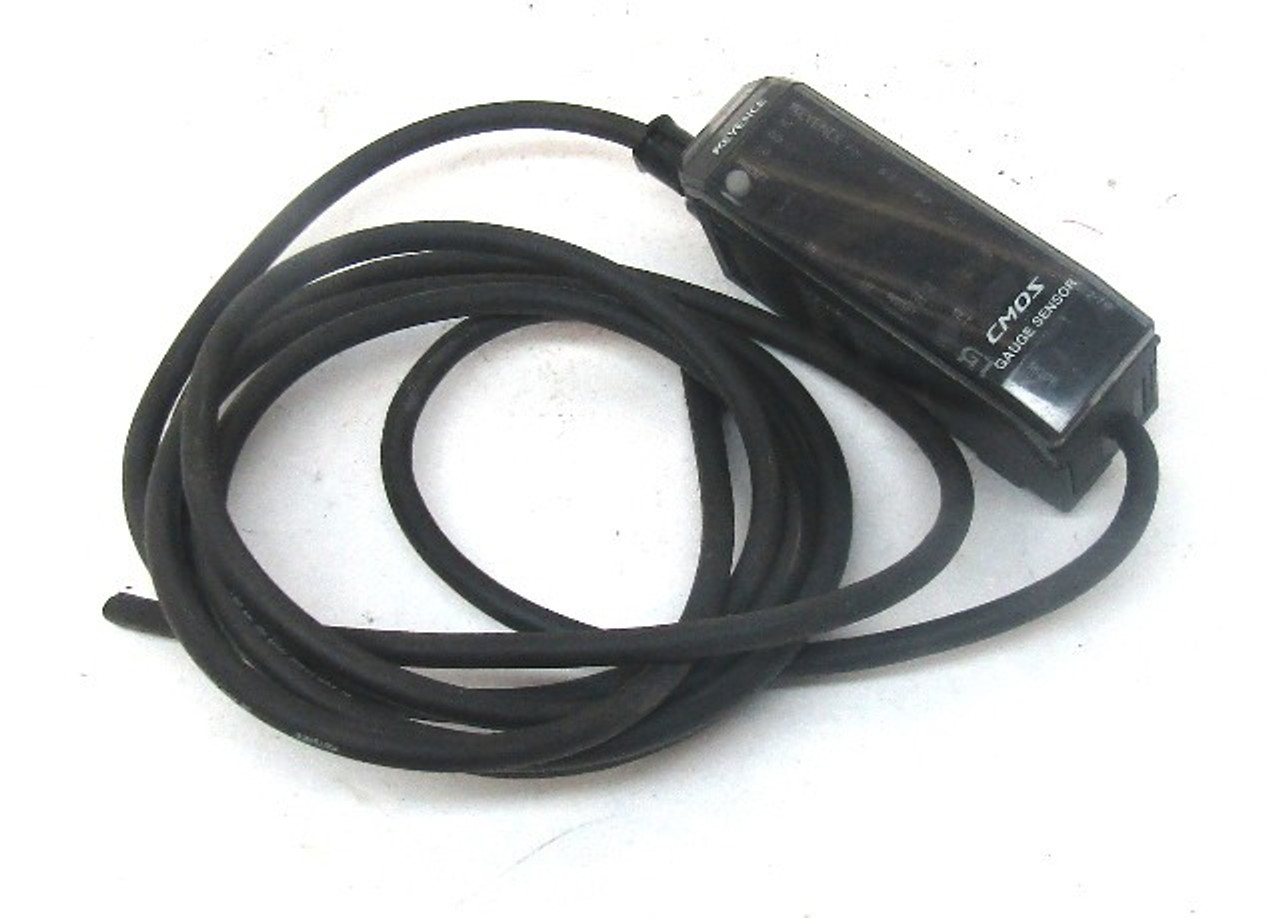

Keyence CMOS Gauge Sensor GT2-71P High-Accuracy Digital Contact Sensor 10-30V
Model |
GT2-71P |
|||
Output |
PNP output |
|||
Mounting method |
DIN-rail mount |
|||
Main unit/expansion unit |
Main unit |
|||
Power supply voltage |
10 to 30 VDC, including 10% ripple (P-P), Class 2*1 |
|||
Power |
Normal |
2200 mW max. (30 V, 73.3 mA max.) |
||
Power saving (Eco) |
1700 mW max. (30 V, 56.7 mA max.) |
|||
Display power |
Measured value display |
6 + 1/2-digit 7-segment LED (red) |
||
Other displays |
2-color, 13-level bar LED display (red, green), indicators (red, green) |
|||
Display range |
-199.999.9 to 199.999.9 |
|||
Display resolution |
0.1 ë_måÊ0.004 Mil |
|||
Sampling rate |
1000 times/sec. |
|||
Control input |
Timing/preset/ |
No-voltage input |
||
Control output |
HH/HI/GO/LO/LL |
PNP open collector, 30 V 50 mA or less, residual voltage 1 V or less*1*2 |
||
Analog output |
Û¥ |
|||
Response time |
hsp (3 ms), 5 ms, 10 ms, 100 ms, 500 ms, 1 s |
|||
Environmental resistance |
Ambient temperature |
-10 to +50 å¡CåÊ14 to 122 å¡FåÊ(No freezing) |
||
Relative humidity |
35 to 85 % RH (No condensation) |
|||
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mmåÊ0.06", 2 hours in each of the X, Y, and Z directions |
|||
Materials |
Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC |
|||
Weight |
Approx. 140 g (including power cable) |
|||
