Product Description

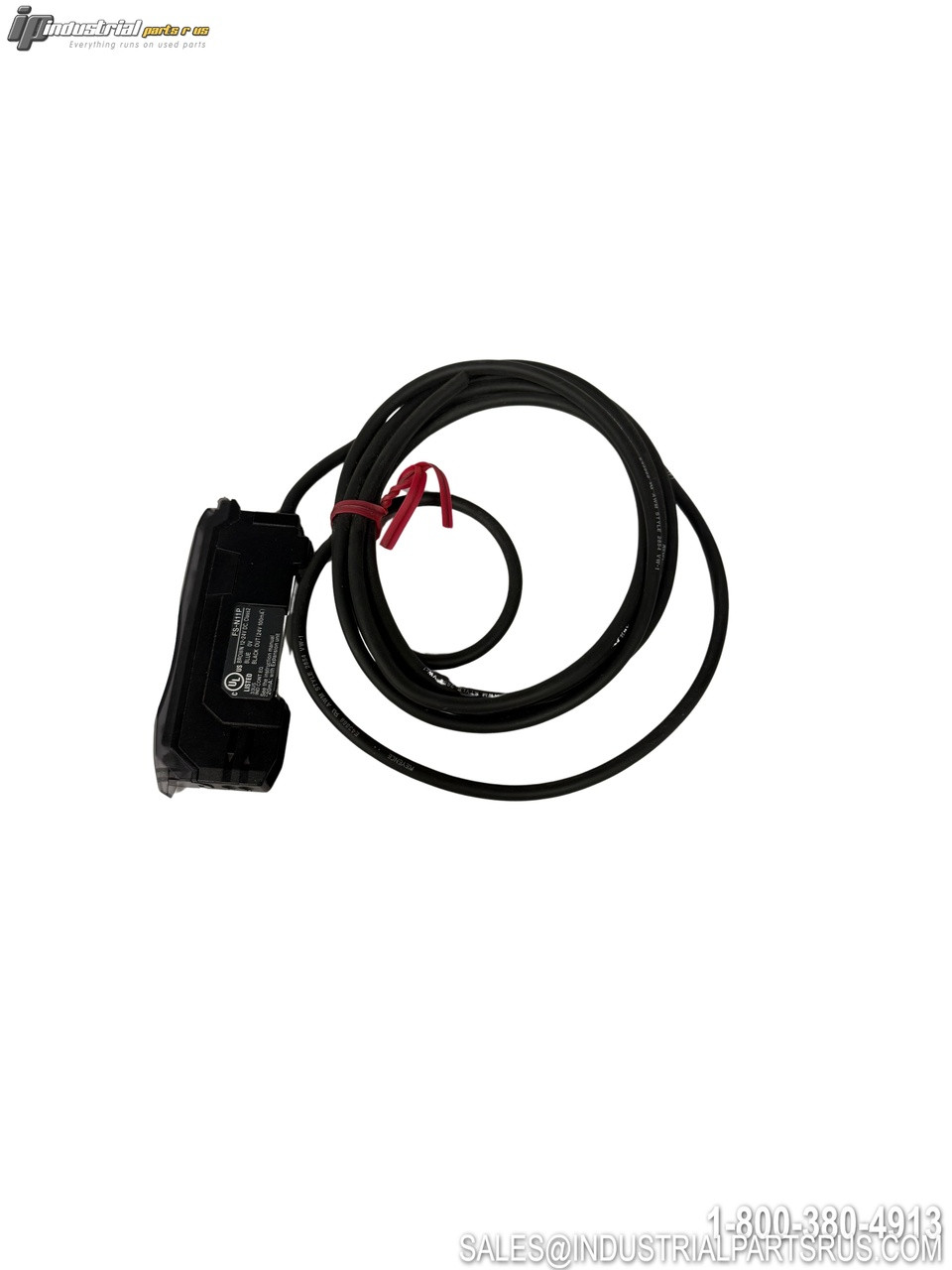

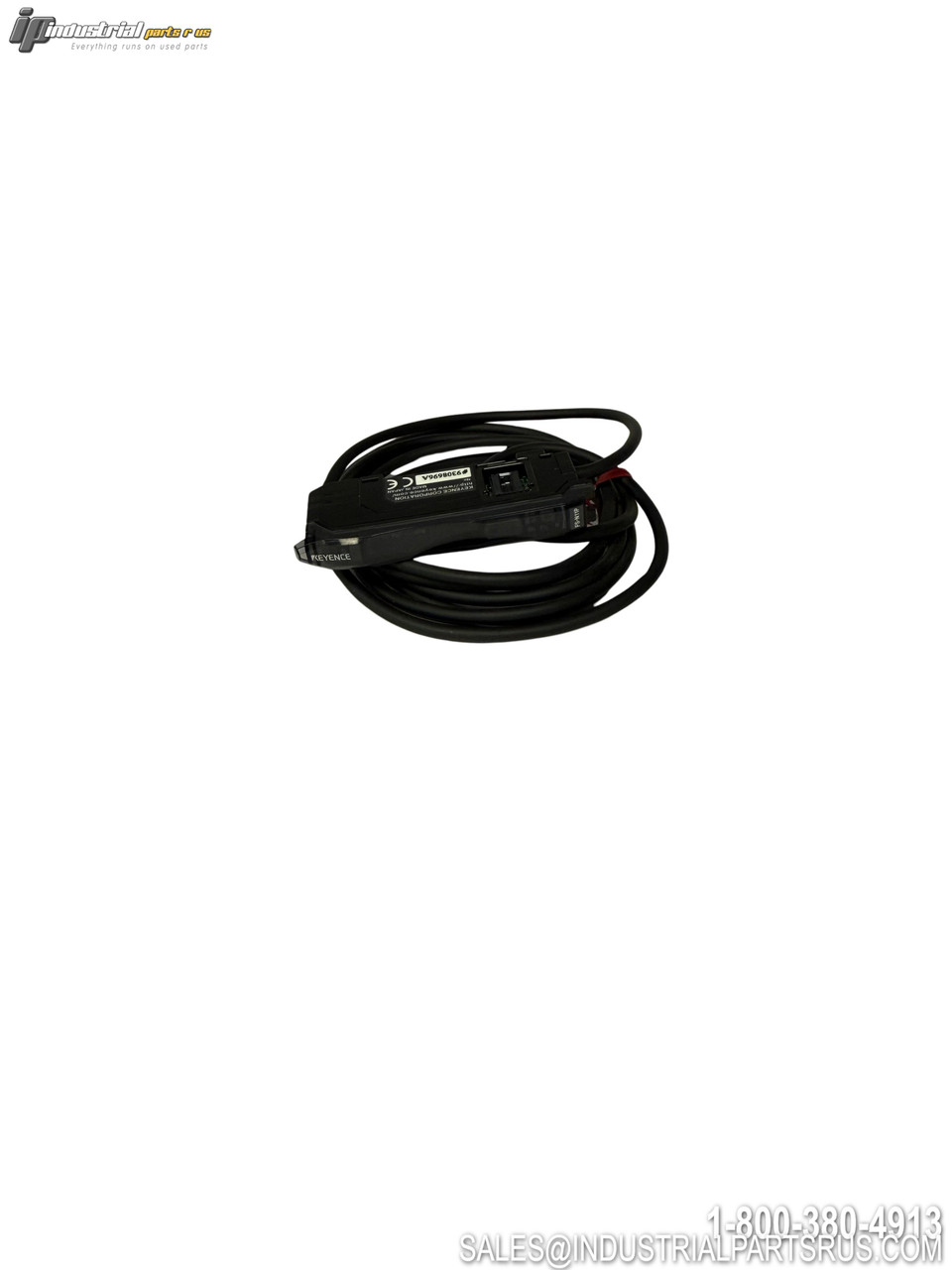

The Keyence FS-N11P is a fiber optic amplifier designed for cable-type connection with NPN output configuration. This main unit amplifier works with the FU Series fiber optic sensor heads and features one-touch calibration, dual digital display, automatic maintenance, and MEGA power mode.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Keyence |
| Model/Part Number | FS-N11P |
| Product Type | Fiber Optic Amplifier |
| Series | FS-N |
| Unit Type | Main Unit |
| Connection Type | Cable Type |
| Output Type | PNP |
| Power Voltage | 12 to 24 VDC ±10% |
| Power Consumption | 950 mW max (Normal mode) |
| Current Consumption | 39 mA max @ 24V, 52 mA max @ 12V |
| Output Current | 100 mA max |
| Output Impedance | 10 kOhm |
| Response Time | 50 µs to 16 ms (selectable) |
| Light Source | Red 4-element LED |
| Operating Temperature | -20 to +55°C (-4 to +131°F) |
| Mounting Type | DIN Rail |
| Dimensions (HxWxD) | 1.19 x 0.39 x 2.83 inches (30.3 x 9.8 x 71.8 mm) |
| Housing Material | Polycarbonate |
| Approvals | CE Certified, cULus Listed |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type NPN
Sensor Type Fiber Optic
Full Load Amps 39 mA max @ 24V, 52 mA max @ 12V
Manufacturer Keyence
Part Number FS-N11P
Shelf O-5
Model FS-N11P
MPN FS-N11P
Type Fiber Optic Sensor
