Product Description

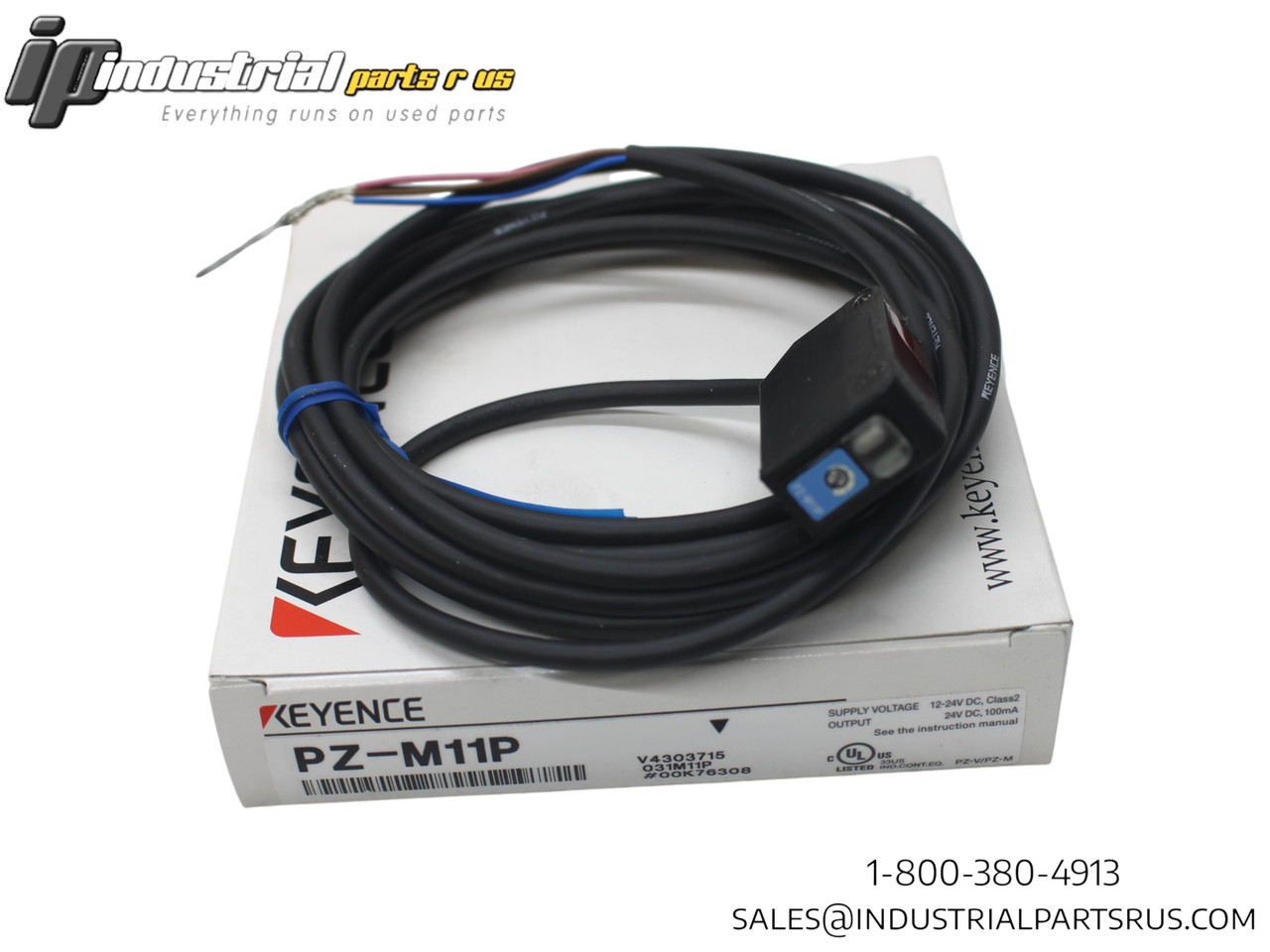

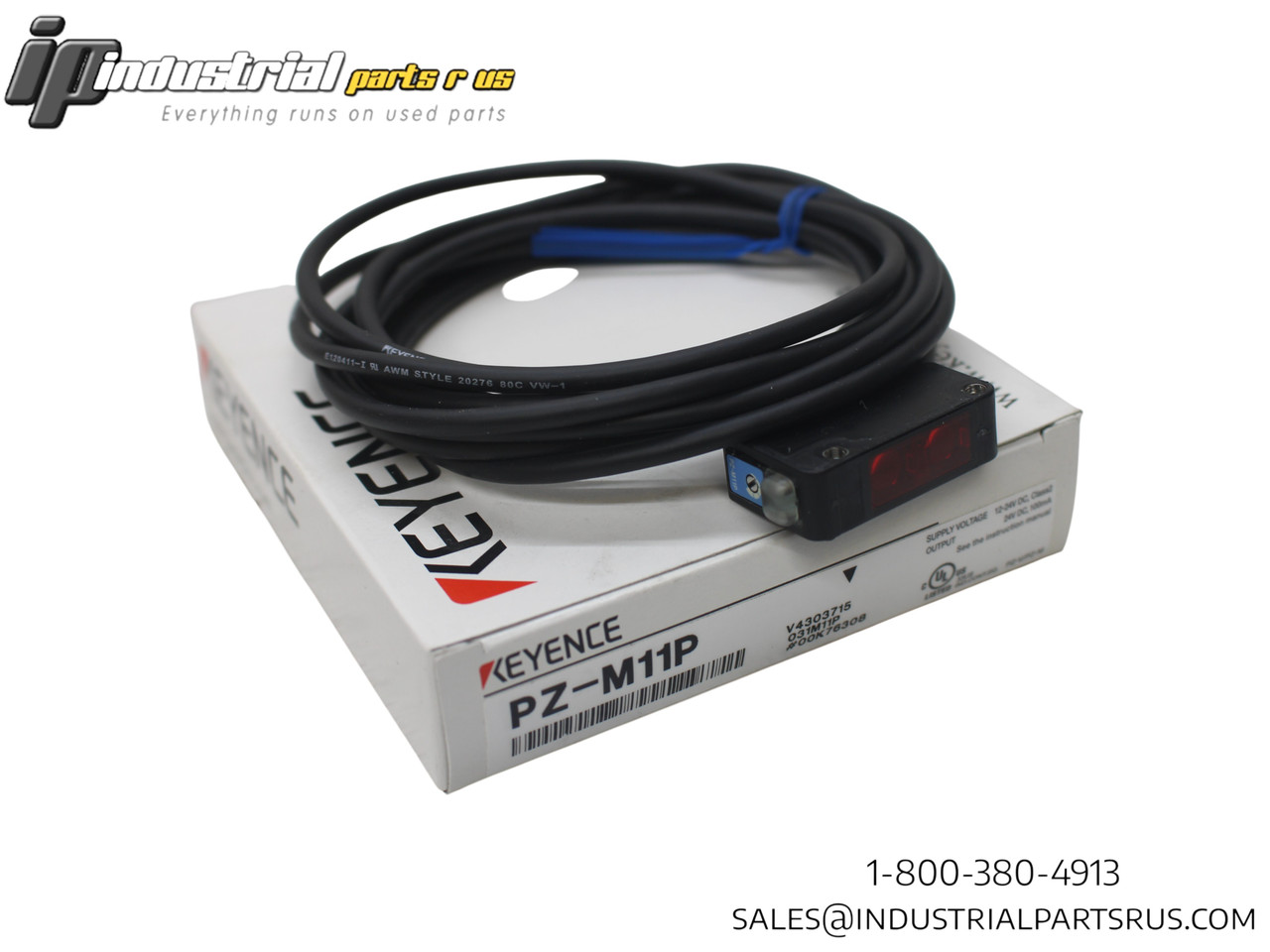

The Keyence PZ-M11P is an intelligent reflective photoelectric sensor from the PZ-V/M series featuring Position Sensitive Detector (P.S.D.) technology and Automatic Power Reinforcement circuit (A.P.R.) for stable detection regardless of target color, surface finish, or angle. This square-shaped sensor offers adjustable field background suppression with visible red LED light source and programmable light/dark operation modes.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Keyence |
| Model/Part Number | pz-m11p |
| Type | Intelligent Reflective |
| Sensing Distance | 5-100mm (0.20"-3.94") |
| Setting Distance | 30-100mm (1.18"-3.94") |
| Operating Voltage | 12-24VDC ±10% |
| Output Type | PNP |
| Output Current | 100mA (24V) max |
| Power Consumption | 30mA max |
| Response Time | 1ms max |
| Light Source | Red LED |
| Operation Mode | Light-ON/Dark-ON (switch-selectable) |
| Body Shape | Rectangular |
| Dimensions (LxWxH) | 20 x 10.8 x 34.8mm (0.787" x 0.425" x 1.37") |
| Cable Length | 2m (6.6ft) |
| Operating Temperature | -20°C to +55°C (-4°F to 131°F) |
| Operating Humidity | 35-85% RH (No condensation) |
| IP Rating | IP67 |
| Weight | Approx. 55g (including cable) |
| Series | PZ-V/M |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Japan
Series PZ-V/M
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Operating Distance 5-100mm
Manufacturer Keyence
Part Number PZ-M11P
Shelf K-44
Model PZ-M11P
MPN PZ-M11P
Type Photoelectric Sensor
