Product Description

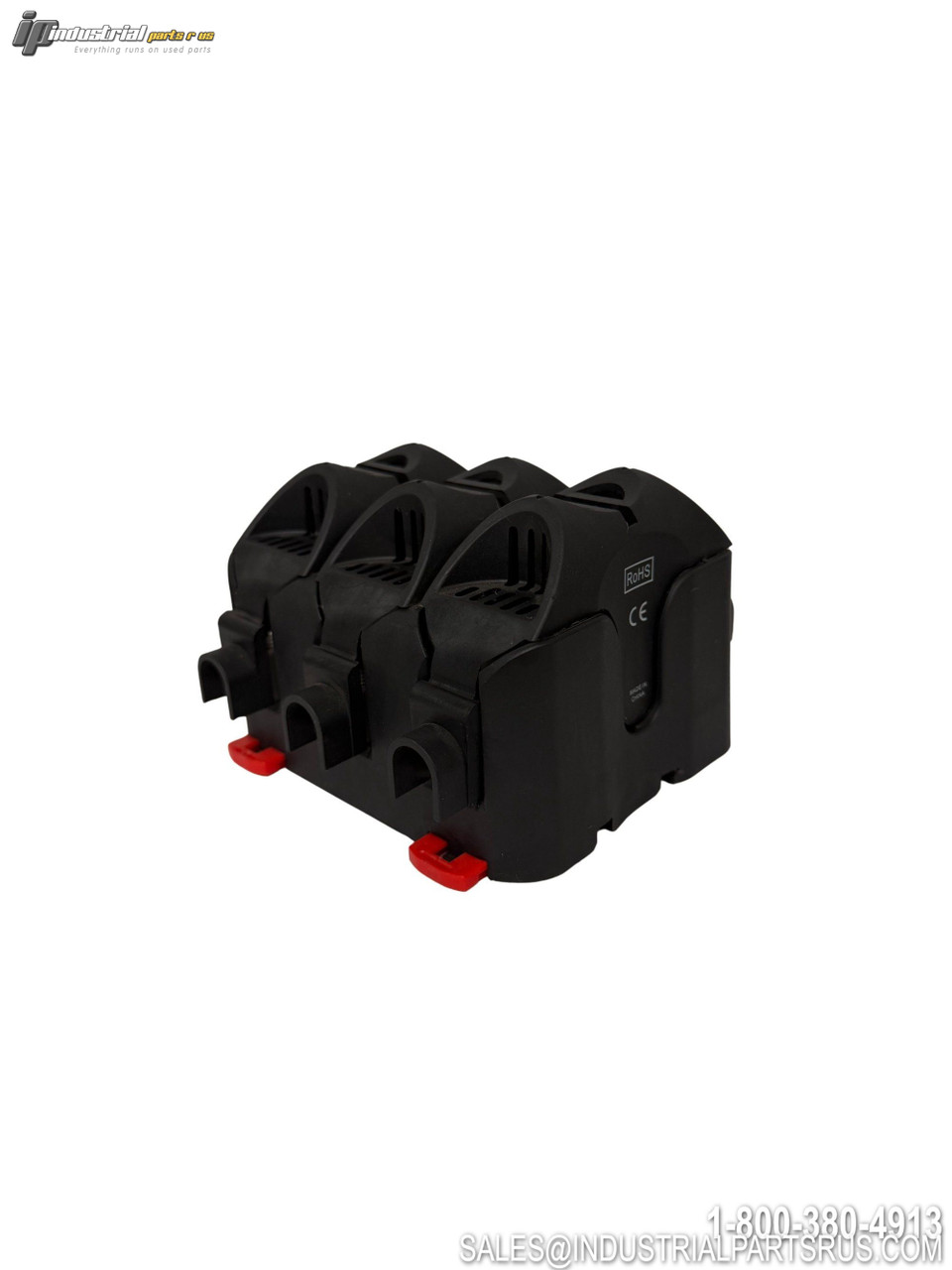

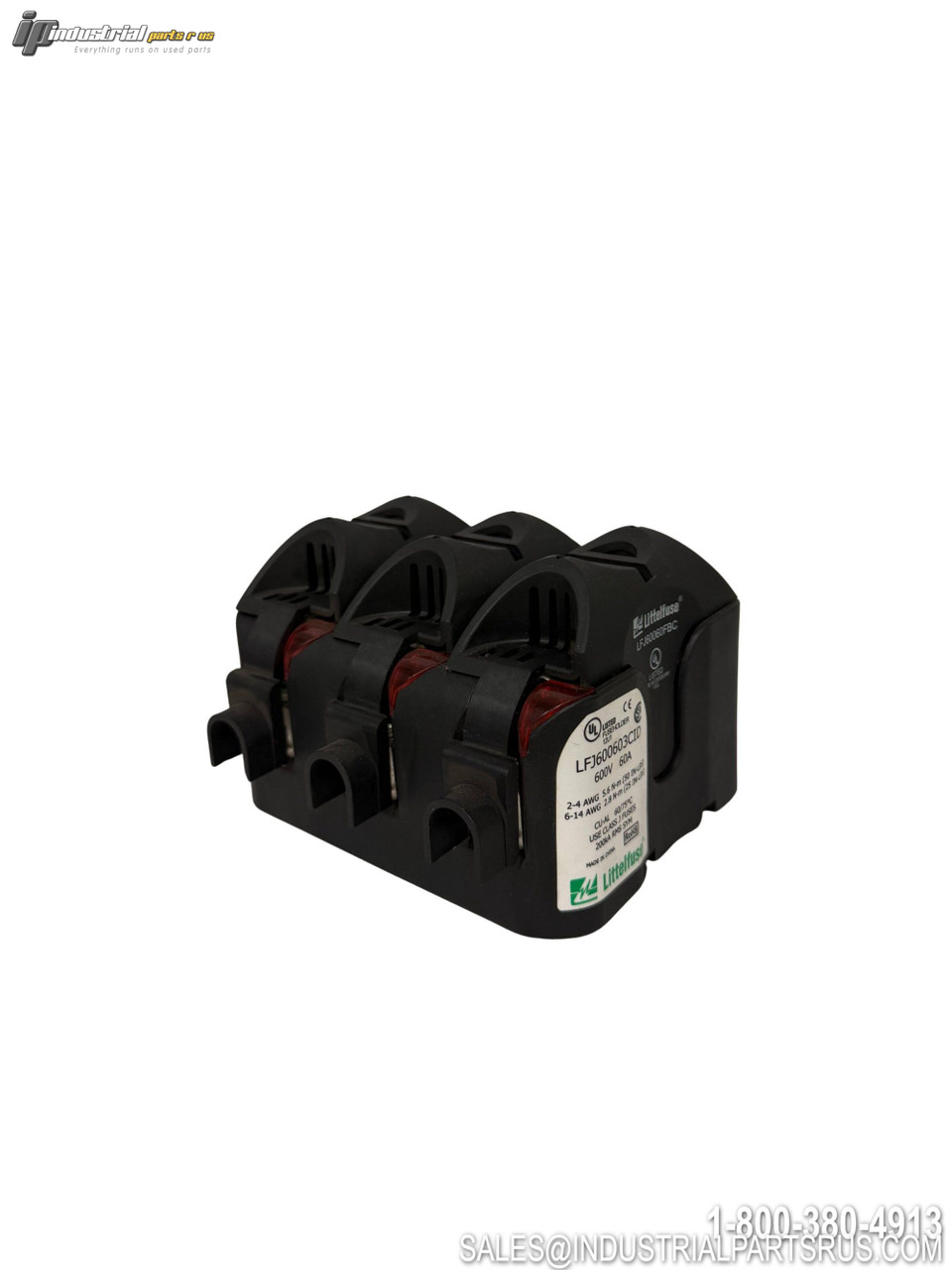

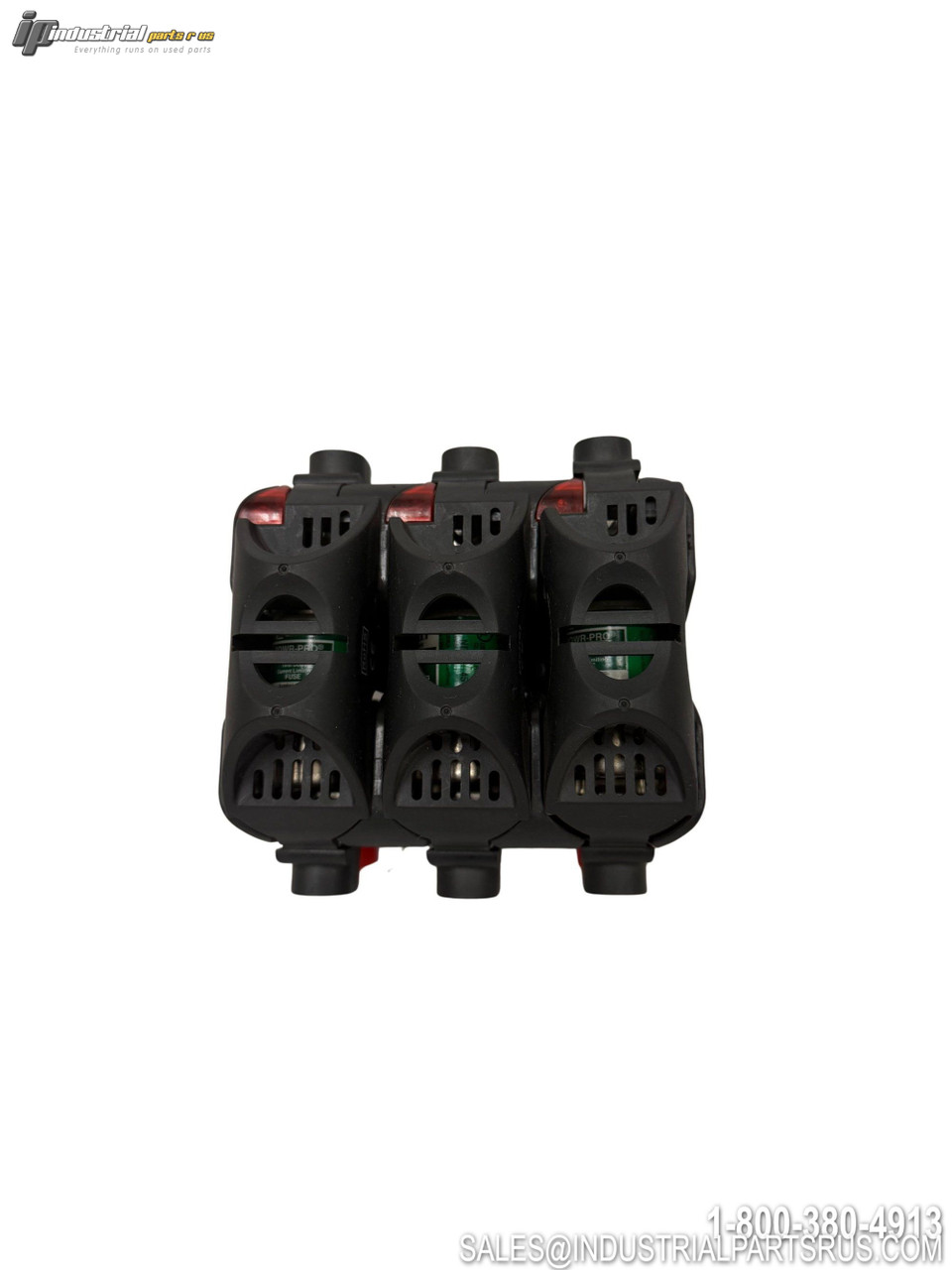

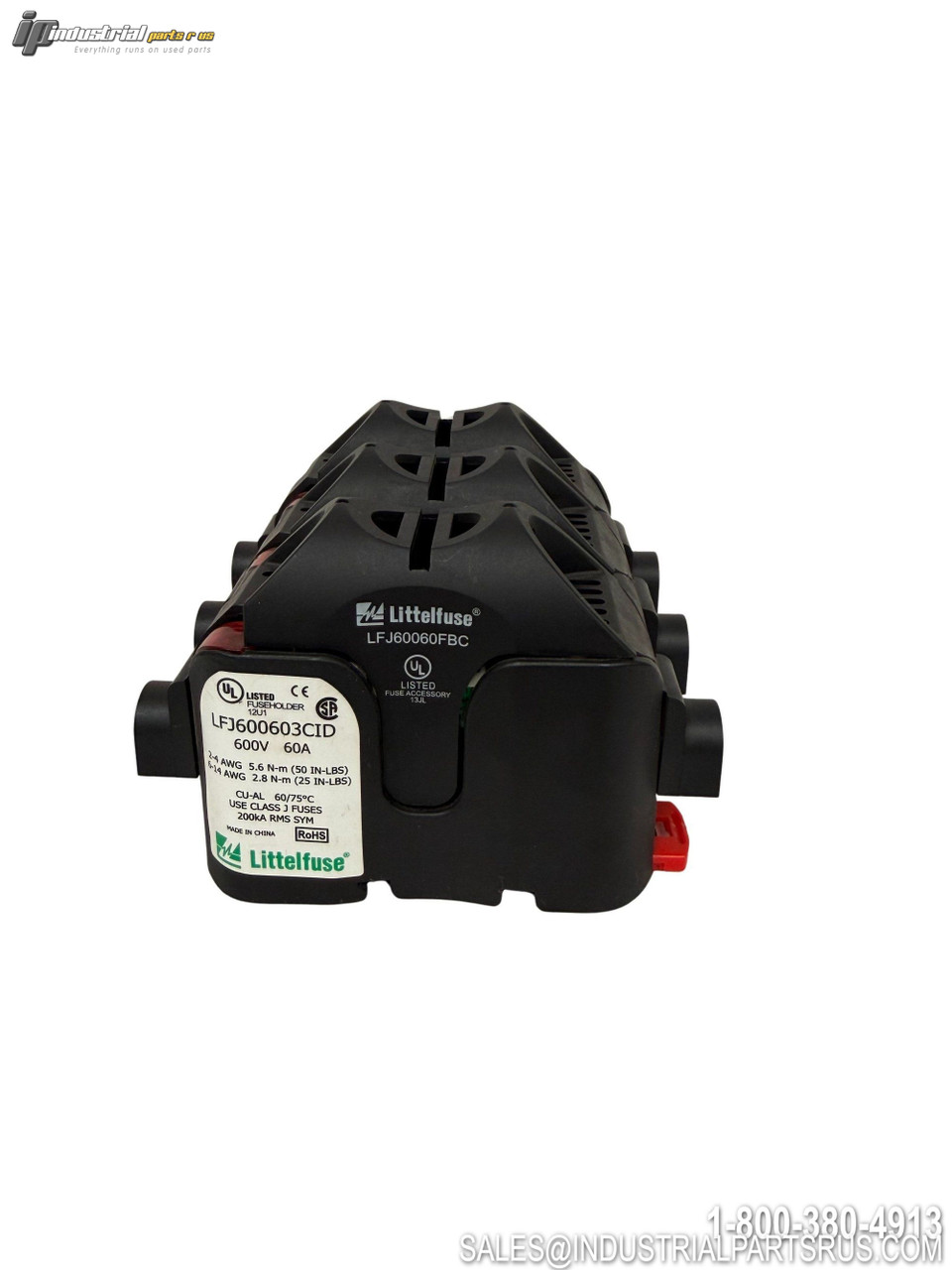

The Littelfuse LFJ600603CID is an industrial-grade POWR-GARD fuse block designed for Class J fuse applications. This 3-pole indicating fuse block supports current ratings from 31 to 60 amperes at 600V AC/DC, featuring space-saving design and universal mounting options for easy replacement in industrial control panels.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Littelfuse |
| Model/Part Number | Lfj600603cid |
| Series | LFJ |
| Product Line | POWR-GARD |
| Fuse Class | Class J |
| Current Rating | 60A |
| Amperage Range | 31 to 60A |
| Number of Poles | 3 |
| Voltage Rating AC | 600VAC |
| Voltage Rating DC | 600VDC |
| Fuse Length | 2.374 in (2 3/8 in) |
| Fuse Diameter | 1.06 in (1 1/16 in) |
| Wire Range | 14 to 6 AWG |
| Connection Type | Box Lug |
| Mounting Style | DIN Rail/Bolt Down |
| Body Material | Thermoplastic |
| Design Type | Open/Indicating |
| Temperature Rating | 125°C |
| Length | 3.97 in |
| Width | 4.72 in |
| Height | 2.24 in |
| Spring Reinforced Clips | Yes |
| Compatible Fuse Series | JTD, JTD-ID, JLS, A4J, AJT, DFJ, HSJ, JKS, LDFJ, LPJ, LPJ-I |
| UL Listed | Yes |
| CSA Certified | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Manufacturer Little Fuse
Part Number LFJ600603CID
Shelf K-57
Model LFJ600603CID
MPN LFJ600603CID
Type Fuse
