Product Description

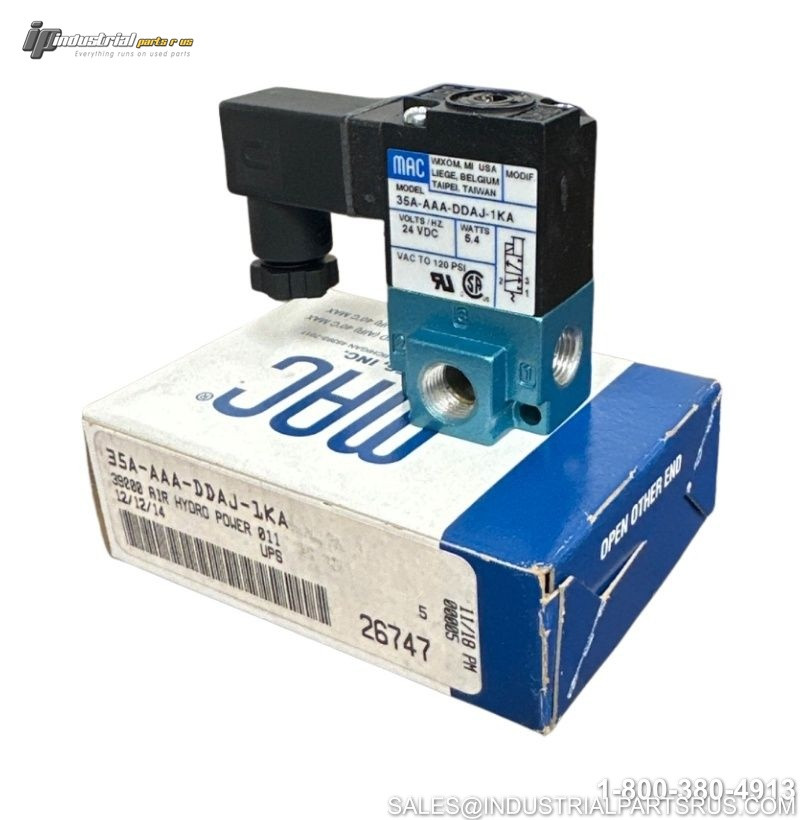

The Mac 35A-AAA-DDAJ-1KA is a direct solenoid operated 3/2-way poppet valve from the 35 series featuring patented MACSOLENOID technology for fast response times. This versatile valve can operate as normally open or normally closed, with balanced poppet design for precise repeatability and consistent operation across vacuum to 120 PSI pressure ranges.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mac |
| Model/Part Number | 35A-AAA-DDAJ-1KA |
| Series | 35 Series |
| Valve Function | 3/2-Way NO/NC |
| Ports/Positions | 3-Ports 2-Positions |
| Coil Voltage | 24VDC |
| Power | 5.4W |
| Flow Coefficient (Cv) | 0.15 |
| Pressure Range | Vacuum to +120 PSI |
| Port Size | 1/8" NPTF |
| Connection Type | Square Connector |
| Manual Operator | Non-Locking Recessed |
| Mounting | Individual In-Line |
| Dimensions | 55mm H x 25mm W x 65mm D |
| Media | Compressed Air, Inert Gases, Vacuum |
| Operation Type | Direct Solenoid Poppet |
| Reset Type | Spring Return Monostable |
| Coil Enclosure | Class A Encapsulated |
| Weight | 0.26 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Mac
Part Number 35A-AAA-DDAJ-1KA
Shelf A-15
Model 35A-AAA-DDAJ-1KA
MPN 35A-AAA-DDAJ-1KA
Type Solenoid Valve
