Product Description

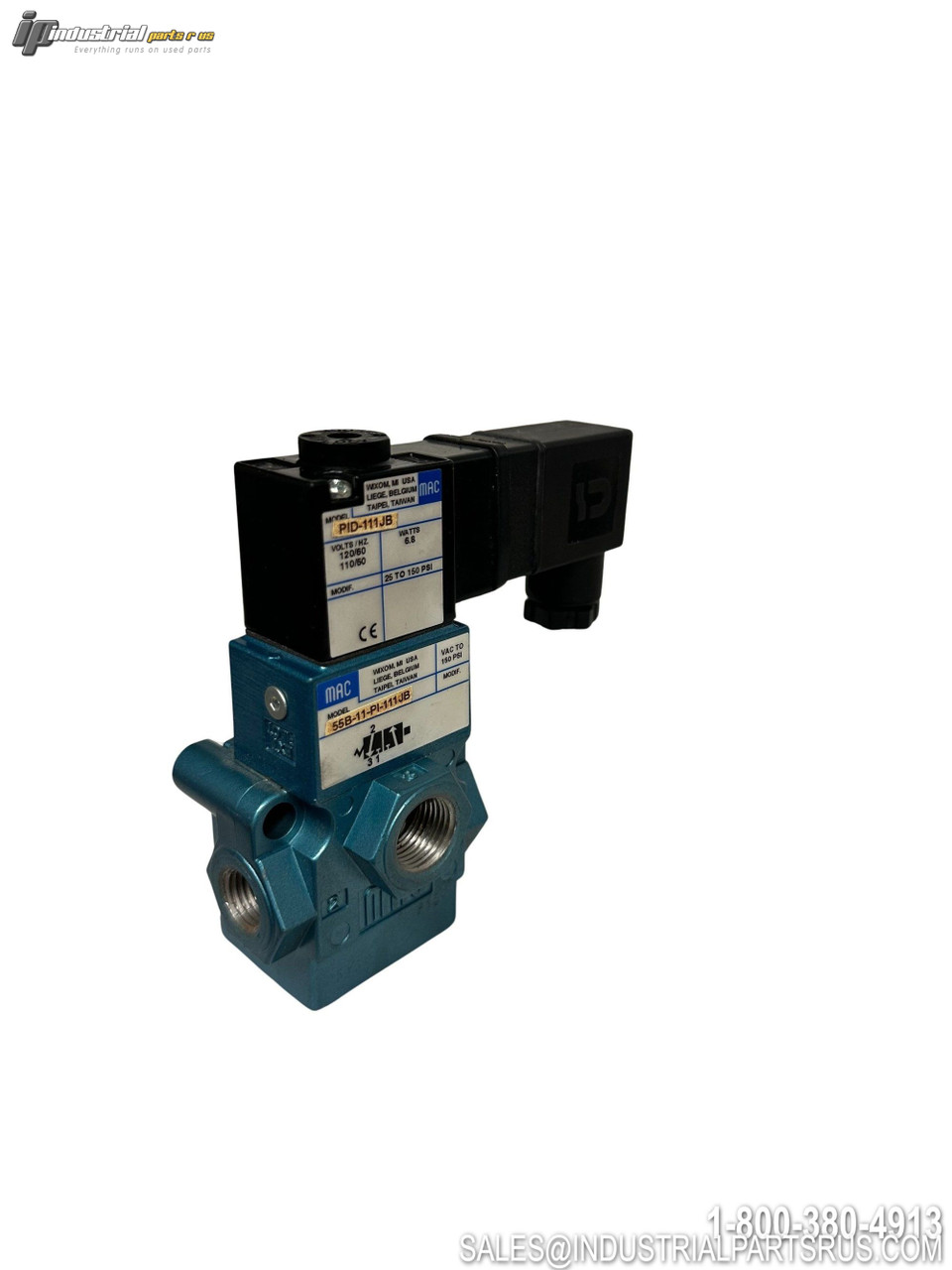

The Mac 55B-11-PI-111JB is a 3-way normally closed pneumatic solenoid valve from Mac Valves' 55 Series. This balanced spool valve features internal pilot operation and is designed for individual inline mounting with 120VAC solenoid operation and rectangular electrical connector.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mac |
| Model/Part Number | 55B-11-PI-111JB |
| Manufacturer | Mac Valves |
| Series | 55 |
| Valve Function | 3-Way Normally Closed |
| Port Size | 1/4" NPTF |
| Pilot Type | Internal Pilot |
| Coil Voltage | 120VAC/60Hz, 110VAC/50Hz |
| Manual Operator | Non-locking |
| Electrical Connection | Rectangular Connector (JB) |
| Pressure Range | 30-150 PSI |
| Flow Coefficient (Cv) | 1.4 |
| Mounting Type | Individual Inline |
| Valve Design | Balanced Spool with Piston Pilot |
| Dimensions (H x W x D) | 113mm x 46mm x 105mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Taiwan
Manufacturer Mac
Part Number 55B-11-PI-111JB
Shelf A-10
Model PID-111JB
MPN 55B-11-PI-111JB
Type Solenoid Valve
