Product Description

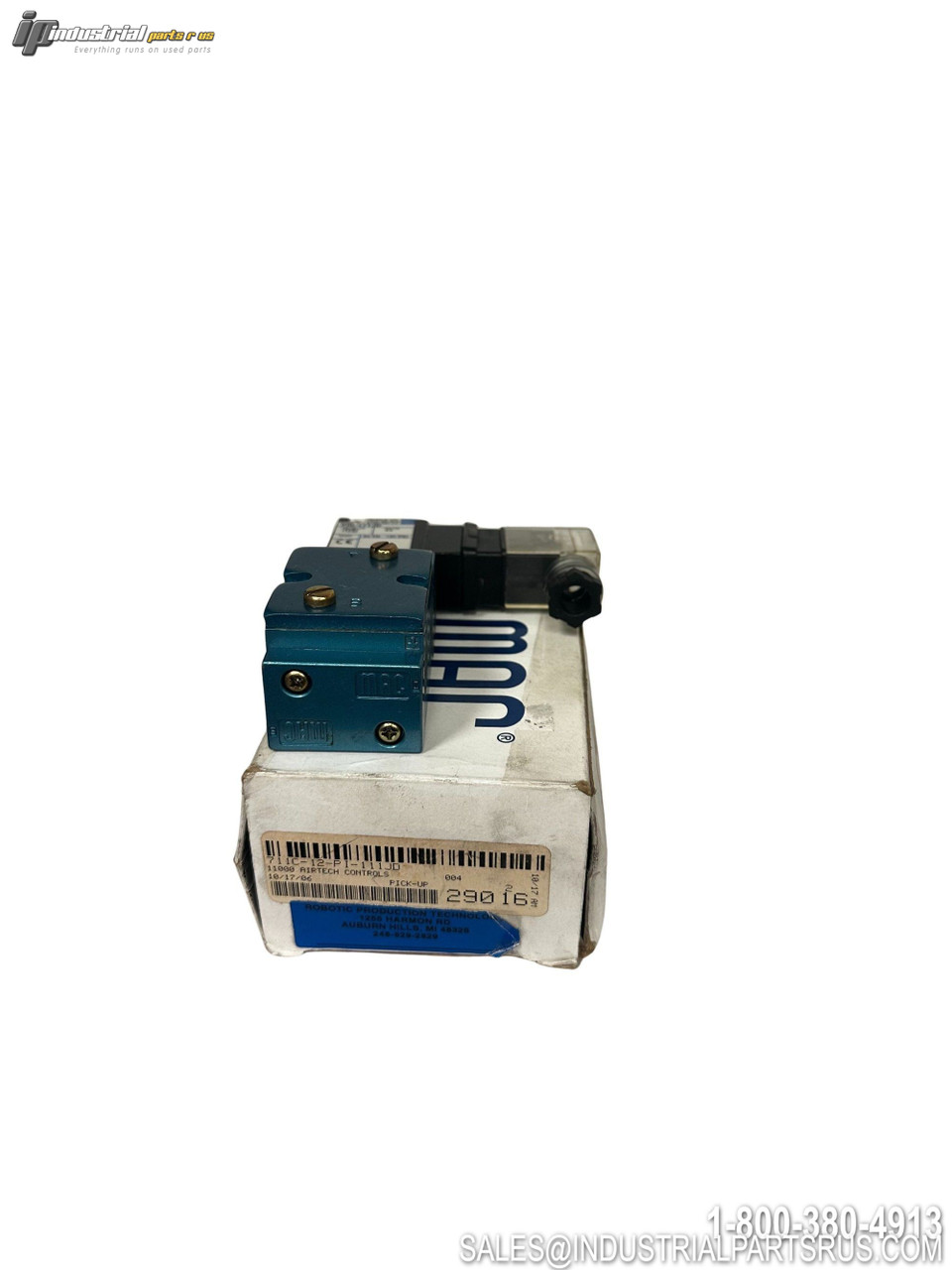

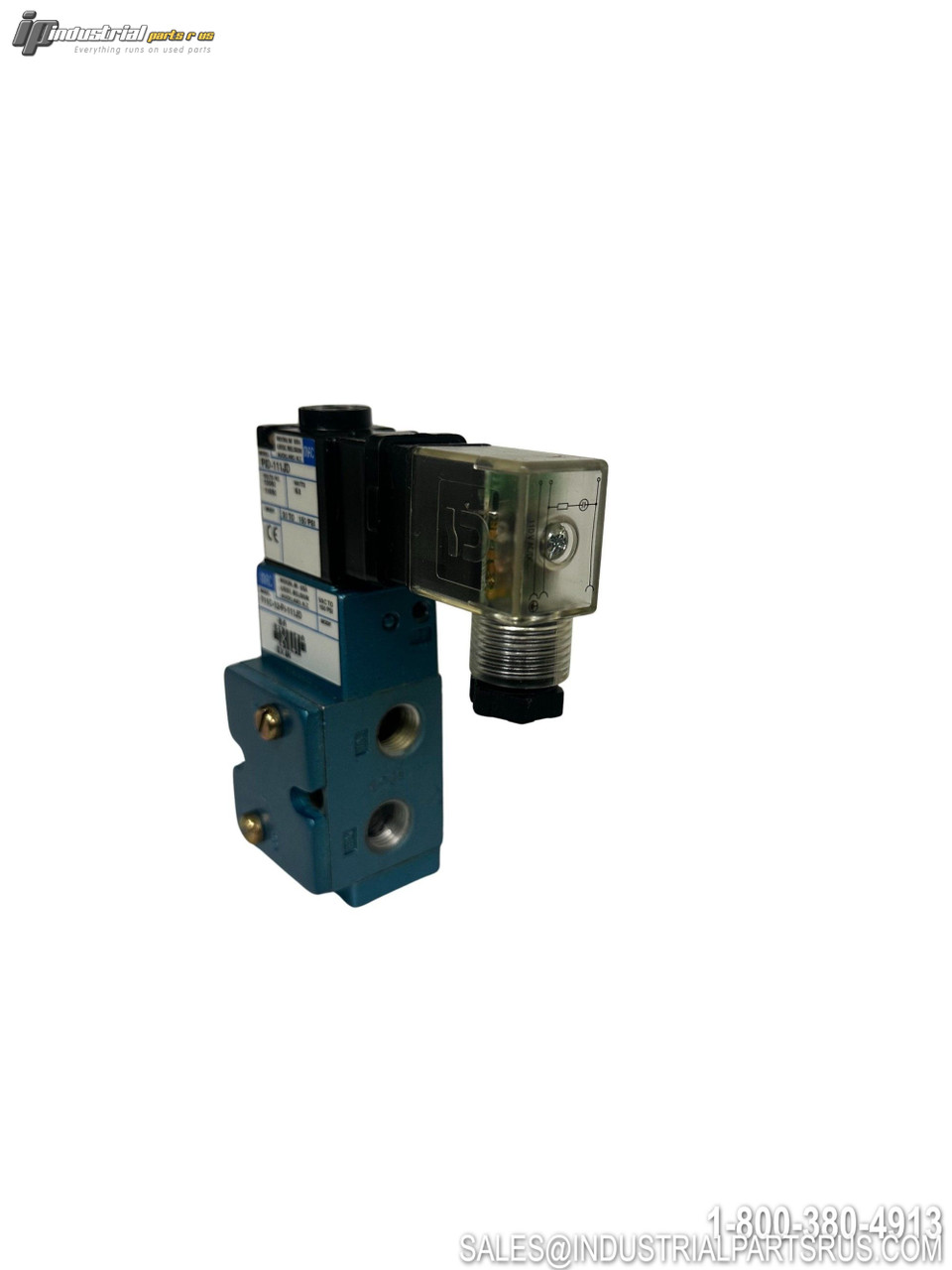

The MAC 711C-12-PI-111JD is a professional-grade pneumatic solenoid valve from MAC Valves' 700 series. This 4-way, 2-position, single operator valve features internal pilot air operation and is designed for reliable industrial automation applications. The valve includes a non-locking recessed manual operator and rectangular connector with integrated indicator light.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | MAC |
| Model/Part Number | 711C-12-PI-111JD |
| Type | Solenoid Valve |
| Series | 700 |
| Valve Configuration | 4-Way, 2-Position |
| Operator Type | Single Operator |
| Port Size | 1/4 Inch NPTF |
| Pilot Air | Internal |
| Coil Voltage | 120VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 6.8W |
| Pressure Range | 30-150 PSI |
| Flow Coefficient (Cv) | 0.70 |
| Manual Operator | Non-Locking Recessed |
| Electrical Connection | Rectangular Connector with Light |
| Connector Type | DIN 43650 |
| Operation | Monostable (Spring Return) |
| Valve Type | Spool Valve |
| Mounting | Individual In-line Installation |
| Dimensions | 97mm H x 42mm W x 117mm D |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Mac
Part Number 711C-12-PI-111JD
Shelf K-47
Model 711C-12-PI-111JD
MPN 711C-12-PI-111JD
Type Solenoid Valve
