Product Description

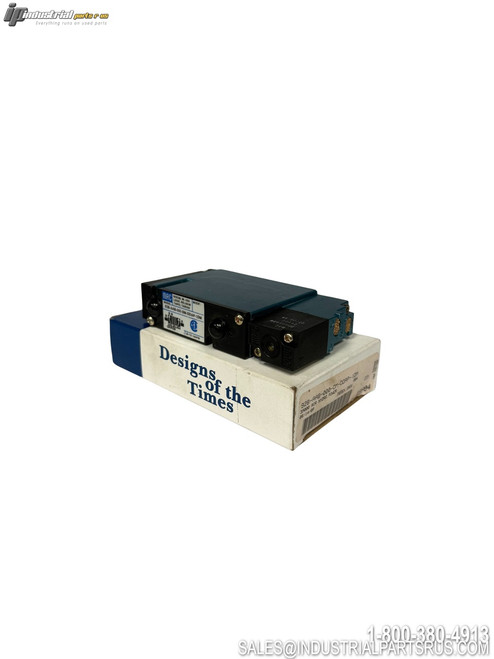

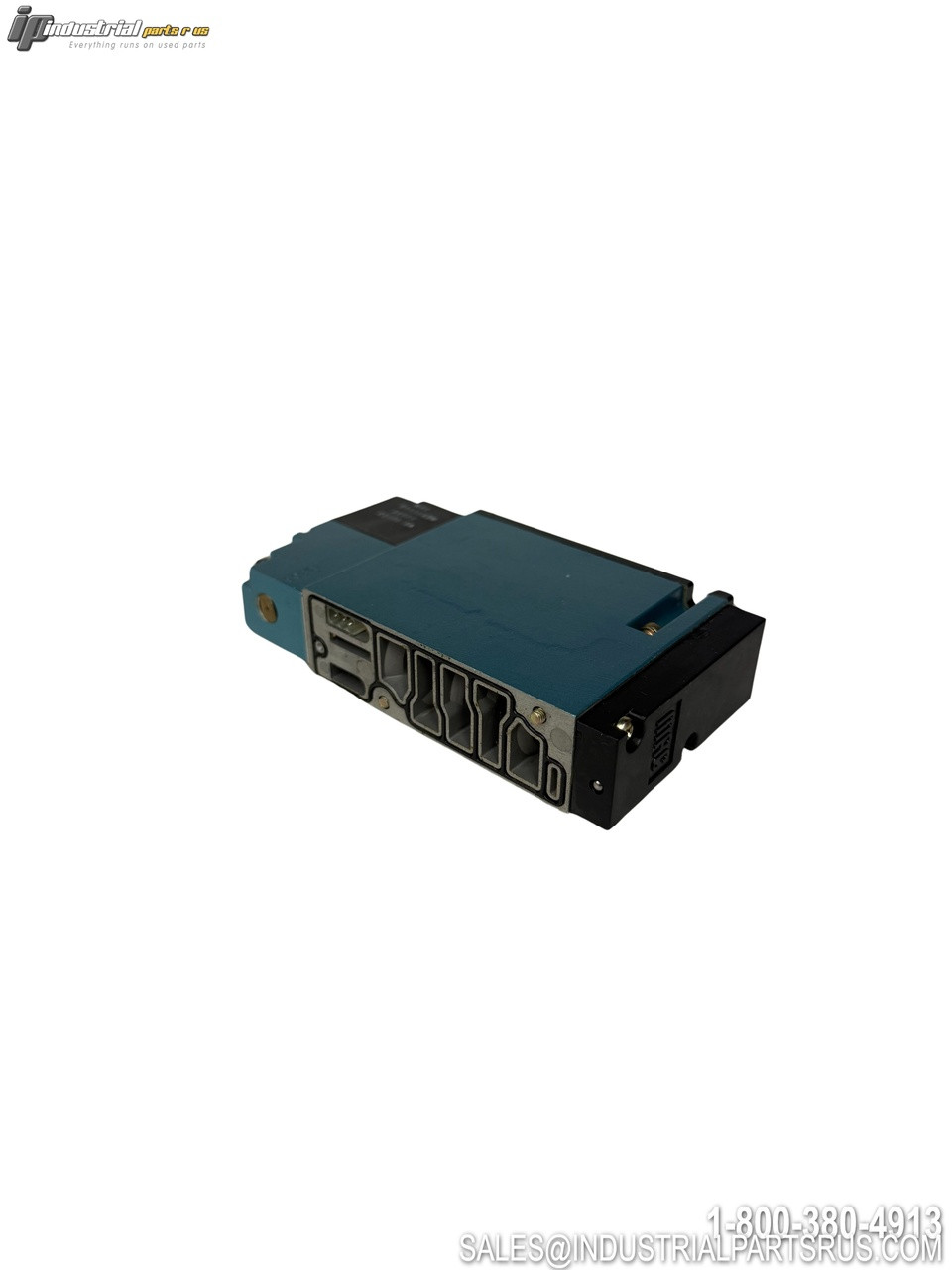

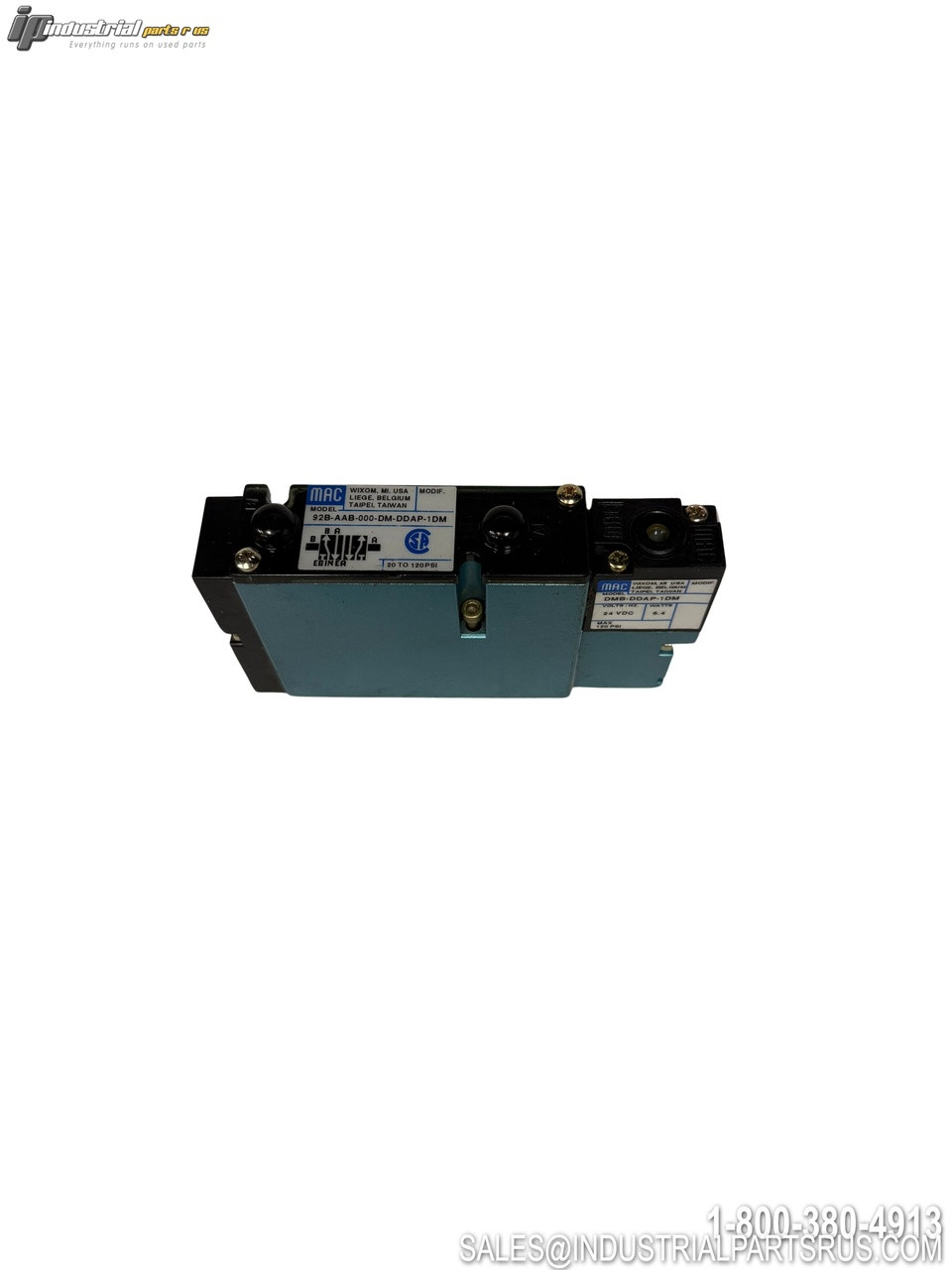

The mac 92B-AAB-000-DM-DDAP-1DM is a 5/2-way single solenoid piloted pneumatic valve from the 92 series featuring built-in auxiliary pilot valve and non-locking recessed manual operator. The 92 series utilizes patented MACSOLENOID technology for fastest possible response times and virtually burn-out proof solenoid operation. This valve operates on 24VDC with 5.4W power consumption and includes an indicator light in the body.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | mac |
| Model/Part Number | 92b-aab-000-dm-ddap-1dm |
| Product Series | 92 Series |
| Valve Configuration | 5/2-way (5-ports 2-positions) |
| Valve Type | Single Solenoid Piloted |
| Operating Voltage | 24VDC |
| Power Consumption | 5.4W |
| Max Pressure | 120 PSI |
| Flow Coefficient | 1.2 Cv |
| Valve Design | Spool Valve |
| Manual Operator | Non-locking Recessed |
| Connection Type | Plug-in |
| Operation Type | Pneumatic Spring Reset / Monostable |
| Exhaust | Muffled Pilot Exhaust |
| Indicator Light | Yes (in body) |
| Dimensions | H125mm x D150mm |
| Cable | 8" / 20cm with bare end flying leads |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Mac
Part Number 92B-AAB-000-DM-DDAP-1DM
Shelf K-47
Model 92B-AAB-000-DM-DDAP-1DM
MPN 92B-AAB-000-DM-DDAP-1DM
Type Pneumatic Valve
