Product Description

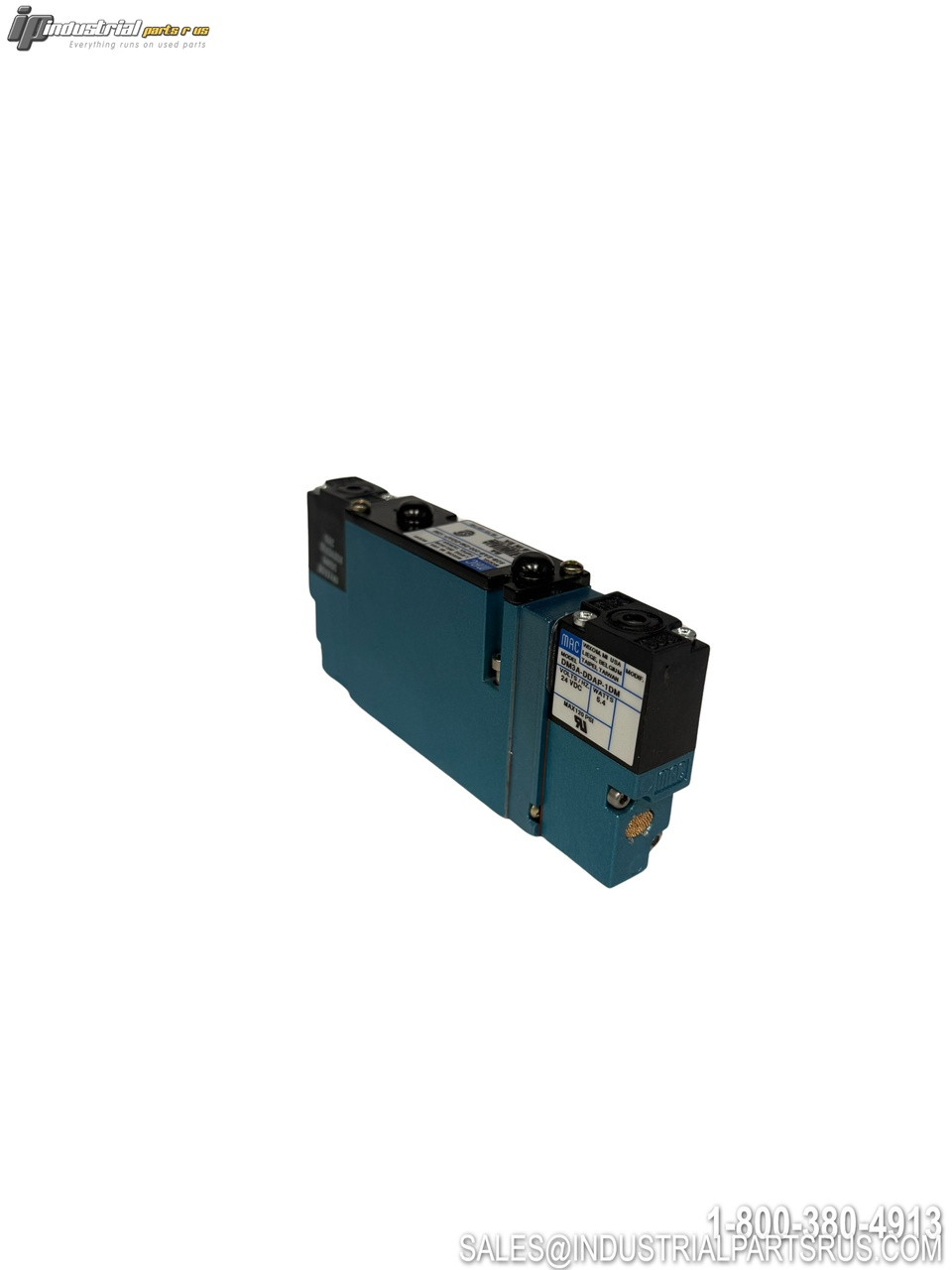

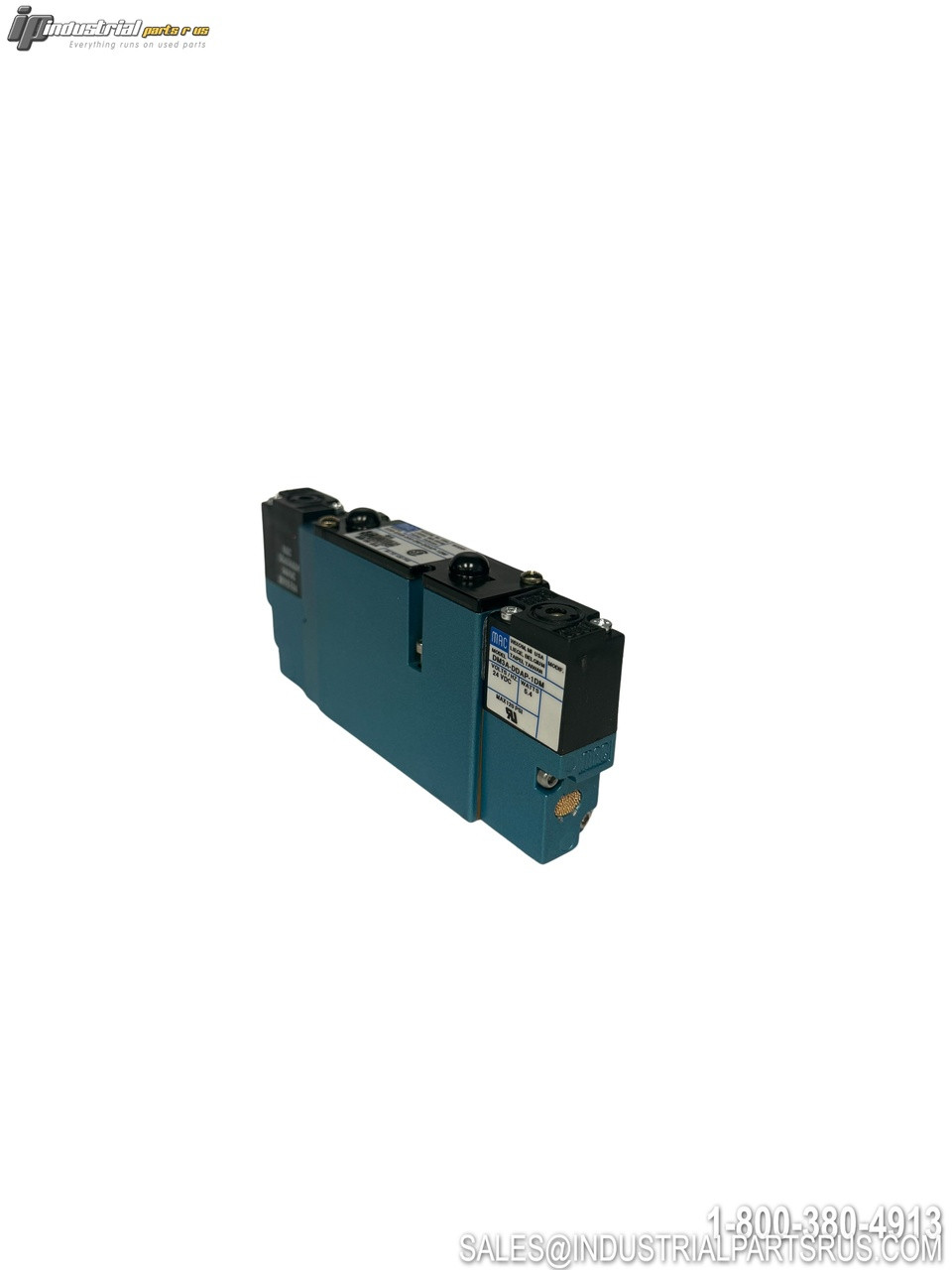

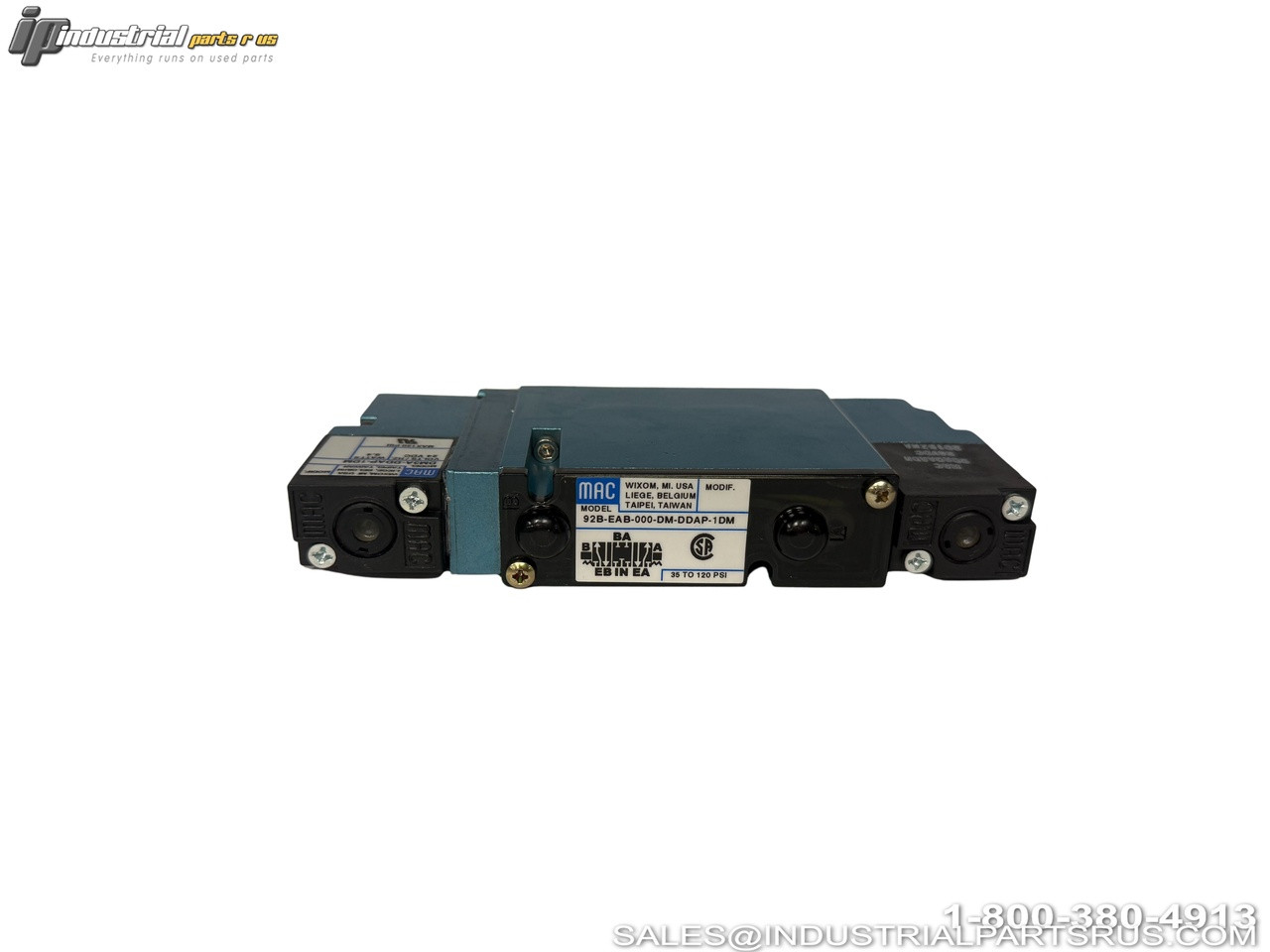

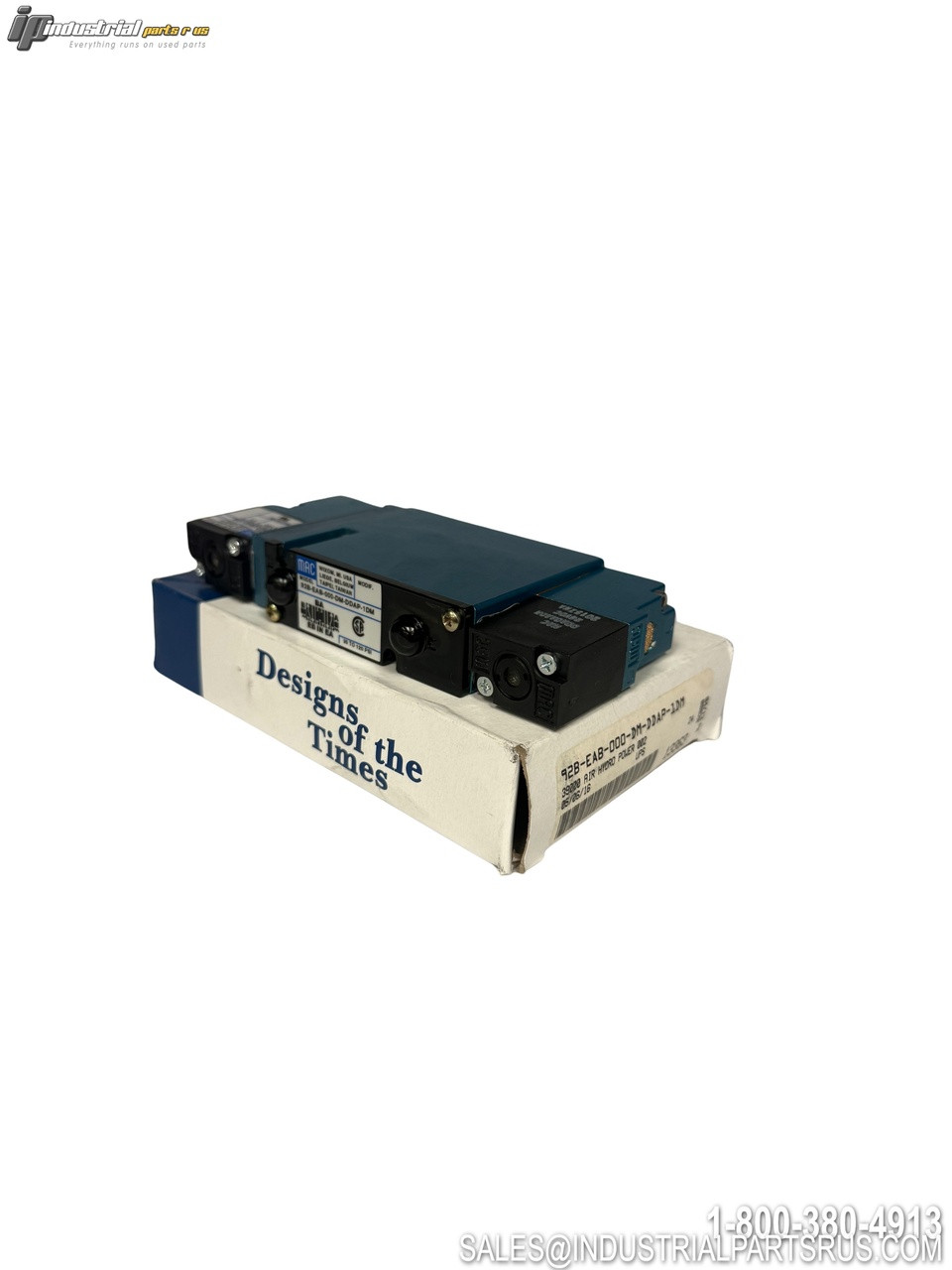

This MAC 92B-EAB-000-DM-DDAP-1DM is a 5/3-way closed center double solenoid piloted valve from the MAC 92 series. This spool valve features a built-in auxiliary pilot valve with non-locking recessed manual operator and plug-in body design for easy maintenance. The valve is designed for pneumatic spring reset operation with compressed air, inert gases, or vacuum applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | mac |
| Model/Part Number | 92b-eab-000-dm-ddap-1dm |
| Manufacturer | MAC Valves Inc |
| Series | 92 |
| Valve Type | 5/3-Way Closed Center |
| Actuator Type | Double Solenoid Piloted |
| Coil Voltage | 24VDC |
| Coil Power | 5.4W |
| Pressure Range | 35-120 PSI |
| Number of Ports | 5 |
| Number of Positions | 3 |
| Height | 125mm |
| Depth | 170mm |
| Connection Type | Plug-in |
| Manual Operator | Non-locking Recessed |
| Pilot Exhaust | Muffled |
| Operation | Pneumatic Spring Reset/Monostable |
| Cable Length | 8 inches (20cm) |
| Cable Termination | Bare End Flying Leads |
| Indicator Light | In Body |
| Weight | 0.95 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Taiwan
Manufacturer Mac
Part Number 92B-EAB-000-DM-DDAP-1DM
Shelf A-18
Model 92B-EAB-000-DM-DDAP-1DM
MPN 92B-EAB-000-DM-DDAP-1DM
Type Solenoid Valve
