Product Description

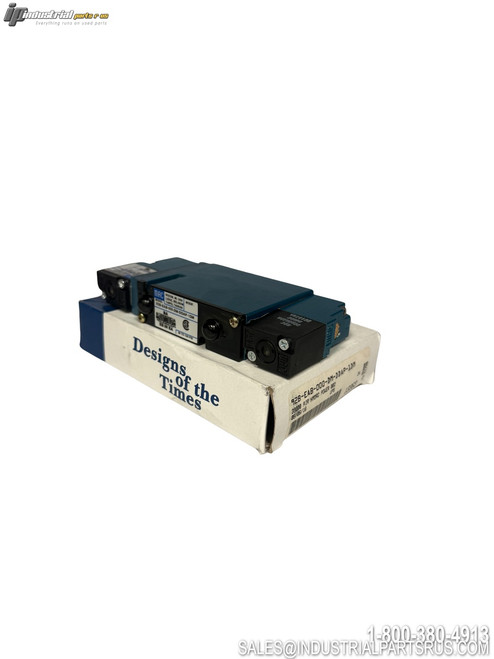

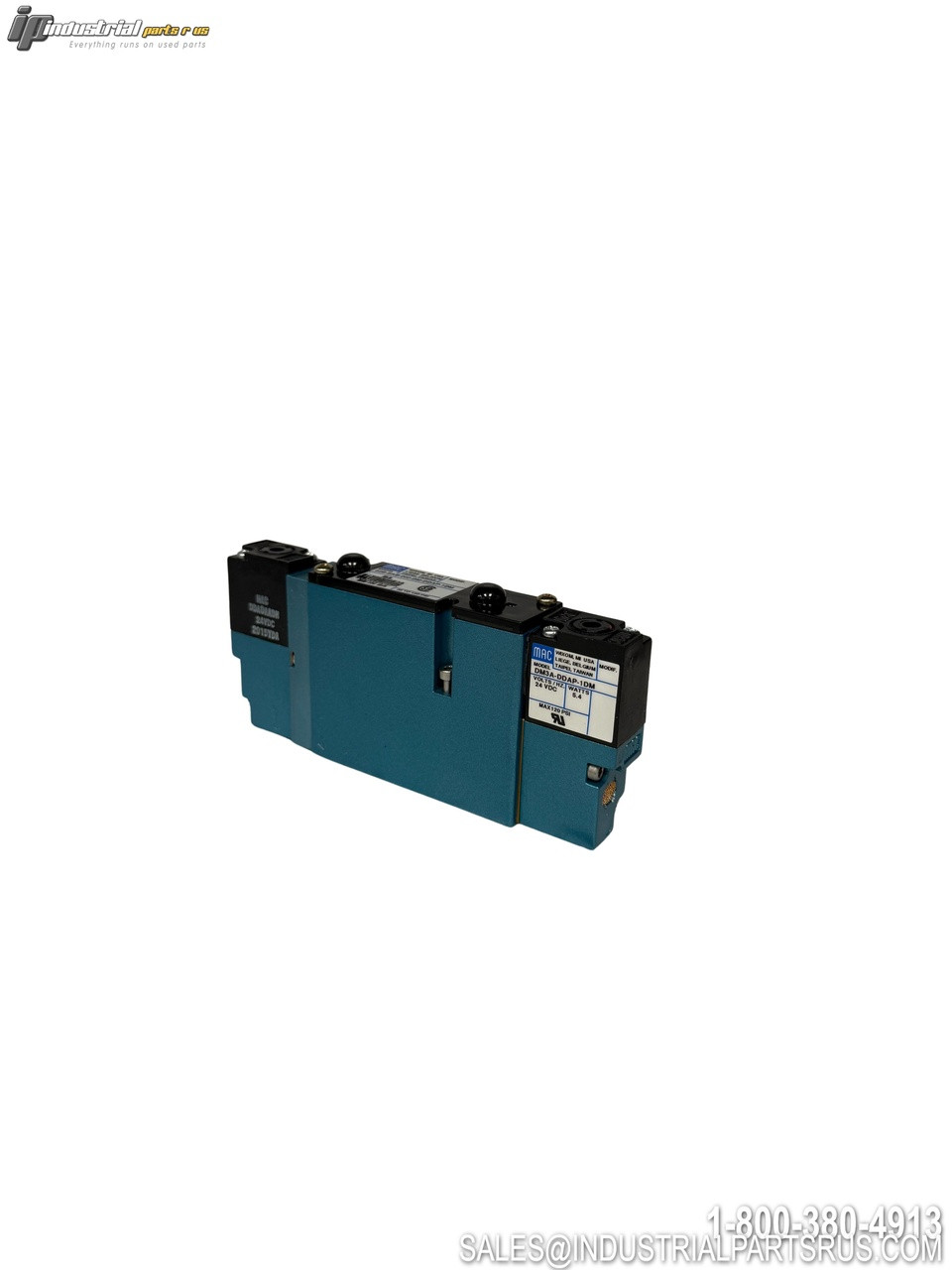

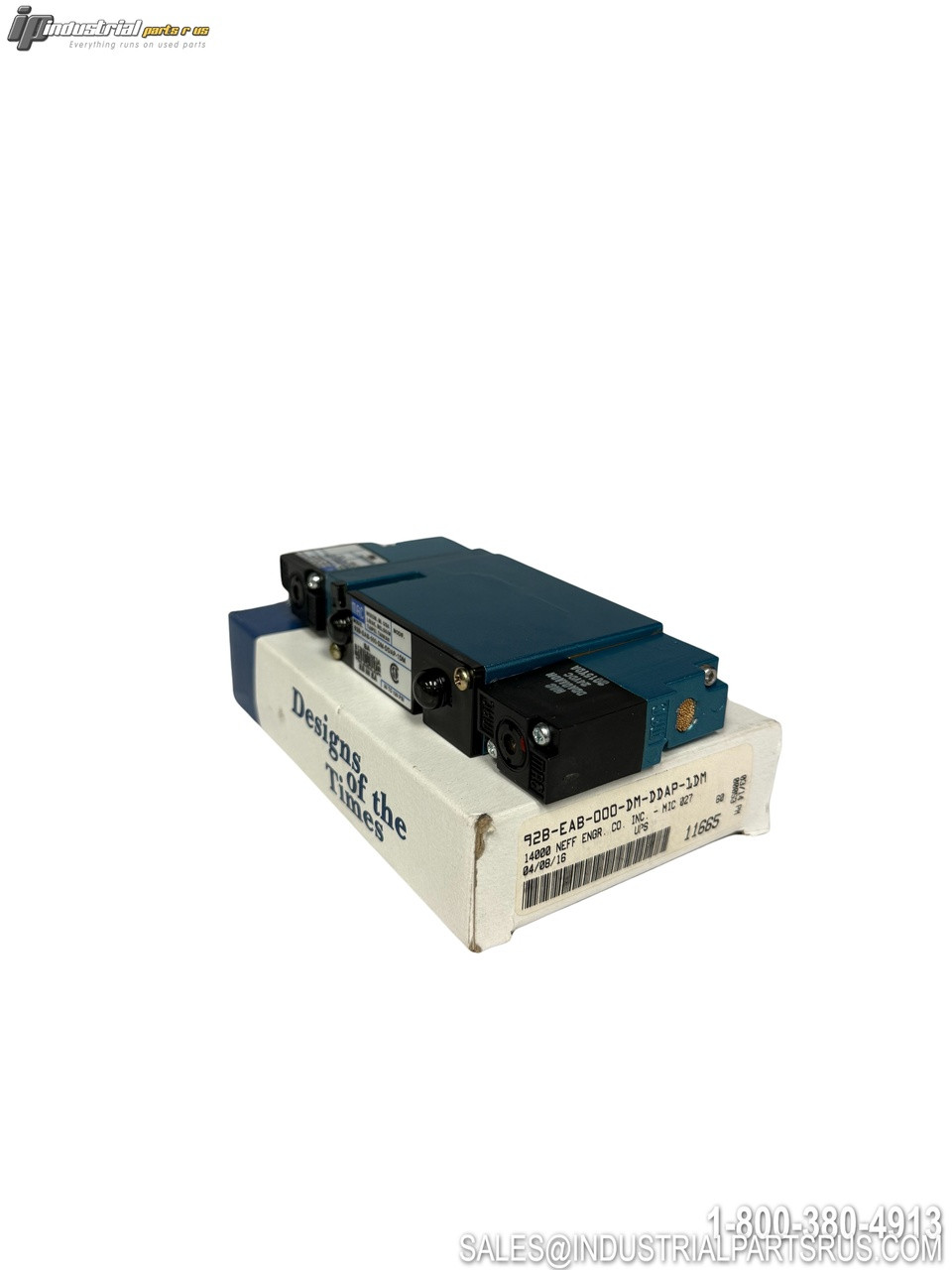

The MAC 92B-EAB-000-DM-DDAP 1DM is a 5/3-way closed center double solenoid piloted valve from the MAC 92 Series. This valve features built-in auxiliary pilot valve with non-locking recessed manual operator and offers superior performance with patented MACSOLENOID technology for fastest response times and virtually burn-out proof operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | MAC |
| Model/Part Number | 92B-EAB-000-DM-DDAP 1DM |
| Series | 92 Series |
| Valve Configuration | 5/3-way Closed Center |
| Operation Type | Double Solenoid |
| Voltage | 24VDC |
| Power | 5.4W |
| Pressure Range | 35-120 PSI |
| Temperature Range | 0°F to 120°F (-18°C to 50°C) |
| Exhaust Type | Muffled Pilot Exhaust |
| Connection Type | Plug-in Control |
| Cable Length | 8 inches (20cm) |
| Manual Operator | Non-locking Recessed |
| Valve Type | Spool Valve |
| Pilot Type | Built-in Auxiliary Pilot |
| Operation | Pneumatic Spring Reset/Monostable |
| Dimensions | H125mm x D170mm |
| Indicator Light | Yes |
| Weight | 0.95 lbs |
| Media | Compressed Air, Inert Gases, Vacuum |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Taiwan
Manufacturer Mac
Part Number 92B-EAB-000-DM-DDAP 1DM
Shelf A-18
Model 92B-EAB-000-DM-DDAP 1DM
MPN 92B-EAB-000-DM-DDAP 1DM
Type Solenoid Valve
