Product Description

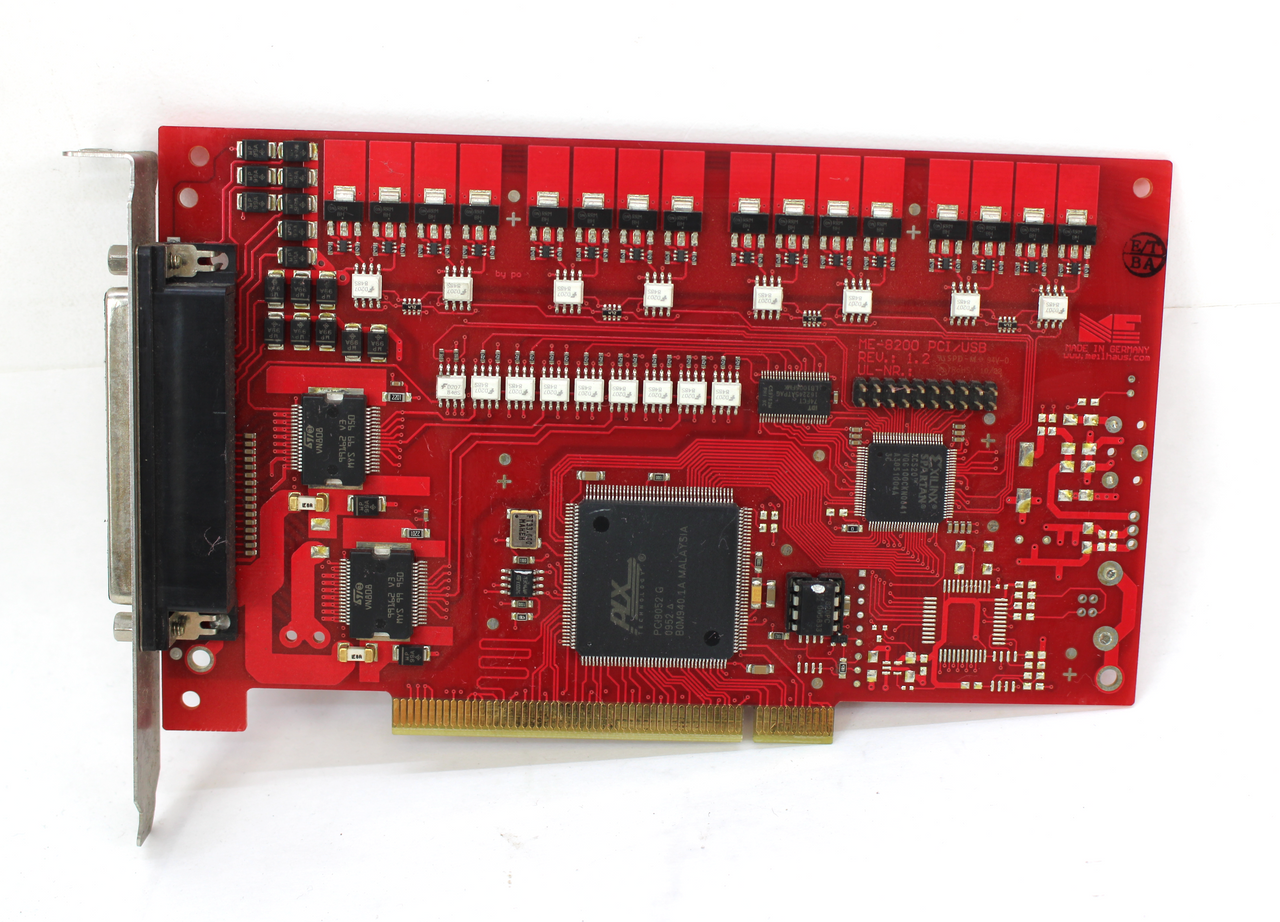

The Meilhaus Electronic ME-8200 is an opto-isolated digital I/O board designed for PC-based data acquisition and control applications. This board provides reliable digital I/O functionality with galvanic isolation up to 1 kV, making it ideal for industrial control, test systems, and monitoring applications with sophisticated status checking and interrupt capabilities.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Meilhaus Electronic |
| Model/Part Number | ME-8200 |
| Product Type | Opto-Isolated Digital I/O Board |
| Input Points | 8 or 16 opto-isolated |
| Output Points | 8 or 16 opto-isolated |
| Additional I/O | 16 TTL digital channels |
| Voltage Level | Up to 32V |
| Isolation Voltage | Up to 1 kV |
| Output Load | Up to 700 mA |
| Output Type | Source (Sink optional) |
| Input Protection | Overvoltage/Transient Diode |
| Short Circuit Protection | Yes |
| Interface | PC plug-in board |
| Connectors | 25-pin D-sub |
| Driver Support | ME-iDS for Windows 7-10 |
| Features | Interrupt control, bit-pattern compare |
We warranty all items for 30 days from date of purchase.
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 679523692902
Country/Region of Manufacture Germany
Manufacturer Unknown
Part Number ME-8200
Shelf File Cabinet 1 Shelf 3
Model ME-8200
MPN ME-8200
Type Opto-Isolated Digital-I/O Board
Controller Platform PC
