Product Description

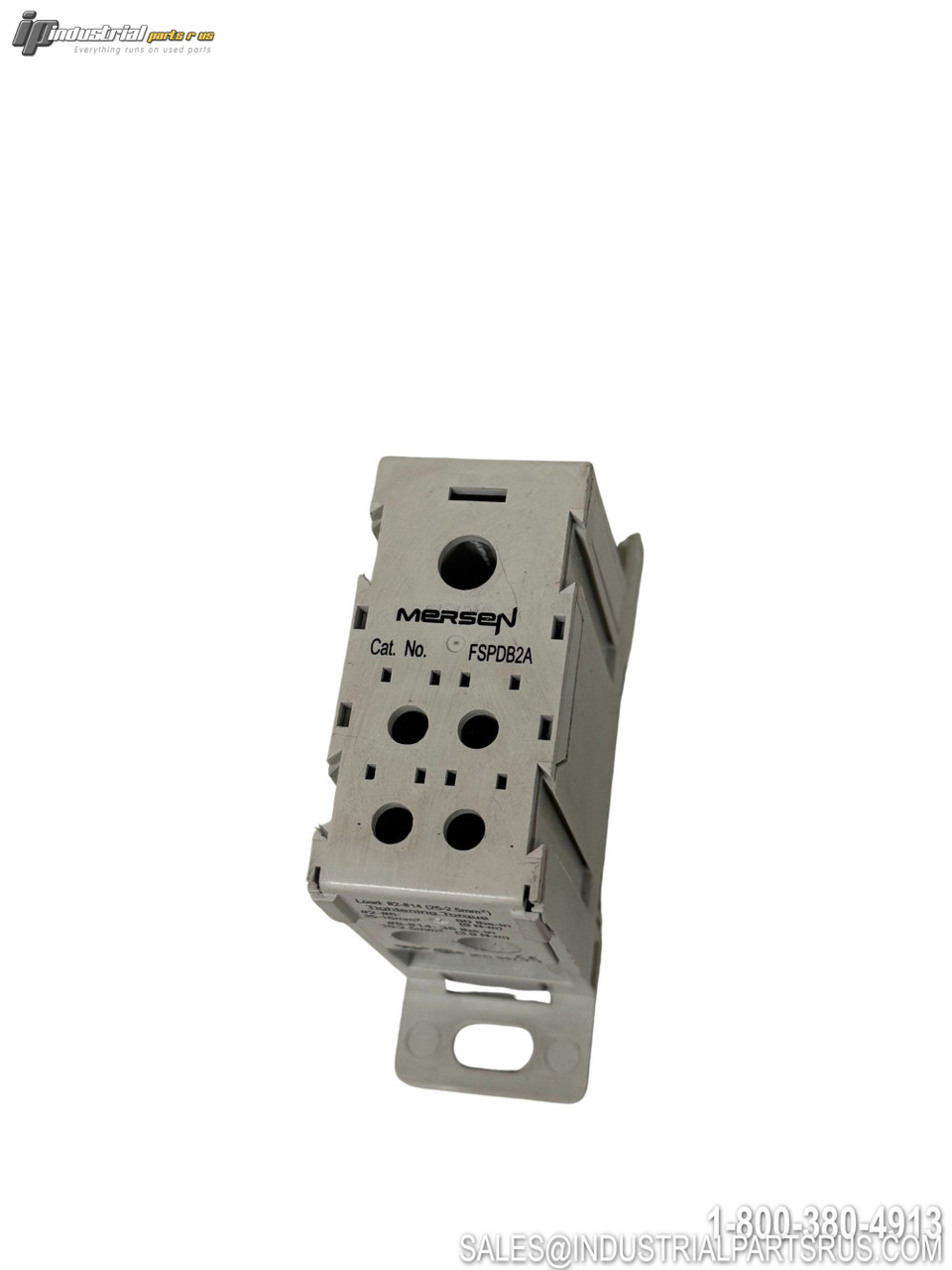

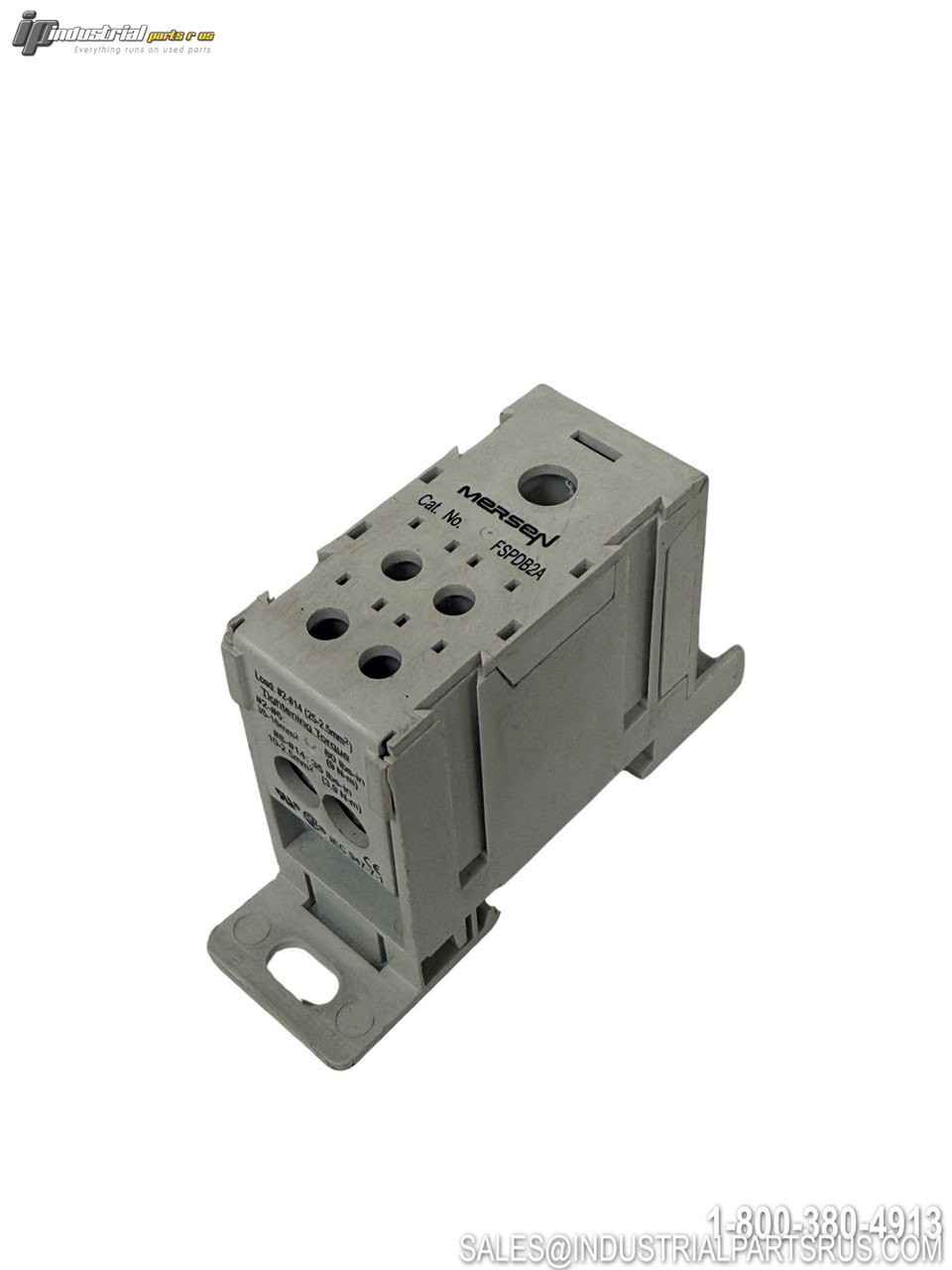

The Mersen FSPDB2A is a finger-safe power distribution block designed for splitting primary power into multiple secondary circuits. This UL 1059 listed power distribution block features IP20 protection and mounts directly to 35mm DIN rail for quick installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mersen |
| Model/Part Number | FSPDB2A |
| Series | FSPDB |
| Voltage Rating | 600 VAC |
| AC/DC Rating | 1500V AC/DC |
| Current Rating | 175A |
| Number of Poles | 1 |
| Primary Connections per Pole | 1 |
| Secondary Connections per Pole | 4 |
| Wire Size Range | 2/0 to #14 AWG |
| Short Circuit Current Rating | 100 kA |
| Material | Tin-plated Aluminum |
| Color | Gray |
| Protection Level | IP20 Finger-safe |
| Mounting Type | 35mm DIN Rail |
| UL Listed | UL 1059 |
| Dimensions (H x W x D) | 3.45 in x 1.12 in x 2.21 in |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 100 kA
Manufacturer Mersen
Part Number FSPDB2A
Shelf K-57 Tub 5
Model FSPDB2A
MPN FSPDB2A
Type Power Distribution Block
