Product Description

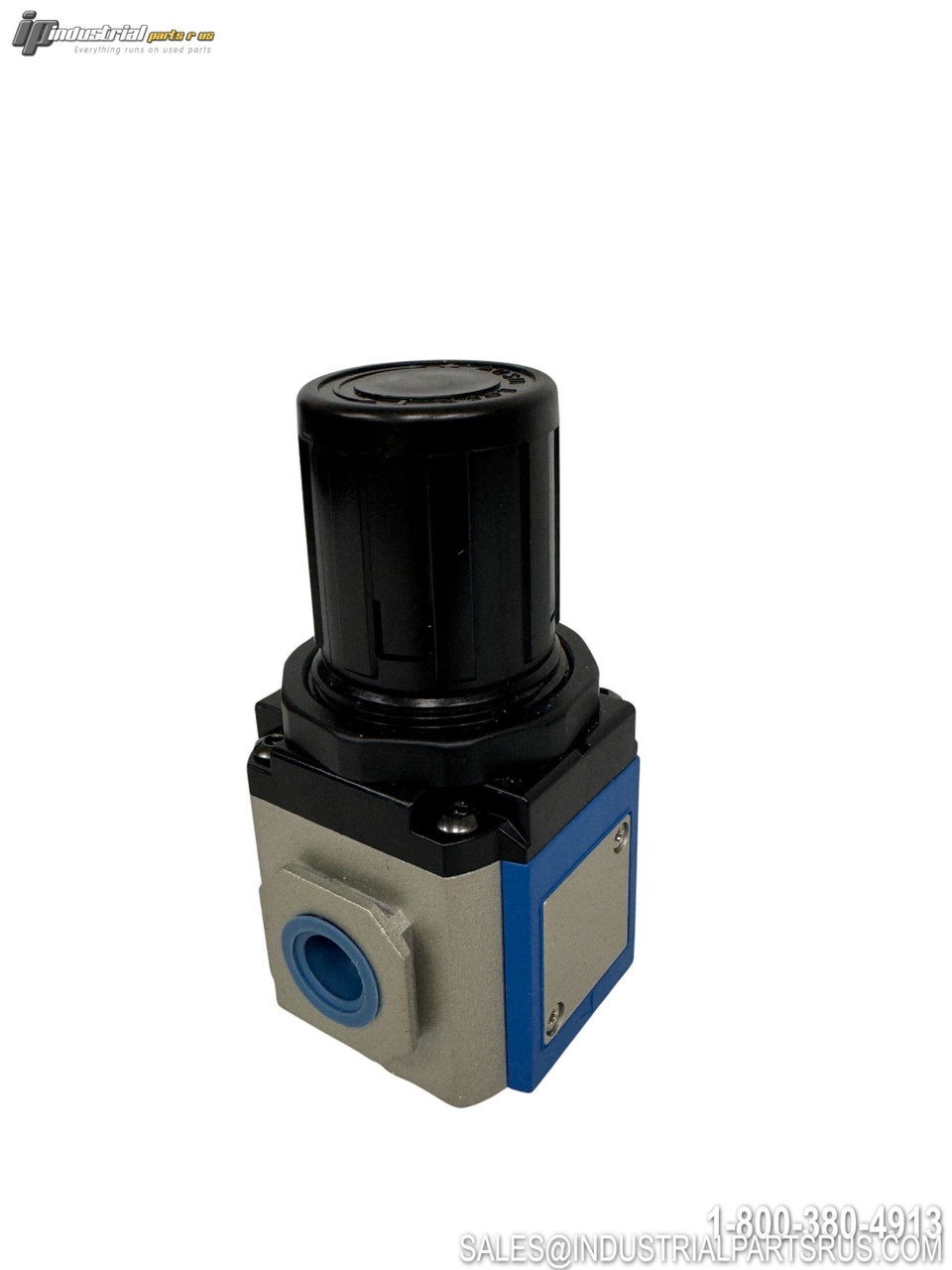

The Mfd MGR300-10-L is a modular pneumatic pressure regulator designed for compressed air systems. This relieving regulator features excellent regulation and flow characteristics with a space-efficient design ideal for panel or inline mounting. The push-to-lock adjustment knob ensures desired outlet pressure is maintained while the modular design allows connection to other MFD FRL components.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mfd |
| Model/Part Number | MGR300-10-L |
| Manufacturer | IMI Bimba |
| Product Series | MGR300 Series |
| Main Function | Pressure Regulator |
| Pressure Range | 7-60 PSI (0-4 bar) |
| Gauge Type | Square Pressure Gauge |
| Connection Type | 3/8" NPT (Female) |
| Number of Ports | 2 |
| Flow Direction | Left-to-Right |
| Adjustment Type | Push-to-Lock Knob |
| Material | Aluminum Alloy Housing |
| Mounting | Stamped Steel Bracket |
| Height | 112.5mm (4.43") |
| Width | 72mm (2.83") |
| Depth | 60mm (2.36") |
| Operating Temperature | -4°F to +158°F (-20°C to +70°C) |
| Application Type | Compressed Air |
| Design Type | Modular Air Regulator |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Mfd
Part Number MGR300-10-L
Shelf K-51
Model MGR300-10-L
MPN MGR300-10-L
Type Pneumatic Valve
