Product Description

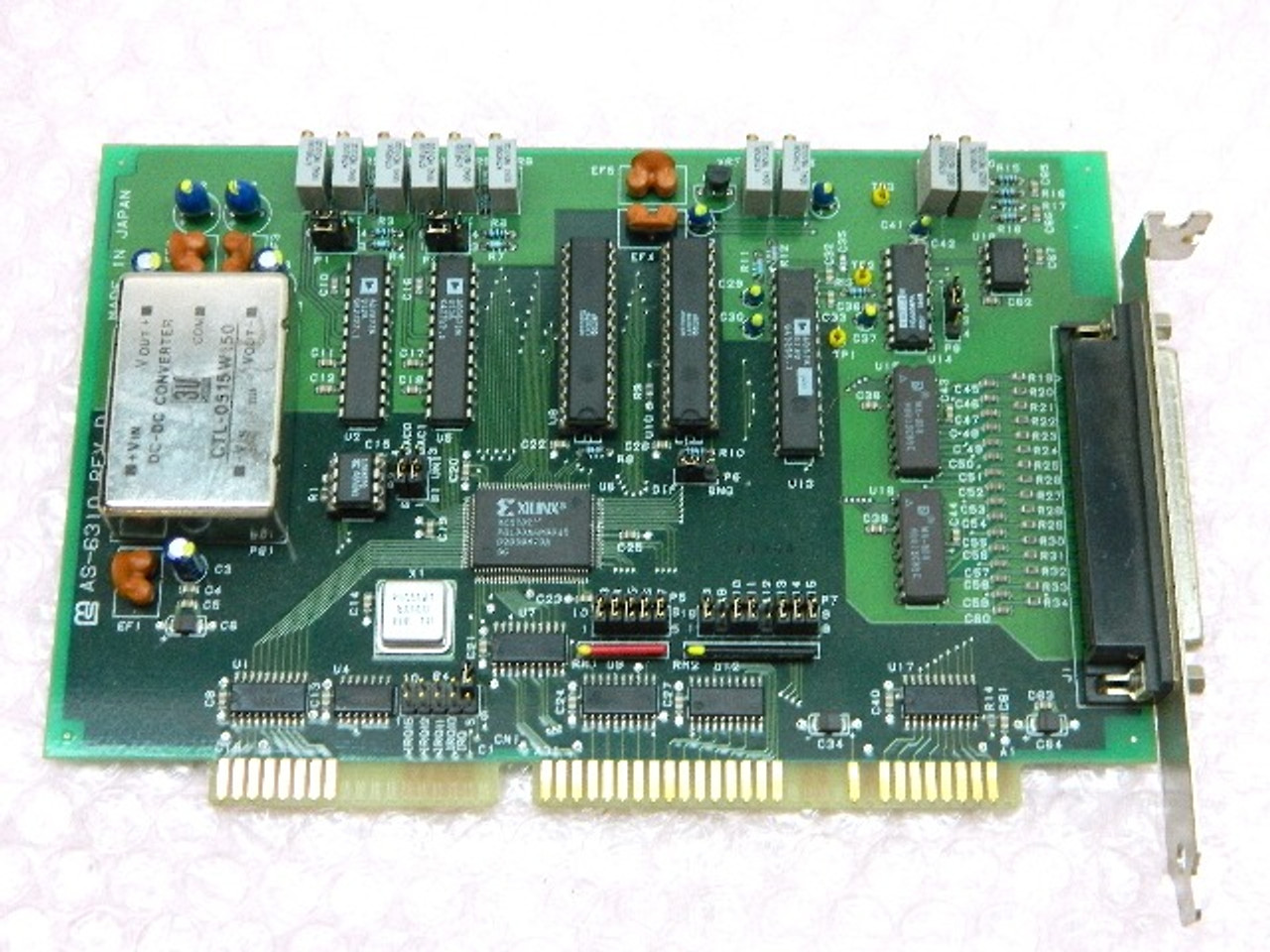

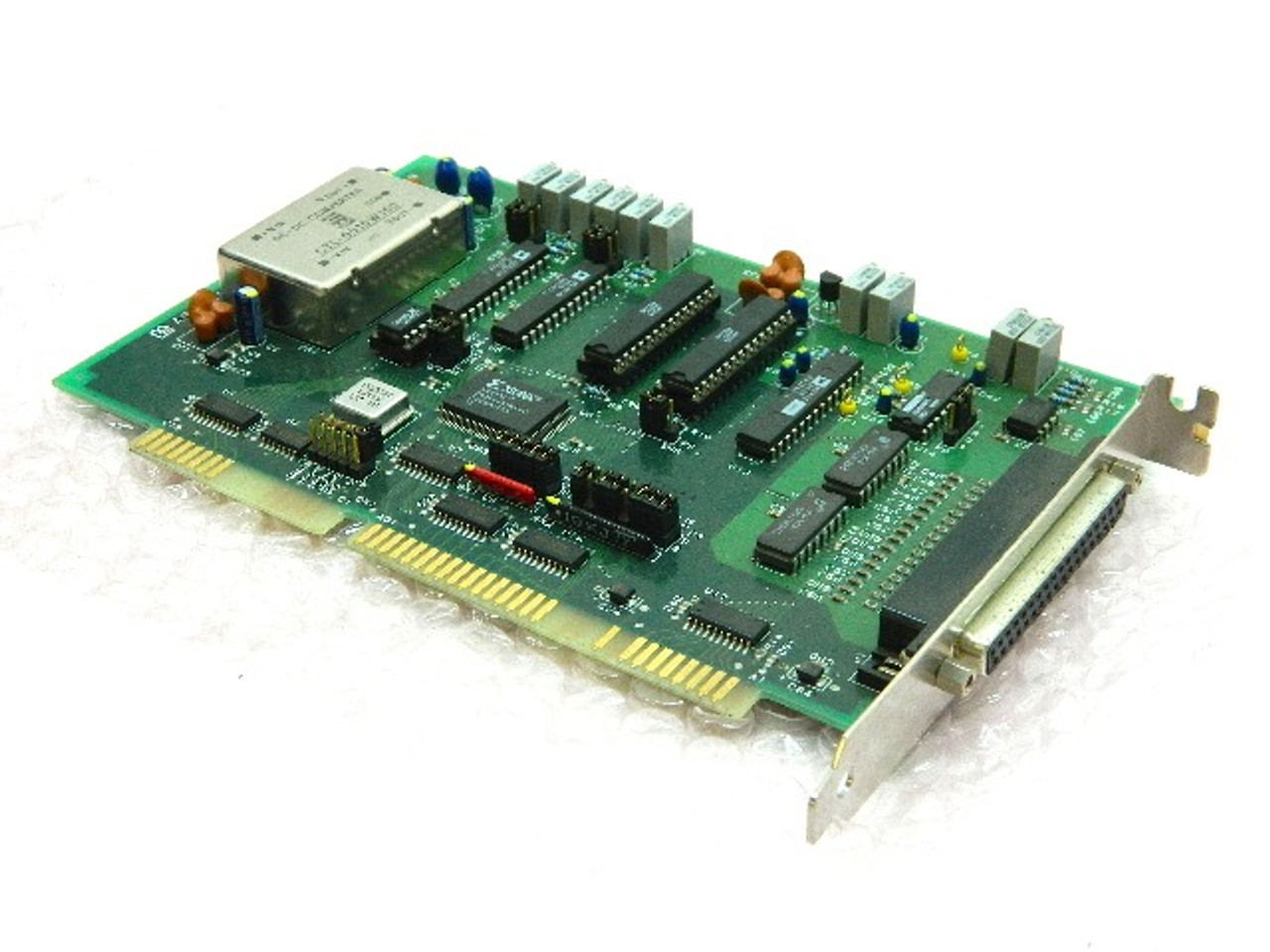

MIS AS-6310 Rev. D Non-Isolated Analog Input and Output Card Yamashita SystemsMIS AS-6310 Driver Tool (for DOS, Win95 / 98, MIS WinNT)
- is a driver tool for the AS-6310 non-isolated analog input and output card of Yamashita Systems. You can develop an
application that controls the AS-6310 uses this tool from DOS and Win95 / 98, WinNT. In addition to input and output of a simple analog data by function the driver
tool \provides, you can event processing using a periodic operation or interrupt using
pacer clock. Driver interface DOS, Win95 / 98, WinNT and are both designed with a
common specification, has become a simple yet powerful interface. For Win95 supports 95 / OSR2 / 98. For DOS driver Driver for Win95 Driver for WinNT DOS / Win95 / WinNT shared application development environment Driver [DOS] -Resident driver as6310.exe Driver [Win95] 32bit DLL / 32bit VxD driver AS-6310 32bit DLL driver as6310.dll MIS I / O interface DLL mioif.dll AS-6310 VxD hardware control driver as6310.vxd MIS I / O common VxD driver mvcomd.vxd Driver [WinNT] 32bit DLL / 32bit Kernel driver AS-6310 32bit DLL driver as6310.dll MIS I / O interface DLL mioif.dll AS-6310 Kernel hardware control driver as6310.sys MIS I / O common Kernel driver mvcomd.vxd Available development environment Compile possible environment C language environment / Visual Basic environment Borland C ++ 3.0 / 4.5 / 5.0 Visulal C ++ 1.0 / 4.0 / 5.0 Confirmed in Visual Basic 4.0 / 5.0 Watcom C / C ++ 11.0 Symantec C ++ 7.2 How to Use C driver access library header as6310.h include Embed the Visaul Basic mioif.bas Package MIS AS-6310 Driver Tool Ver 2.10 (mio ver 2.10) Driver Setup Disk How to install Run mount INSTALL.BAT the setup disk to FD A: \> INSTALL Installation default C: \ mioDev Specify the directory to the parameters of the case INSTALL batch you want to
change. A: \> INSTALL directory Development environment shared with multiple cards MIS I / O card driver can be shared in the development environment. When you install a
new tool, already check the version of MIS I / O card driver development environment
that is installed (mio ver X.XX), version will be added to the development environment
of the new card in case the same. Ñ version history ver 2.00 DOS / Win95 / WinNT driver tool (first edition) ver 2.01 improvement of the share during the installation process of the
development environment and other card ver 2.10 accompanied by the revision in version Fix + -------------------- + | FD file structure | + -------------------- + \ Introduction README.TXT INSTALL.BAT installation batch file + - DOC online documentation MANUAL.TXT driver tool manual (TXT file) + - DOS DOS for drivers and sample AS6310.EXE AS-6310 DOS driver TST6310.EXE AS-6310 operation check program CABIO.EXE AS-6310 calibration program (Built with Borland C ++ 3.0) + - SAMPLE sample program environment TST6310.C operation check program source file CABIO.C calibration program source file + - (Confirmed in BC ++ 3.0 / 4.5) BC Boarland C ++ for the build environment + - (Confirmed in VC ++ 1.0) MSC MSC / Visual C ++ for the build environment + - WIN95 driver for Win95 AS6310.DLL AS-6310 Win95 DLL drivers AS6310.VXD AS-6310 Win95 VxD driver MVCOMD.VXD MIS I / O common Win95 VxD driver + - WINNT WinNT for drivers AS6310.DLL AS-6310 WinNT DLL driver AS6310.SYS AS-6310 WinNT Kernel driver MNCOMD.SYS MIS I / O common WinNT Kernel driver + - WIN95NT Win95, WinNT for the common driver and sample MIOIF.DLL MIS I / O interface DLL TST6310.EXE AS-6310 operation check program CABIO.EXE AS-6310 calibration program (Built with Borland C ++ 4.5) VBSAMPLE.EXE VisualBasic version AS-5130 sample program (Built with Visual Basic 4.0) + - SAMPLE sample program environment TST6310.C operation check program source file (DOS version of the same) CABIO.C calibration program source file (DOS version of the same) VBSAMPLE VB version of the sample access program (for VisualBasic4.0) VBSAMPLE.VBP VisualBasic4.0 project file for VBSAMPLE.FRM VisualBasic4.0 program source file + - H development include files Route include file for AS6310.H AS6310 MIOIF.BAS MIOIF.DLL access VisualBasic module Other * .H various header include + - BIN Installation Tools Used only during installation + ---------------------- + | Installation configuration | + ---------------------- + C: \ mioDev + - H development include files + - AS6310 + - DOC online documentation + - DOS DOS for drivers and sample + - WIN95NT Win95 / NT common sample + ---------------------- + | Installation operation example | + ---------------------- + A: \> install *********************************************** * MIS AS-6310 Analog In / Output Card * * I / O Driver Tool for DOS / Win95 / WinNT * * Installer * * Yamashita Systems Corp. * * Ver 2.01 (mio 2.02) * * Jul 1999 * *********************************************** OS is [Win95] * 1 ======= Install Driver Tool ======= Driver Tool Directory is [C: \ mioDev] * 2 Install Driver Tool Ok? [Y / N / Q] y * 3 Copy Driver Tool Files ... Copy End. Install Driver Tool End. ======= Install Win95 Drivers ======= * 4 Windows Directory is [C: \ WINDOWS] Install Windows Drivers Ok? [Y / N / Q] y Install Drivers End. * 1 DOS / Win95 / WinNT result of the determination of the three types is
displayed. Win98 / OSR2 it will be Win95. * 2 tool installation of it is possible to vary specified when you call the
install batch. install d: \ mydir * The 3 Yes / No / Quit I specified in y n q. Skip operation in the case of No,
in the case of Quit it will be to specify the end behavior. * 4 In the case of DOS has no installation phase of Driver. * If you already that the development environment of the other card is
installed appears that Sokusu attention. + ---------------------- + | Sample Program | + ---------------------- + AS-6310 operation check program tst6310.exe It is a check program to verify together the operation of the AS-6310 card and
driver. OK if you do not become the I / O address settings, please check the settings of
the interrupt again. DOS for as6310 \ dos \ tst6310.exe Win95 / WinNT for as6310\win95nt\tst6310.exe <Operation example in Win95> DX4 / 100 on the machine C: \ MIODEV \ WIN95NT> tst6310 AS6310 Self Test (Card: 1) Start Enter Port Addr (Hex): 188 <--- input Enter IRQ No (Dec): 15 <--- input Open Driver .. Success Initialize Time Measuring .. Success Locate Card .. Success Port / IRQ Resource .. Port: 0x0188h-0x018fh Irq: 15 Analog Access Test Analog Input Unit 1 Channel Count = 16 Gain = 1 Range (mV) = -10000 <-> 10000 Ain Unit Channel 0 Input Time 29 usec - 366 usec * 1 Ain Unit Channel 0 Input Data 0xee72 - 0xee7c Ain Unit All Channels (Ch0-15) Input Time 455 usec - 741 usec Analog Output Unit 1 * 2 Gain = 1 Range (mV) = -10000 <-> 10000 Aout Unit Output Time 6 usec - 1479 usec * 3 Analog Output Unit 2 Gain = 1 Range (mV) = -10000 <-> 10000 Aout Unit Output Time 6 usec - 465 usec * 3 Success Interrupt Test Waitting Interrupt use mHintWaitTrigger () Interrupt Response time 122 usec - 454 usec * 4 (With triger and A / D conversion time) Success Close Driver .. Success AS6310 Self Test OK * 1 over a trigger in Ch 0 is the time of min / max of up to capture the data. * 2 over a trigger in Ch 0-15 This is the time of min / max of up to capture the
data. * 3 This is the min / max of the execution time of the analog output function. * 4 This is the time of the min-max up to Ch0 over a trigger in undergo a
conversion ends with interrupt. OS of intervention (interrupt, task switch) increases the execution time by.
Please maximum value designing a practical system based that contain that time. (Note) The specified IRQ No is required that has been assigned to the ISA bus.
Please be assigned to the ISA bus in the BIOS setup screen of system startup. Example) In the case of AS-3240 PNP / PCI CONFIGURATION IRQ-15 assinged to: Legacy ISA <---- I want to available IRQ 15 in the ISA. AS-6310 calibration program cabio.exe It is a program that performs the analog data input and output of the AS-6310. So you can view the bit string itself, which converts the analog data when
combined with high-precision voltage source you can make a check and adjustment of the
accuracy and the like. DOS for as6310 \ dos \ cabio.exe Win95 / WinNT for as6310 \ win95nt \ cabio.exe <Operation example in Win95> C: \ MIODEV \ WIN95NT> cabio AS6310 Calibration (Card: 1) Start Enter Port Addr (Hex): 188 <--- input Open Driver .. Success Locate Card .. Success Port / IRQ Resource .. Port: 0x0188h-0x018fh Irq: -1 Card Calibration Program for AS-6310 [1] Output Aout 1 (0x0000) [2] Output Aout 2 (0x0000) [3] Calibration Ain [4] Set Ain Gain (1) [0] Quit Select Operation: _ <--- input I data output to 1 analog output 1. And set a 16bit Hex data * 1 I data output to the two analog output 2. And set a 16bit Hex data * 1 3 converts all channels of analog input and display. 4 you will set the gain of the analog input. (1/2/4/8) You'll end 0 program. * 1 output data just set in the register. Please check the setup manual is
actually how it would be converted into a voltage. Analog Input Calibration Gain: 1 Range (mV): -10000 <-> 10000 Last 3bits are ignored for Decimal conversion CH00: 1110 0001 0001 1111 -2.41455 [V] CH01: 1110 0000 0110 1010 -2.46826 [V] CH02: 1110 0001 0101 1100 -2.39502 [V] CH03: 1110 0010 0010 1111 -2.33154 [V] CH04: 1110 0100 0000 0011 -2.18750 [V] CH05: 1110 0001 1010 0101 -2.37305 [V] CH06: 1110 0100 0011 0010 -2.17285 [V] CH07: 1110 0110 0100 1000 -2.00928 [V] CH08: 1110 0100 1000 1001 -2.14600 [V] CH09: 1110 0011 1110 1110 -2.19482 [V] CH10: 1110 0010 0011 0100 -2.32910 [V] CH11: 1110 0011 0010 0011 -2.25586 [V] CH12: 1110 0001 0111 0110 -2.38770 [V] CH13: 1110 0000 0110 1110 -2.46826 [V] CH14: 1110 0010 0010 1011 -2.32910 [V] CH15: 1110 0000 1011 1101 -2.44385 [V] * The 16bit data of analog input itself is displayed in the bit string. * The values ÛÜÛÜare calculated values, including the range and gain a lower 3bit
as 0 from the converted data. * In the case of differential input will be 8ch display.
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Analog Input Output Card
MPN AS-6310
Model AS-6310
Shelf File Cab 2-3
Revision D
Manufacturer MIS
Country/Region of Manufacture Japan
GTIN 646412779600
Part Number AS-6310
