Product Description

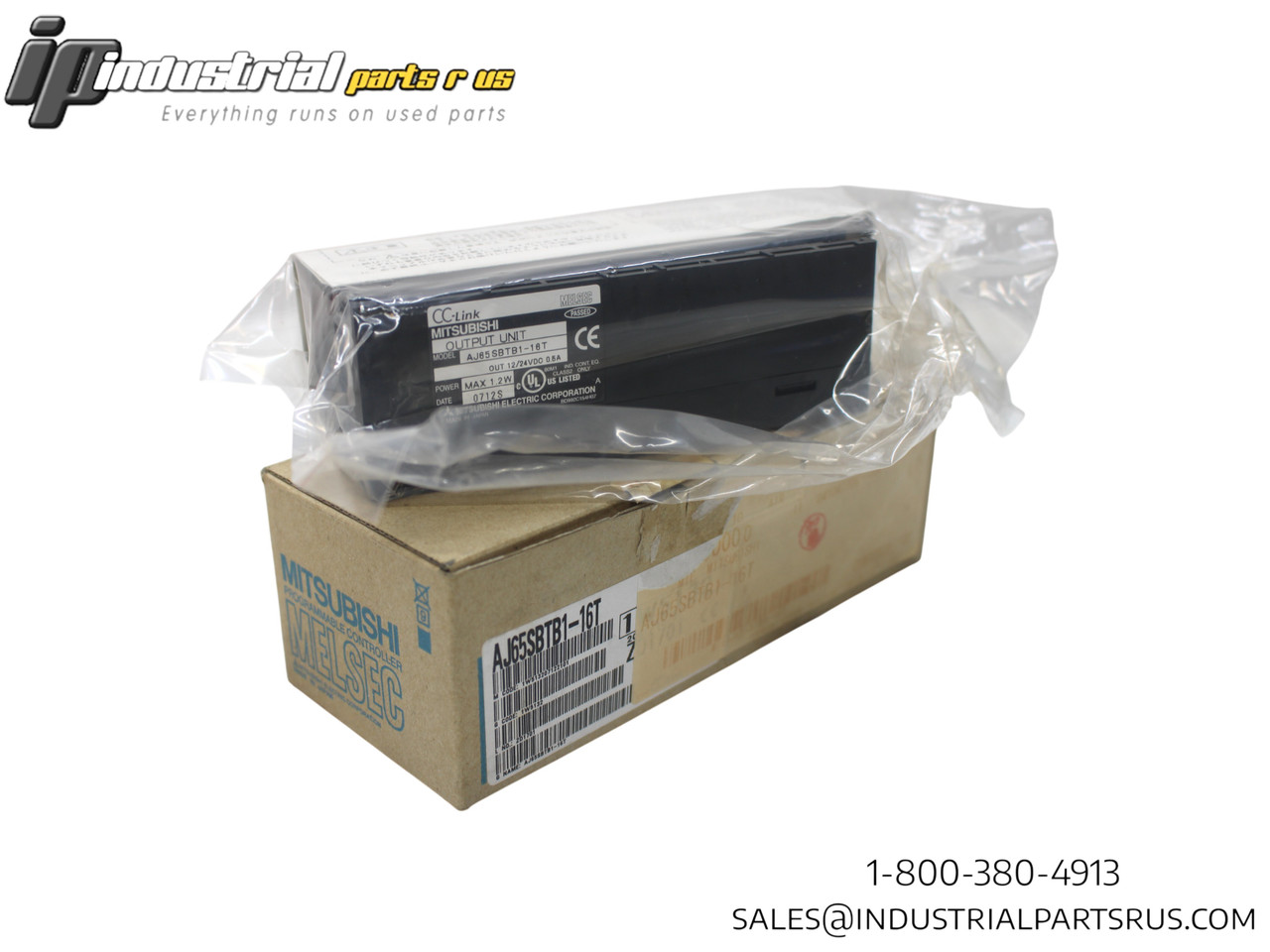

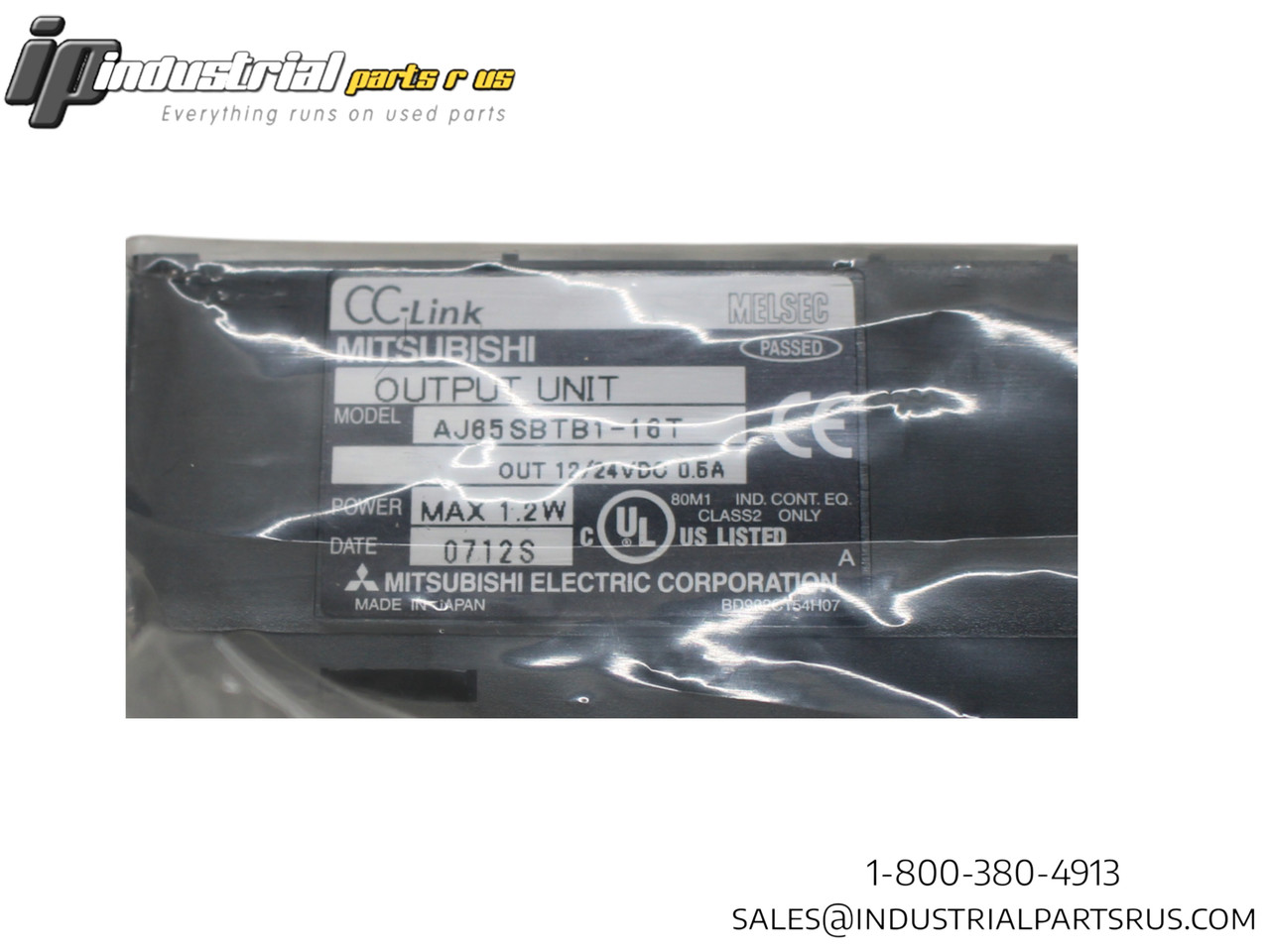

The Mitsubishi AJ65SBTB1-16T is a digital remote output unit module designed for cabinet installation as part of the MELSEC-A series programmable logic controller system. This CC-Link remote I/O module provides 16 digital outputs with transistor sink-type outputs, rated for 12-24VDC operation with 0.5A per point capacity and output protection functionality.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | aj65sbtb1-16t |
| Series | MELSEC-A |
| Module Type | Digital Output |
| Controller Platform | MELSEC-A |
| Communication Standard | CC-Link |
| Output Points | 16 |
| Output Type | Transistor Sink |
| Output Voltage | 12-24VDC |
| Load Current | 0.5A per point |
| Common Current | 3.6A |
| Internal Current Consumption | 50mA |
| Connection Type | Screw Terminal |
| Common Connection | 16 points 1 common |
| Dimensions (WxHxD) | 118 x 50 x 40 mm |
| Weight | 0.73 lbs |
| Mounting Type | DIN Rail / Panel Mount |
| Output Protection | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Japan
Series MELSEC-A
Output Voltage 12-24VDC
GTIN 679523686185
Output Type Transistor Sink
Full Load Amps 3.6A
Manufacturer Mitsubishi
Part Number AJ65SBTB1-16T
Controller Platform MELSEC-A
Shelf K-32
Model AJ65SBTB1-16T
MPN AJ65SBTB1-16T
Type I/O Module
