Product Description

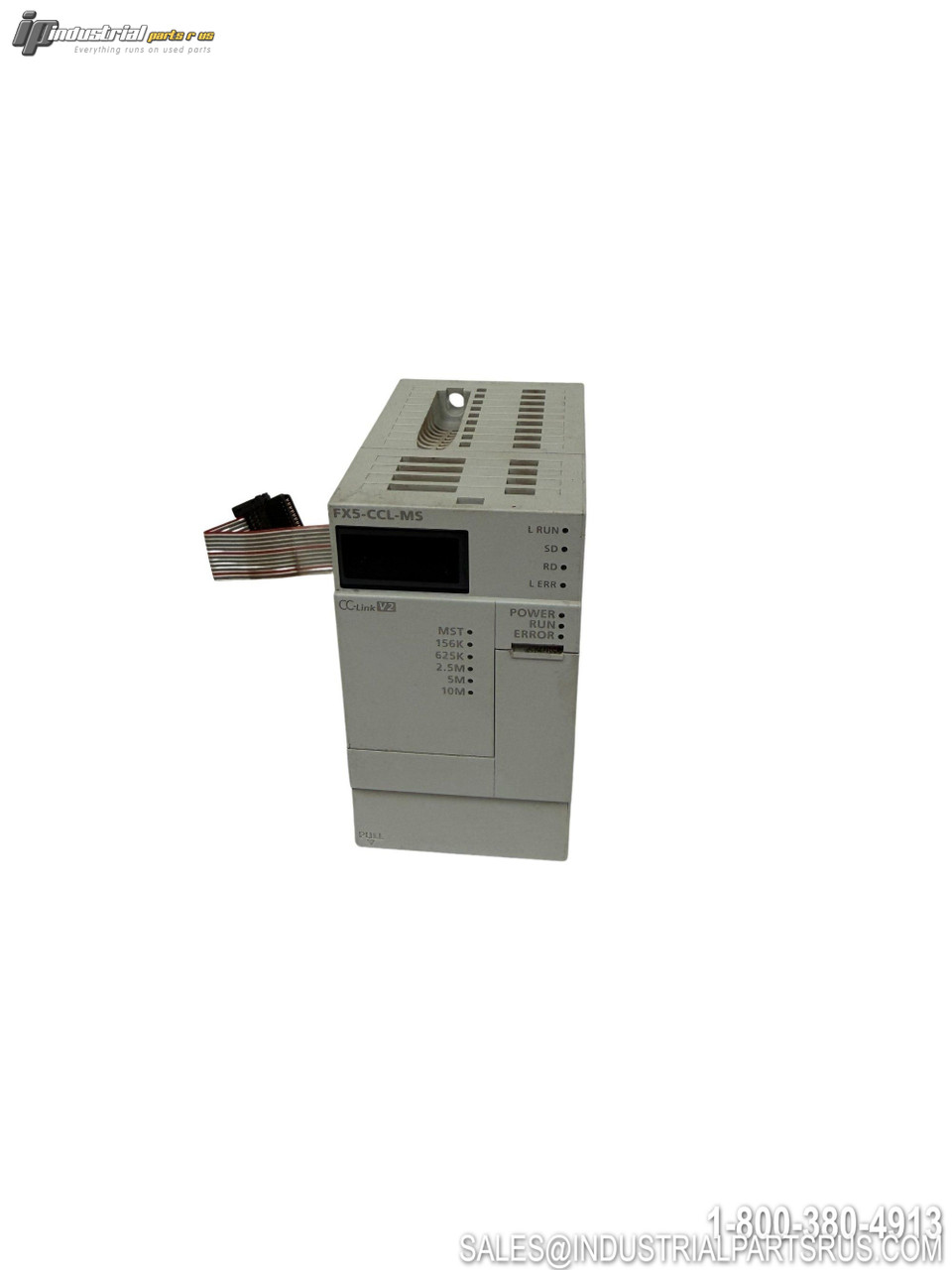

The Mitsubishi Electric FX5-CCL-MS is a CC-Link Master/Slave communication module designed for the MELSEC iQ-F FX5 series programmable logic controllers. This intelligent function module operates as either a master station or intelligent device station in CC-Link networks, enabling high-speed, deterministic communication with CC-Link slave devices. The module provides seamless integration into distributed control systems and supports data transfer rates up to 10 Mbps.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model/Part Number | FX5-CCL-MS |
| Type | Communication Module |
| Series | MELSEC iQ-F |
| Compatible PLCs | FX5U/FX5UC Series |
| Interface Type | CC-Link Master/Slave |
| Power Supply | 24VDC |
| Current Rating | 100mA |
| Communication Speed | Up to 10 Mbps |
| Transmission Distance | Up to 1200m |
| Mounting Type | DIN Rail (35mm) |
| Weight | 0.15 kg (0.33 lbs) |
| Communication Standard | CC-Link Ver.1.10 |
| Status Indicators | LED Display |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Mitsubishi Electric
Part Number FX5-CCL-MS
Controller Platform FX5U/FX5UC Series
Shelf K-4
Model FX5-CCL-MS
MPN FX5-CCL-MS
Type Communication Module
