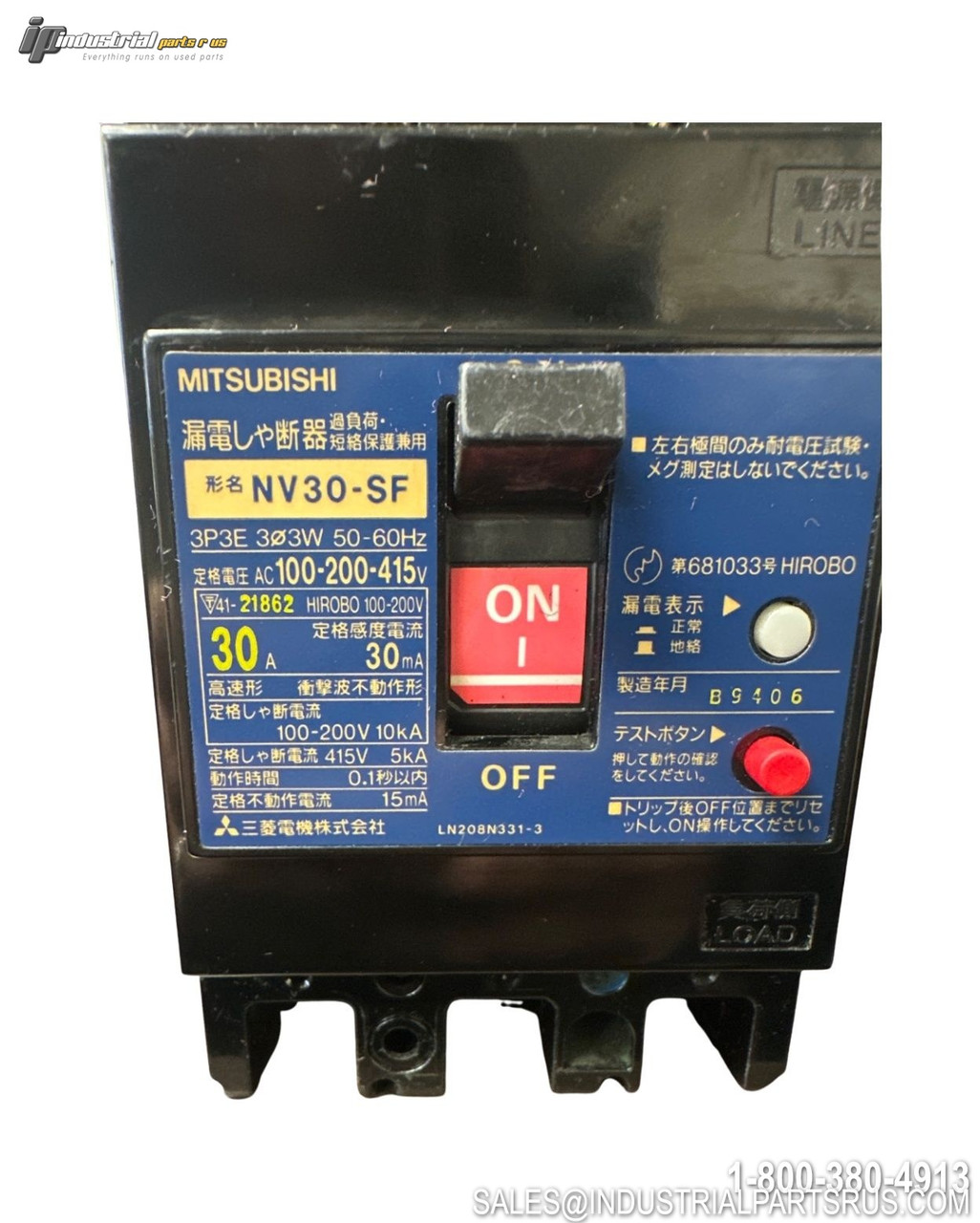

Product Description
The Mitsubishi NV30-SF is a 3-pole earth leakage circuit breaker (ELCB) designed for electrical protection in control panels and industrial applications. This MCCB with embedded earth leakage protection provides both overcurrent and ground fault protection, making it ideal for safety-critical electrical systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | NV30-SF |
| Product Type | Earth Leakage Circuit Breaker (ELCB) |
| Poles | 3-Pole (3P) |
| Rated Current | 15 Amp |
| Operating Voltage | 100-200-415V |
| Residual Current Sensitivity | 30mA |
| Frequency | 50/60Hz |
| Phase Configuration | 3Ø3W |
| Trip Unit Type | Thermal-Magnetic (Fixed) |
| Connection Type | Front Lugs or Bars |
| Series | NV30 Series |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style Panel Mount
Current Rating 15A
Full Load Amps 30mA
Application Control Panels
Manufacturer Mitsubishi
Part Number NV30-SF
Shelf J-6
Model NV30-SF
MPN NV30-SF
Voltage 100-200-415V
Type Circuit Breaker
