Product Description

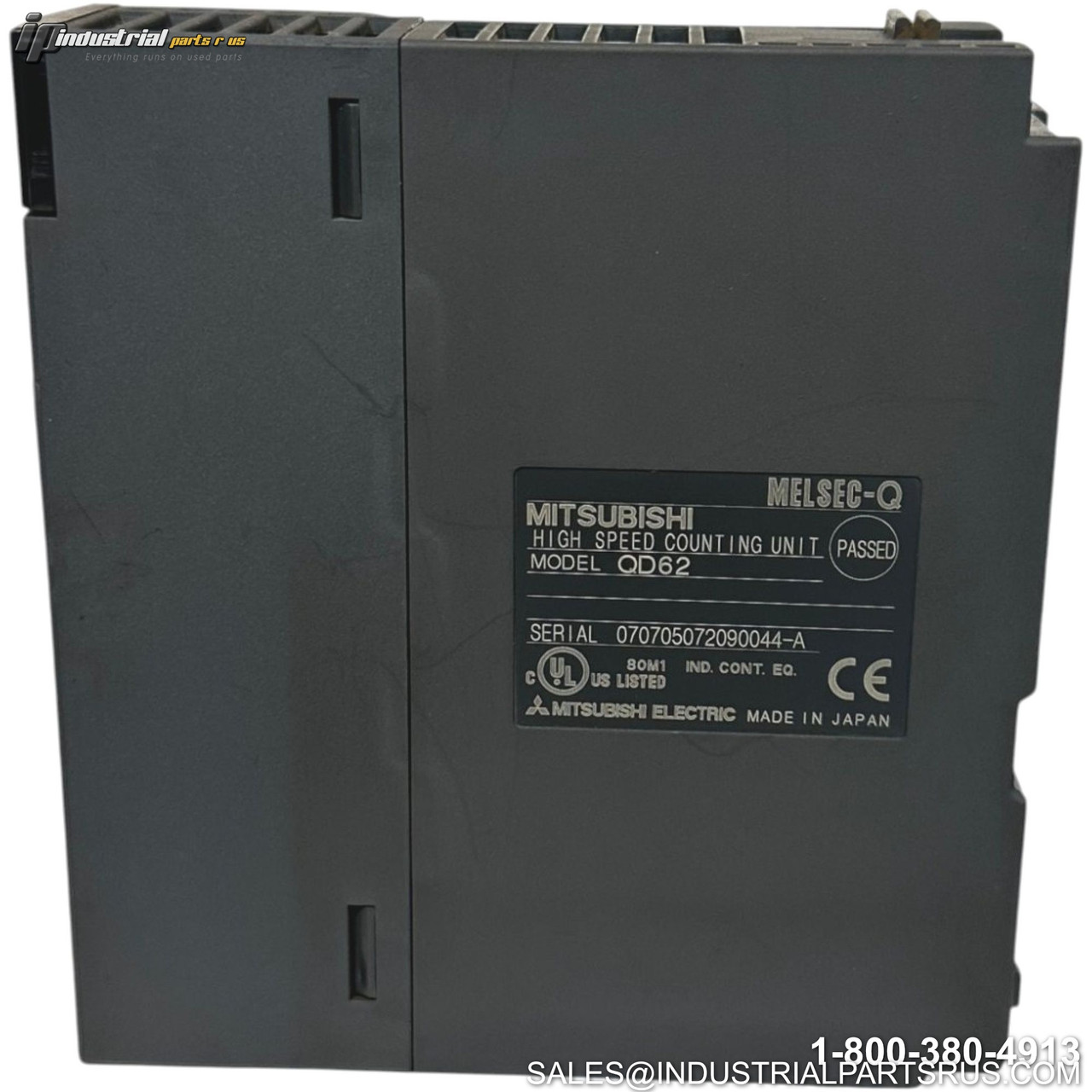

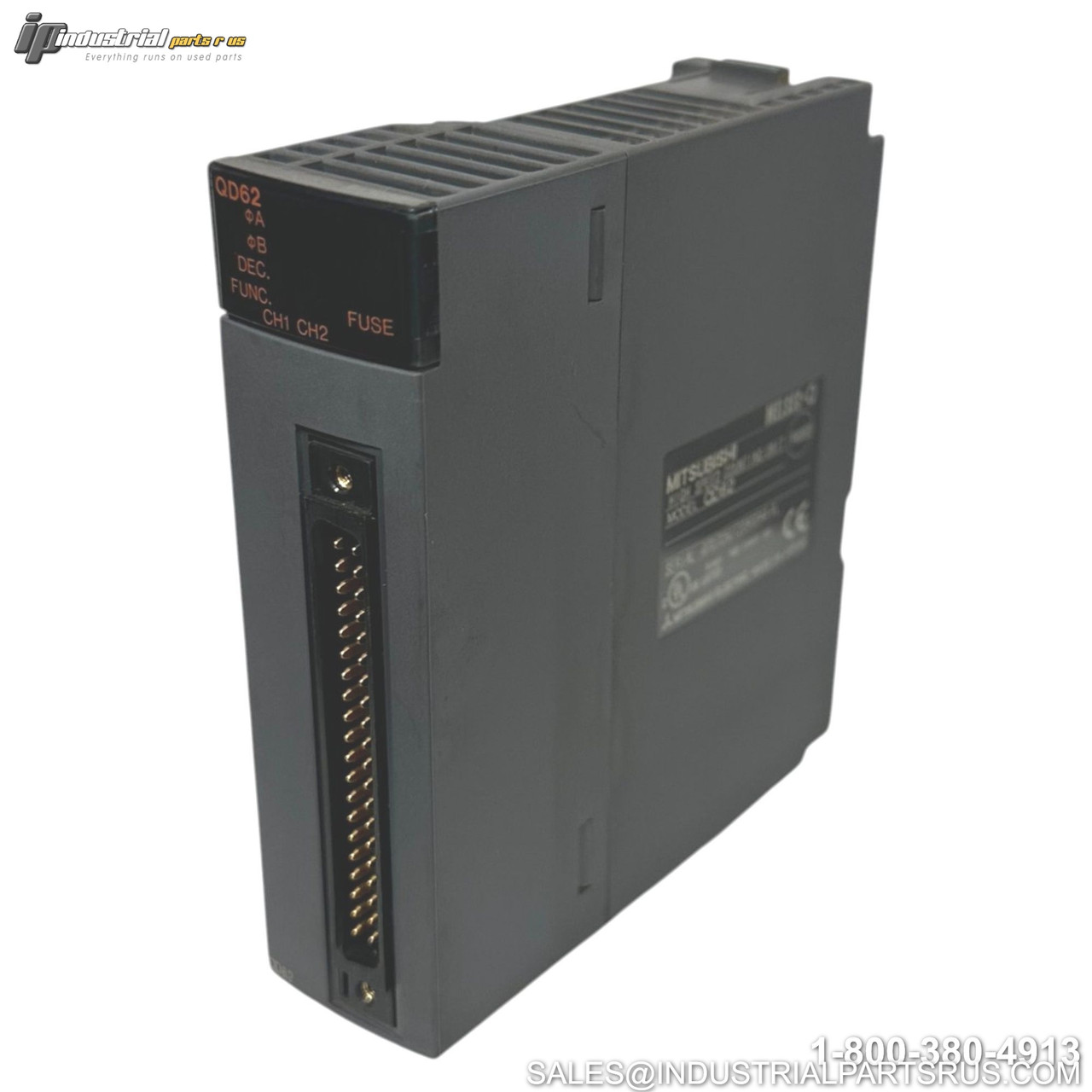

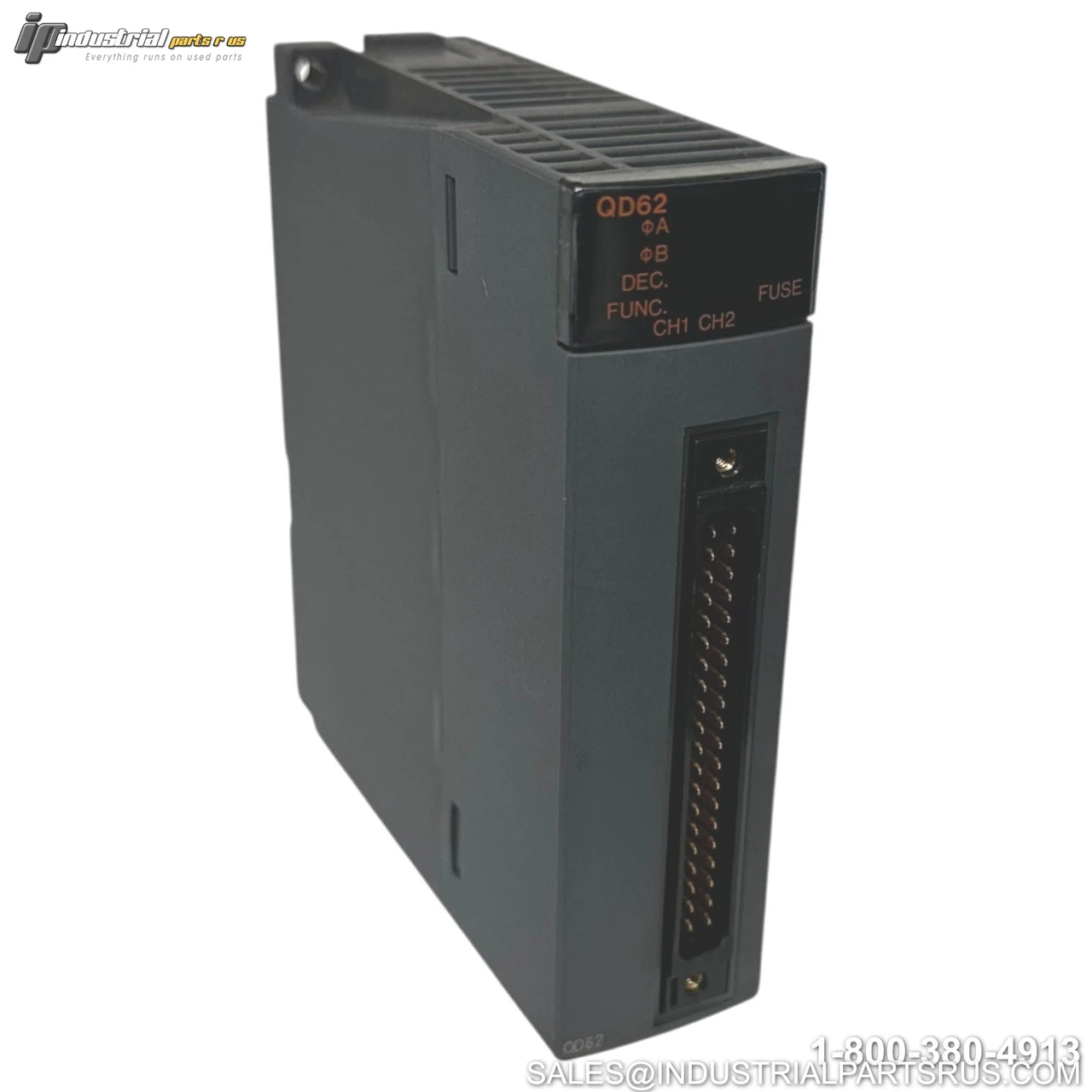

The Mitsubishi QD62 is a high-speed counter module designed for the MELSEC-Q series PLC system. This module provides two independent channels capable of counting pulses at frequencies up to 200kHz, making it ideal for position control, encoder feedback, and high-speed counting applications in industrial automation systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | QD62 |
| Product Series | MELSEC-Q |
| Number of Channels | 2 |
| Maximum Counting Speed | 200kHz |
| Counting Speed Settings | 200k/100k/10k PPS |
| Input Voltage | DC5/12/24V |
| Output Type | Transistor (Sink Type) |
| Output Voltage | DC12/24V |
| Output Current | 0.5A/point, 2A common |
| Connection Type | 40 pin connector |
| I/O Points | 16 points (Intelligent) |
| Digital Inputs | 2 (High-speed counter) |
| Digital Outputs | 1 (Sink) |
| Operating Temperature | 0-55°C |
| Humidity | 10-90% RH (non-condensing) |
| Isolation | Optical isolation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Shelf E-7 TUB 14
Model QD62
MPN QD62
Type PLC I/O Module
GTIN 679523686161
Output Type Transistor (Sink Type)
Manufacturer Mitsubishi
Part Number QD62
Controller Platform MELSEC-Q
