Product Description

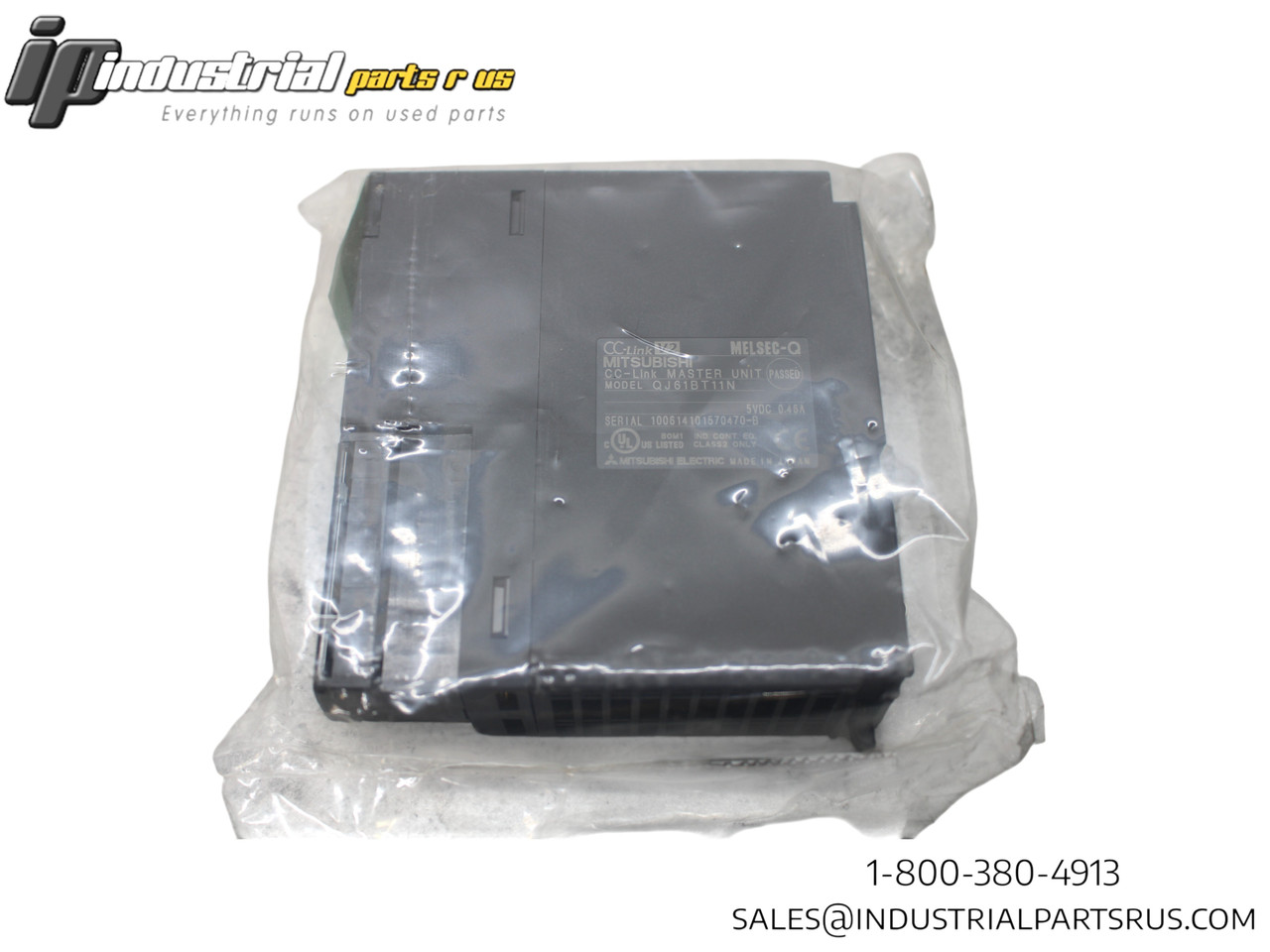

The Mitsubishi QJ61BT11N is a CC-Link Version 2 Master/Local Module designed for the MELSEC-Q Series PLC system. This communication interface enables reliable and efficient data exchange between Q Series PLCs and CC-Link devices, facilitating real-time data transmission for industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | QJ61BT11N |
| Series | MELSEC-Q |
| Communication Standard | CC-Link Version 2.0 |
| Module Type | Digital |
| Controller Platform | MELSEC-Q |
| Interface Type | RS-485 |
| Transmission Speed | 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps |
| Maximum Transmission Speed | 10 Mbps |
| Maximum Stations | 64 |
| Remote I/O Link Points | 2048 |
| I/O Points | 32 |
| Local Stations Supported | 4 |
| Width | 27.4 mm |
| Height | 98 mm |
| Depth | 90 mm |
| Weight | 0.12 kg |
| Connection Type | Terminal Block |
| Certifications | CE, UL/cUL, EAC, UKCA, RoHS |
| Operation Mode | Master/Local |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Part Type Communication Module
Country/Region of Manufacture Japan
Ratio Master/Local
Communications CC-Link Version 2.0
GTIN 679523686161
Manufacturer Mitsubishi
Part Number QJ61BT11N
Controller Platform MELSEC-Q
Shelf K-32
Model QJ61BT11N
MPN QJ61BT11N
Type Communication Module
