Product Description

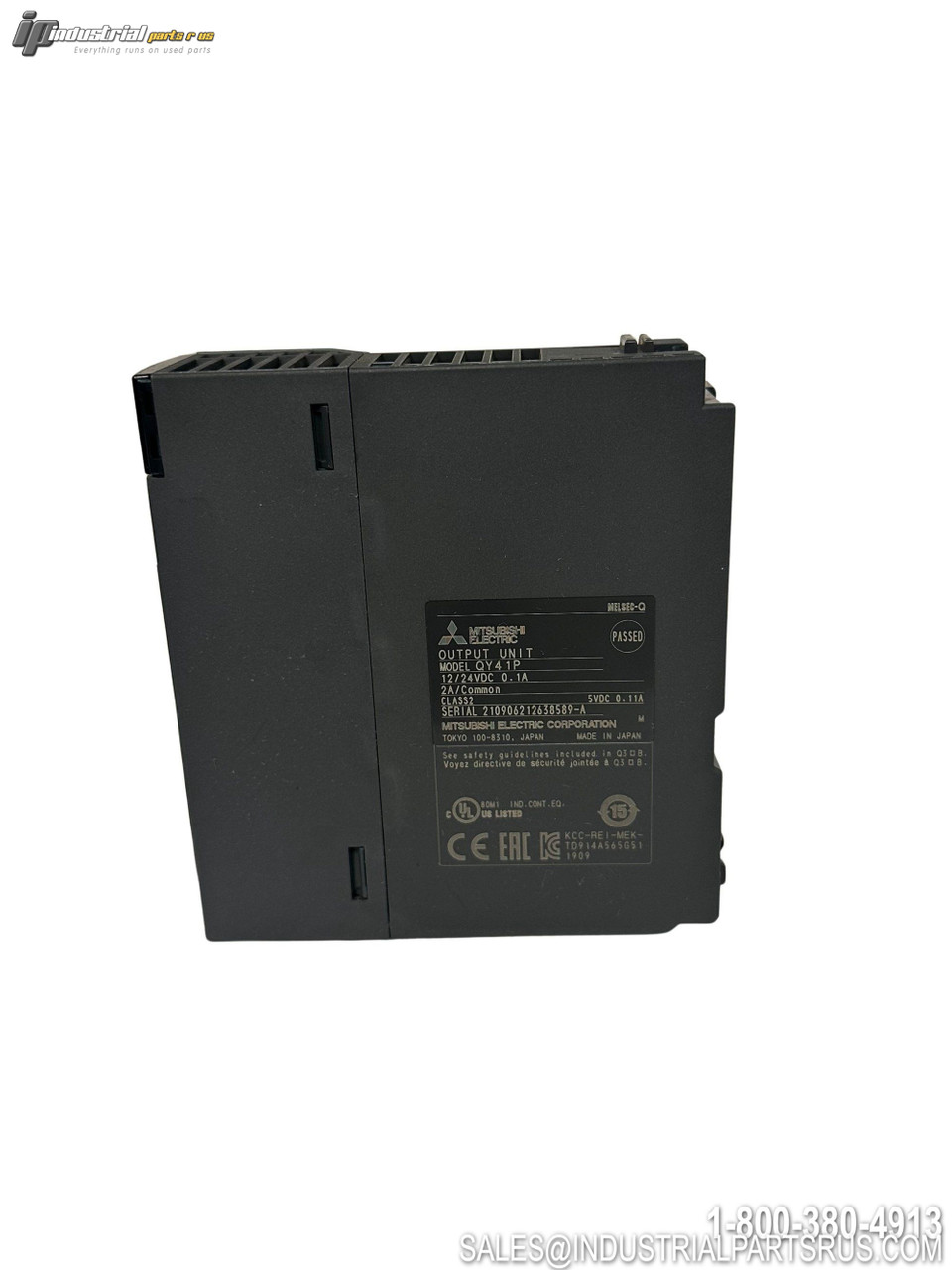

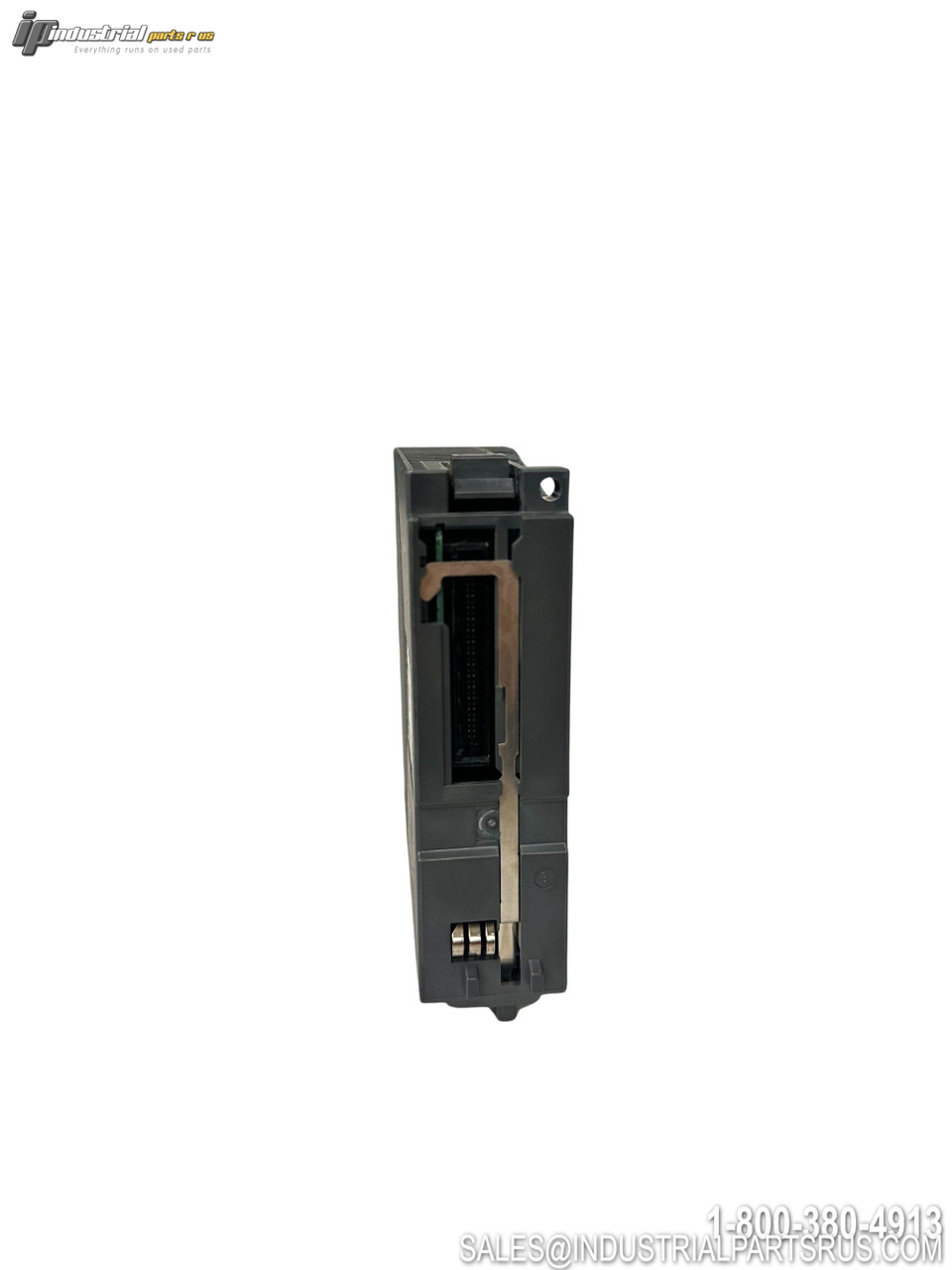

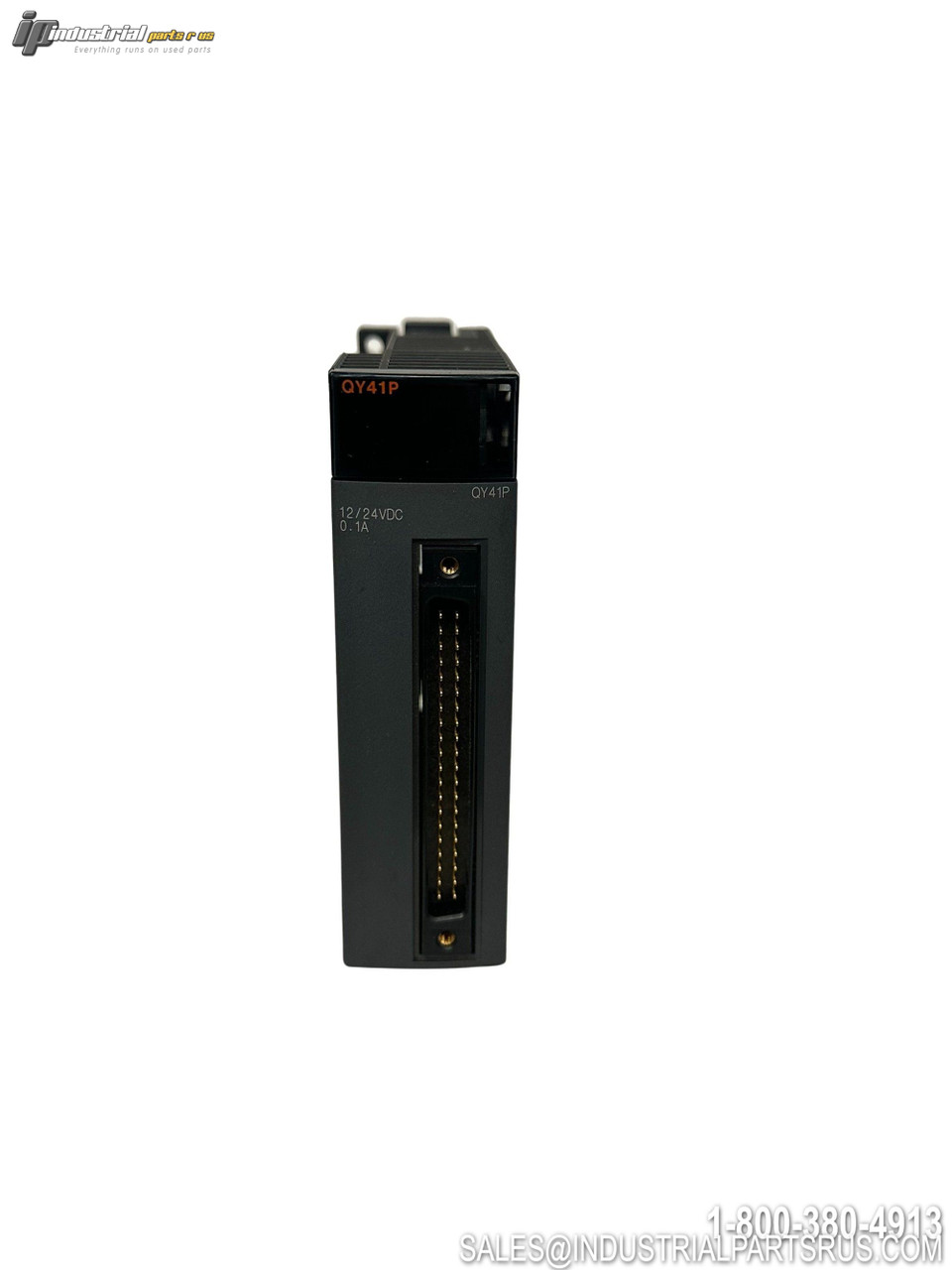

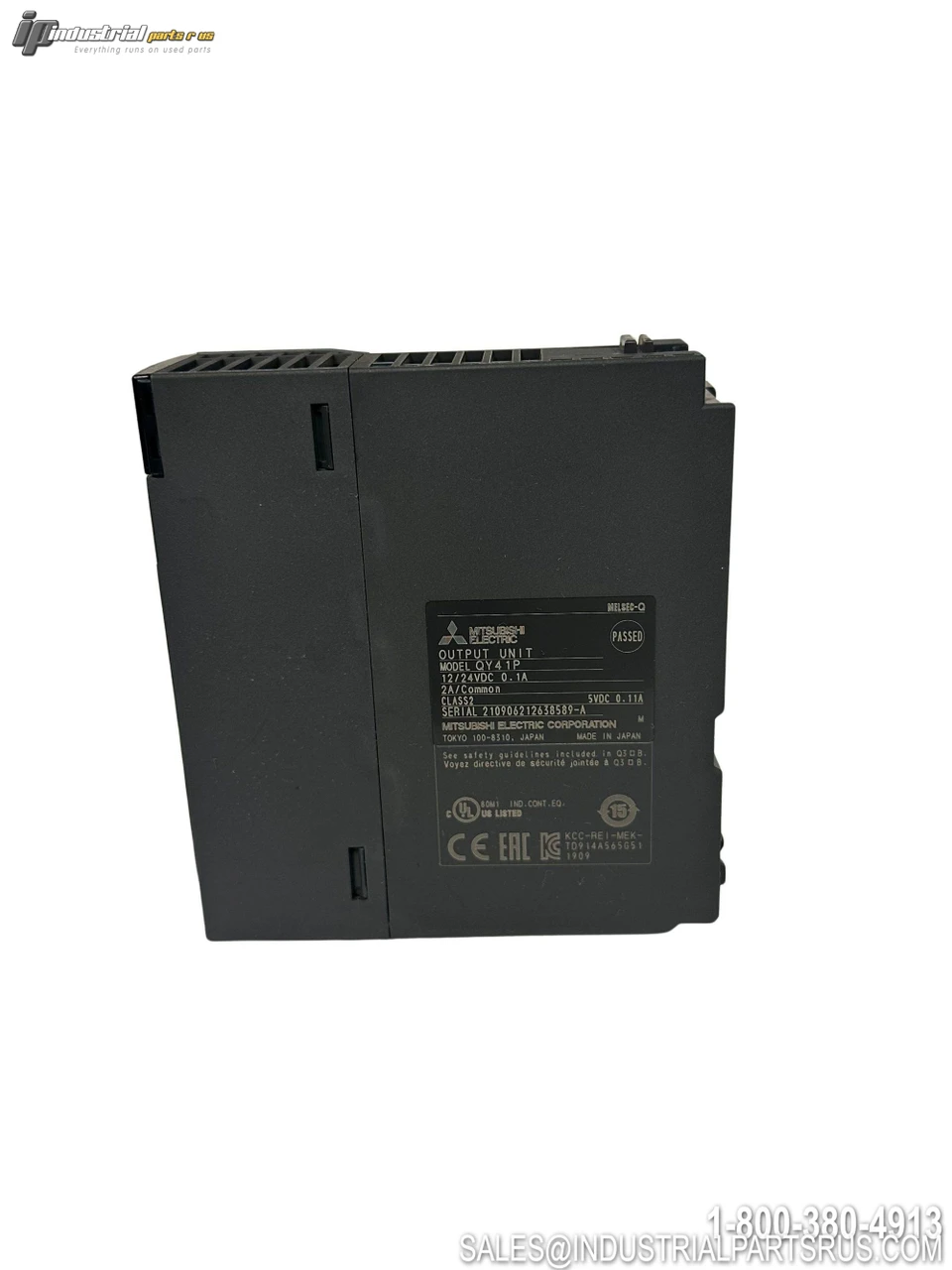

The Mitsubishi QY41P is a 32-point transistor output module designed for the MELSEC-Q series PLC system. This sink-type output module provides reliable control for DC loads with voltage ratings from 12 to 24 VDC. Each output point can handle up to 0.1A with a common terminal rating of 2A, featuring fast 1ms response time and comprehensive protection including thermal and short circuit protection.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | QY41P |
| Product Type | Transistor Output Module |
| Series | MELSEC-Q |
| Output Points | 32 |
| Output Type | Sink Transistor (Drain Type) |
| Load Voltage | 12-24VDC (+20/-15%) |
| Maximum Load Current | 0.1A per point, 2A per common |
| Maximum Inrush Current | 0.7A, 10ms or less |
| OFF Leakage Current | 0.1mA or less |
| Response Time | 1ms OFF to ON, 1ms ON to OFF |
| Isolation Method | Photocoupler |
| Points per Common | 32 |
| Common Terminals | A01, A02 |
| Connection Type | 40-pin connector |
| Protection | Thermal and short circuit protection |
| External Supply | 12-24VDC (+20/-15%) 10mA |
| Current Consumption | 105mA at 5VDC |
| Weight | 0.15kg |
| Base Unit Slots | 1 |
| Certifications | UL, cUL, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Sink Transistor (Drain Type)
Full Load Amps 0.1A per point, 2A per common
Manufacturer Mitsubishi
Part Number QY41P
Controller Platform MELSEC-Q
Shelf E-6 Tub 1
Model QY41P
MPN QY41P
Type PLC I/O Module
