Product Description

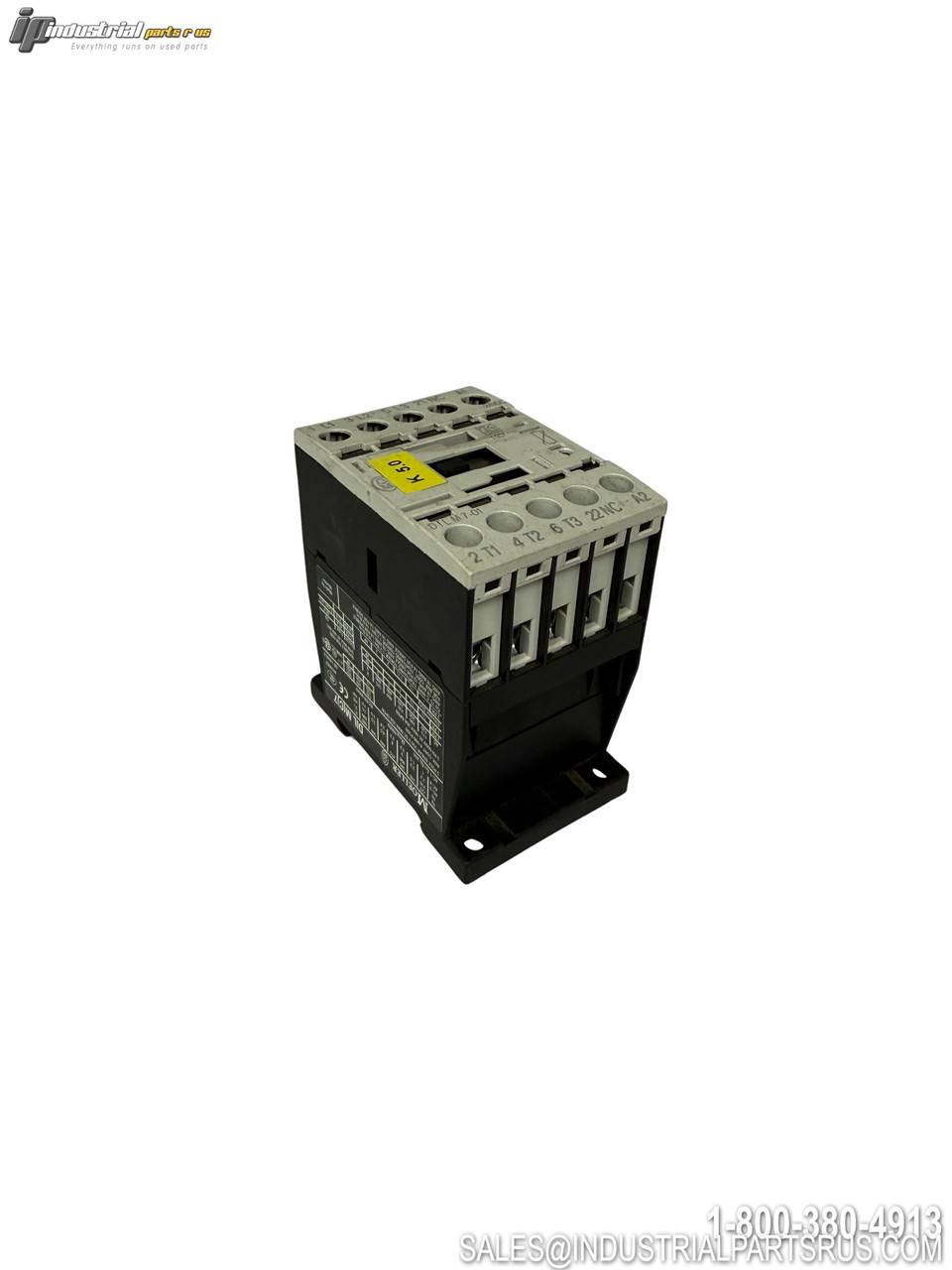

The Moeller DILM(C)7 is a 3-pole IEC rated contactor designed for motor control applications. This industrial-grade contactor features 7 amp AC-3 current rating with 3kW power rating at 400V, making it suitable for controlling small to medium motors in industrial automation systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Moeller |
| Model/Part Number | DILM(C)7 |
| Manufacturer | Eaton Corporation |
| Number of Poles | 3 |
| Current Rating AC-3 | 7A |
| Current Rating AC-1 | 22A (open) / 18A (enclosed) |
| Power Rating 230V | 2.2kW |
| Power Rating 400V | 3kW |
| Power Rating 690V | 3.5kW |
| Motor HP @ 230V | 2HP |
| Motor HP @ 460V | 3HP |
| Connection Type | Spring-loaded terminals |
| Frame Size | FS1 |
| Enclosure Type | IP20 |
| Mechanical Life | 10,000,000 operations |
| Dimensions (HxWxD) | 68 x 45 x 75 mm |
| Weight | 0.227 kg (AC) / 0.286 kg (DC) |
| Certifications | UL, CSA, IEC/EN 60947-4-1, VDE, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686260
Mounting Style DIN Rail
Current Rating 7A
Full Load Amps 7A
Manufacturer Moeller
Enclosure Type IP20
Part Number DILM(C)7
Series DILM
Shelf J-4
Model DILM(C)7
Coil Voltage Various (24V-690V AC/DC)
Horsepower 2 HP @ 230V, 3 HP @ 460V
MPN DILM(C)7
Type Contactor
