Product Description

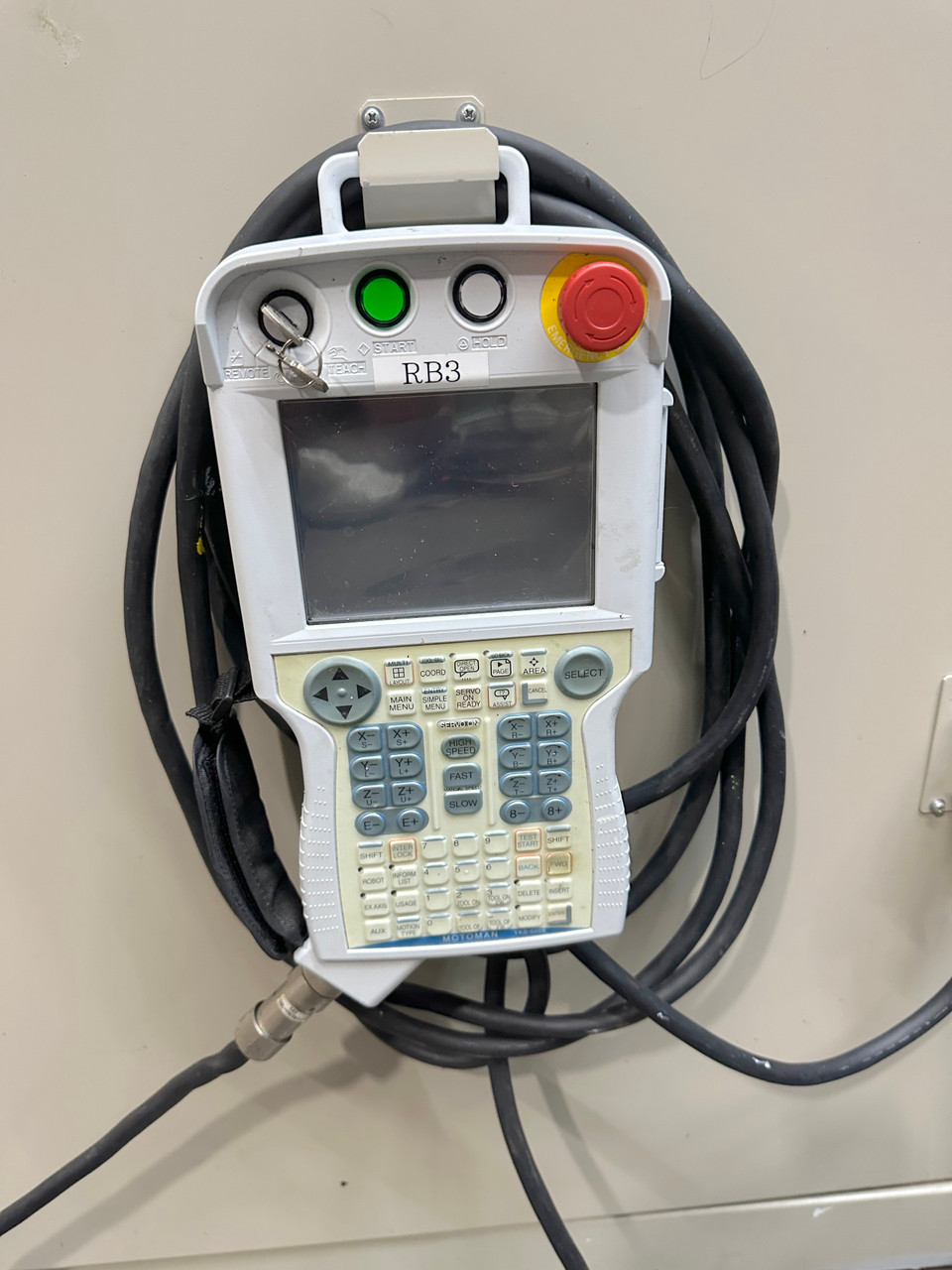

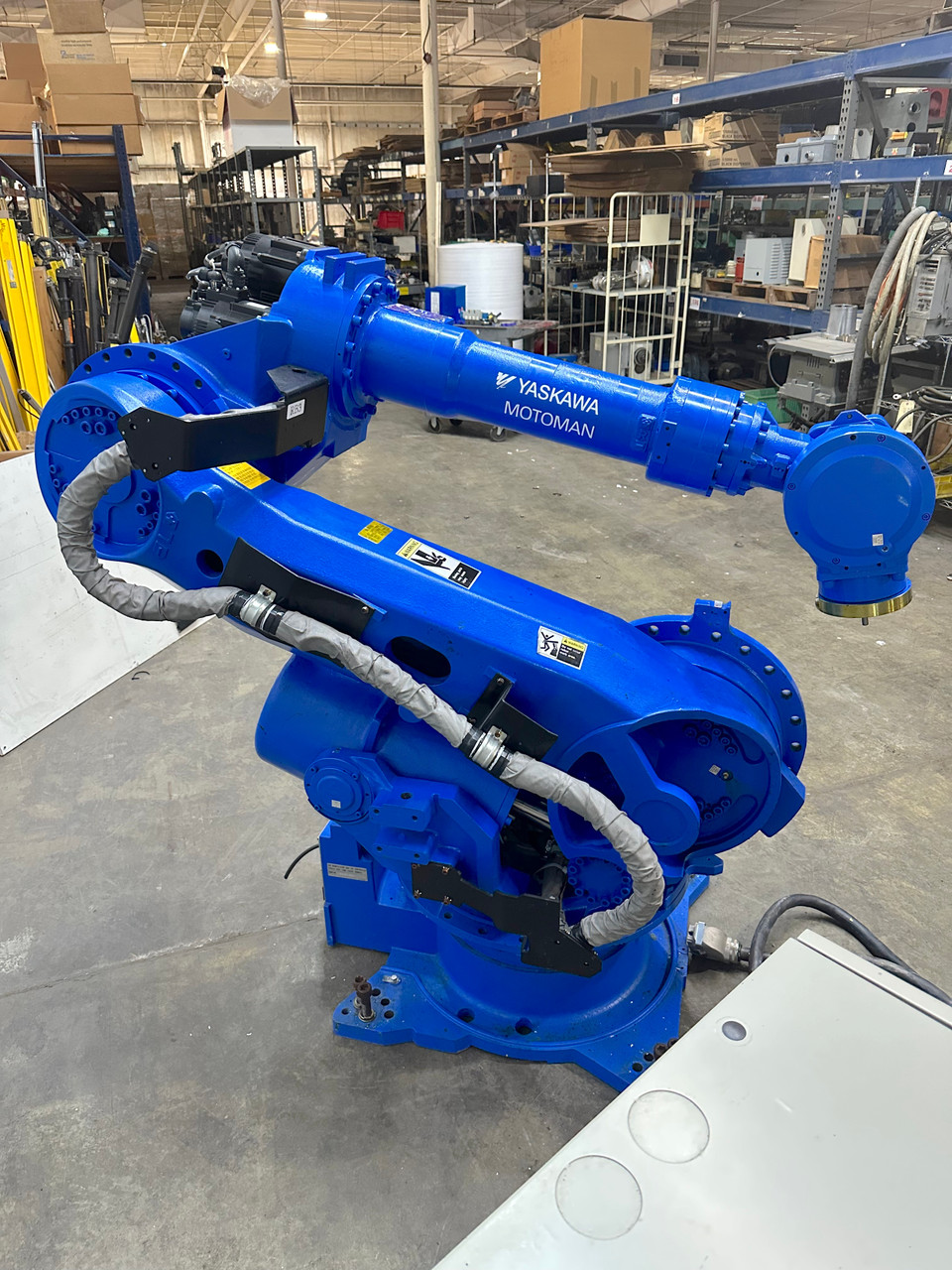

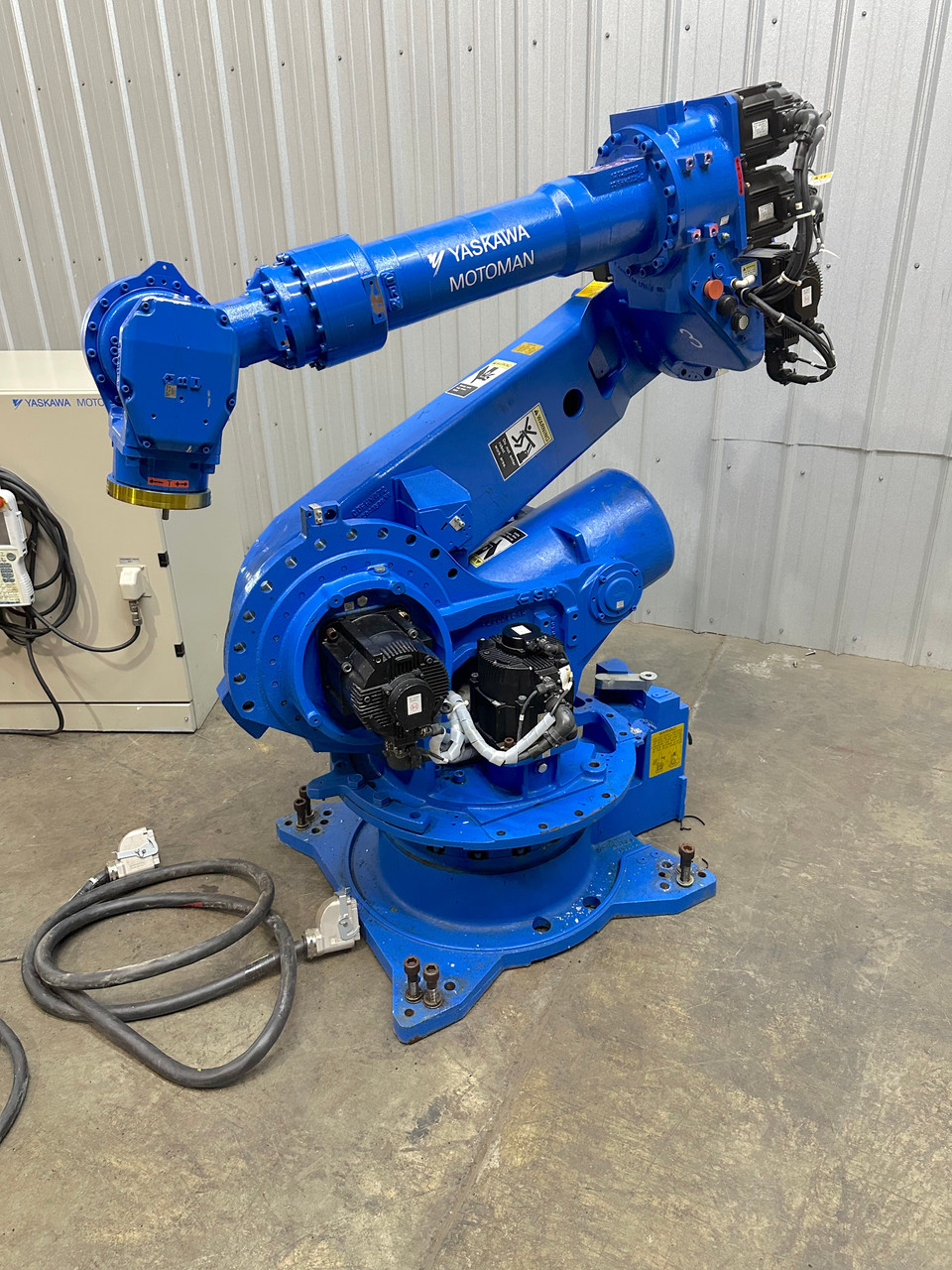

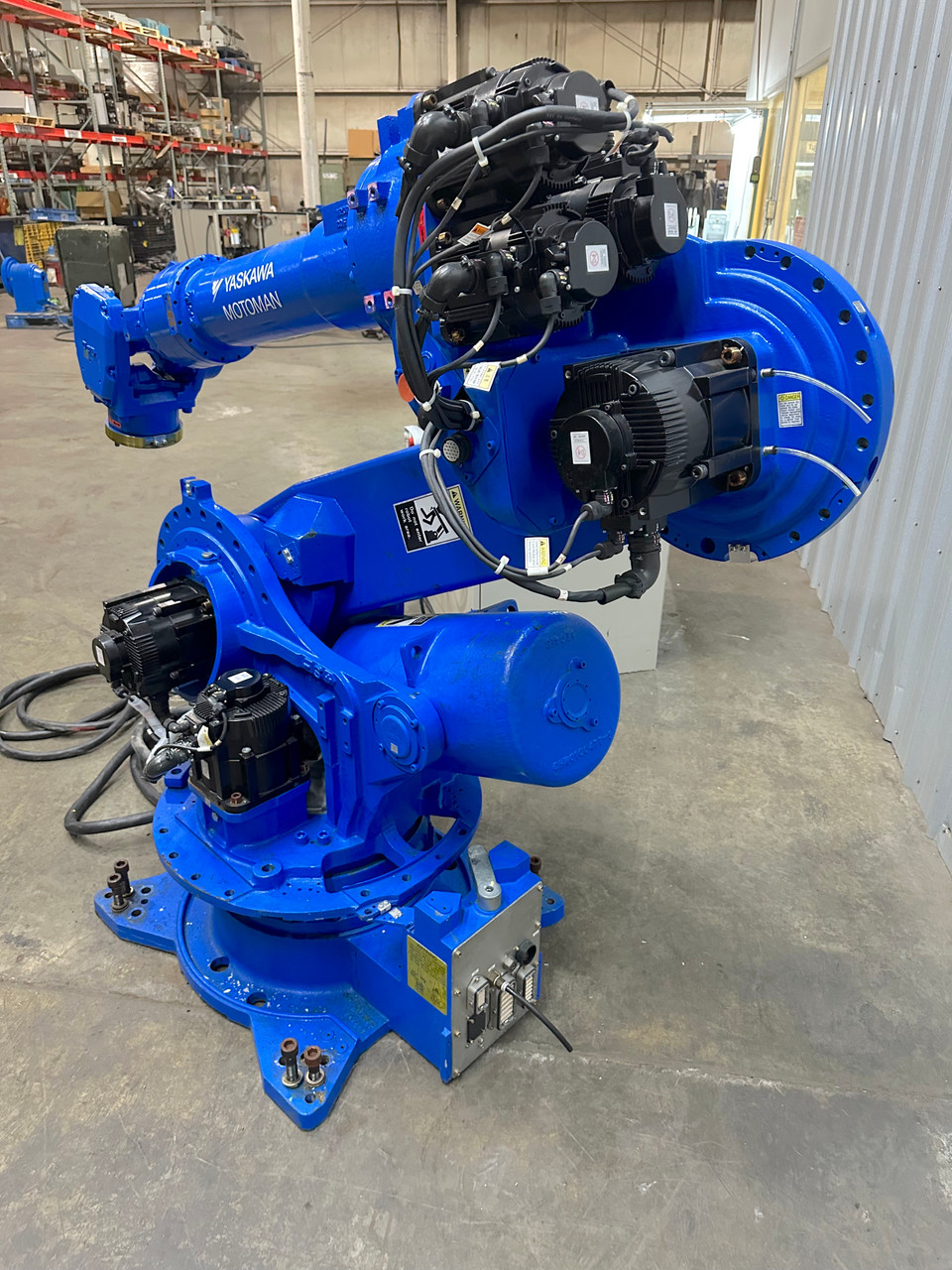

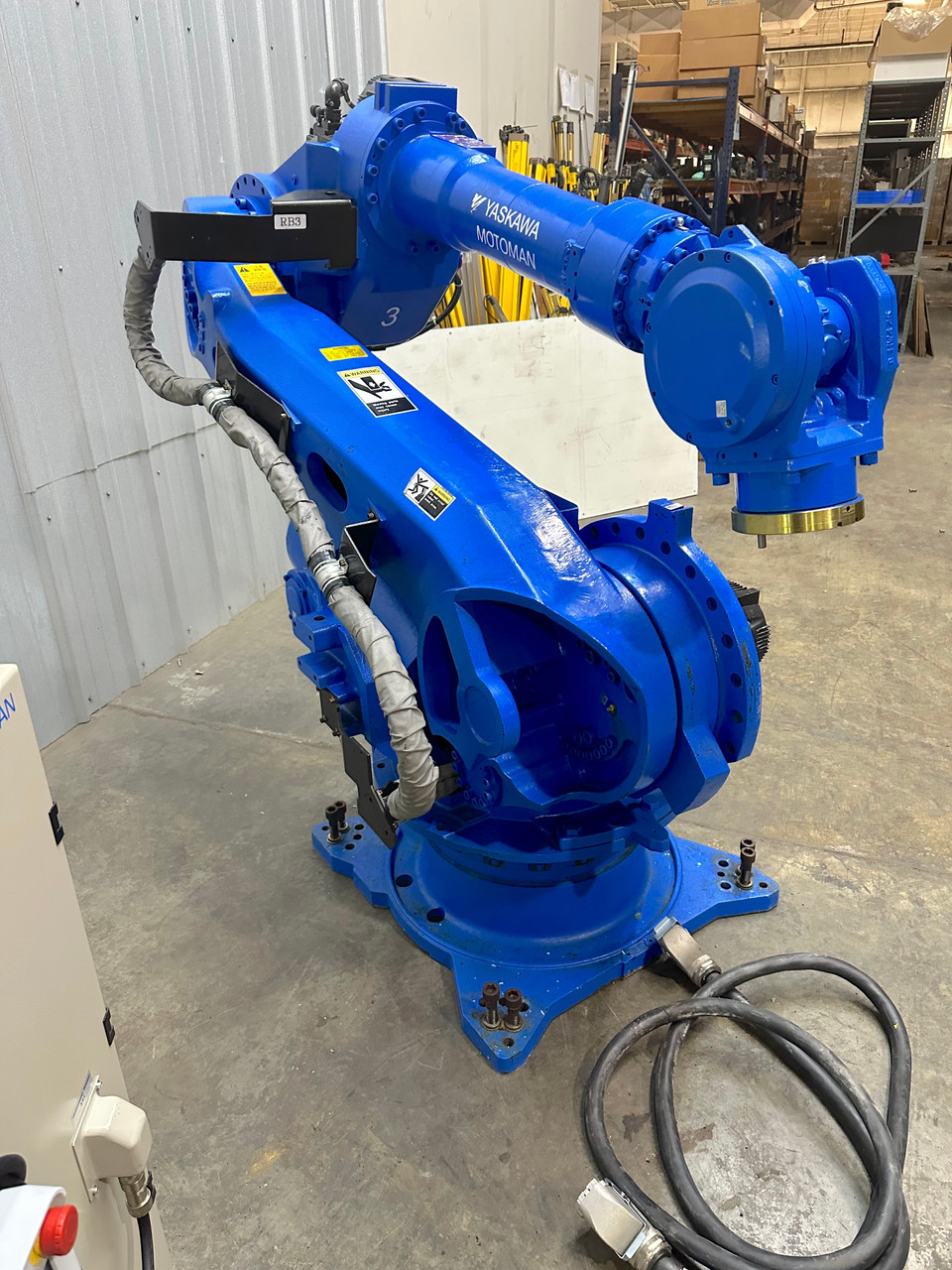

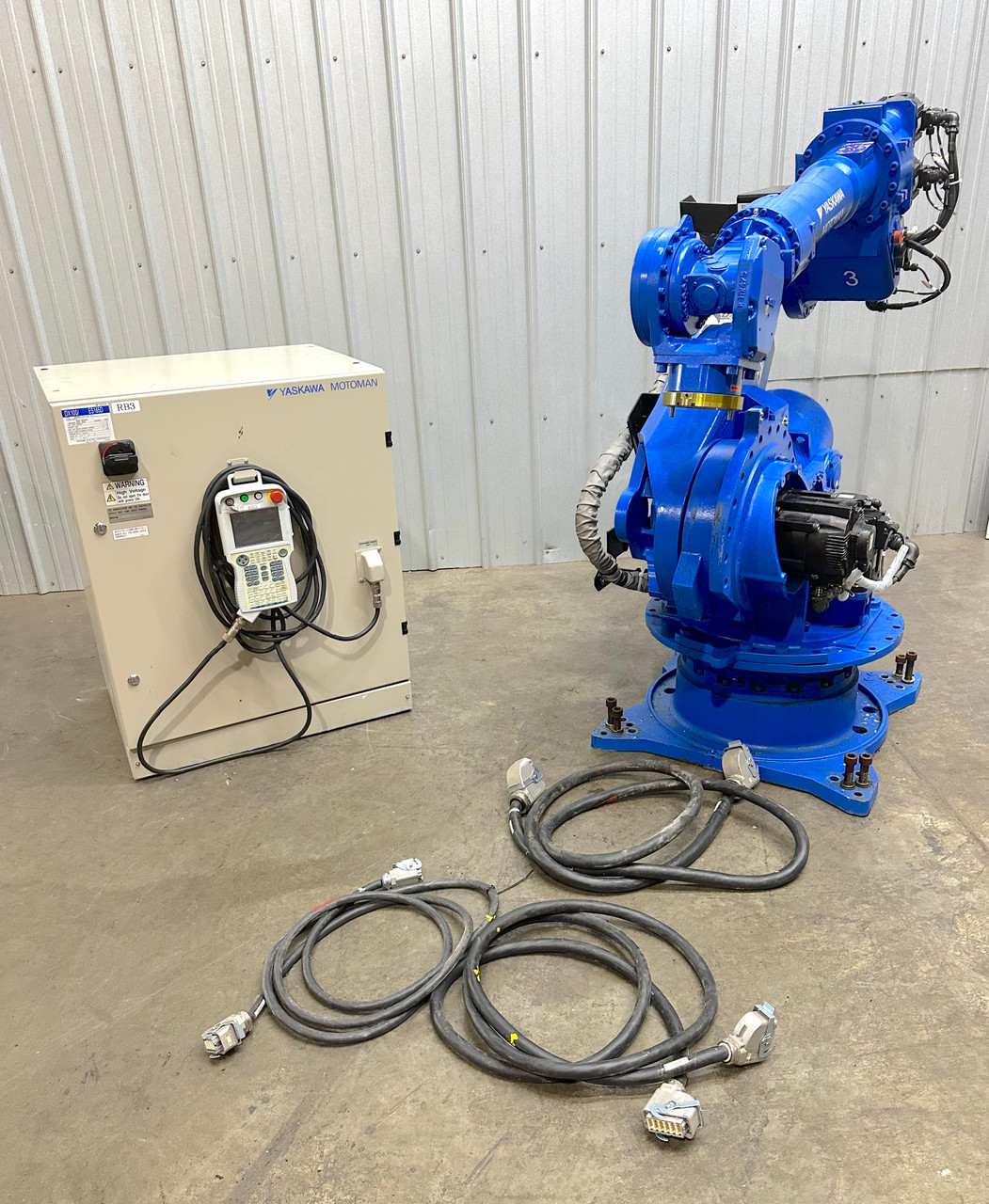

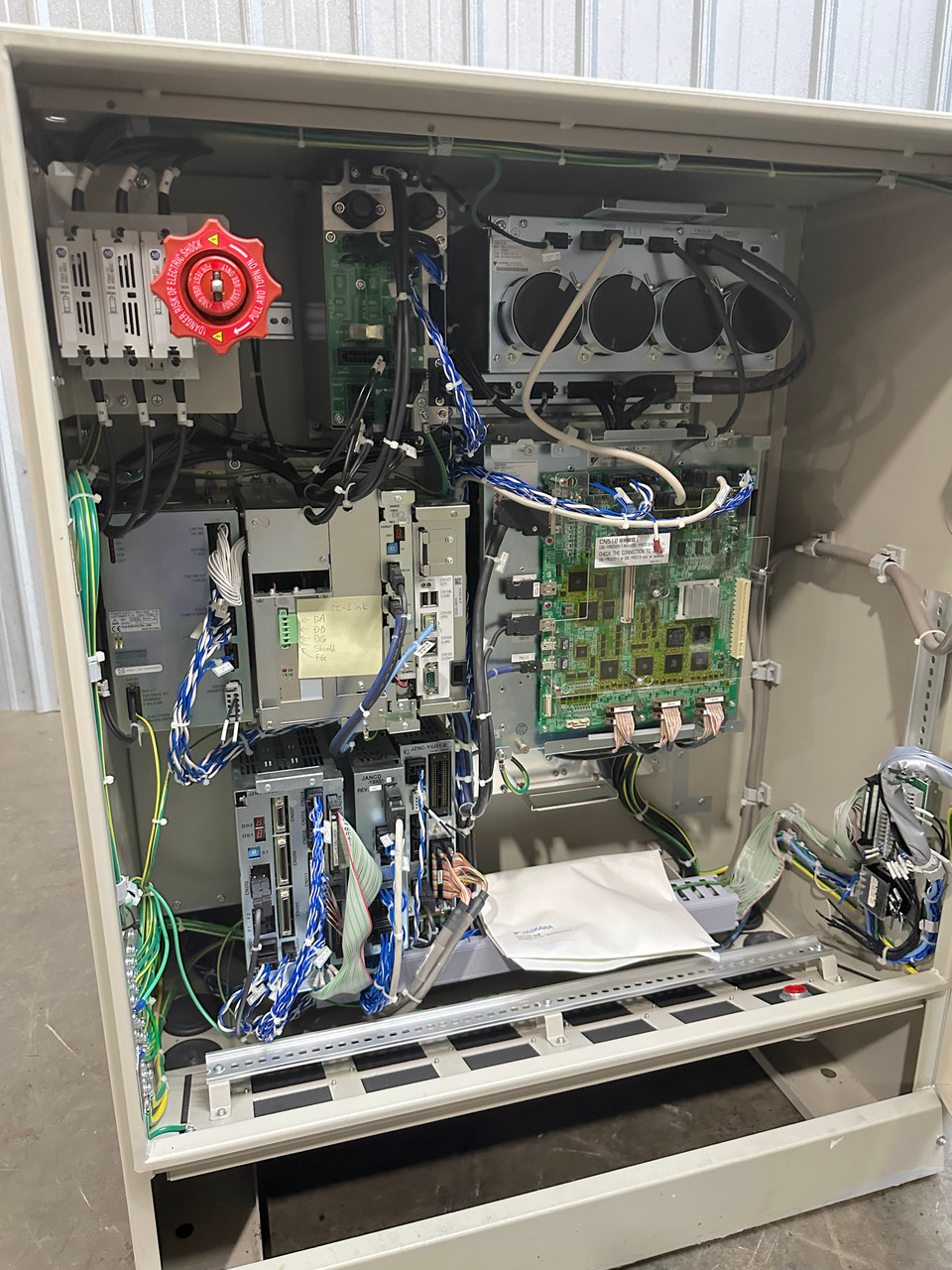

2012 Yaskawa Motoman ES165D Robot with DX100 Control, Teach Pendant, & All Cables.This is a High Payload Industrial Robot with a 165Kg (363 Lbs) Payload Capacity and a Reach of 2651mm.
These 6 axis robots are perfect for Material Handling, Palletizing, Pick & Place Operations, Machine Tending, Welding, 6 Axis CNC Routing, and Much More.
This system has been powered and tested in excellent operating condition with 11,353 moving hours.
We have 4 of these in stock. They were run at slow speeds their entire life with light weight end of arm tooling. They were picking up plastic componets weighing less than 1 lb. Now is the time to start using automation for repeditive tasks. Robots will work 24 hours a day, 7 days a week without asking for a break, a vacation, or a raise. Be sure to check out all our other Robot Inventory!!!
Specifications
| Axes 6 |
| Payload: 165 KG (363.76 lbs) |
| Reach: 2651 MM (104.37 in) |
| Repeatability: ±0.2mm (.007 in) |
| Robot Mass: 1100 KG (2,425 lbs) |
| Structure: Verticial Joint Arm |
| Robot Motion Speed |
| S-Axis 110 °/s (1.91 rad/s) |
| L-Axis 110 °/s (1.91 rad/s) |
| U-Axis 110 °/s (1.91 rad/s) |
| R-Axis 175 °/s (3.05 rad/s) |
| B-Axis 150 °/s (2.61 rad/s) |
| T-Axis 240 °/s (4.18 rad/s) |
| Robot Motion Range |
| S-Axis - -180° to +180° |
| L-Axis - -60° to +76° |
| U-Axis - -142.5° to +230° |
| R-Axis - -360° to +360° |
| B-Axis - -130° to +130° |
| R-Axis - -360° to +360° |
Product Videos
Custom Field
GTIN 721814239393
Robotics Controls Type Arm
Country/Region of Manufacture Japan
Payload 165 Kg
Manufacturer Yaskawa
Controller Platform DX100
Model ES165D
MPN ES165D
Voltage 460Vac 3 Phase
Type Robotic Arm Assembly
