Product Description

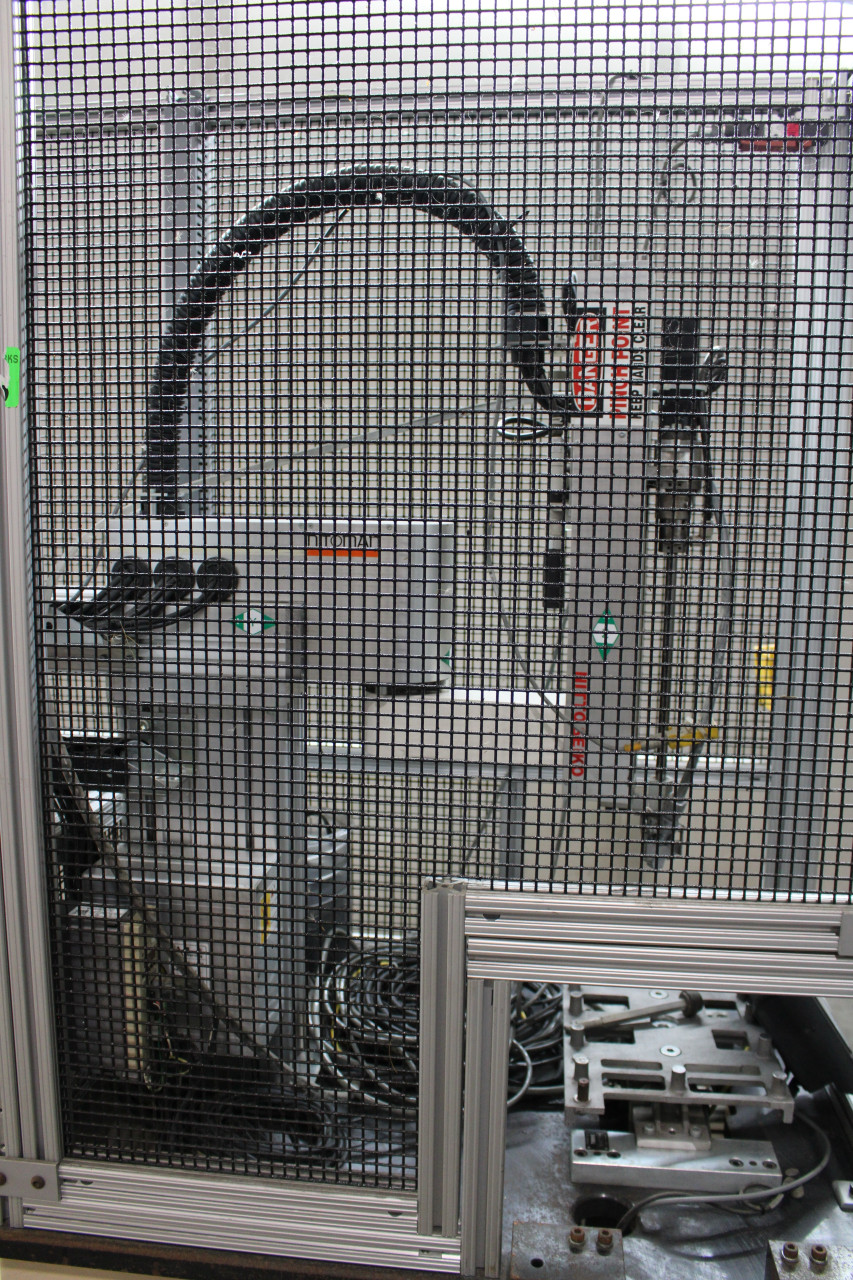

Medium-Duty Screw Driving Robot - SR565Y-THETA-Z Medium-Duty Screw Driving Robots. The robot incorporates a horizontal turning arm, axis, with a Y-axis. THETA and Y axes are powered by AC servo motors, while the screwdriver stroke is powered by a AC servo motor and the spindle rotation is powered by a NITTO driver. The screws will be automatically blowfed by means of our centerboard hopper screwfeeder equipped with a single-shuttle air escapement.RC5500 Robot Controller. Yaskawa based PLC controls. All servo motor controllers are AC motors with absolute encoders and battery backup. Includes operating pendant with Mitsubishi GOT1000 series touch screen. Ethernet enabled for external HMI, or Ethernet I/O control.
FF503H-S - Feeder with single blowfeed escapement. The feeder is an oscillating centerboard hopper feeder with inline chute rails and horizontal positive-motion vibratory track to insure proper feeding to the escapement. An electric motor with belt drive and slip clutch features shall actuate the centerboard hopper blade assembly. Basket capacity of each centerboard feeder is approximately 0.45mL.
General screw diameter range - M2 - M5. Max length 25mm.
CLICK HERE FOR MANUFACTURER SPEC SHEET
- Maximum 10mm of misalignment can be corrected to less than 10% of norminal screw diameter. Because of its specially programmed algorithm, this system can correct screw driving points by taking only 3 pictures. This function will result is cycle time saving. This system has the ability to be hooked up to a vision system, but does not currently come with one.
- Brand: Nitto Seiko / Nitoman
- Model: SR565Y0Z
- Maximum working envelope of the robot is THETA-axis, 300mm; Y-axis 500mm, Z-axis 400mm
- Manufacturer Year: 9/2010
- Made in Japan
- Teach Pendant
- Model: GT1155HS-QSBDNS
- Made in Japan
- Nitto Seiko Controller
- Model: RC5500-S
- Version 1
- 1PH
- AC200-230V
- 50/60Hz
- Made in Japan
- Included: Vibratory Screw Feeder
- Model: FF503H-S
- Screw Sizes: M2-M5 (Max Length 25mm)
