Product Description

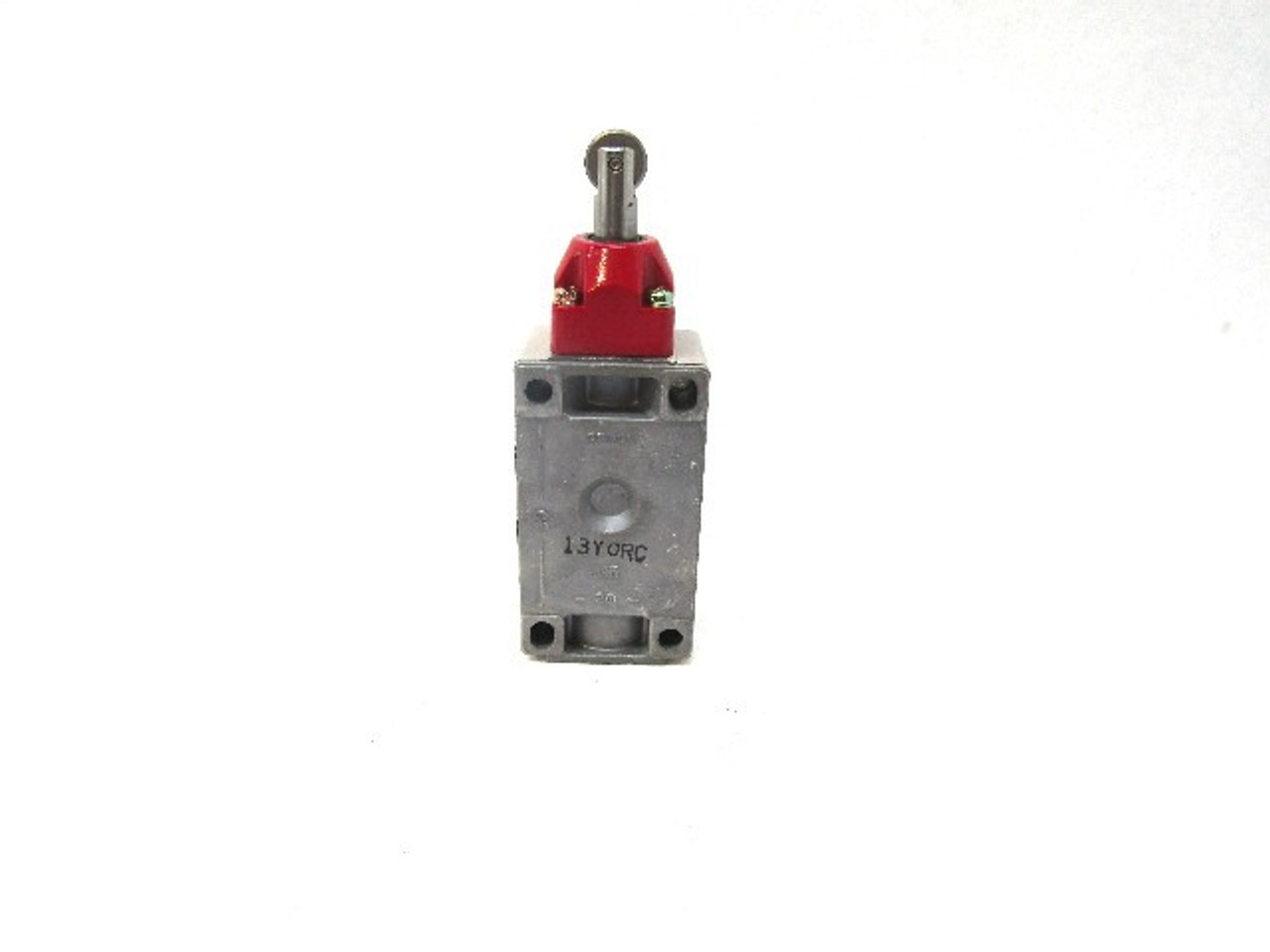

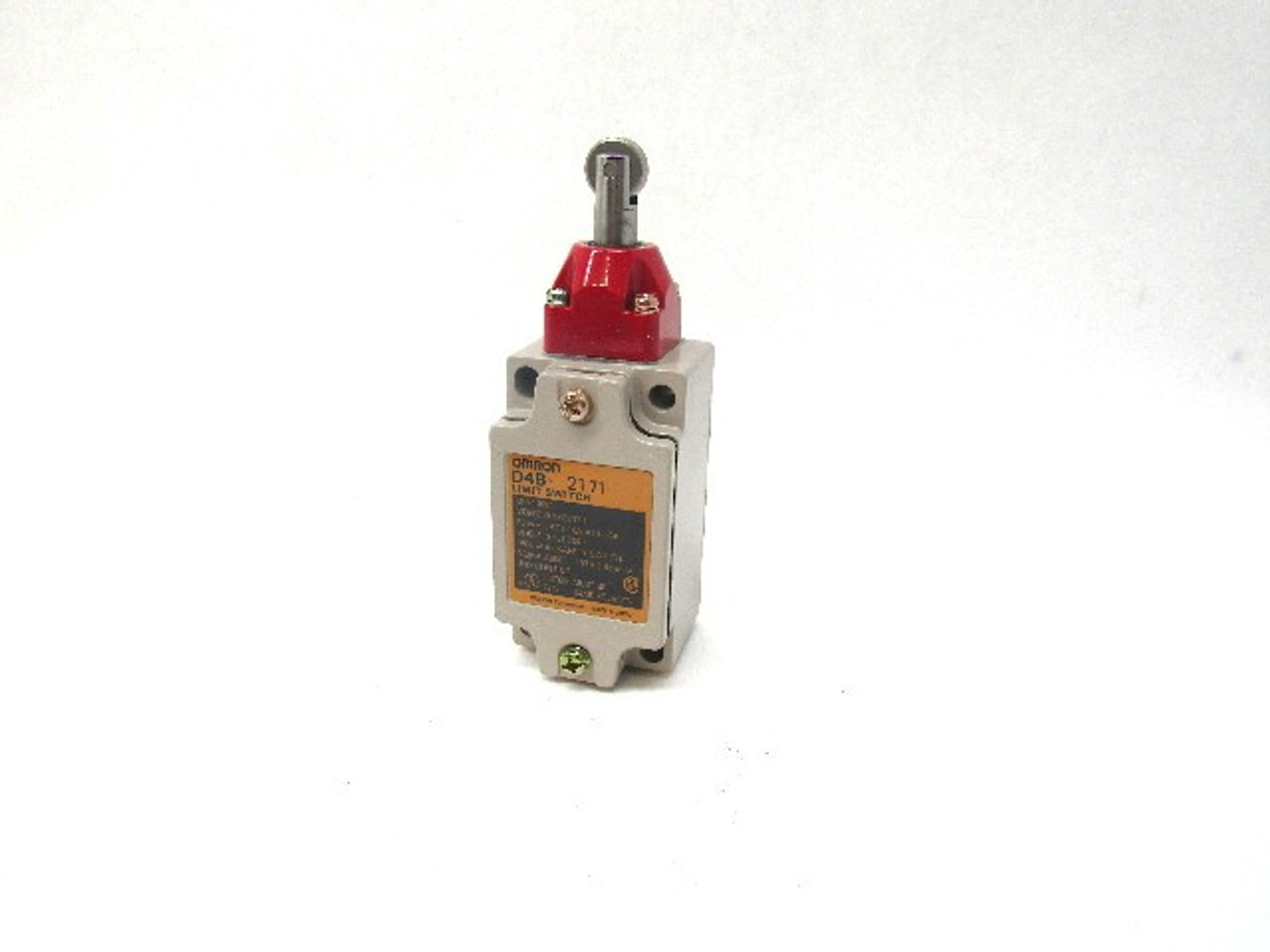

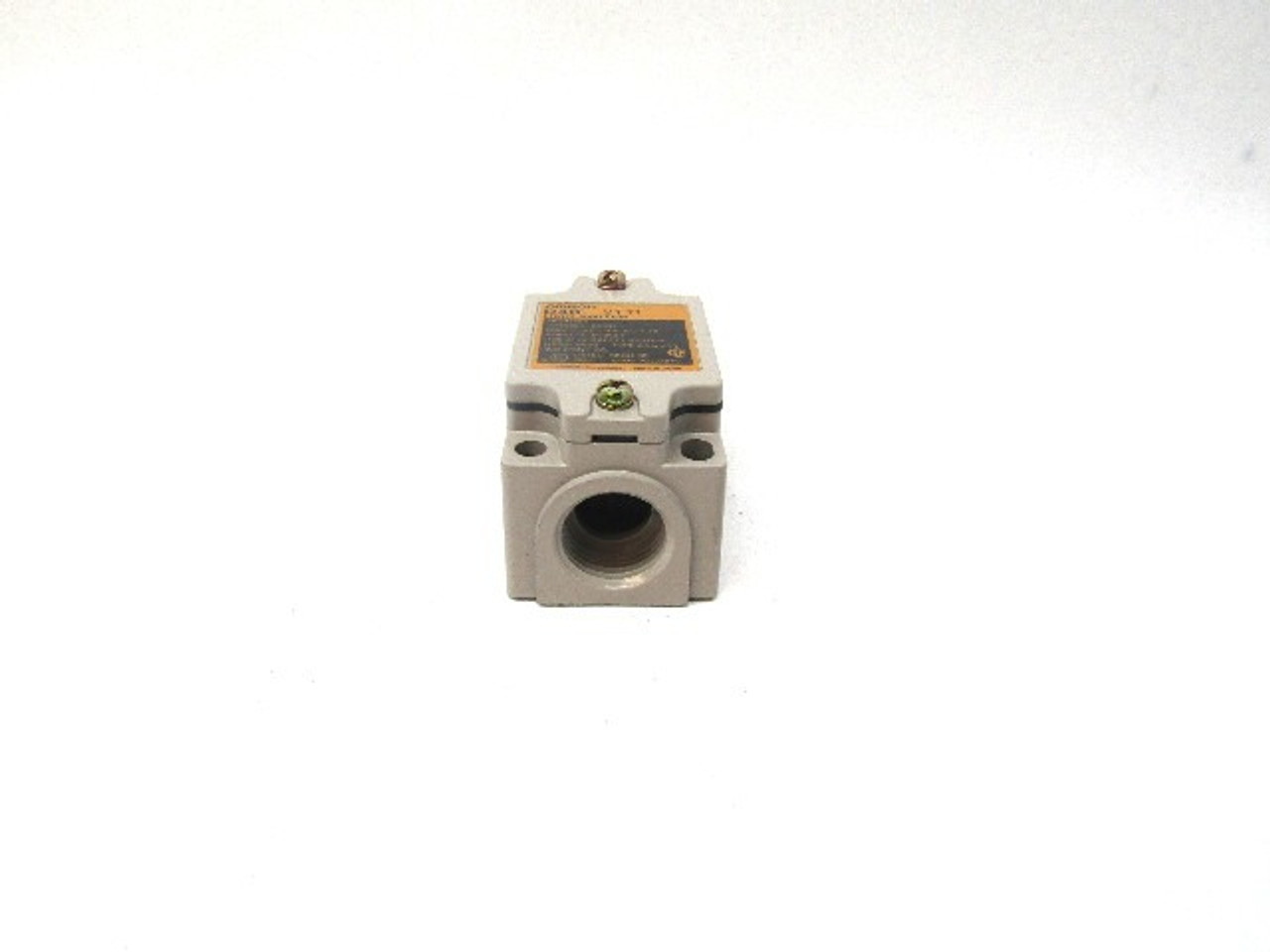

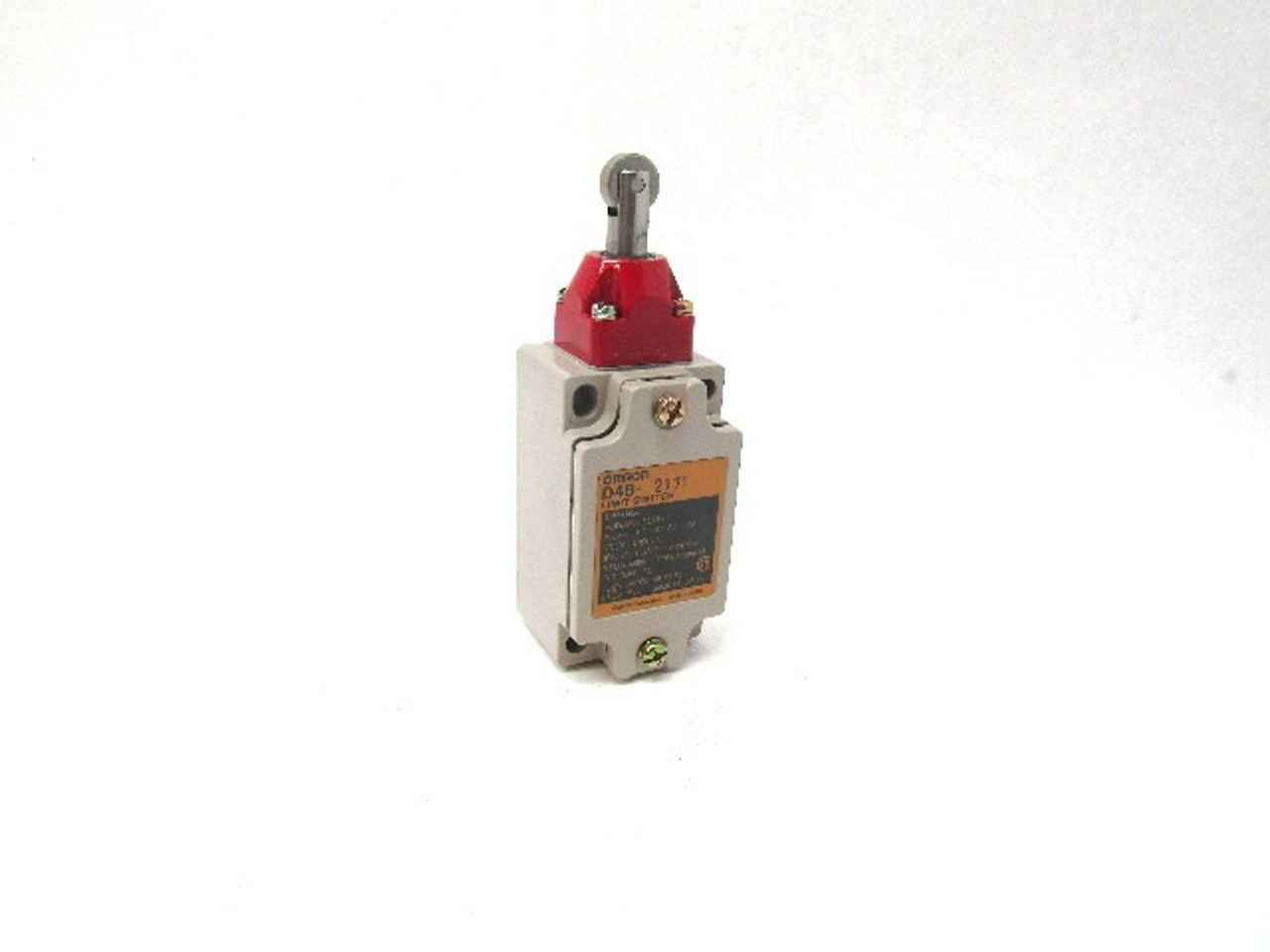

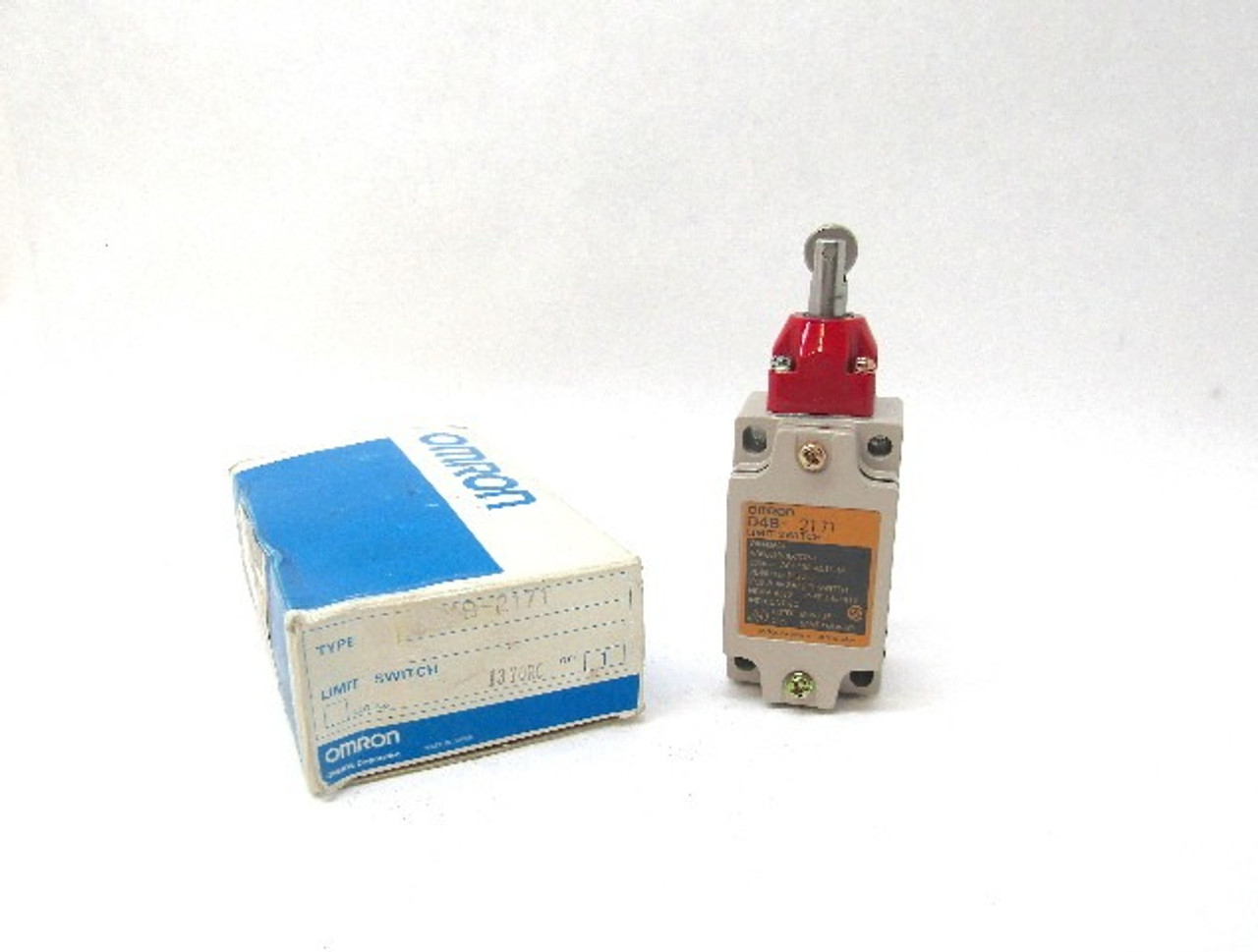

Omron D4B-2171 Safety Limit Switch, Top Roller, 1NC/1NO, IP67, New| Actuator | Top roller plunger 12.7 dia. x 4.8 Sintered stainless steel roller Horizontal roller |
|---|---|
| Load | General load |
| Degree of protection | IP67 NEMA250: Type3, 4, 4X, 6P, 13 |
| Service life | General type |
|---|---|
| Operating mechanism | Snap action |
| Actuator | Top roller plunger 12.7 dia. x 4.8 Sintered stainless steel roller Horizontal roller |
| Frequency | 50/60 Hz |
| Contact form | 1NC/1NO |
| Load | General load |
| Ratings (AC): Non-Inductive load | Rated voltage: 125 VAC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 3 A(NC) 1.5 A(NO) Rated voltage: 250 VAC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 2 A(NC) 1 A(NO) Rated voltage: 400 VAC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 1.5 A(NC) 0.8 A(NO) |
| Ratings (AC): Inductive load | Rated voltage: 125 VAC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 5 A(NC) 2.5 A(NO) Rated voltage: 250 VAC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 3 A(NC) 1.5 A(NO) Rated voltage: 400 VAC / Inductive load: 3 A(NC) 3 A(NO) / Motor load: 1.5 A(NC) 0.8 A(NO) |
| Ratings (DC): Non-Inductive load | Rated voltage: 8 VDC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 6 A(NC) 3 A(NO) Rated voltage: 14 VDC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 6 A(NC) 3 A(NO) Rated voltage: 30 VDC / Resistive load: 6 A(NC) 6 A(NO) / Lamp load: 4 A(NC) 3 A(NO) Rated voltage: 125 VDC / Resistive load: 0.8 A(NC) 0.8 A(NO) / Lamp load: 0.2 A(NC) 0.2 A(NO) Rated voltage: 250 VDC / Resistive load: 0.4 A(NC) 0.4 A(NO) / Lamp load: 0.1 A(NC) 0.1 A(NO) |
| Ratings (DC): Inductive load | Rated voltage: 8 VDC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 6 A(NC) 6 A(NO) Rated voltage: 14 VDC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 6 A(NC) 6 A(NO) Rated voltage: 30 VDC / Inductive load: 6 A(NC) 6 A(NO) / Motor load: 4 A(NC) 4 A(NO) Rated voltage: 125 VDC / Inductive load: 0.8 A(NC) 0.8 A(NO) / Motor load: 0.2 A(NC) 0.2 A(NO) Rated voltage: 250 VDC / Inductive load: 0.4 A(NC) 0.4 A(NO) / Motor load: 0.1 A(NC) 0.1 A(NO) |
| Inrush current | NC: 30 A NO: 30 A |
| Protective circuit | Classification of protection against electric shock: Class I (with ground terminal) Short-circuit protective device: 10 A fuse type gI or gG (IEC60269) |
| Conduit size | G1/2 (PF1/2) |
| Number of conduit | 1 |
| Earth terminal | With ground terminal |
| Ambient temperature | Operating: -40 to 80 ãÄ (no icing) |
| Ambient humidity | Operating: 95% RH max. (no condensation) |
| Permissible operating speed | 1 mm/s to 0.5 m/s |
|---|---|
| Permissible operating frequency (Mechanically) | 120 operations / 1 minute max. |
| Permissible operating frequency (Electrically) | 30 operations / 1 minute max. |
| Contact resistance (Initial value) | 25 mΩ max. |
| Insulation resistance | Between each terminal of the same polarities: 100 MΩ min. Between each terminal and non-live-metallic part: 100 MΩ min. (at 500 VDC) |
| Impulse withstand voltage | Between each terminal of the same polarities: 2.5 kV Between each terminaland ground: 4 kV |
| Durability (Mechanically) | 30,000,000 operations min. (Temperature, Humidity conditions: 5 to 35 ãÄ, 40 to 70% RH) |
| Durability (Electrically) | 500,000 operations min. (10 A at 250 VAC) (Temperature, Humidity conditions: 5 to 35 ãÄ, 40 to 70% RH) |
| Vibration resistance (Malfunction) | 10 to 55 Hz, 0.75-mm single amplitude |
| Shock resistance (Destruction) | 1000 m/s**2 min. |
| Shock resistance (Malfunction) | 300 m/s**2 min. |
| Pollution degree | 3 (EN60947-5-1) |
| Degree of protection | IP67 NEMA250: Type3, 4, 4X, 6P, 13 |
| Operating Force (OF) | Standard value 18.63 N max. |
|---|---|
| Release Force (RF) | Standard value 1.96 N min. |
| Pre-Travel (PT) | Standard value 2 mm max. |
| Over-Travel (OT) | Standard value 5 mm min. |
| Movement Differential (MD) | Standard value 1 mm max. |
| Operating Position (OP) | Standard value 48±1 mm |
| Total Travel (TT) | Reference value 7 mm |
| Free Position (FP) | Standard value 51 mm max. |
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Limit Switch
Voltage 250Vac
MPN D4B-2171
Model D4B-2171
Shelf N-4
Series D4B
Manufacturer Omron
Application Contact/Precision
Country/Region of Manufacture Japan
GTIN 646412777439
