Product Description

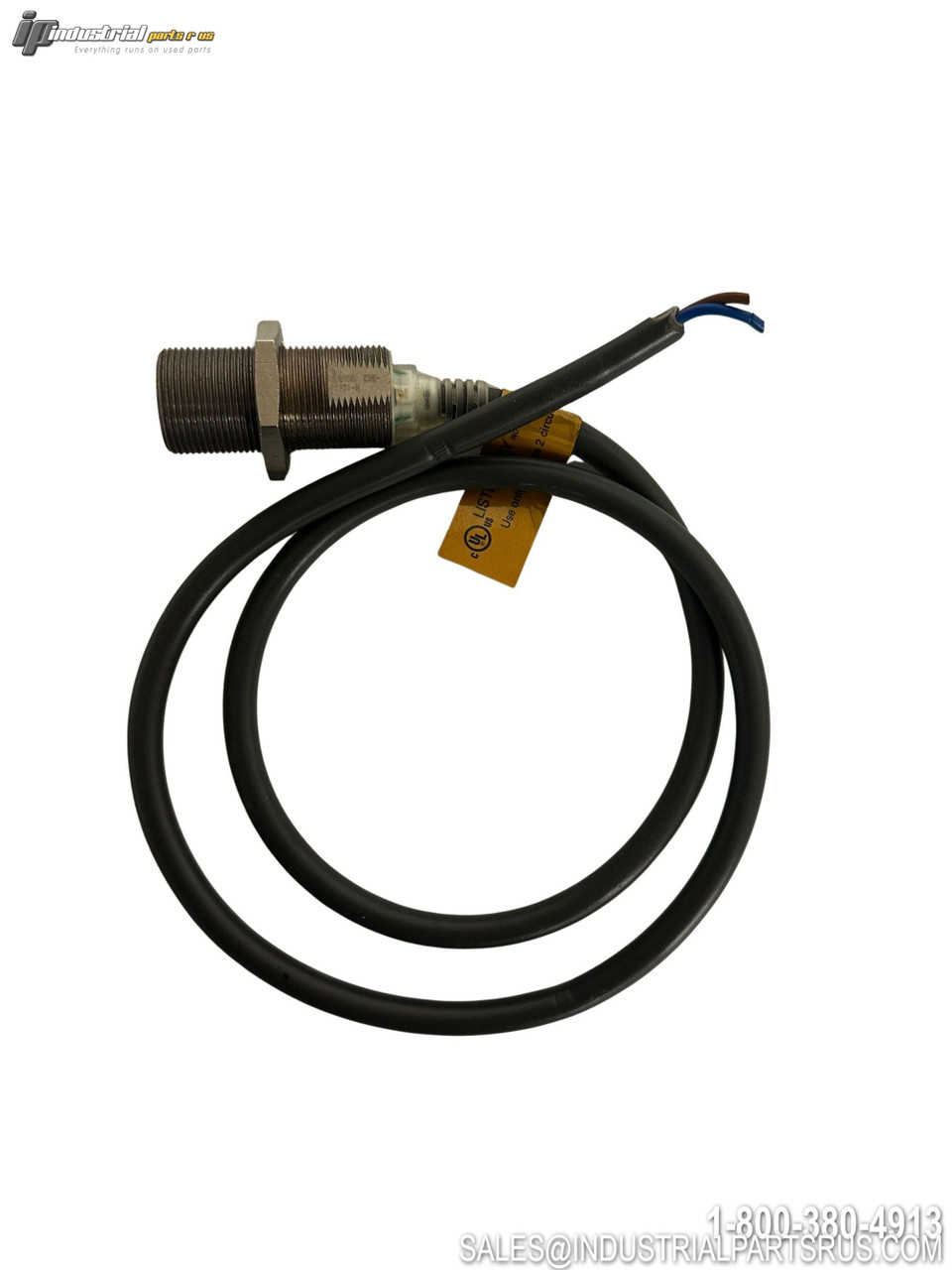

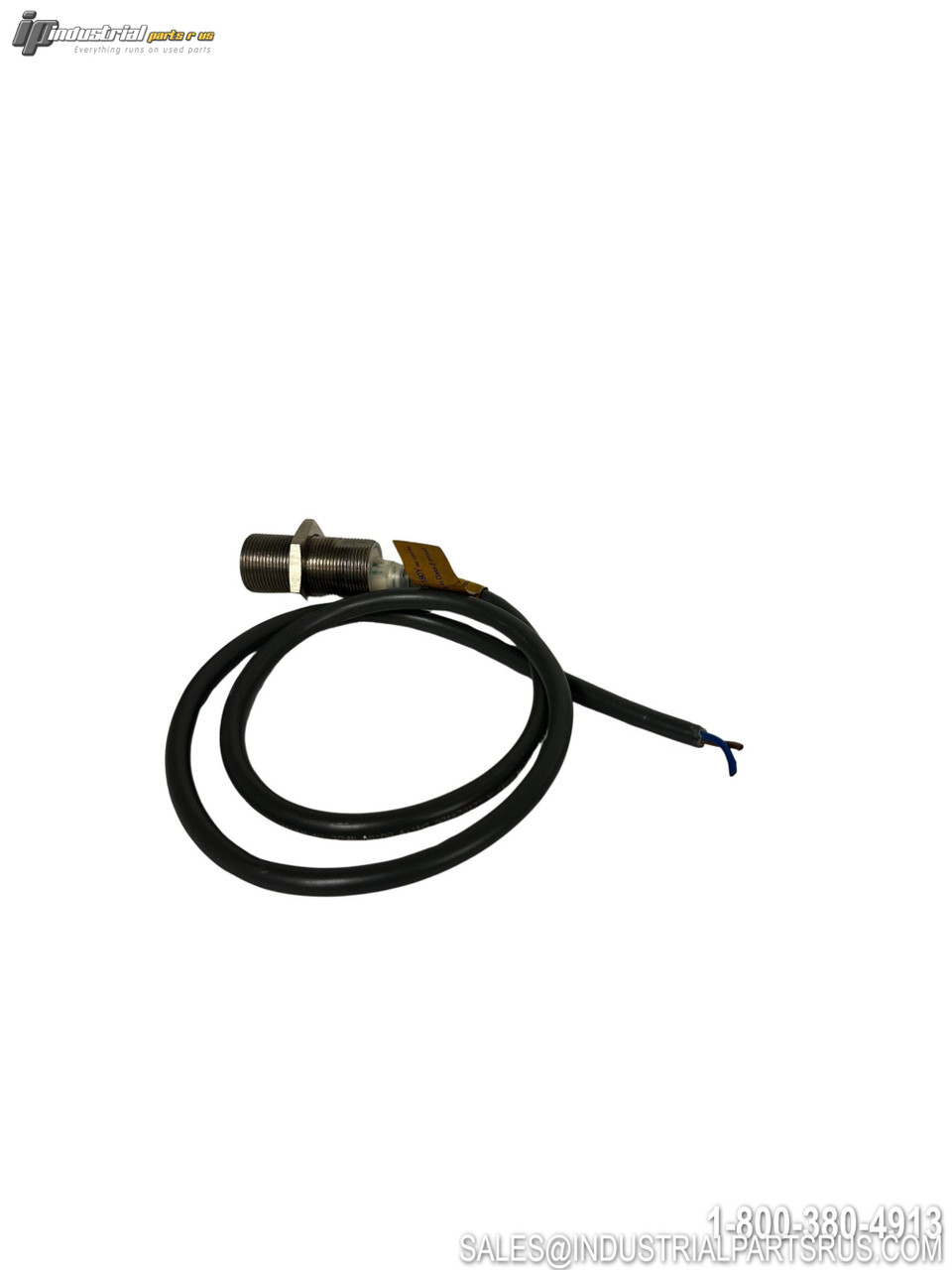

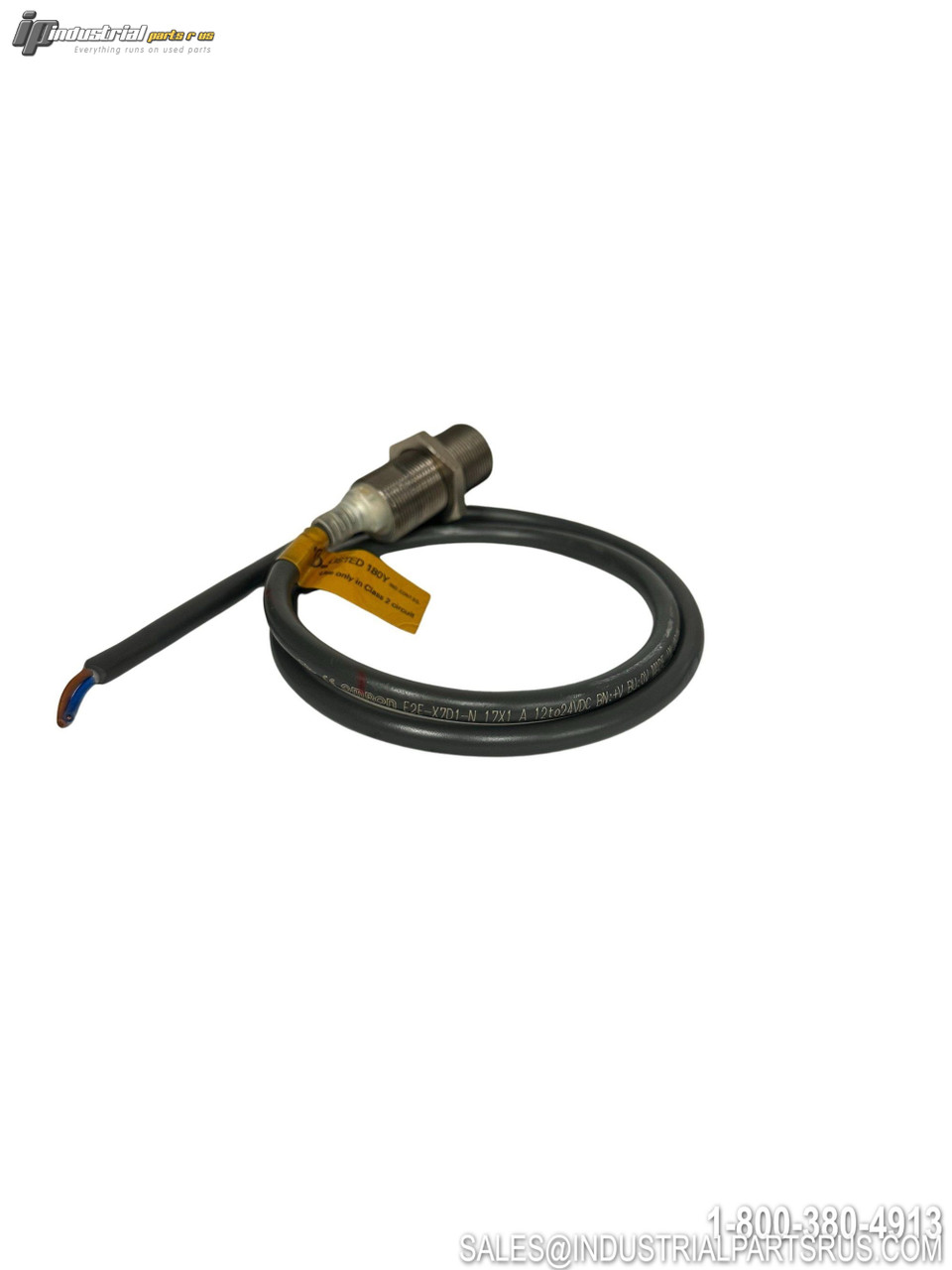

The OMRON E2E-X7D1-N is a DC 2-wire inductive proximity sensor designed for detecting ferrous metals in industrial automation applications. This shielded cylindrical sensor features a 7mm sensing range and M18x1 threaded mounting for easy installation in tight spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | E2E-X7D1-N |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 7mm ±10% |
| Thread Size | M18x1 |
| Housing Diameter | 18mm |
| Overall Length | 55mm |
| Threaded Length | 38mm |
| Supply Voltage | 12-24 VDC (nominal) |
| Operating Voltage Range | 10-30 VDC |
| Output Type | DC 2-Wire, NO (Normally Open) |
| Switching Capacity | 3-100 mA |
| Response Frequency | 500 Hz (max) |
| Leakage Current | 0.8 mA |
| Residual Voltage | 3V (at 100mA, 2m cable) |
| Setting Distance | 0-5.6mm |
| Standard Sensing Object | Iron 18x18x1mm |
| Housing Material | Nickel-plated Brass |
| Sensing Surface | PBT (Polybutylene Terephthalate) |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Connection Type | Pre-wired (Flying Leads) |
| Mounting Type | Flush (Shielded) |
| Series | E2E |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type DC 2-Wire NO
Sensor Type Inductive
Operating Distance 7mm ±10%
Full Load Amps 0.8 mA
Manufacturer Omron
Part Number E2E-X7D1-N
Shelf N-5
Model E2E-X7D1-N
MPN E2E-X7D1-N
Type Inductive Proximity Sensor
