Product Description

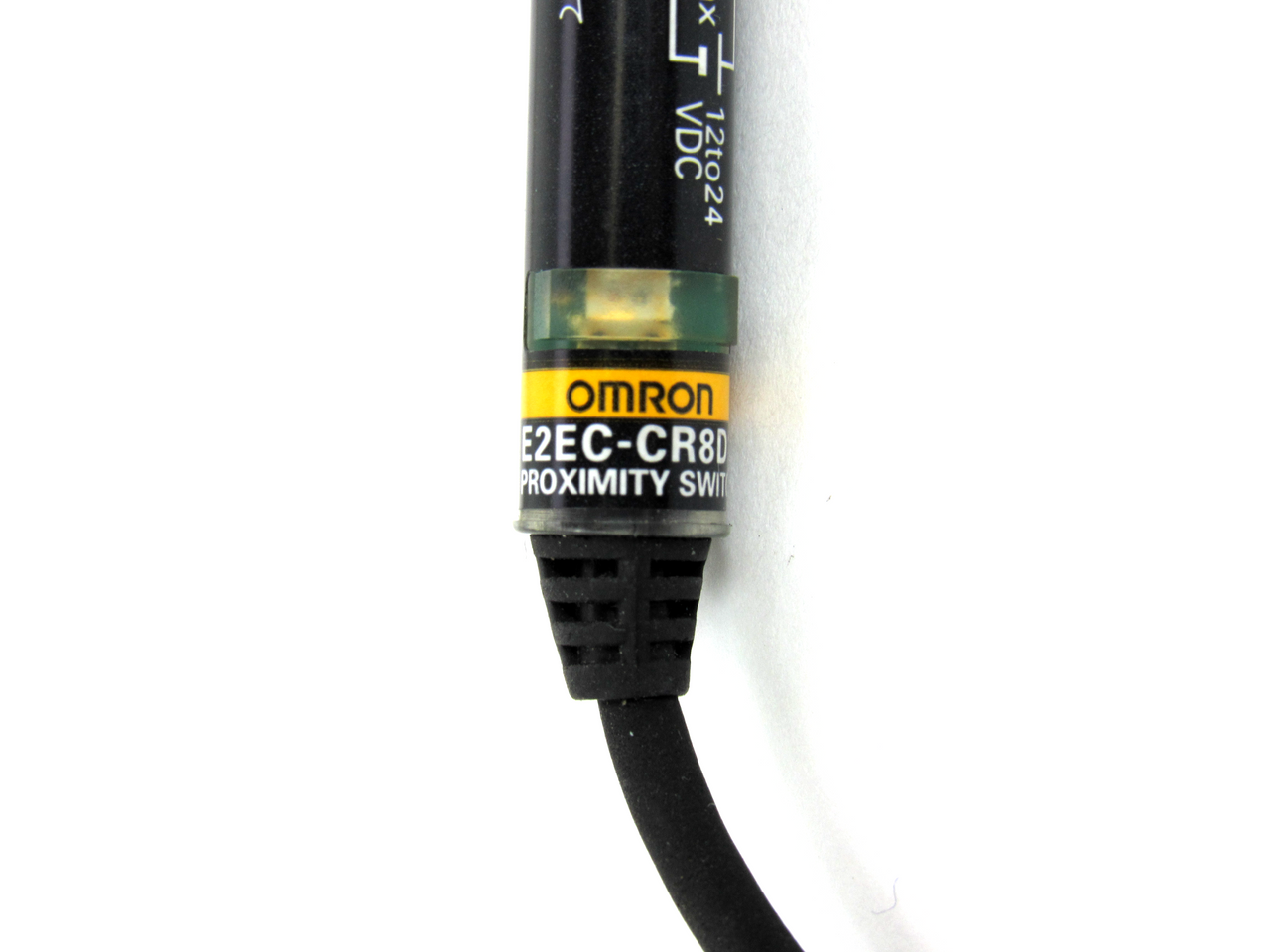

Omron E2EC-CR8D1 Cable Amplifier Proximity Sensor, 12-24V DC -IP67 Type Cylinder type, Shielded Power source DC 2-wire models Sensing distance 0.8 mm å±15% Setting distance 0 to 0.56 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 5 x 5 x 1 mm Response frequency 1.5 kHz (Average value) Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 5 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) MADE IN JAPANOther Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Proximity Sensor
MPN E2EC-CR8D1
Model E2EC-CR8D1
Shelf N-5
Part Number E2EC-CR8D1
Manufacturer Omron
Country/Region of Manufacture Japan
GTIN 646412848825
