Product Description

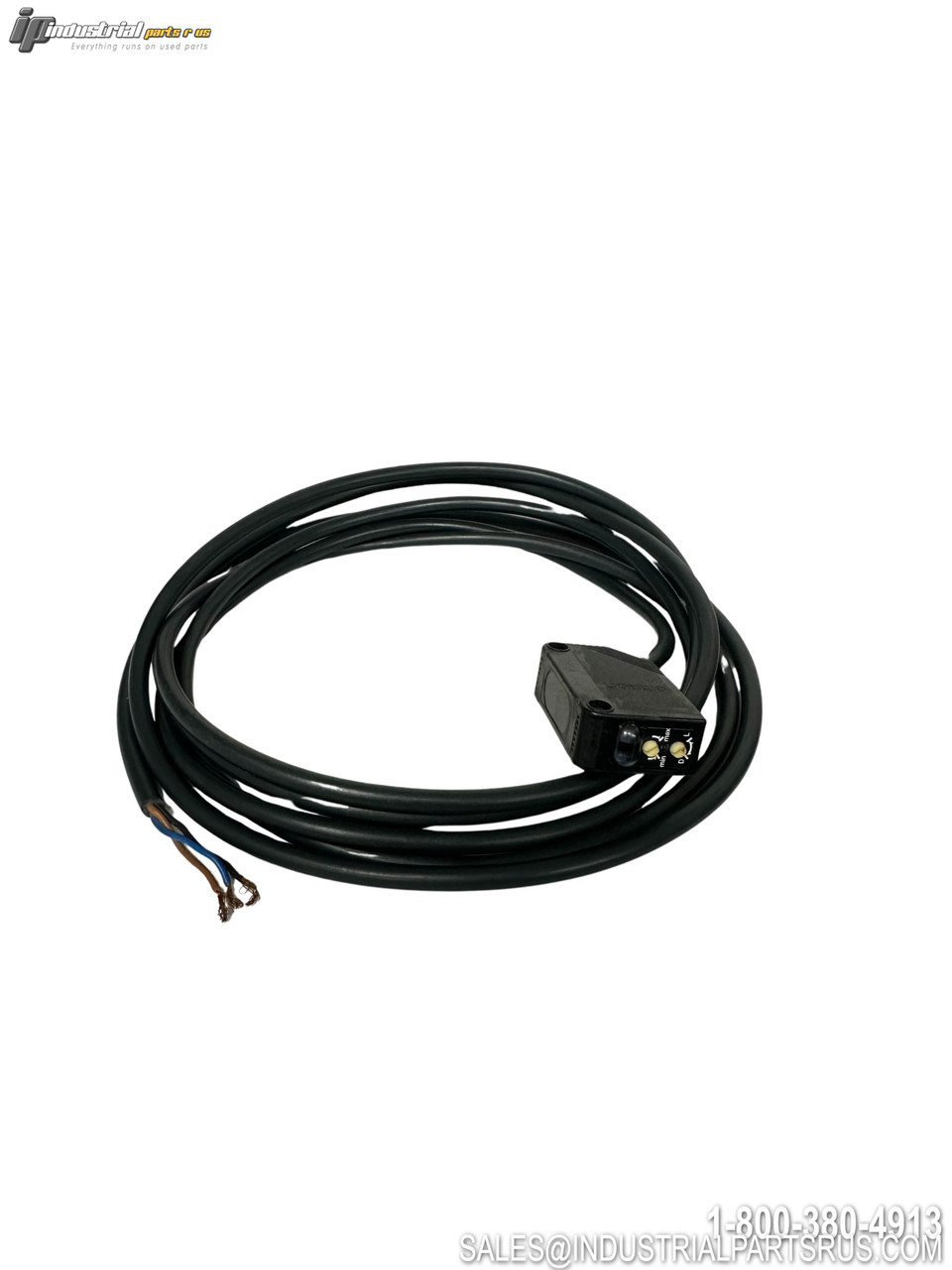

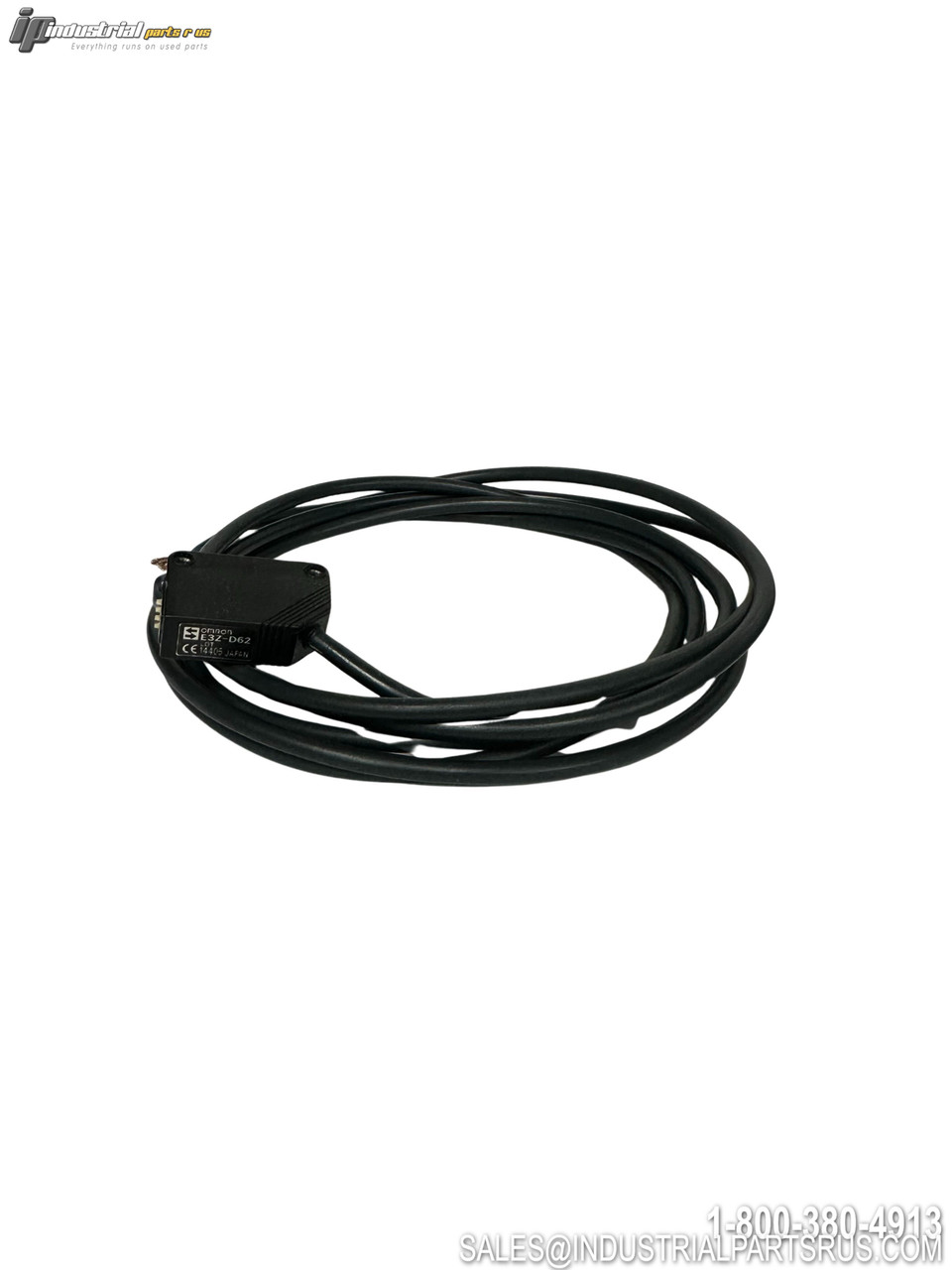

The Omron E3Z-D62 is a compact photoelectric sensor with built-in amplifier designed for diffuse reflective sensing applications. This general purpose sensor features NPN configuration and provides reliable object detection with infrared LED light (860nm). Ideal for detecting small objects with a small spot, this sensor offers stable detection across various industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | E3Z-D62 |
| Product Series | E3Z |
| Sensing Method | Diffuse Reflective |
| Output Type | NPN Open Collector |
| Sensing Range | 100mm (White Paper 100×100mm) |
| Sensing Range Extended | 1m (White Paper 300×300mm) |
| Power Supply Voltage | 12 to 24 VDC ±10% |
| Current Consumption | 30 mA max |
| Control Output | 100 mA max at 26.4 VDC |
| Light Source | Infrared LED (860 nm) |
| Standard Sensing Object | Opaque: 12 mm dia. min. |
| Hysteresis | 20% max of setting distance |
| Directional Angle | 2 to 10° |
| Operating Mode | L-ON/D-ON, switch selectable |
| Residual Voltage | 1 V max |
| Housing Type | Rectangular |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Output Type NPN
Sensor Type Photoelectric
Full Load Amps 30mA
Manufacturer Omron
Part Number E3Z-D62
Shelf N-8
Model E3Z-D62
MPN E3Z-D62
Type Photoelectric Sensor
