Product Description

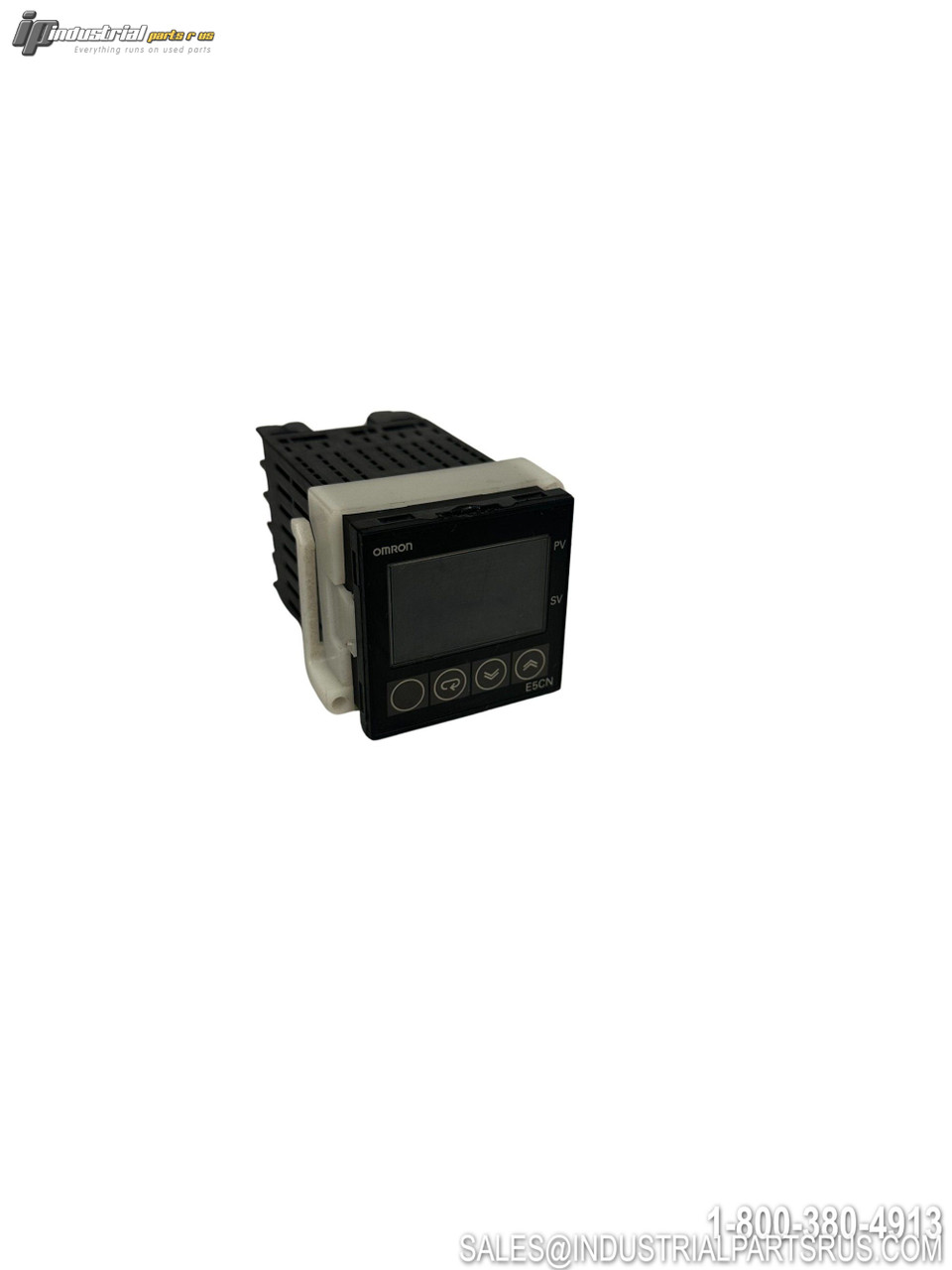

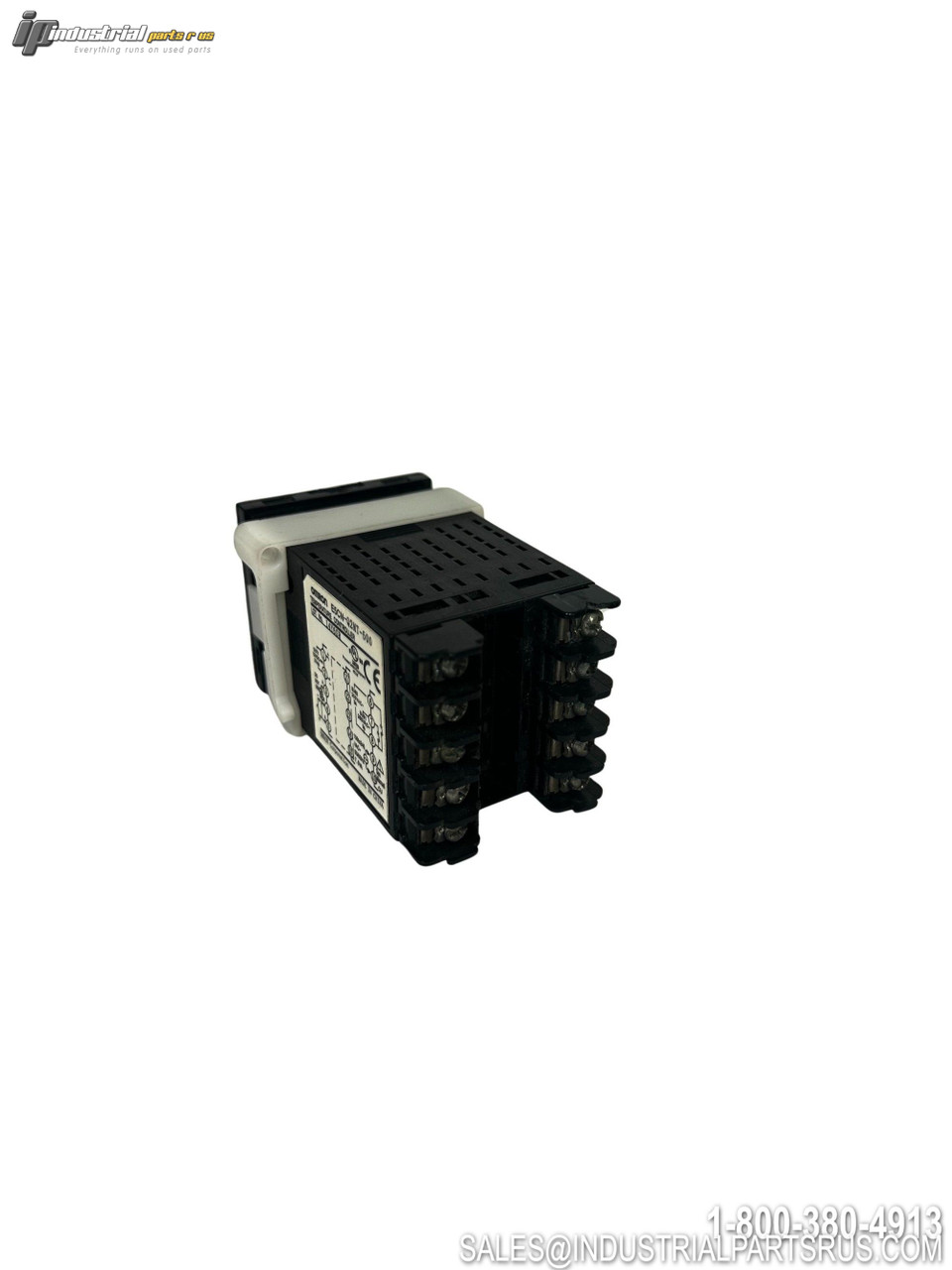

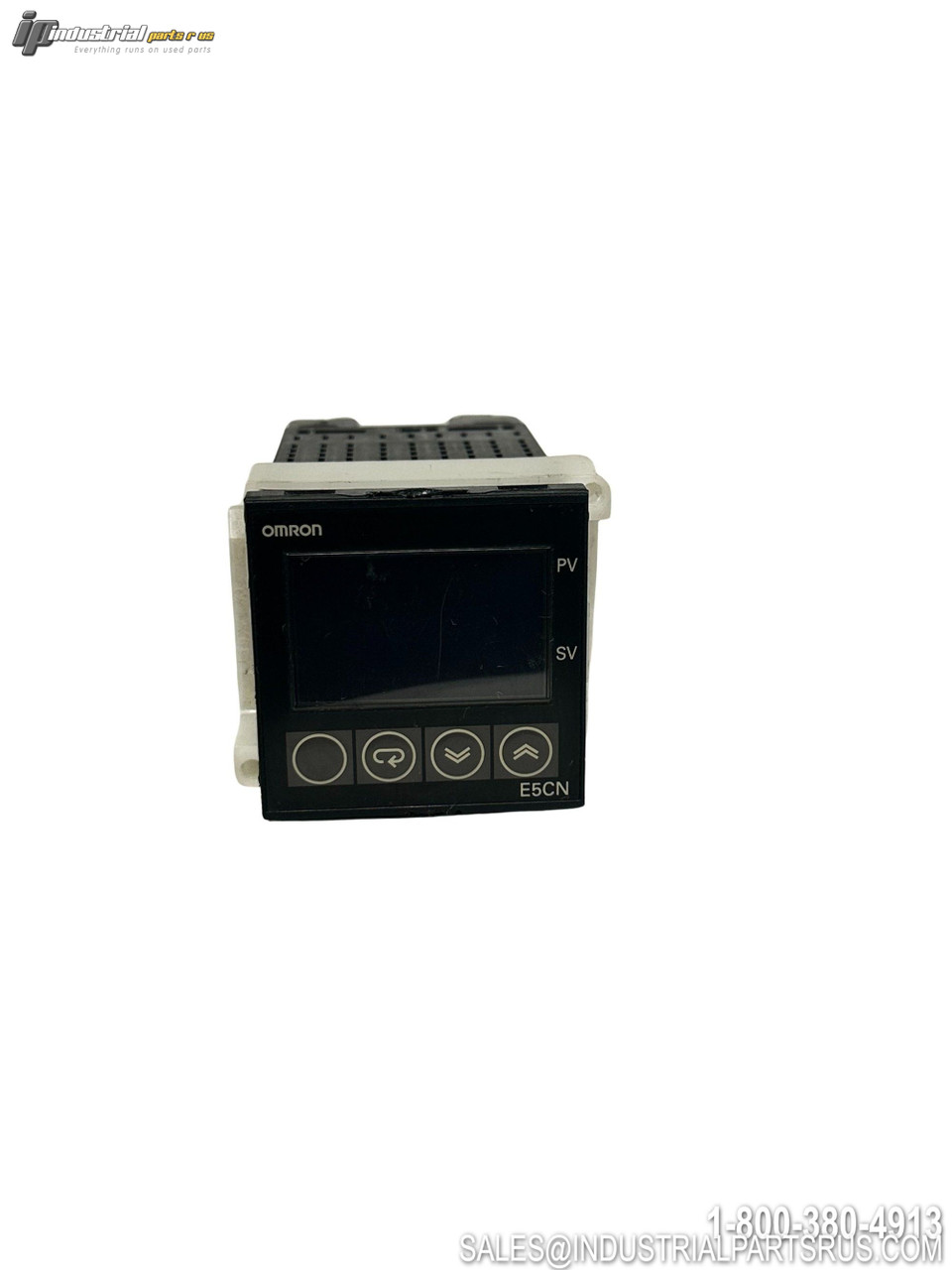

The OMRON E5CN-Q2MT-500 is a professional digital temperature controller from the E5CN series featuring enhanced functions and performance. This 1/16 DIN controller offers current output capabilities, accepts multiple thermocouple and RTD inputs, and features PID control with auto-tuning for precise temperature control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | E5CN-Q2MT-500 |
| Series | E5CN |
| Dimensions | 48 x 48 x 78mm |
| Input Voltage | 100-240VAC |
| Frequency | 50/60 Hz |
| Output Type | Current Output |
| Current Output | 4-20 mA DC |
| Thermocouple Types | B, E, J, K, L, N, R, S, T, U, W, PLII |
| RTD Types | Pt100, JPt100 |
| Operating Temperature | -10°C to +55°C |
| Temperature Accuracy | ±1°C |
| Auxiliary Outputs | 2 points |
| Control Type | PID or ON/OFF with Auto-Tuning |
| Display | Large 11-Segment Two Color LCD |
| Protection Rating | NEMA 4X/IP66 Front Panel |
| Certifications | UL/CSA/CE |
| Weight | Approx. 100g |
| Connection Type | Removable Terminal Block |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type Current Output
Full Load Amps 4-20 mA DC
Manufacturer Omron
Part Number E5CN-Q2MT-500
Shelf J-5
Model E5CN-Q2MT-500
MPN E5CN-Q2MT-500
Type Temperature Controller
