Product Description

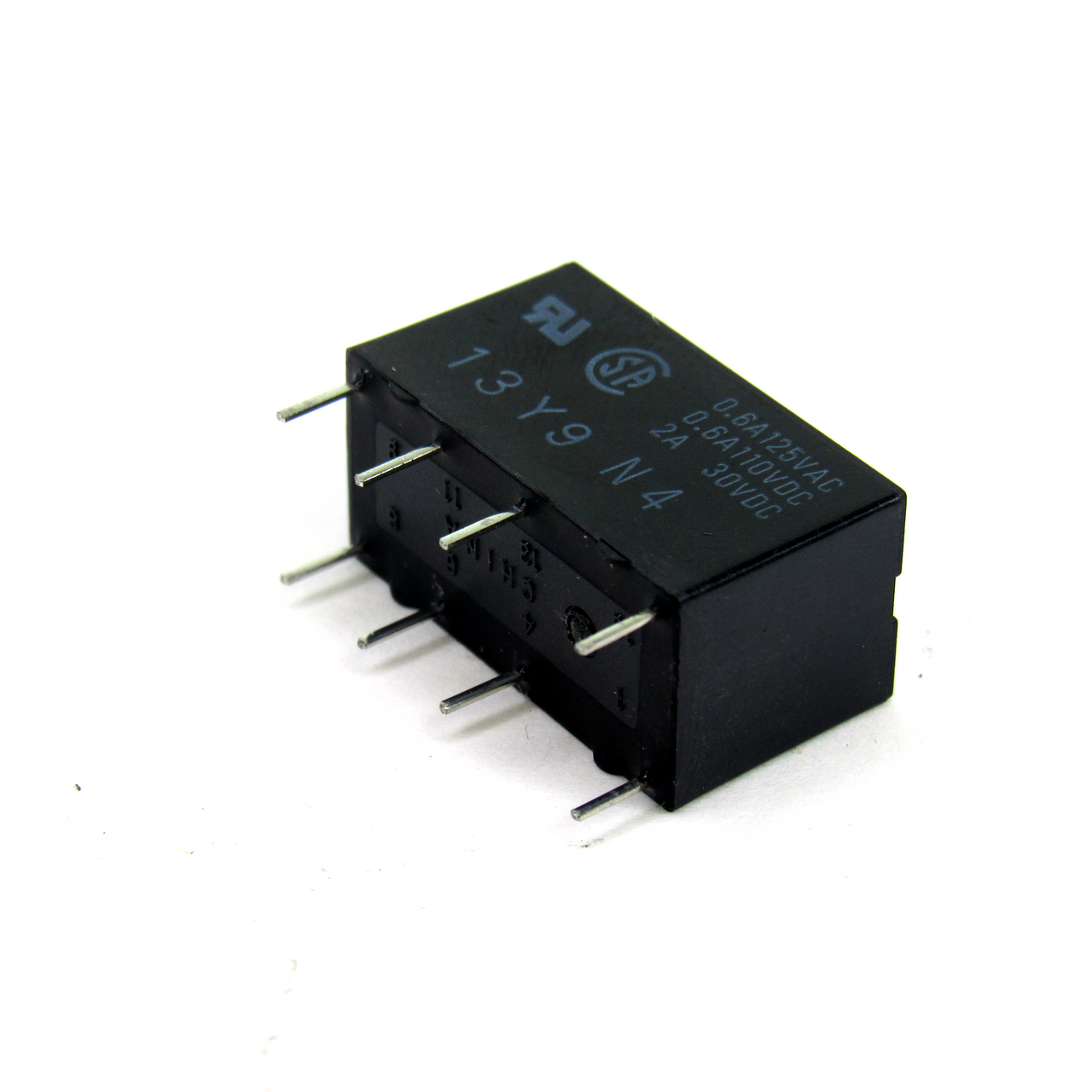

Omron G5V-2-DC12 General Purpose Relay, 12V DC (Set of 25) Package Tube Part Status Active Mounting Type Through Hole Coil Voltage 12VDC Contact Form DPDT (2 Form C) Contact Rating (Current) 2 A Switching Voltage 125VAC, 125VDC - Max Coil Current 41.7 mA Coil Type Non Latching Features - Termination Style PC Pin Seal Rating Sealed - Fully Coil Insulation - Must Operate Voltage 9 VDC Must Release Voltage 0.6 VDC Operate Time 7 ms Release Time 3 ms Operating Temperature -25°C ~ 65°C Contact Material Silver (Ag), Gold (Au) Relay Type General Purpose Coil Resistance 288 OhmsOther Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type General Purpose Relay
MPN G5V-2-DC12
Coil Voltage 12V DC
Model G5V-2-DC12
Part Number G5V-2-DC12
Manufacturer Omron
Country/Region of Manufacture China
Shelf C-10 Tub 18
GTIN 646412836495
