Product Description

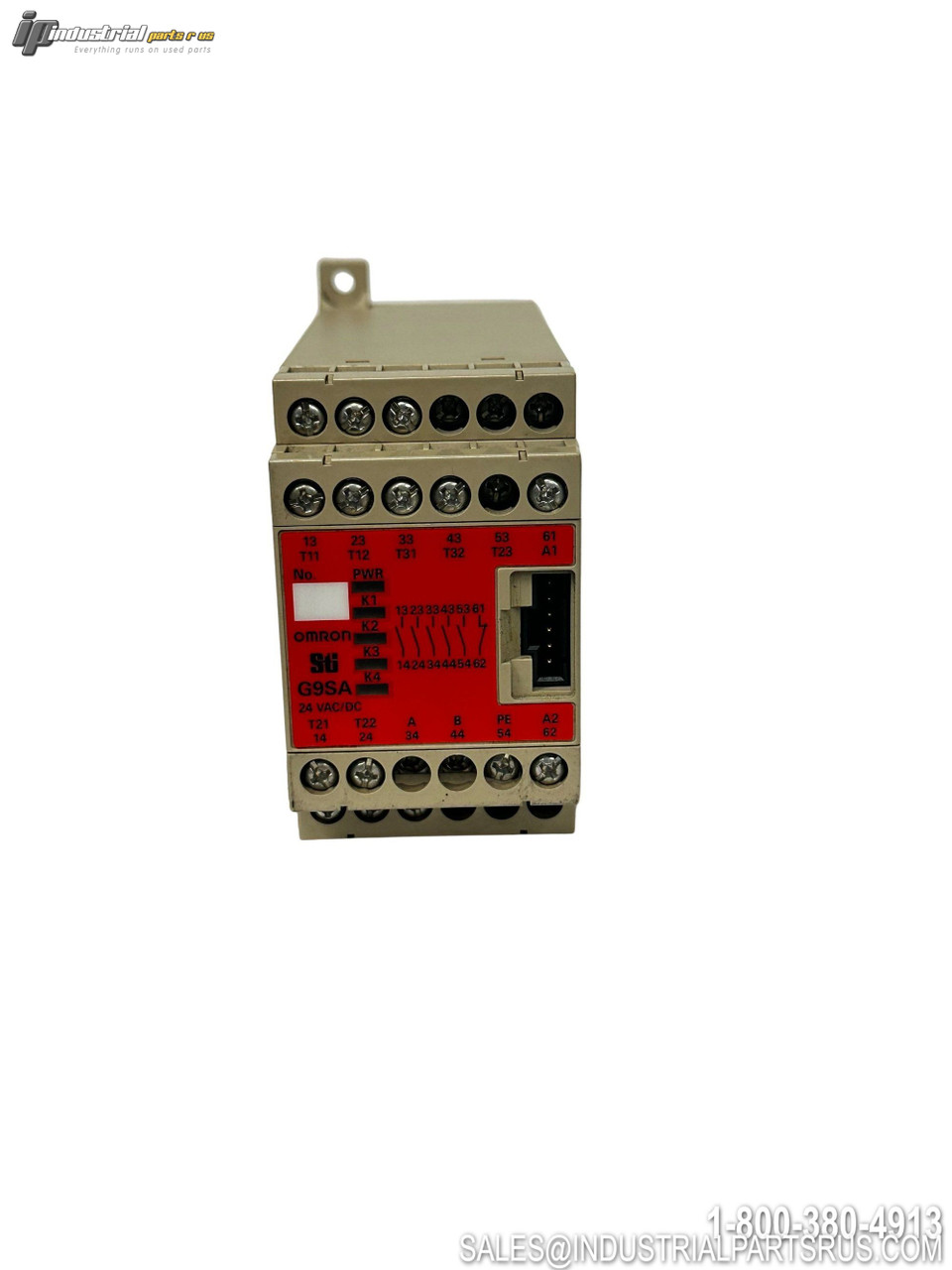

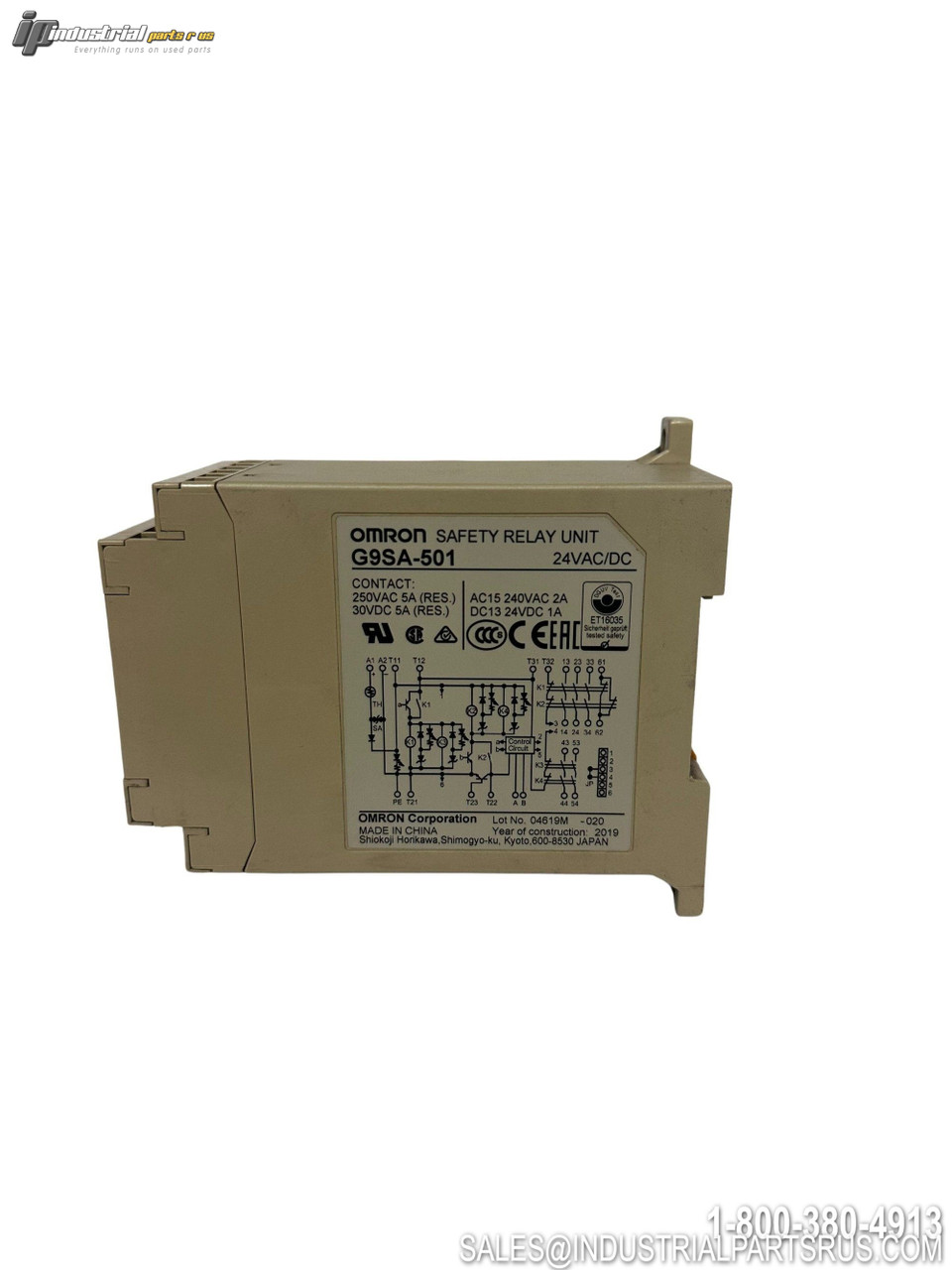

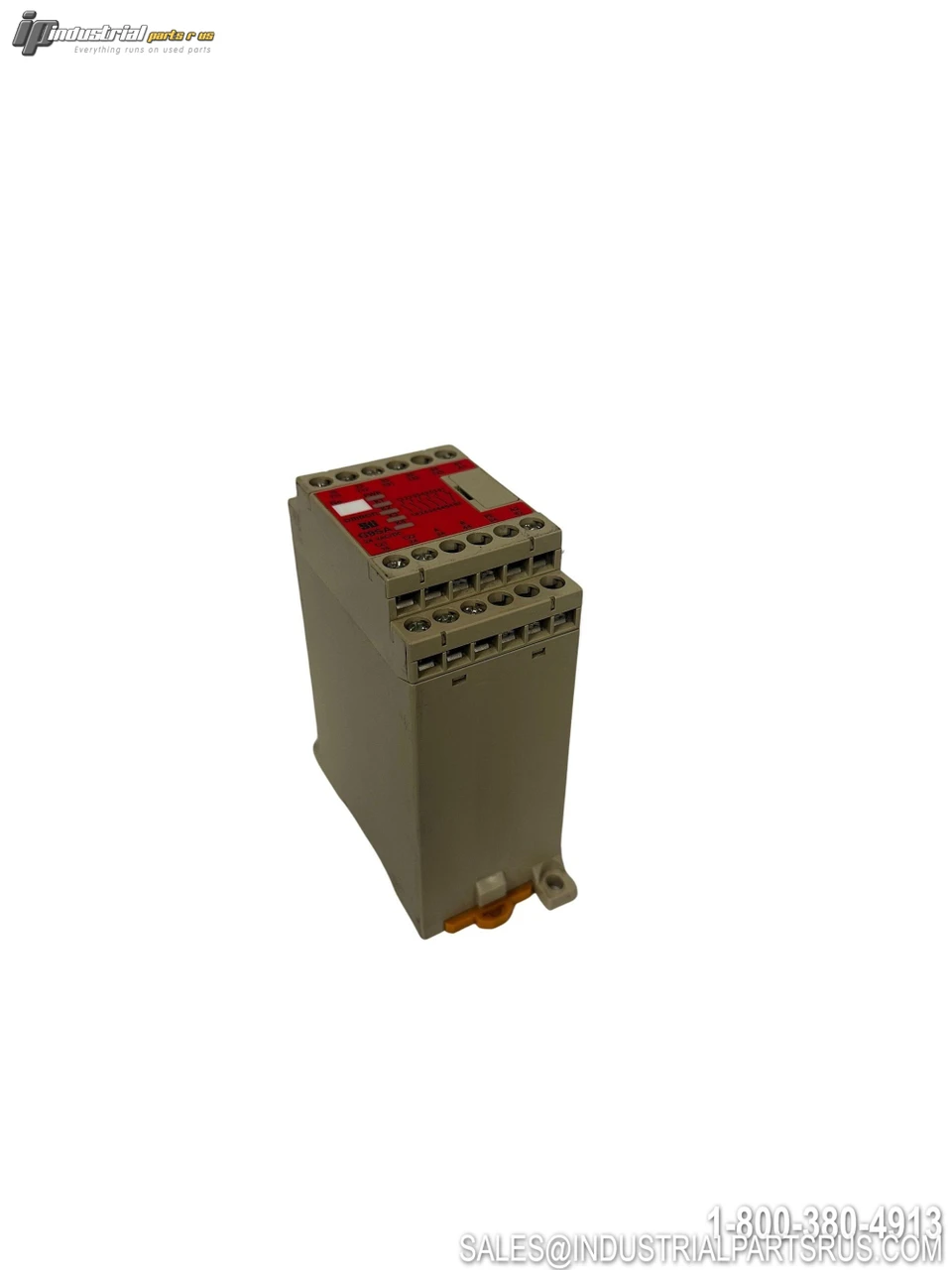

The OMRON G9SA-501 AC/DC24 is a professional safety relay unit designed for emergency stop applications and safety control systems. This dual channel safety relay features 5PST-NO contacts rated at 5A, accepts 24VAC/DC power supply, and mounts on standard DIN rail. The unit provides comprehensive safety monitoring with support for 1 or 2 channel inputs and includes manual/auto reset functionality.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | G9SA-501 |
| Product Series | G9SA |
| Supply Voltage AC | 24VAC (50/60Hz) |
| Supply Voltage DC | 24VDC |
| Contact Configuration | 5PST-NO |
| Contact Rating | 5A |
| Safety Output Contacts | 13-14, 23-24, 33-34, 43-44, 53-54 |
| Auxiliary Contact | 61-62 (SPST 2NC) |
| Input Channels | Dual Channel (1 or 2 channel) |
| Input Type | PNP Common Input |
| Safety Input 1 | T11-T12 |
| Safety Input 2 | T21-T22-T23 |
| Feedback/Reset Input | T31-T32 |
| Power Supply Input | A1-A2 |
| Manual/Auto Selector | A-B |
| Response Time (OFF→ON) | 30ms max |
| Release Time (ON→OFF) | 10ms max |
| Contact Resistance | 100mΩ max |
| Insulation Resistance | 100MΩ min (at 500VDC) |
| Dielectric Strength | 2500VAC (1 min) |
| Width | 45mm |
| Mounting Type | DIN Rail |
| Safety Category | EN ISO 13849-1 PL e/Category 4 |
| Coil Current | 40mA |
| Application | Emergency Stop Safety Applications |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 40mA
Manufacturer Omron
Part Number G9SA-501
Shelf K-3
Model OMRON G9SA-501
MPN G9SA-501
Type Safety Relay
