Product Description

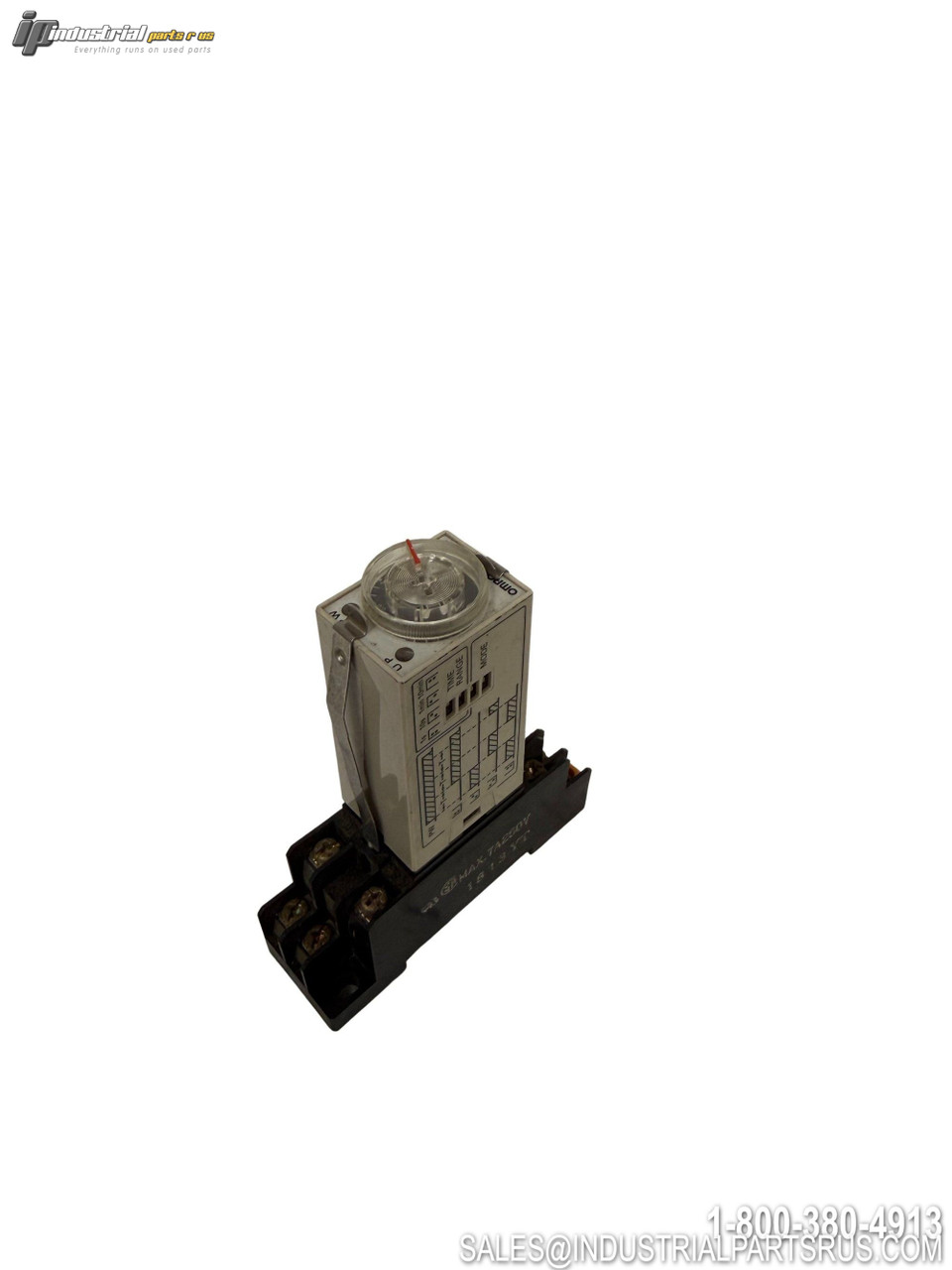

The Omron H3YN-2 is a solid-state time delay relay offering multiple timing functions and operating modes. This timer features DPDT output contacts and short-time range capability from 0.1 seconds to 10 minutes. The unit provides multiple operating modes including ON-Delay, Interval, and Repeat Cycle (ON-Start or OFF-Start) with LED power-ON and time-UP indicators for visual status confirmation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H3YN-2 |
| Product Type | Solid State Time Delay Relay |
| Output Contact Configuration | DPDT (2 Form C) |
| Contact Rating | 5A @ 250 VAC Resistive Load |
| Time Range | 0.1 seconds to 10 minutes |
| Time Settings | 1s, 10s, 1min, 10min (selectable) |
| Operating Modes | ON-Delay, Interval, Flicker OFF Start |
| Supply Voltage Options | 100-120 VAC, 200-230 VAC, 12 VDC, 24 VDC |
| Terminal Type | 8-Pin Plug-in |
| Mounting Type | Socket Mount (Socket sold separately) |
| Indicators | LED Power-ON and Time-UP |
| Color | Beige |
| Series | H3YN |
| Minimum Load | 1 mA at 5 VDC |
| Contact Material | Silver (Ag) |
| Certifications | UL, CSA, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Socket Mount
Current Rating 5A @ 250VAC
Output Type DPDT
Sensor Type Solid State
Material Plastic Housing
Manufacturer Omron
Part Number H3YN-2
Series H3YN
Shelf C-10 Tub 8
Model H3YN-2
Coil Voltage Multiple (12VDC, 24VDC, 100-120VAC, 200-230VAC)
MPN H3YN-2
Type Time Delay Relay
