Product Description

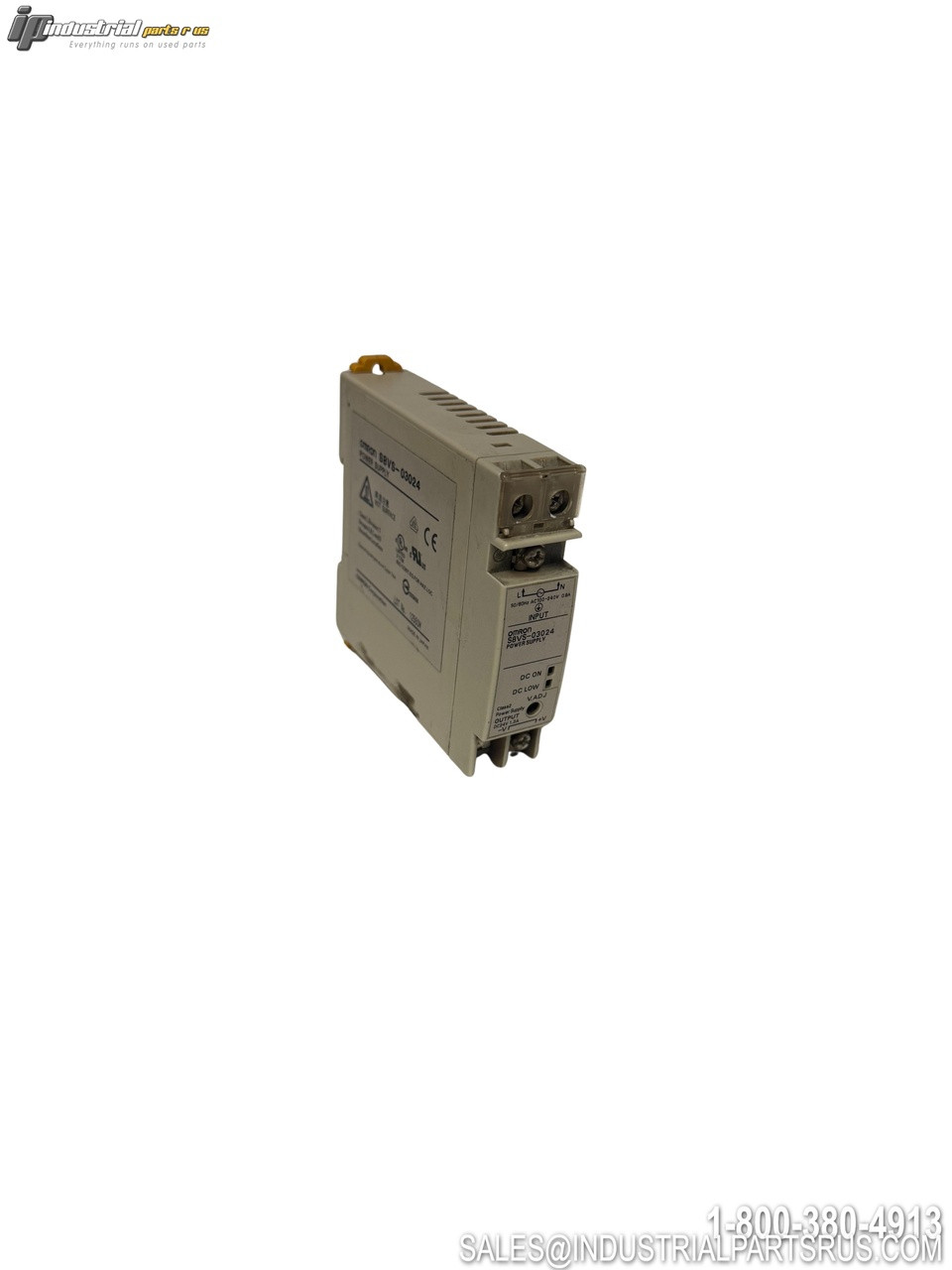

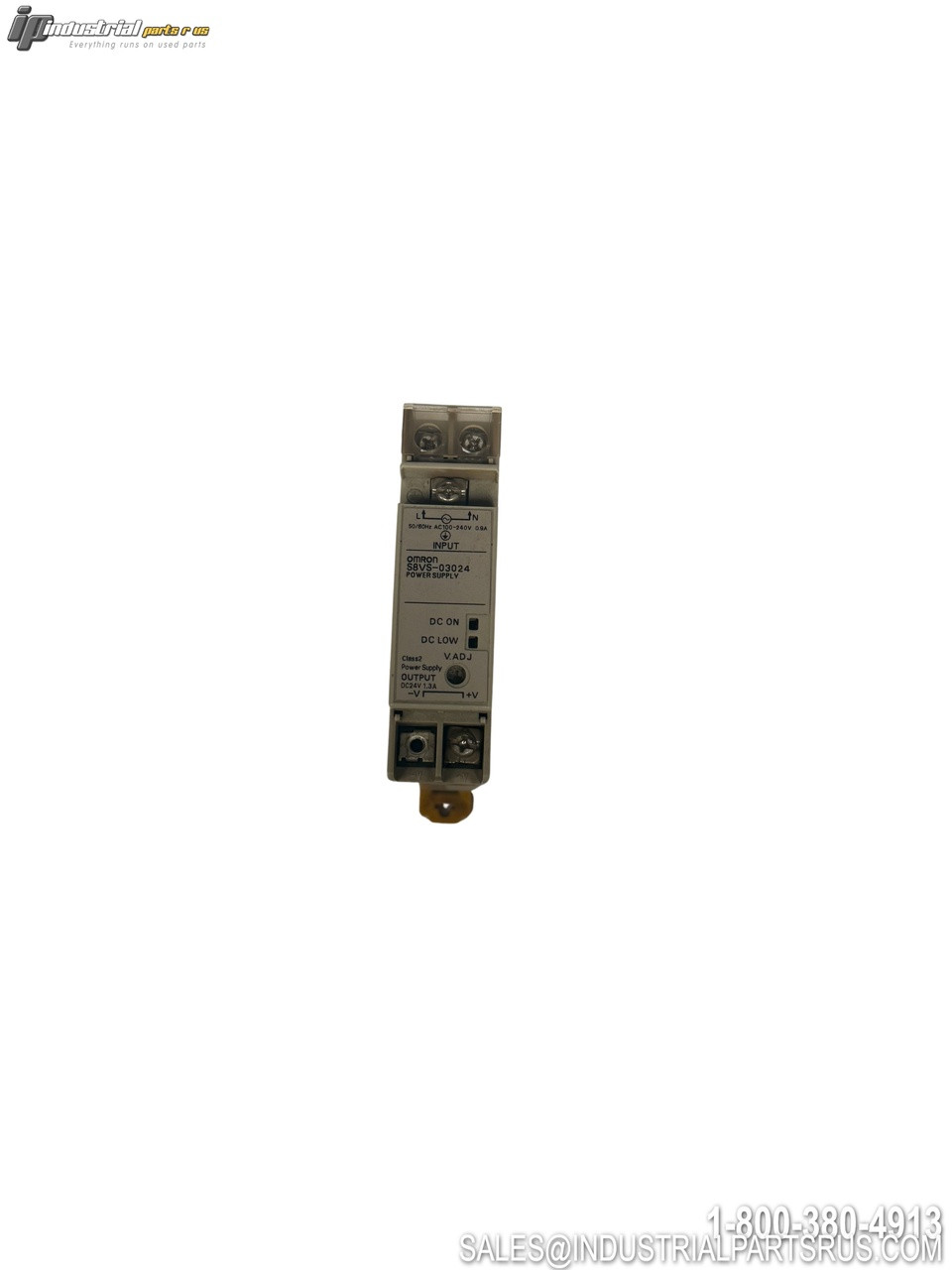

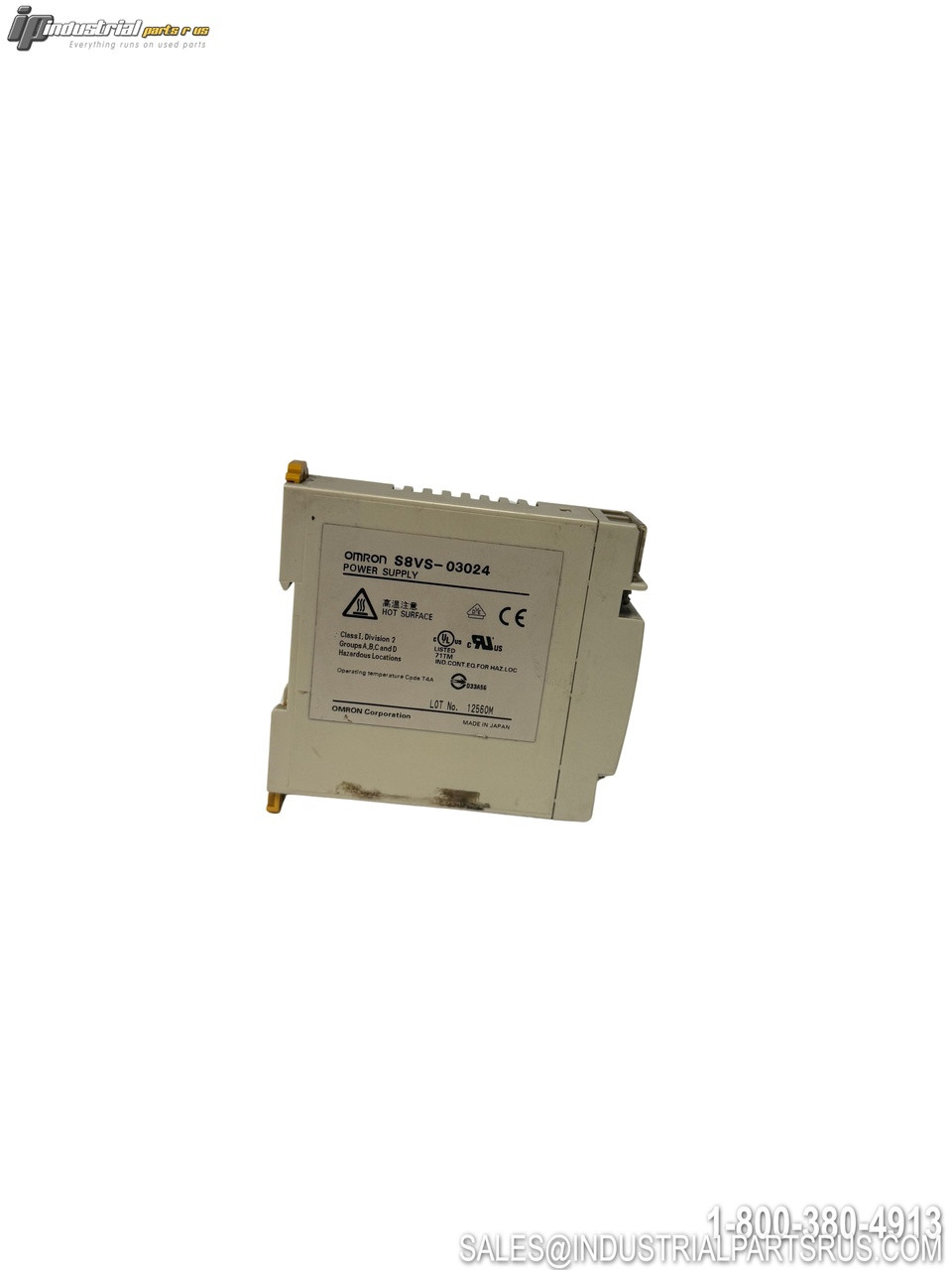

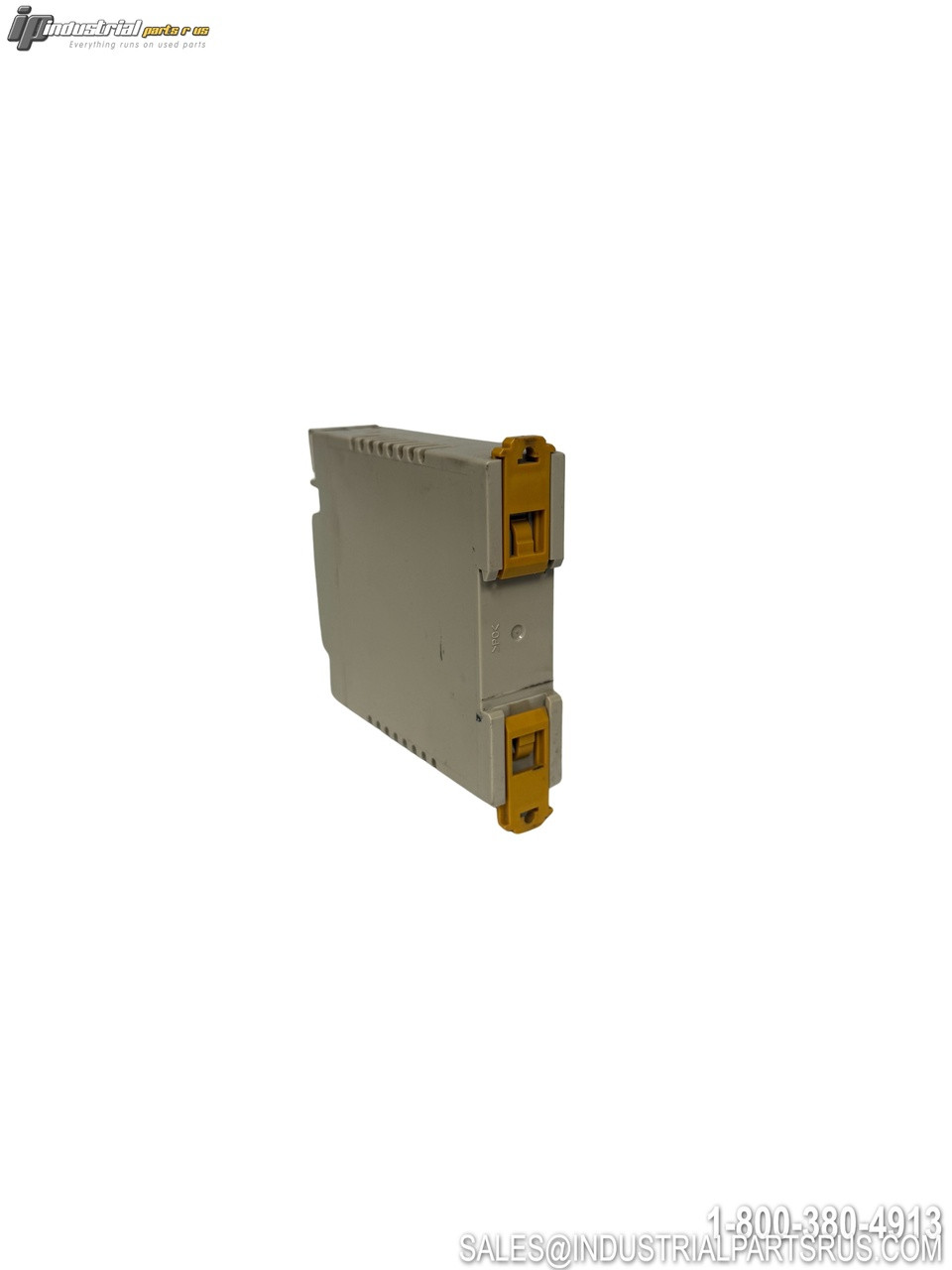

The OMRON S8VS-03024 is a compact and reliable switching power supply designed for industrial automation and control applications. This 30-watt unit provides stable 24VDC output at 1.3A current capacity, featuring wide input voltage range of 100-240VAC and DIN rail or direct panel mounting options.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | S8VS-03024 |
| Type | Switching Power Supply |
| Series | S8VS |
| Input Voltage | 100-240 VAC (85-264 VAC) |
| Output Voltage | 24 VDC |
| Output Current | 1.3 A |
| Rated Power | 30 W |
| Frequency | 50/60 Hz |
| Efficiency | 86% |
| Mounting Type | DIN Rail or Direct Panel |
| Enclosure Type | Plastic Case |
| Connection Type | Screw Terminal |
| Width | 22.5 mm |
| Height | 94.6 mm |
| Depth | 100.4 mm |
| Operating Temperature | -10°C to +60°C |
| MTBF | 135,000 hours |
| Ripple & Noise | 150 mV |
| Insulation Voltage | 3 kV |
| Output Type | Adjustable |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Output Type Adjustable
Country/Region of Manufacture Japan
Manufacturer Omron
Enclosure Type Plastic Case
Part Number S8VS-03024
Shelf F-14 tub3
Model S8VS-03024
MPN S8VS-03024
Type Switching Power Supply
