Product Description

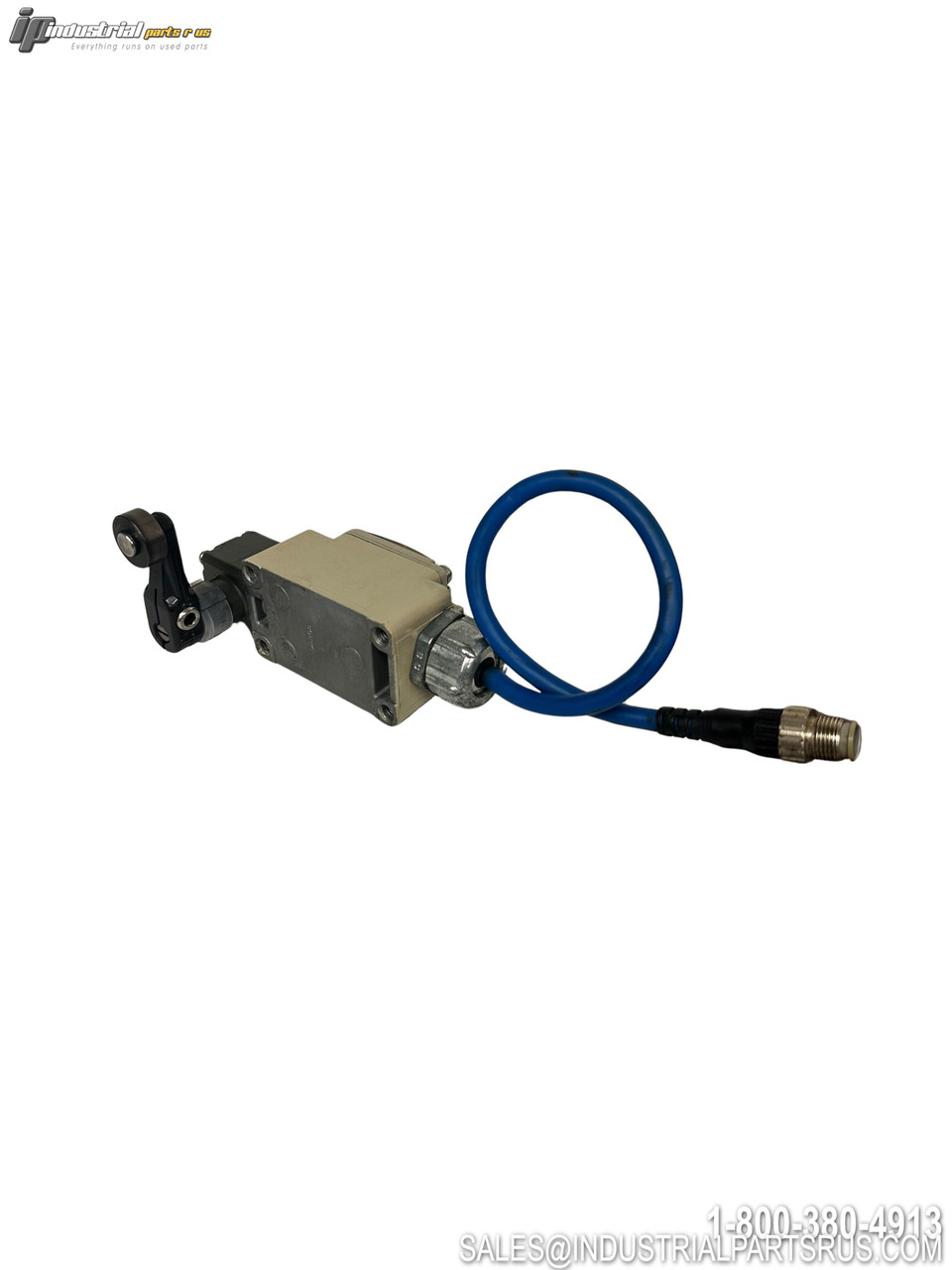

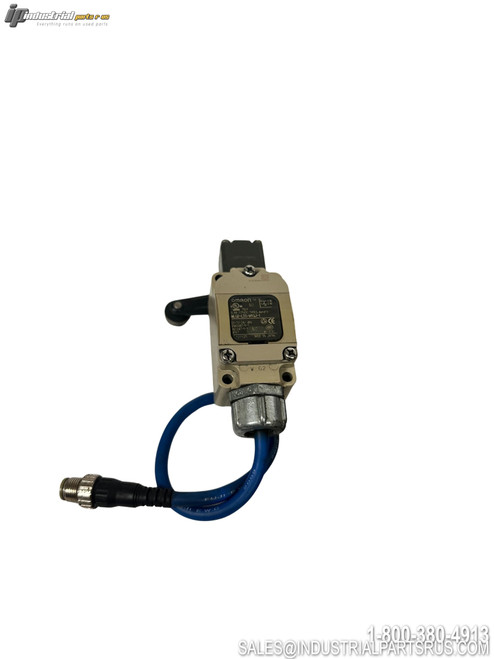

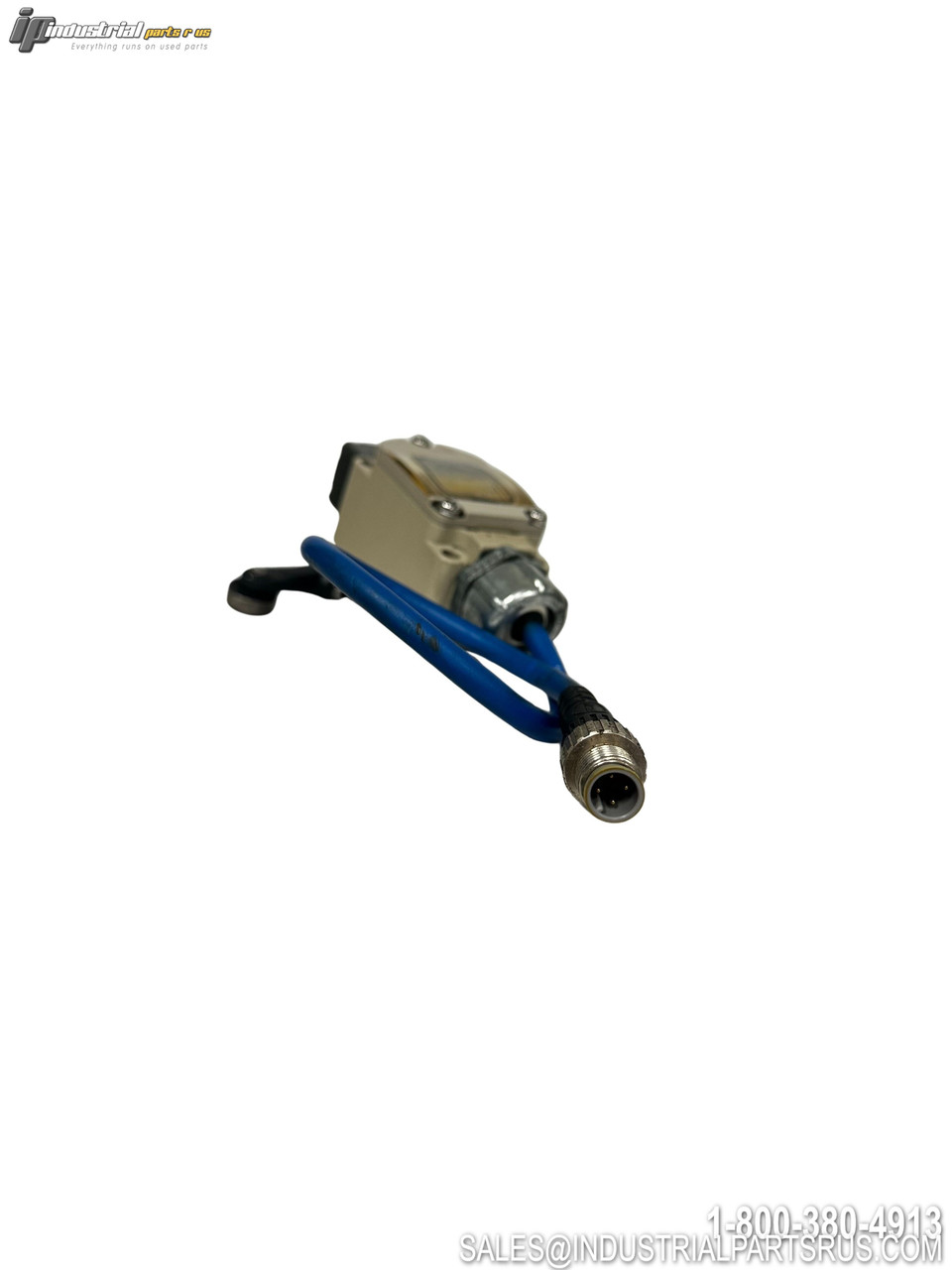

The Omron WLG2-LDS-M1GJ-1 0.3M is a high-sensitivity overtravel limit switch with roller lever actuator and LED operation indicator. This limit switch features SPDT contacts and is designed for reliable operation in industrial automation applications. The switch includes a pre-wired connector with 0.3-meter cable and offers excellent durability with IP67 protection rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | WLG2-LDS-M1GJ-1 |
| Series | WL |
| Actuator Type | Roller Lever (High-Sensitivity Overtravel) |
| Circuit Type | SPDT |
| Contact Rating AC | 5A @ 125VAC |
| Contact Rating DC | 400mA @ 125VDC |
| Voltage Rating AC | 125V |
| Voltage Rating DC | 125V |
| LED Voltage | 10 to 115 VAC/DC |
| Operating Temperature | -10°C to 80°C |
| Operating Force | 1000gf |
| Release Force | 100gf |
| Pretravel | 10° |
| Differential Travel | 7° |
| Overtravel | 65° |
| Cable Length | 0.3m |
| Protection Rating | IP67 |
| Mounting Type | Chassis Mount |
| Termination Style | Cable with Connector |
| Indicator Type | LED |
| Connection Pins | Pin 1, 4 (DC NO Wiring) |
| Features | Spatter Prevention, Status Indicator |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Omron
Part Number WL G2-LDS-M1GJ-1
Shelf K-5
Model WL G2-LDS-M1GJ-1
MPN WL G2-LDS-M1GJ-1
Type Limit Switch
