Product Description

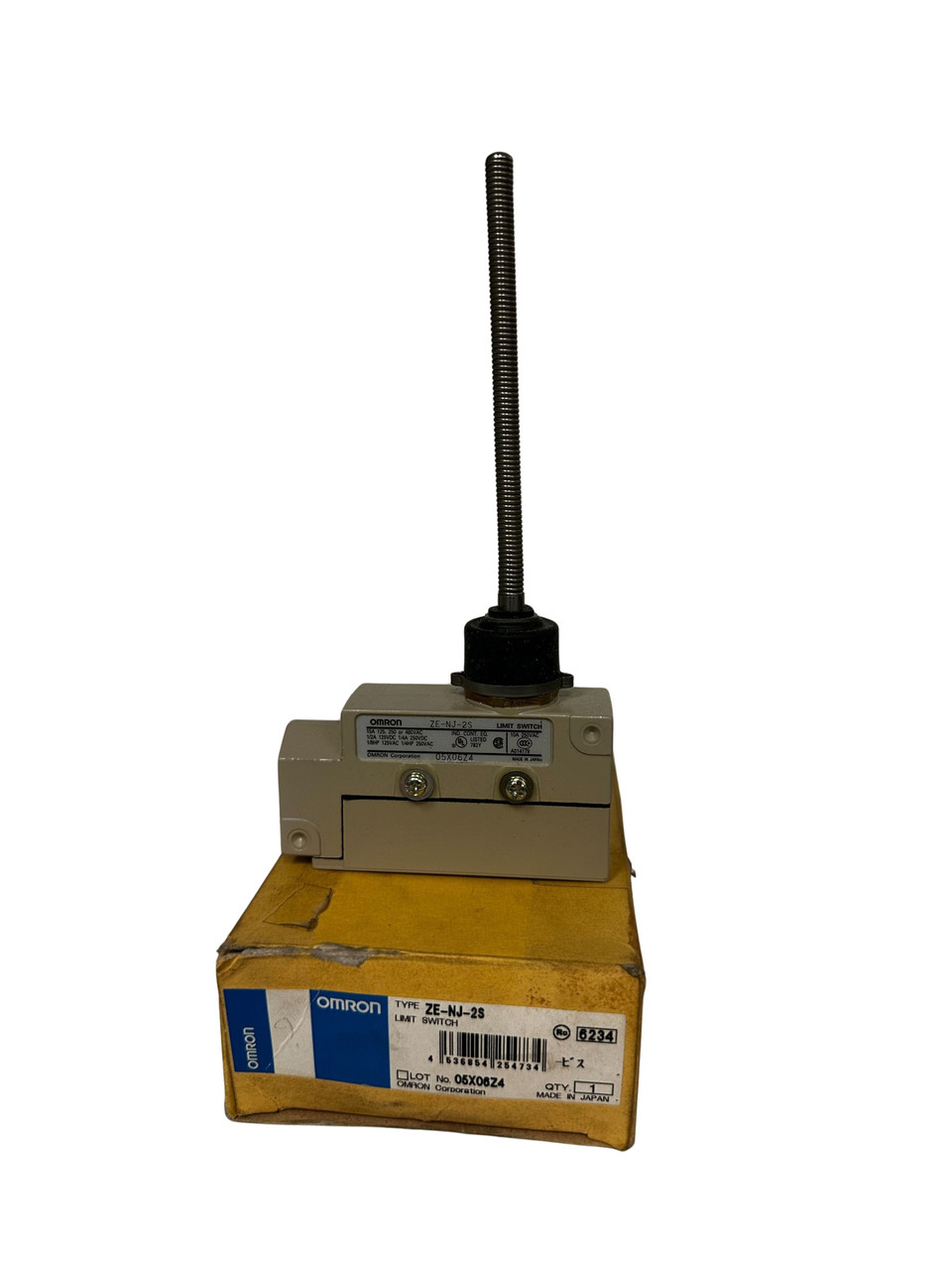

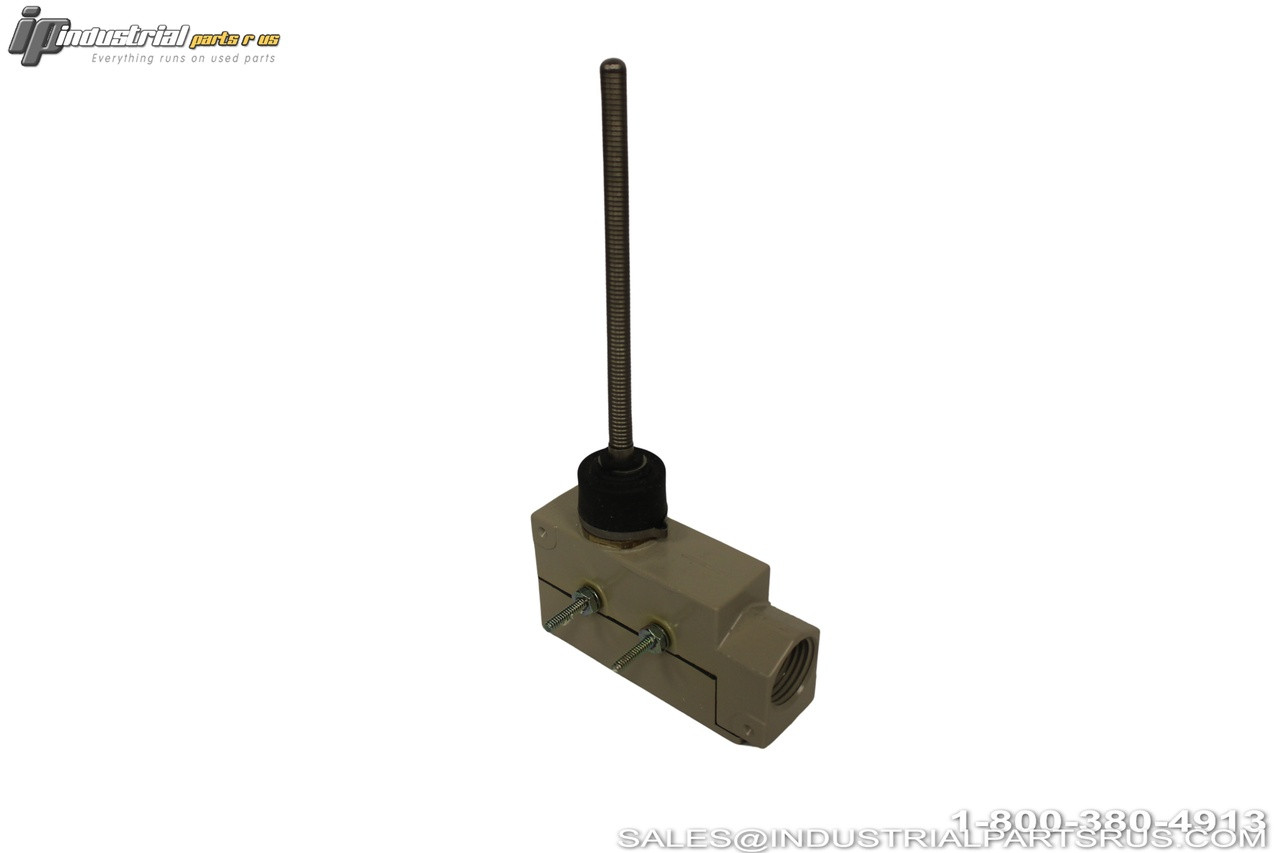

The OMRON ZE-NJ-2S is a heavy-duty enclosed limit switch from the ZE series, designed for industrial applications requiring reliable switching performance. This single-pole double-throw (SPDT) side-mount sealed limit switch features a coil spring actuator and rugged die-cast housing. The ZE series offers large breaking capacity and long service-life with a minimum mechanical life of 10 million operations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | ZE-NJ-2S |
| Series | ZE Series |
| Contact Configuration | SPDT (1NO 1NC) |
| Current Rating AC | 15A |
| Voltage Rating AC | 125-480VAC |
| Voltage Rating DC | 125-250VDC |
| Actuator Type | Sealed Coil Spring (Wobble Stick) |
| Actuator Location | Top |
| Operating Force | 1.47N (0.31 lbf) |
| Contact Resistance | 15 Milliohms Max |
| Mechanical Life | 10 Million Operations |
| Operating Temperature | -10°C to +80°C |
| NEMA Rating | 1, 2, 3, 4, 5 |
| IP Rating | IP65 |
| Connection Type | 1/2-14 NPSM |
| Mounting Type | Side Mount |
| Housing Material | Die-Cast Zinc |
| Mounting Hole Pattern | 25.4mm |
| Actuator Length | 4.55 inches |
| Body Dimensions | 3.39" W x 1.75" H x 1.01" D |
| Pre-Travel | 15 degrees |
| Certifications | UL, CSA, RoHS |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Japan
GTIN 679523686185
Manufacturer Omron
Enclosure Type 1, 2, 3, 4, 5
Part Number ZE-NJ-2S
Shelf K-45
Model ZE-NJ-2S
MPN ZE-NJ-2S
Type Limit Switch
