Product Description

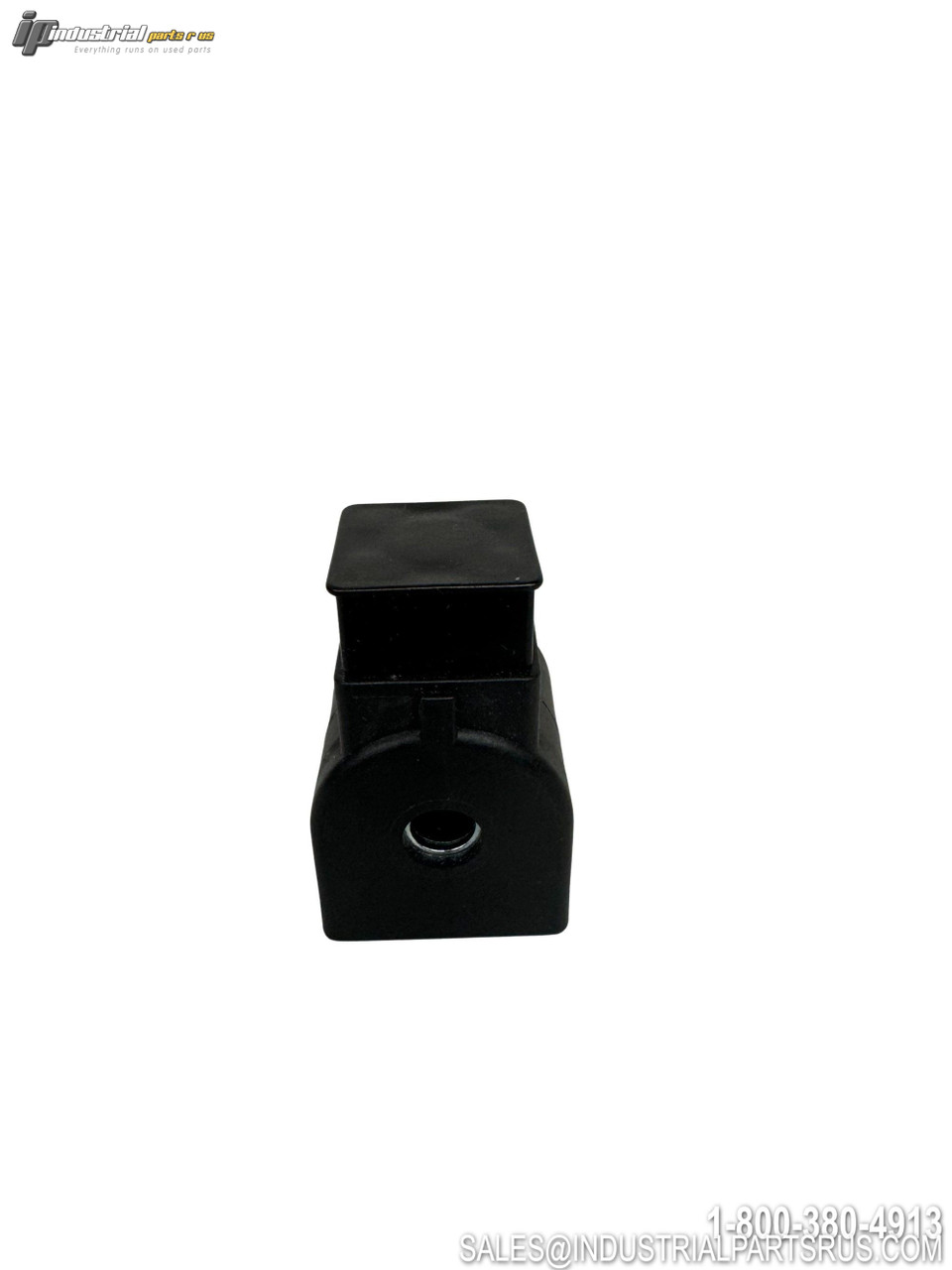

The Parker D100P3 is a solenoid coil designed for use with Parker Skinner 7000 series solenoid valves. This 10-watt coil operates at 120/60 VAC or 110/50 VAC and features Class F insulation with a DIN 43650A connector. The coil provides reliable electromagnetic operation for solenoid valve control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker |
| Model/Part Number | D100P3 |
| Series | Skinner 7000 Series |
| Coil Voltage | 120/60 VAC, 110/50 VAC |
| Power Rating | 10 Watts |
| Frequency | 50/60 Hz |
| Insulation Class | Class F |
| Connection Type | DIN 43650A |
| Connector Size | 30mm 3-Pin DIN |
| Coil Type | 7F Type |
| Enclosure Rating | NEMA 4/4X |
| Construction | Molded Epoxy |
| Industry Standards | ISO 4400, DIN 43650A |
| Certification | UL Recognized |
| Replacement For | 491514P3 |
| Weight | 0.43-0.48 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Parker
Enclosure Type NEMA 4/4X
Part Number D100P3
Shelf K-47
Model D100P3
MPN D100P3
Type Solenoid Valve
