Product Description

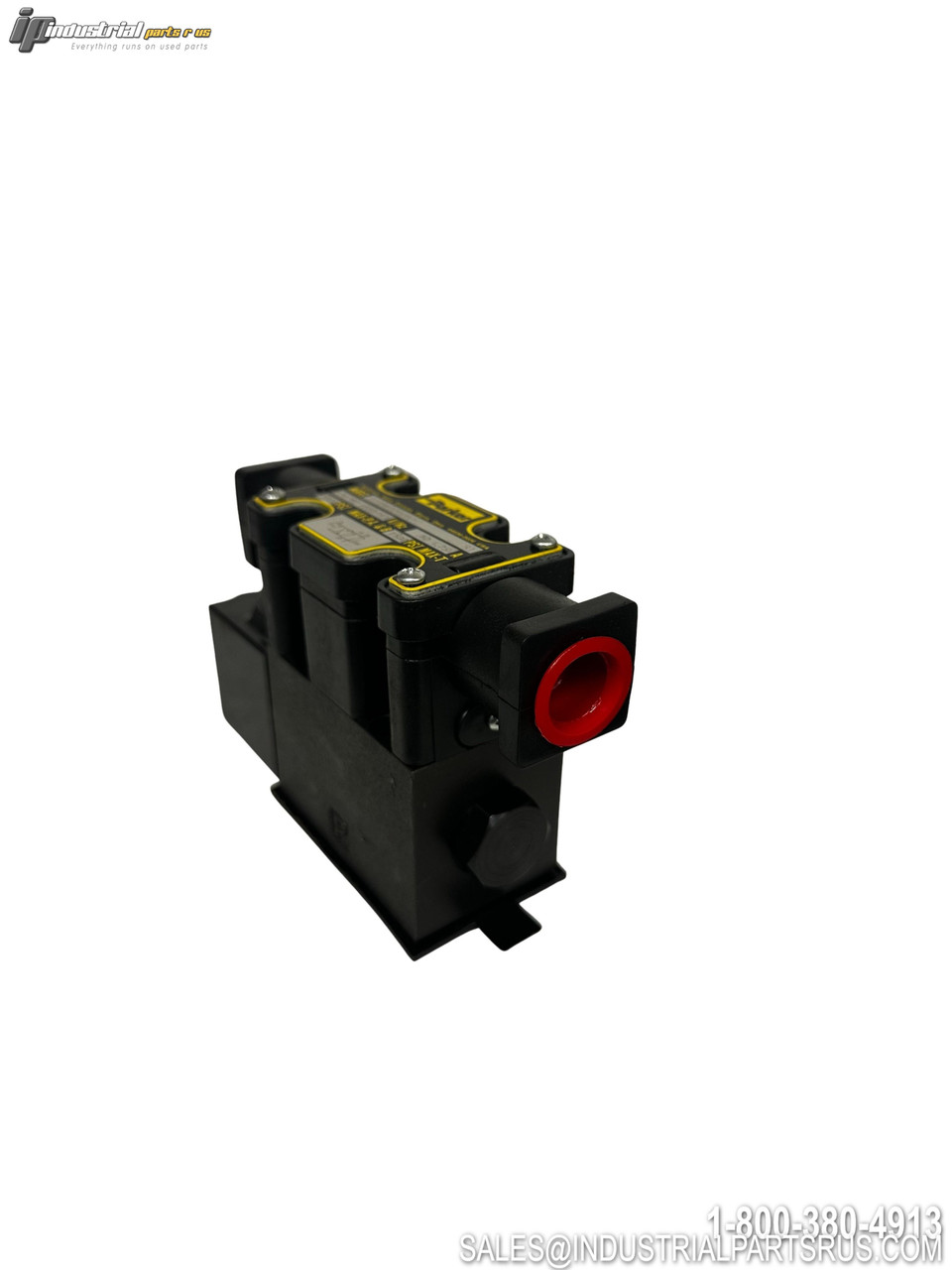

The Parker D1VW020BNYC is a high-performance hydraulic directional control valve from Parker's D1VW series. This single solenoid, 4-way 2-position spring offset valve features wet armature design with P > A flow pattern and conforms to D03 (NG6) mounting standards.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker |
| Model/Part Number | D1VW020BNYC |
| Type | Solenoid Valve |
| Series | D1VW |
| Valve Configuration | 4-way 2-position |
| Actuation Type | Single Solenoid |
| Spring Type | Spring Offset |
| Spool Code | 020 |
| Valve Style Code | B |
| Spool Type | P > A, B > T |
| Coil Voltage | 120VAC |
| Frequency | 50/60 Hz |
| Maximum Operating Pressure | 5000 PSI |
| Maximum Flow Rate | 18 GPM |
| Mounting Pattern | D03 (NG6) |
| Seal Material | Buna-N (Nitrile) |
| Body Material | Ductile Iron |
| Solenoid Connection | 1/2" NPT Conduit |
| Wiring Box Features | Terminal Box with LED Indicator Lights |
| Protection Rating | IP67 / NEMA 4 |
| Armature Design | Wet Armature |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Parker
Part Number D1VW020BNYC
Shelf A-18
Model D1VW020BNYC
MPN D1VW020BNYC
Type Solenoid Valve
