Product Description

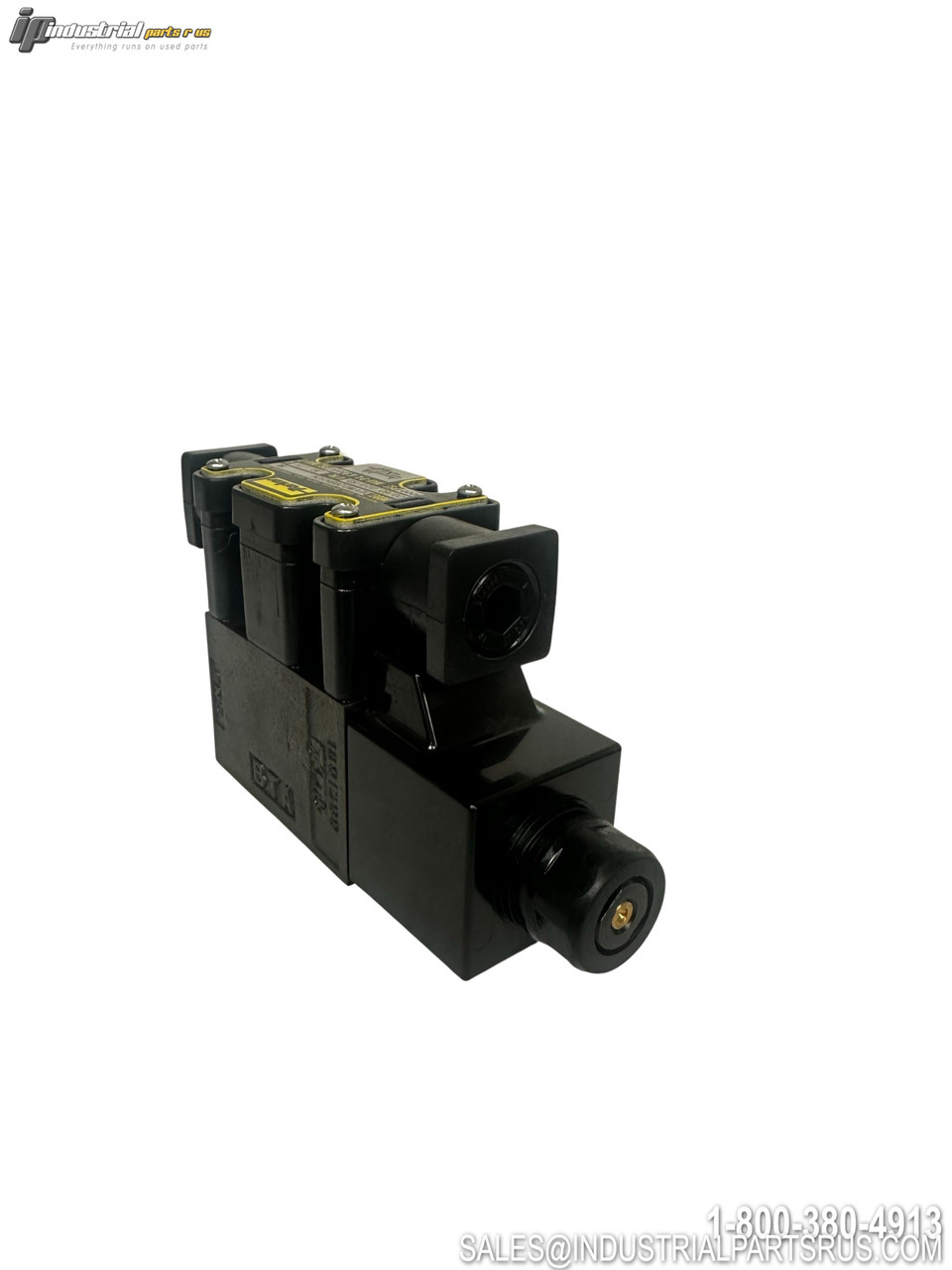

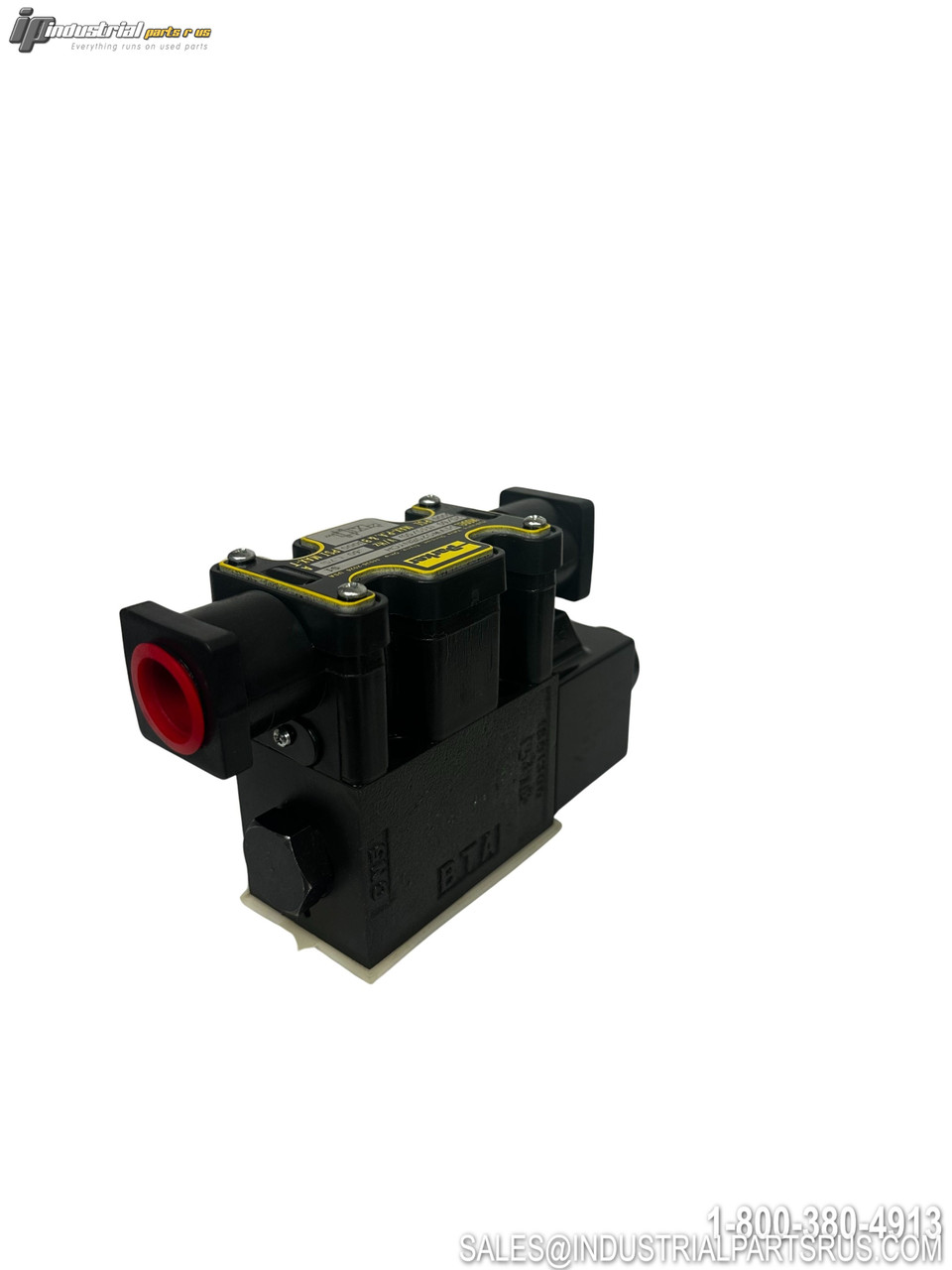

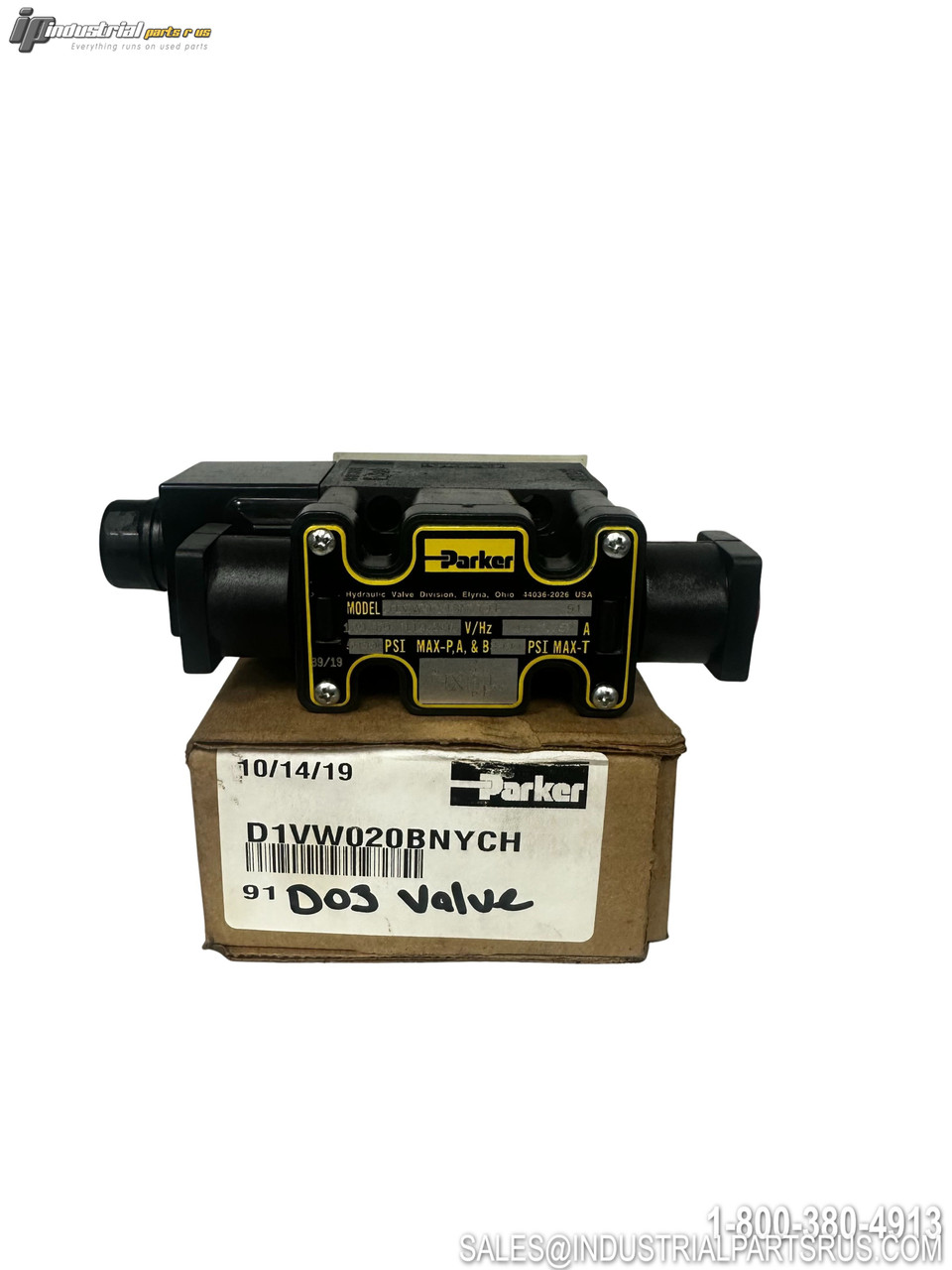

The Parker D1VW020BNYCH is a high-performance directional control hydraulic solenoid valve from the D1VW series. This 4-chamber, direct operated, wet armature solenoid controlled valve features CETOP 03 (NFPA D03) mounting pattern and is designed for demanding hydraulic applications requiring precise flow control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker |
| Model/Part Number | D1VW020BNYCH |
| Type | Hydraulic Valve |
| Series | D1VW |
| Coil Voltage | 120VAC |
| Frequency | 50/60 Hz |
| Maximum Pressure | 5000 PSI |
| Amperage | 0.60A |
| Power | 30W |
| Maximum Flow | 21 GPM |
| Mounting Pattern | CETOP 03 / NFPA D03 |
| Size | NG06 |
| Spool Type | 020B |
| Solenoid Type | Single Solenoid |
| Operation | Direct Acting |
| Armature Type | Wet Pin |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.60A
Equipment Type Hydraulic Valve
Manufacturer Parker
Part Number D1VW020BNYCH
Shelf A-18
Model D1VW020BNYCH
MPN D1VW020BNYCH
Type Hydraulic Valve
