Product Description

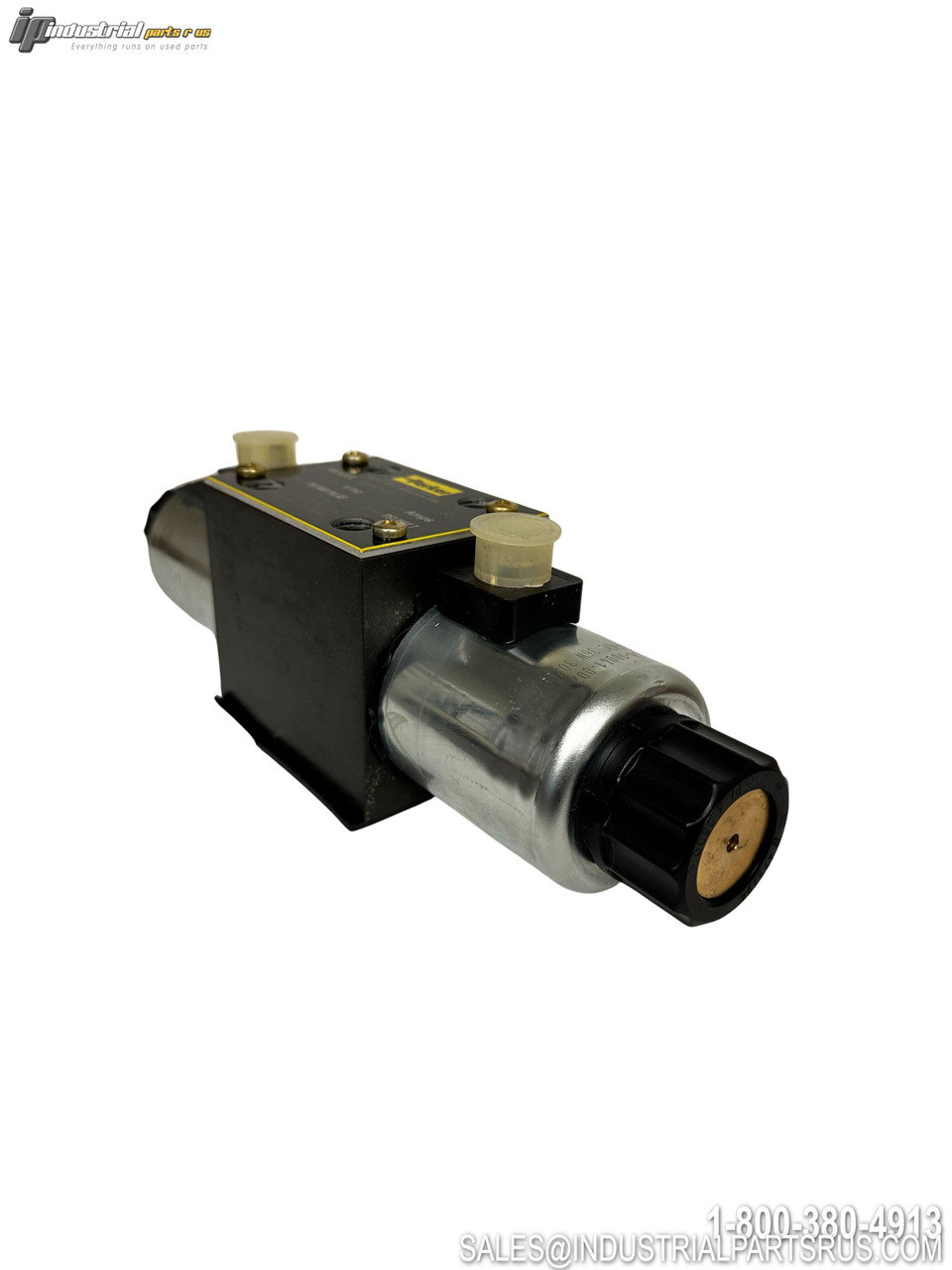

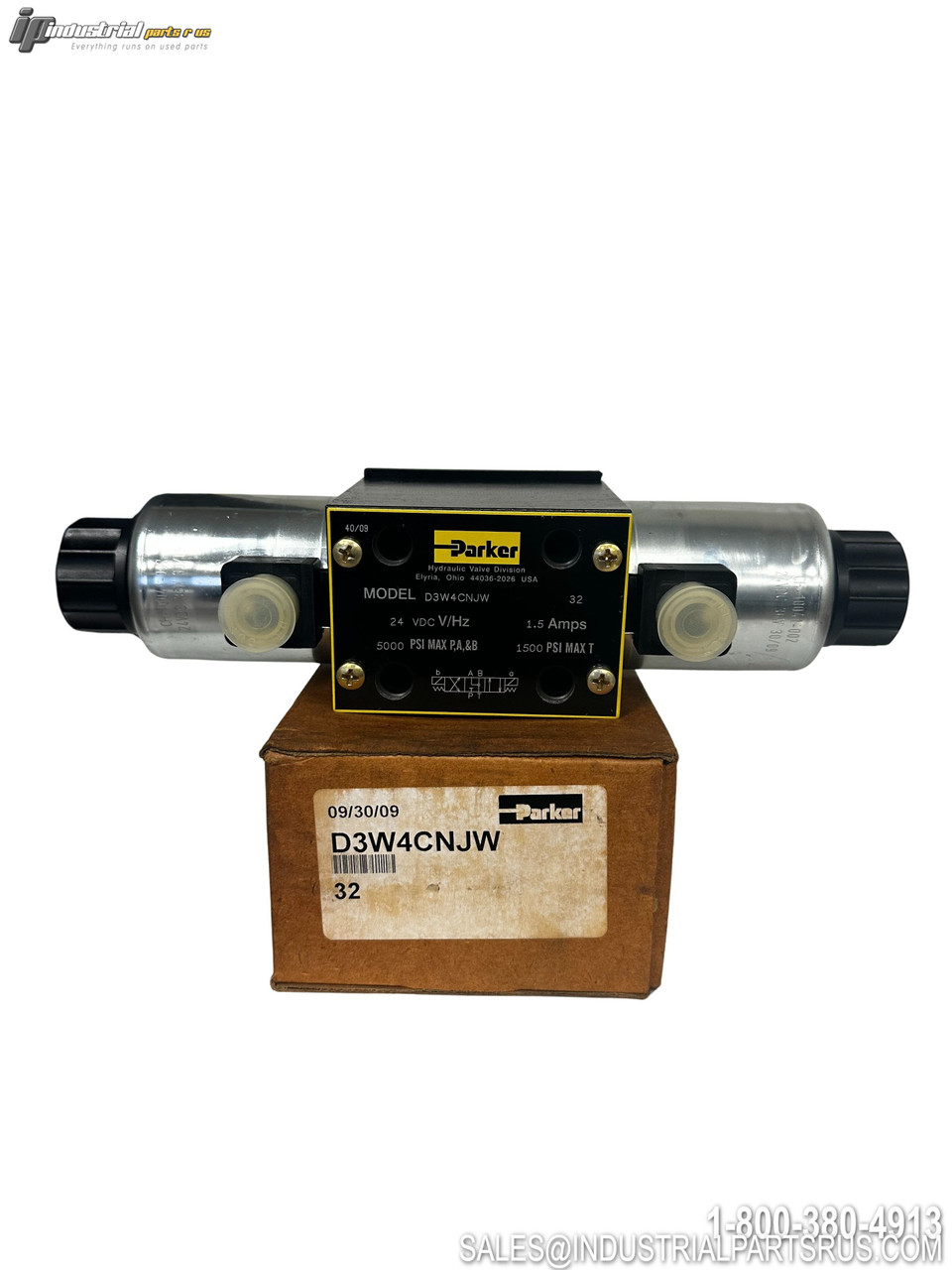

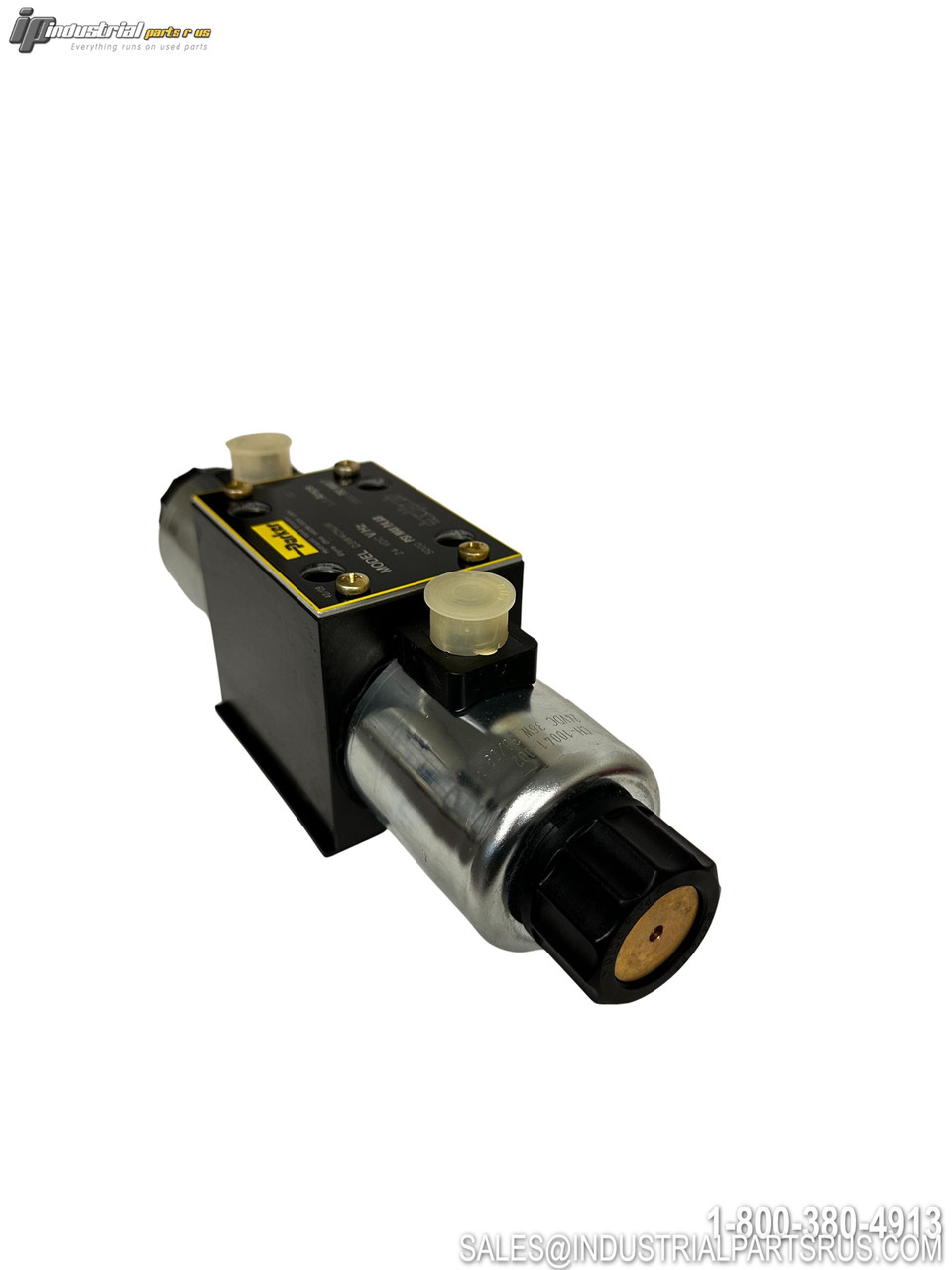

The Parker D3W4CNJW is a high-performance, 4-chamber directional control valve featuring wet armature solenoid operation. This CETOP-5 compliant valve provides 3-position spring centered operation with double solenoid actuation for precision hydraulic control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker |
| Model/Part Number | D3W4CNJW |
| Product Type | Hydraulic Directional Control Valve |
| Series | D3W |
| Mounting Pattern | CETOP-5/NFPA D05/NG10 |
| Valve Operation | Double Solenoid |
| Position Configuration | 3-Position Spring Centered |
| Coil Voltage | 24VDC |
| Maximum Operating Pressure | 345 Bar (5000 PSI) |
| Maximum Flow Rate | 150 L/min (40 GPM) |
| Tank Pressure Rating | 103 Bar (1500 PSI) |
| Seal Material | Nitrile (Buna-N) |
| Connection Type | DIN 43650 w/o Plug |
| Spool Configuration | Spool 4 |
| Weight | 3.00 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Equipment Type Hydraulic Valve
Manufacturer Parker
Part Number D3W4CNJW
Shelf K-48
Model D3W4CNJW
MPN D3W4CNJW
Type Hydraulic Valve
